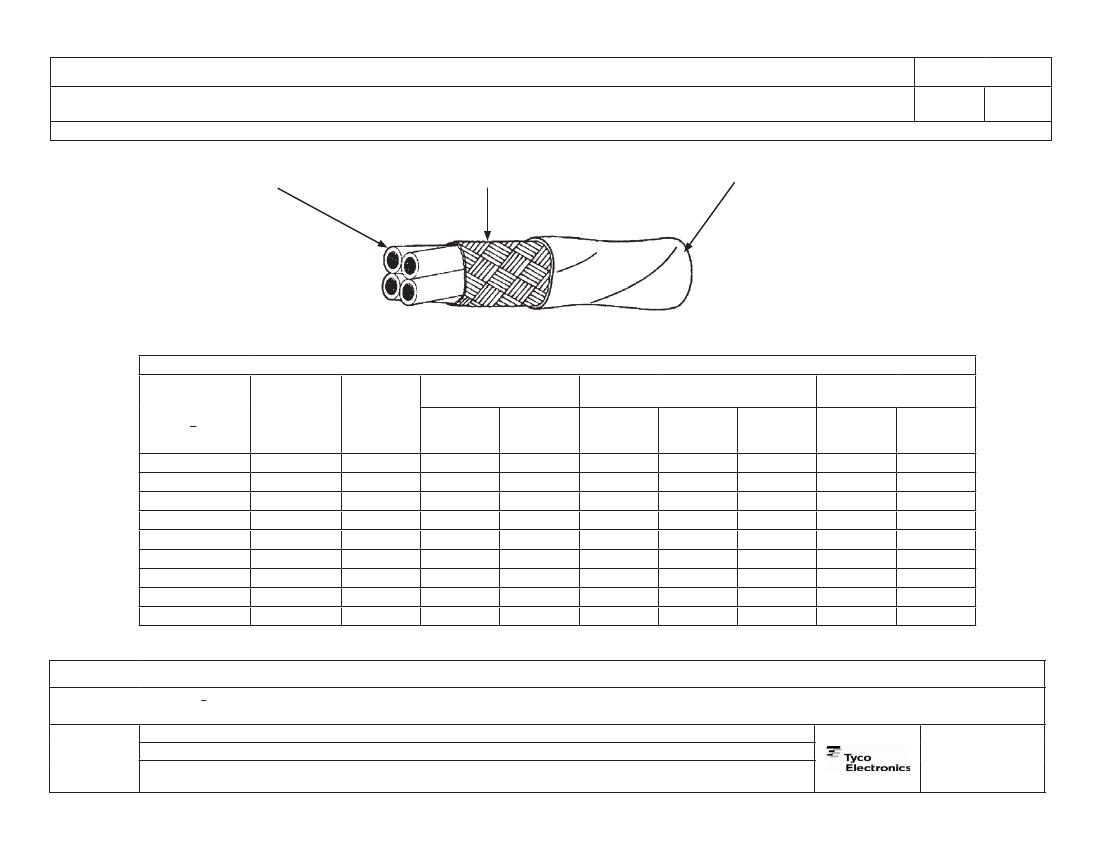

FOUR CONDUCTOR CABLE, SHIELDED, JACKETED, GENERAL PURPOSE, 600 VOLT
This specification sheet forms a part of the latest issue of Raychem Specification 55PC.
JACKET -
RADIATION-CROSSLINKED,
MODIFIED ETFE
2-21-08
Revision
B
COMPONENT WIRES - 55PC0111
SHIELD - TIN-COATED COPPER
CONSTRUCTION DETAILS
CONDUCTOR
SIZE
(AWG)
26
24
22
20
18
16
14
12
10
SHIELD
SIZE
(AWG)
38
38
38
38
38
38
38
38
36
JACKET THICKNESS
( in. )
LOWER
SPEC
LIMIT
.0060
.0060
.0060
.0060
.0065
.0065
.0070
.0075
.0080
TARGET
WALL
.0075
.0080
.0080
.0080
.0085
.0085
.0090
.0095
.0100
LOWER
SPEC
LIMIT
.098
.111
.123
.142
.163
.181
.213
.252
.285
OUTSIDE DIAMETER
( in. )
TARGET
VALUE
.111
.125
.140
.161
.186
.205
.243
.296
.346
UPPER
SPEC
LIMIT
.124
.138
.156
.180
.209
.230
.273
.339
.407
WEIGHT
( lbs/1000 ft. )
TARGET
VALUE
10.86
14.03
18.57
25.67
36.10
44.44
64.85
98.21
152.70
UPPER
SPEC
LIMIT
11.38
14.59
19.19
26.42
37.15
45.52
66.35
105.09
157.77
PART NUMBER
1/
55PC1141-26-*
55PC1141-24-*
55PC1141-22-*
55PC1141-20-*
55PC1141-18-*
55PC1141-16-*
55PC1141-14-*
55PC1141-12-*
55PC1141-10-*
Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice.
Tyco Electronics also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer.
1/
COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. HOWEVER, DUE TO LENGTH LIMITATIONS OF THE RAYCHEM PART NUMBER,
AN ALTERNATIVE COLOR CODE MAY REPLACE MIL-STD-681 COLOR CODE DESIGNATORS. (EXAMPLE: “901/902...” MAY BE REPLACED BY “Axxx”.)
OTHER CODES AND SUFFIXES MAY BE ADDED TO THE PART NUMBER, AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER.
The TE logo, Tyco Electronics and Raychem are trademarks.
