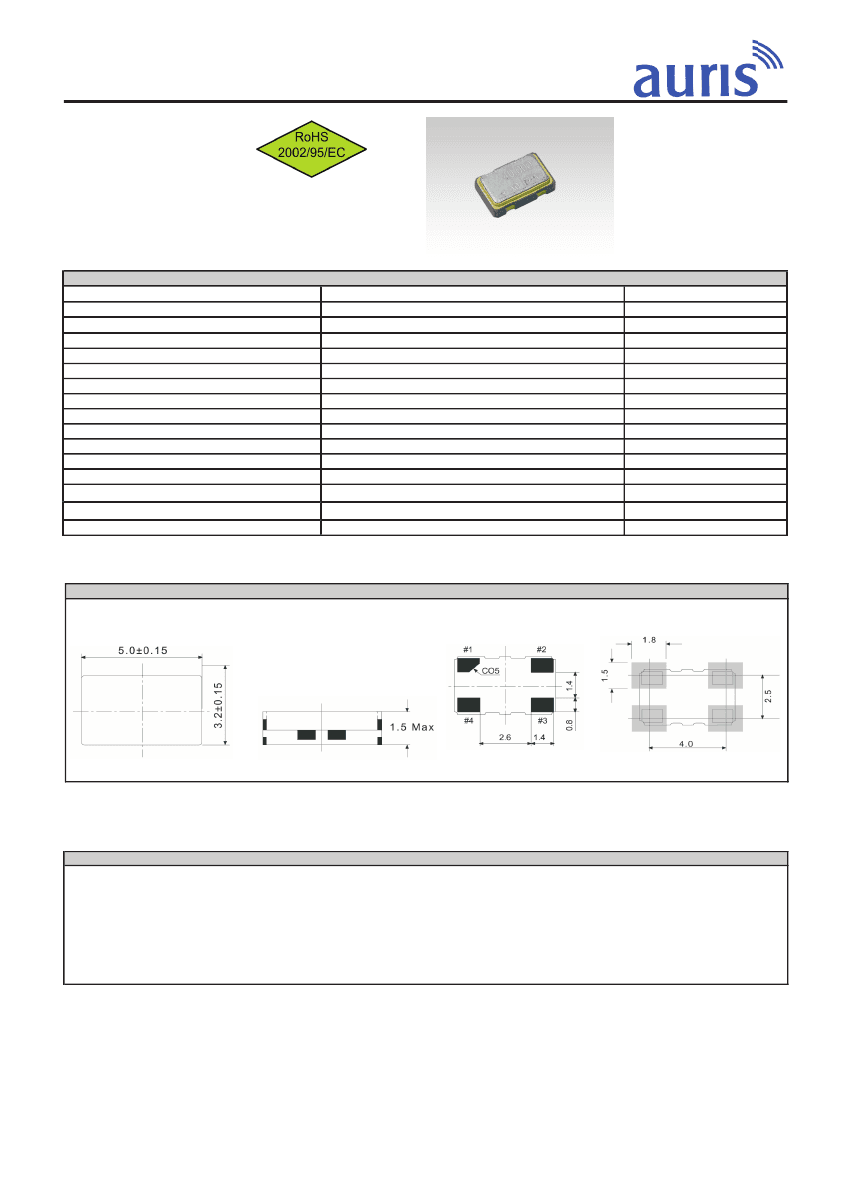

Oscillator SMD, voltage-controlled, temperature-compensated
AVCTCQO 5032
Features:
- Small Size 5x3.2m
- For cellular phones and GPS
- High accuracy
Specifications
Frequency range
Nominal frequency
Frequency tolerance
Frequency vs temperature
Frequency vs aging
Frequency vs supply voltage
External control voltage Vc =
Frequency tuning range
Operating temperature
Storage temperature
Supply voltage
Current Consumption
Output load
Output voltage
Waveform
AVCTCQO 5032
12MHz ~ 20MHz
13.0 / 14.4 / 19.2 / 19.68 MHz
±0.5 ppm
±2.5 ppm (-30°C ~ +75°C)
±1.0 ppm / year (25°C)
±0.2 ppm / (+3.0V ±5%)
+1.5V ±1.0Vdc
±8.0 ppm min (positive)
-30°C ~ +75°C
-40°C ~ +85°C
+2.7V ~ +5.0V
2mA
10K Ohm / 10pF
0.8Vp-p
Clipped Sine W ave
Remarks
Please specify
Max
Min
Drawing
AVCTCQO 7050
Soldering Pattern
Dimensions in mm
Order key
O
Part
O=Oscillator
- 20.000000M
Frequency
M=MHz
- AVCTCQO 5032
Type/Package
AVCTCQO=Voltage compensated,
Temperature controlled QO
5032=5x3,2mm
- 0,5
Tolerance
±ppm
- 5.0
Voltage
5,0=5,0Volt
2,7=2,7Volt
3,0=3,0Volt
-E
Temperature
D= -20°C ~ +70°C
E= -40°C ~ +85°C
K= -30°C ~ + 75°C
S= special
- TR
Option
TR=Tape and reeled
X=Special options
auris-GmbH
office@auris-gmbh.de www.auris-gmbh.de
All specifications are subject to change without notice.
4.10
