SH9SLM6B064GJSI01 datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> SH9SLM6B064GJSI01

SH9SLM6B064GJSI01: DescriptionFlash Memory Drive, 510MBps, CMOS, MODULE-22; CategoryThe embedded processor and controller Microcontrollers and processors; File Size484KB，30 Pages; ManufacturerSMART Modular Technology Inc; Environmental Compliance

Download Datasheet Parametric Compare View All

SH9SLM6B064GJSI01 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SH9SLM6B064GJSI01	-	-	View	Buy Now

SH9SLM6B064GJSI01 Overview

Flash Memory Drive, 510MBps, CMOS, MODULE-22

SH9SLM6B064GJSI01 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SMART Modular Technology Inc
package instruction	,
Reach Compliance Code	unknown
Maximum data transfer rate	510 MBps
Maximum host data transfer rate	750 MBps
Host interface standard	ATA
JESD-30 code	R-XSMA-N22
length	54 mm
Number of terminals	22
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum seat height	4 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	NO LEAD
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
width	39 mm
uPs/uCs/peripheral integrated circuit type	SECONDARY STORAGE CONTROLLER, FLASH MEMORY DRIVE
Base Number Matches	1

Preview

Download Datasheet

View All

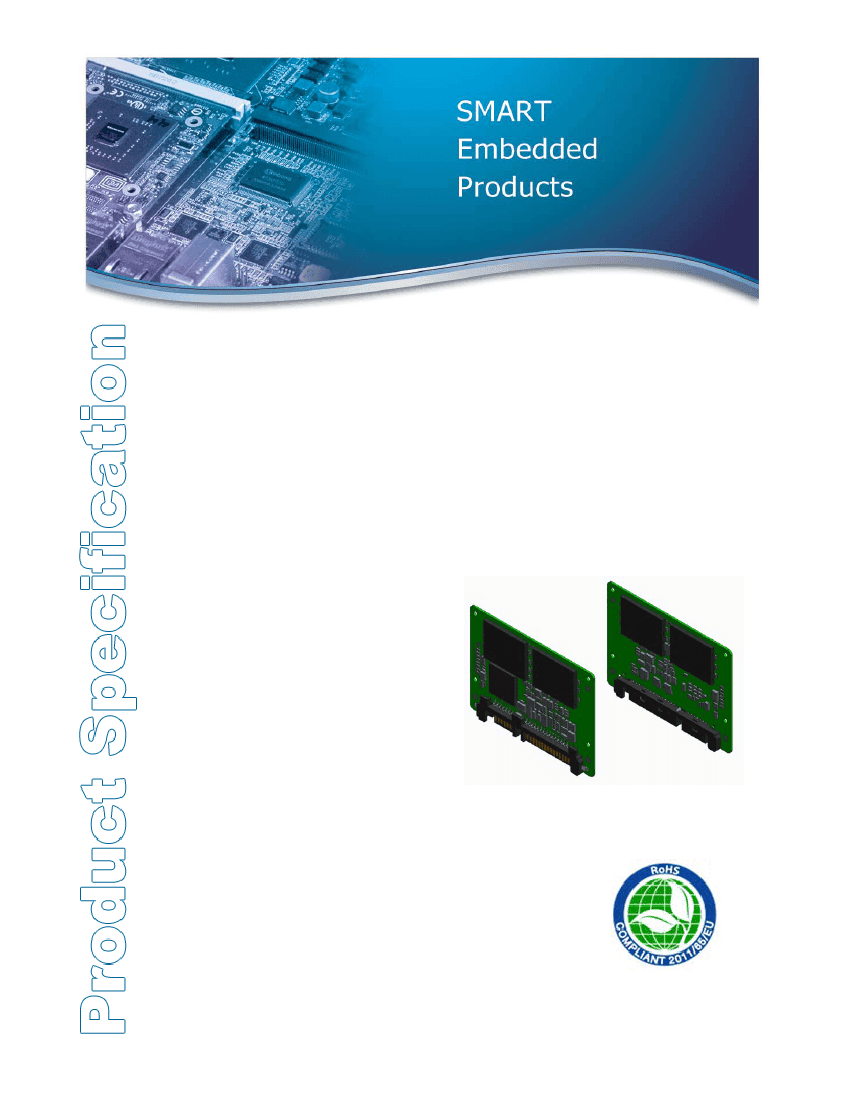

SMART MODULAR
