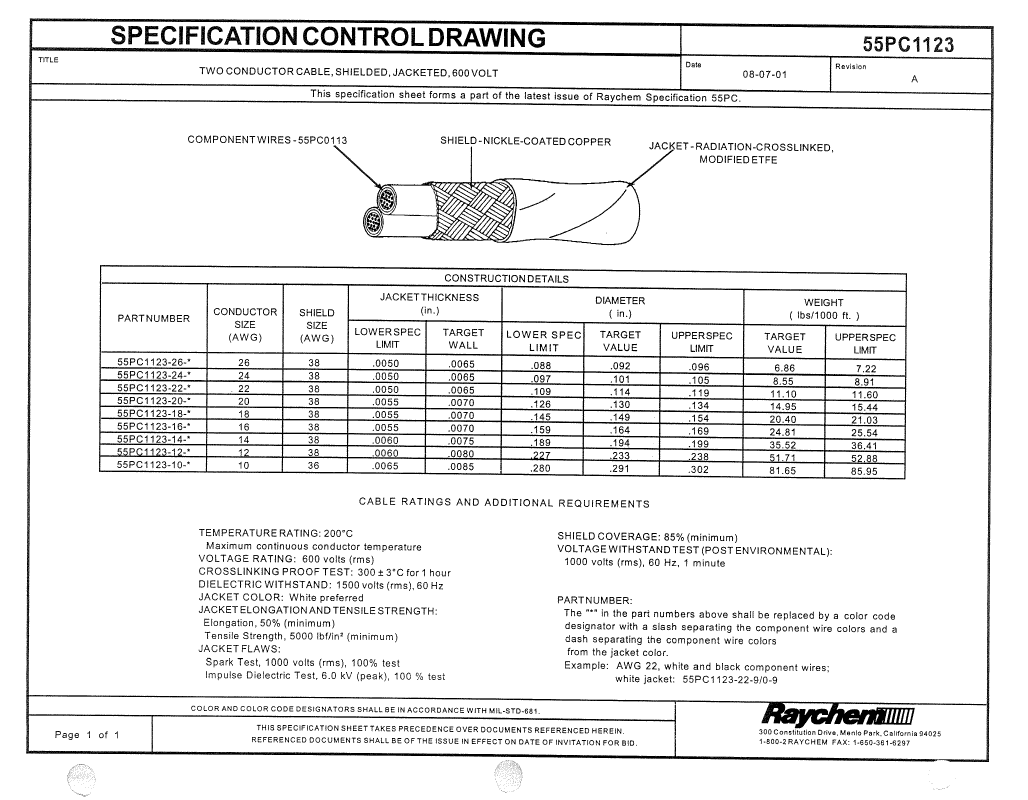

55PC1123-20-9/96-9 datasheet, PDF

55PC1123-20-9/96-9: Description55PC1123-20-9/96-9; CategoryWire/cable; File Size93KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

55PC1123-20-9/96-9 Overview

55PC1123-20-9/96-9

Parameter Name	Attribute value
Cable type	Spec 55
Cable type	Sheathed shield winding braid
Product Categories	High Performance - Sizes 44, 55 and RCW
Number of conductors	2
Rated voltage (V)	600
shielding material	nickel plated copper, nickel plated copper
Insulating sleeve color	White
Wire color	White, white with blue stripes
conductor material	nickel plated copper, nickel plated copper
Shield size (AWG)	38
Overall outer diameter	3.3 mm [ .1299 in ]
Wire size (AWG)	20
Wire diameter	1.26 mm [ .0495 in ]
Operating temperature range (°C)	-65 – 200
Wire source	USA

	55PC1123-20-9/96-9	55PC1123-18-9/96-9
Description	55PC1123-20-9/96-9	55PC1123-18-9/96-9
Product Categories	High Performance - Sizes 44, 55 and RCW	High Performance - Sizes 44, 55 and RCW
Number of conductors	2	2
Rated voltage (V)	600	600
shielding material	nickel plated copper, nickel plated copper	nickel plated copper, nickel plated copper
Insulating sleeve color	White	White
Wire color	White, white with blue stripes	White, white with blue stripes
conductor material	nickel plated copper, nickel plated copper	nickel plated copper, nickel plated copper
Shield size (AWG)	38	38
Overall outer diameter	3.3 mm [ .1299 in ]	3.78 mm [ .149 in ]
Wire size (AWG)	20	18
Wire diameter	1.26 mm [ .0495 in ]	1.5 mm [ .059 in ]
Operating temperature range (°C)	-65 – 200	-65 – 200
Wire source	USA	USA
Cable type	Sheathed shield winding braid	Sheathed shield winding braid
