PART NUMBER
597-3005-502F,507F
597-3035-502F,507F
597-3045-502F,507F
597-3205-502F,507F
597-3405-502F,507F
597-3505-502F,507F
LED COLOR
RED (630nm)
RED (620nm)
RED-ORANGE
ORANGE
YELLOW
REV
A
ECN NO
REVISIONS
NEW RELEASE
DRN CKD APP
BP
NO
DATE
3-22-18
YELLOW-GRN
0.063
[1.6]
0.047
[1.2]
0.031 0.020
[0.8] [0.5]
0.006
[0.15]
UNITS: mm
TOLERANCE (UNLESS OTHERWISE SPECIFIED): ±0.2mm
0.011
[0.28]
TAPING SPECIFICATIONS
0.022
[0.55]
ABSOLUTE MAXIMUM RATINGS AT 25 $ C
LED COLOR
RED (630nm)
POWER
DISSIPATON
(mW)
FORWARD
CURRENT
(mA)
PEAK FORWARD
CURRENT
(mA)
REVERSE
VOLTAGE
(V)
OPERATING
TEMPRATURE
( $ C)
STORAGE
TEMPRATURE
( $ C)
0.007
[0.18]
RED (620nm)
0.059
[1.5]
RED-ORANGE
ORANGE
YELLOW
84
35
100
5
-40 TO +100 -40 TO +100
YELLOW-GREEN
87
0.025
[0.65]
OPERATING CHARACTERISTICS AT 25 $ C
LED COLOR
IF (mA)
LUMINOUS
INTENSITY
(mcd)
MIN
71
90
20
112
180
56
TYP
112
140
224
71
90
MIN
627
617
612
603
588
569
DOMINANT
WAVELENGTH
(nm)
TYP.
630
620
615
605
590
571
MAX
633
623
618
607
592
573
10 @ VR=5V
REVERSE
CURRENT
MAX
FORWARD
VOLTAGE
TYP.
2 @ IF=20mA
CATHODE
0.031
[0.8]
RED (630nm)
RED (620nm)
RED-ORANGE
ORANGE
YELLOW
YELLOW-GREEN
2.1 @ IF=20mA
RECOMMENDED RoHS SOLDER PROFILE
.031
[0,8 ]
.033
[0,85 ]
PIN 1
CATHODE
PIN 2
ANODE
LED SCHEMATIC
NOTES:
1. DIALIGHT P/N: 597-3XX5-50XF
SUFFIX -502F FOR 20 PCS ON A SAMPLE TAPE STRIP
SUFFIX -507F FOR 7" DIAMETER REEL, PACKAGED 3000 PCS PER REEL.
2. LABELING FOR REEL AND OUTSIDE OF ALUMINUM FOIL BAG:
DIALIGHT P/N, QUANTITY PER REEL, DATE CODE, INTENSITY BIN CODE,
LOT NUMBER AND COUNTRY OF ORIGIN.
3. TAPE AND REEL LEDS MAY REQUIRE RE-TAPING AFTER TWELVE MONTHS.
4. ESD WITHSTAND VOLTAGE 4000V MAX ACC. TO JS-001-2014
5. MSL LEVEL 3
THIS DRAWING AND THE CONTENTS HEREIN ARE CONFIDENTIAL AND THE SOLE
PROPERTY OF DIALIGHT CORP. REPRODUCTION OF THIS DRAWING OR
CONSTRUCTION OF ANY PARTS WITHIN THIS DRAWING ARE FORBIDDEN WITHOUT
THE WRITTEN CONSENT OF DIALIGHT CORP.
SCALE: 25.000
DIALIGHT CORP INTERNAL REFERENCE ONLY = 3D MODEL :
DRAWING NUMBER
5975006507F-.0
REV
ALL DIM'S IN: INCHES (MM)
TOLERANCES:
UNLESS OTHERWISE SPECIFIED
FRACTIONS:
DECIMALS (.XX):
# 1/64
TITLE
# .005
MATERIAL
# .01
C-18369

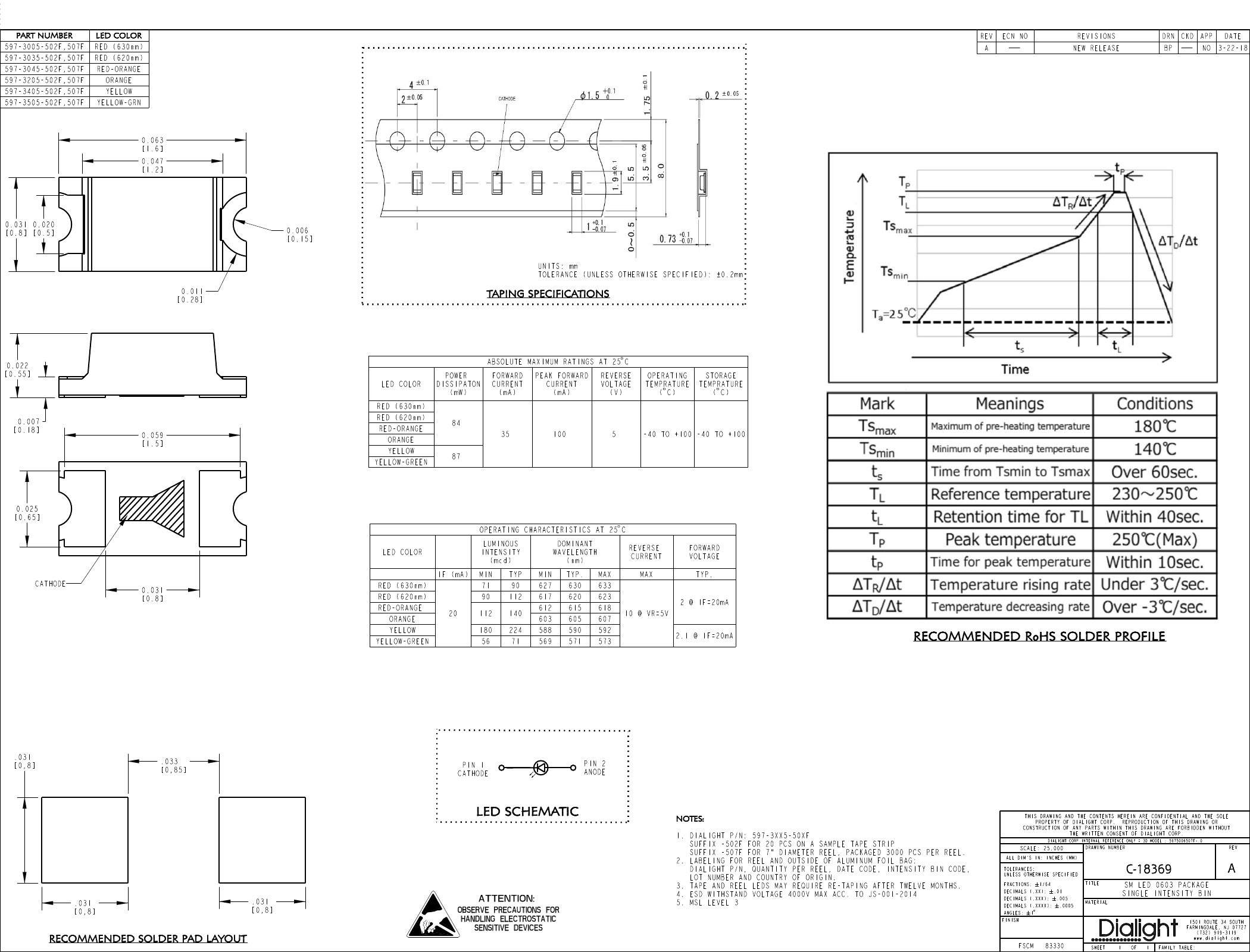

SM LED 0603 PACKAGE
SINGLE INTENSITY BIN
A
.031
[0,8 ]
.031
[0,8 ]
RECOMMENDED SOLDER PAD LAYOUT
OBSERVE PRECAUTIONS FOR
HANDLING ELECTROSTATIC
SENSITIVE DEVICES
ATTENTION:
DECIMALS (.XXX):
ANGLES:
# 1 $
DECIMALS (.XXXX):
FINISH
# .0005
FSCM
83330
1501 ROUTE 34 SOUTH
FARMINGDALE, NJ 07727
(732) 919-3119
www.dialight.com
SHEET
1
OF
1
FAMILY TABLE:
