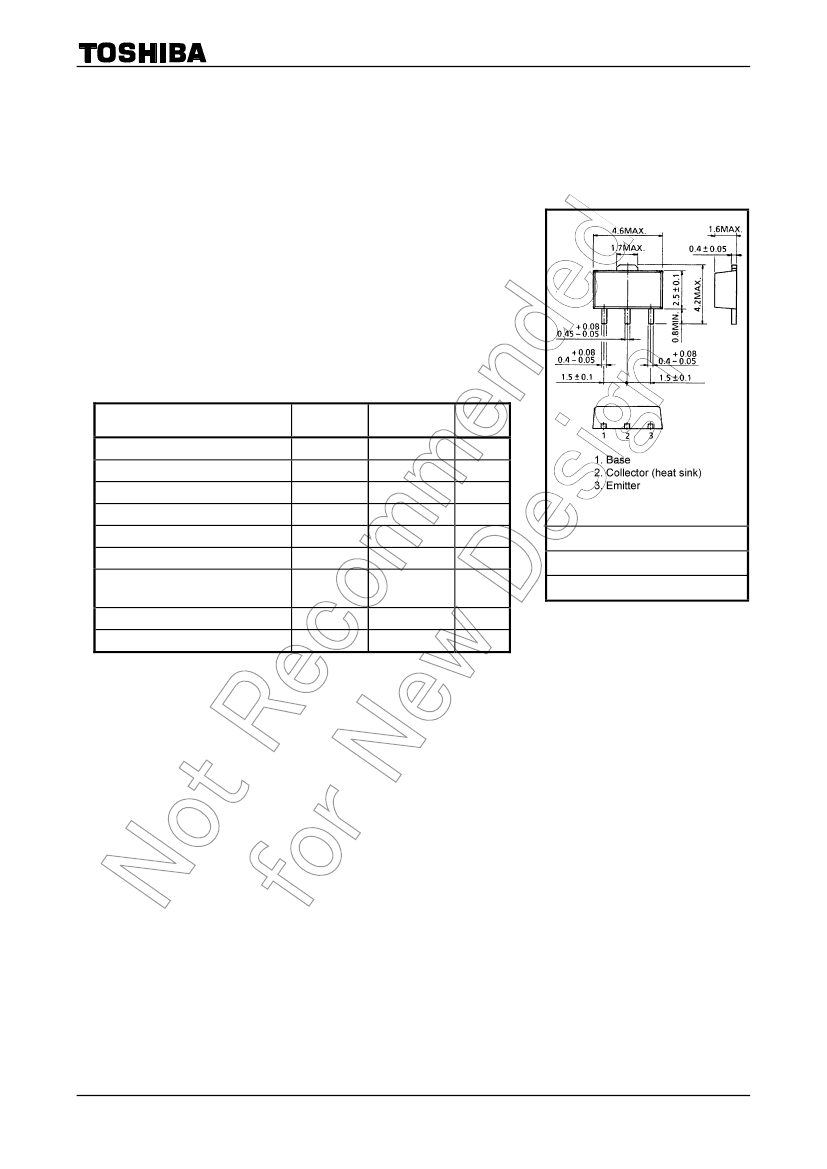

2SC4540
TOSHIBA Transistor
Silicon NPN Epitaxial Type (PCT process)
2SC4540
Power Amplifier Applications
Power Switching Applications
•
•
•
•
•
Low saturation voltage: V
CE (sat)
= 0.5 V (max) (I
C
= 500 mA)
High speed switching time: t
stg
= 0.4
μs
(typ.)
Small flat package
P
C
= 1.0 to 2.0 W (mounted on a ceramic substrate)
Complementary to 2SA1735
Unit: mm
Absolute Maximum Ratings
(Ta = 25°C)
Characteristics
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Collector power dissipation
Collector power dissipation
Junction temperature
Storage temperature range
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
B
P
C
P
C
(Note 1)
T
j
T
stg
Rating
80
50
6
1
0.2
500
1000
150
−55
to 150
Unit
V
V
V
A
A
mW
mW
°C
°C
JEDEC
JEITA
TOSHIBA
―
SC-62
2-5K1A
Weight: 0.05 g (typ.)
Note 1: Mounted on a ceramic substrate (250 mm
2
× 0.8 t)
Note 2: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly
even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute
maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/Derating Concept and Methods) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
1
2009-12-21

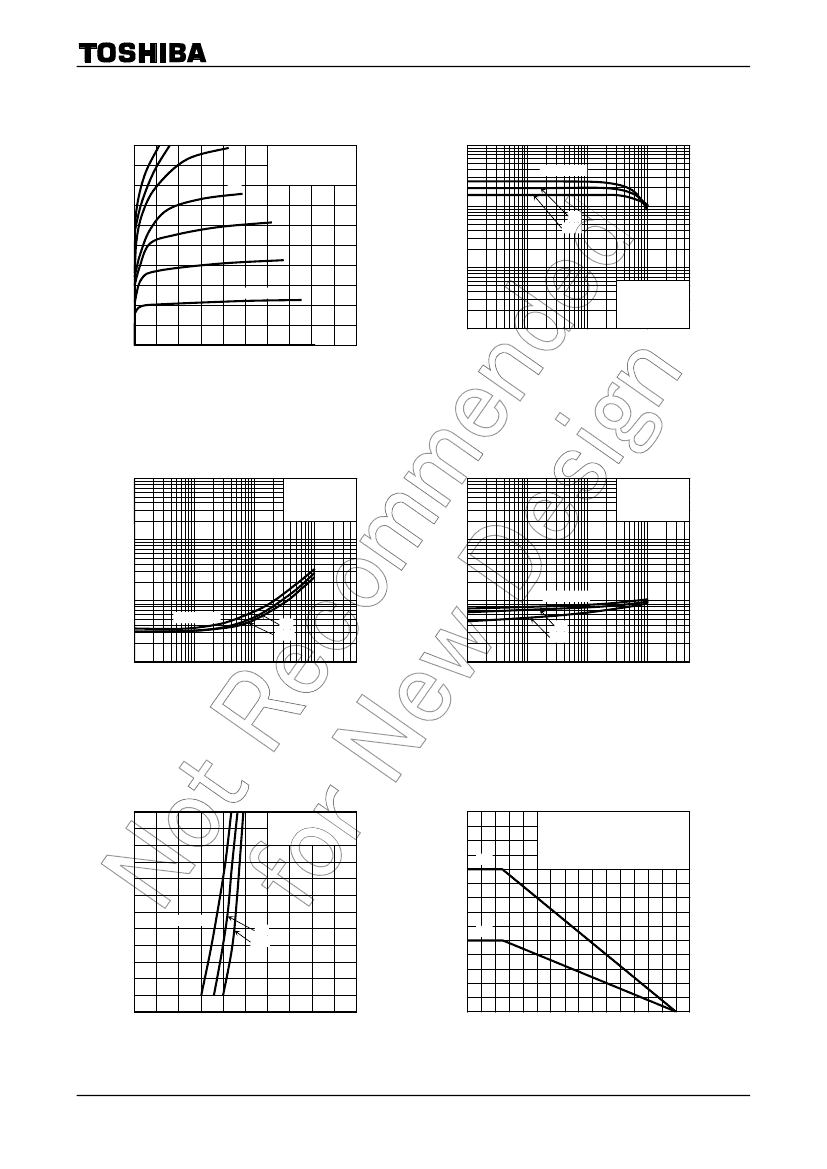

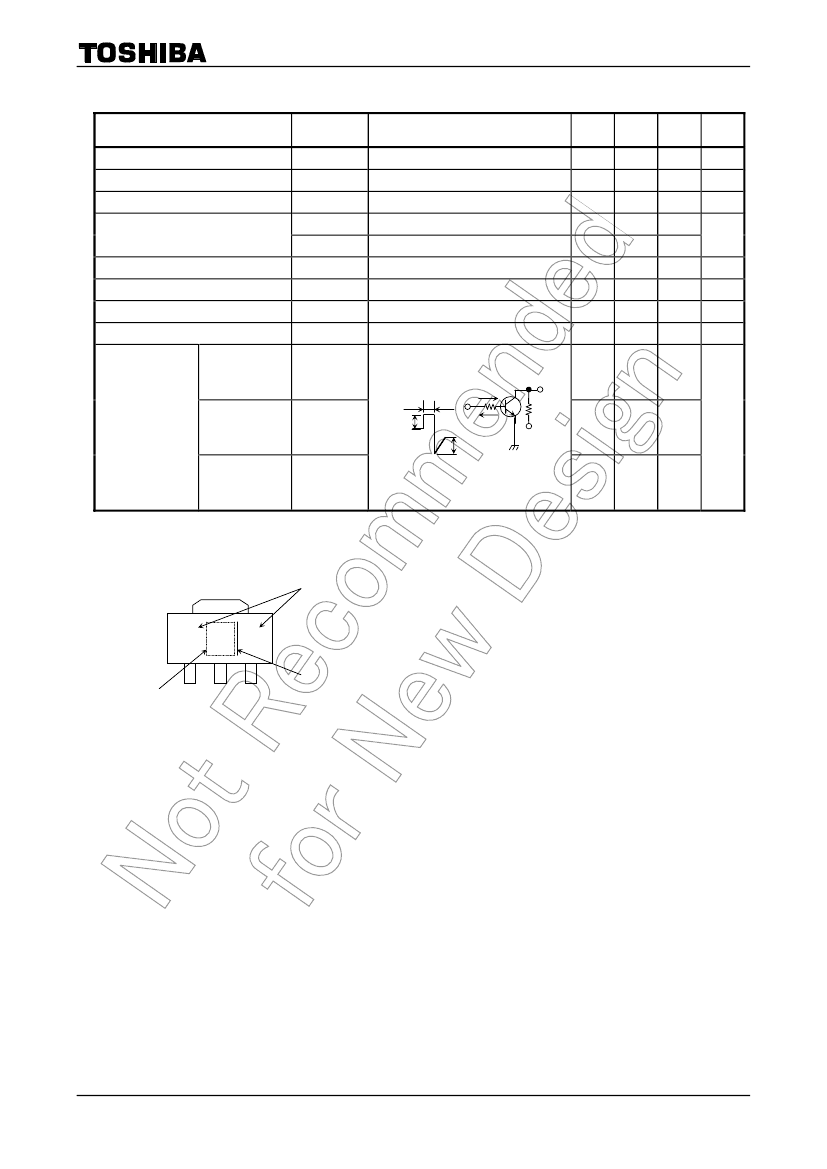

2SC4540
