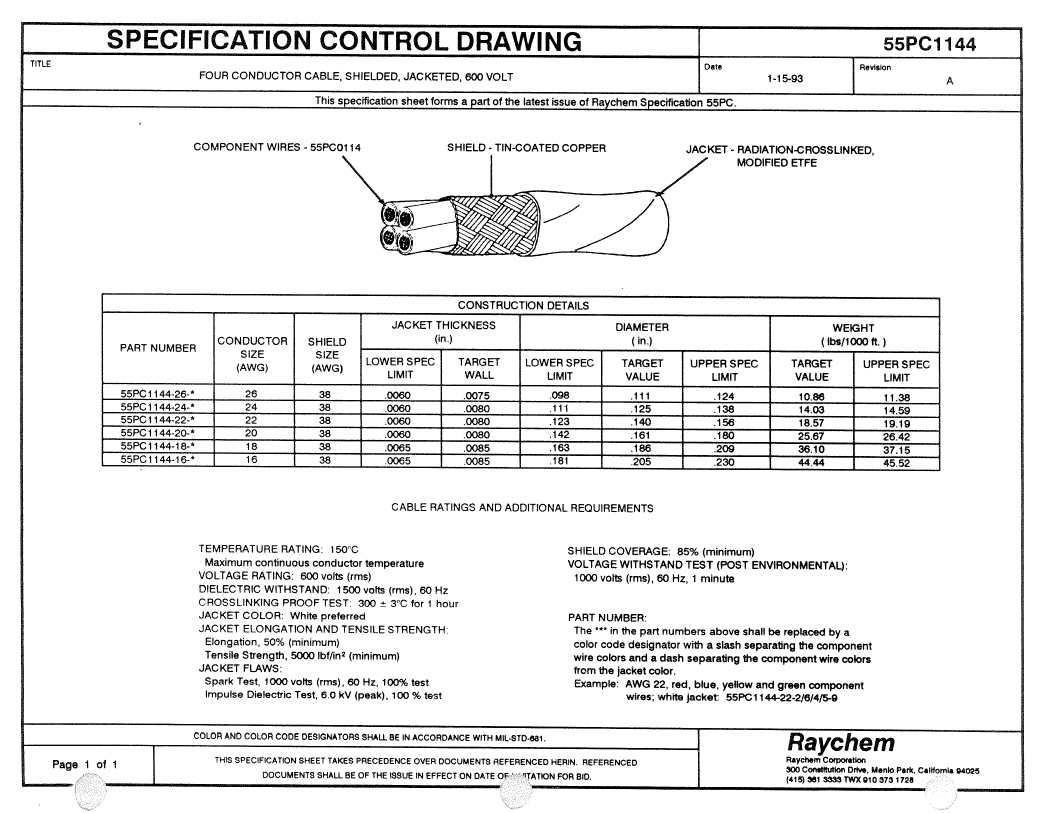

55PC1144-24-3/5/6/9-9: Description55PC1144-24-3/5/6/9-9; CategoryWire/cable; File Size98KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

55PC1144-24-3/5/6/9-9 Overview

55PC1144-24-3/5/6/9-9

Parameter Name	Attribute value
Cable type	Spec 55
Cable type	Sheathed shield winding braid
Product Categories	High Performance - Sizes 44, 55 and RCW
Number of conductors	4
Rated voltage (V)	600
shielding material	tinned copper, tinned copper
Insulating sleeve color	White
Wire color	Orange, green, blue, white
conductor material	Silver-plated high-strength copper alloy
Shield size (AWG)	38
Overall outer diameter	3.18 mm [ .125 in ]
Wire size (AWG)	24
Wire diameter	.9 mm [ .0355 in ]
Operating temperature range (°C)	-65 – 200
Wire source	USA

	55PC1144-24-3/5/6/9-9	55PC1144-24-3/5/6/9-3	55PC6024-20-2/4/5/6-9-9
Description	55PC1144-24-3/5/6/9-9	55PC1144-24-3/5/6/9-3	55PC6024-20-2/4/5/6-9-9
Product Categories	High Performance - Sizes 44, 55 and RCW	High Performance - Sizes 44, 55 and RCW	High Performance - Sizes 44, 55 and RCW
Number of conductors	4	4	4
Rated voltage (V)	600	600	600
shielding material	tinned copper, tinned copper	tinned copper, tinned copper	tinned copper, tinned copper
Insulating sleeve color	White	orange color	white, white
Wire color	Orange, green, blue, white	Orange, green, blue, white	red, yellow, green, blue
conductor material	Silver-plated high-strength copper alloy	Silver-plated high-strength copper alloy	tinned copper, tinned copper
Shield size (AWG)	38	38	38
Overall outer diameter	3.18 mm [ .125 in ]	3.18 mm [ .125 in ]	5.28 mm [ .208 in ]
Wire size (AWG)	24	24	20
Wire diameter	.9 mm [ .0355 in ]	.9 mm [ .0355 in ]	1.37 mm [ .054 in ]
Operating temperature range (°C)	-65 – 200	-65 – 200	-65 – 150
Wire source	USA	USA	USA
Cable type	Sheathed shield winding braid	Sheathed shield winding braid	Sheathed shield winding braid
