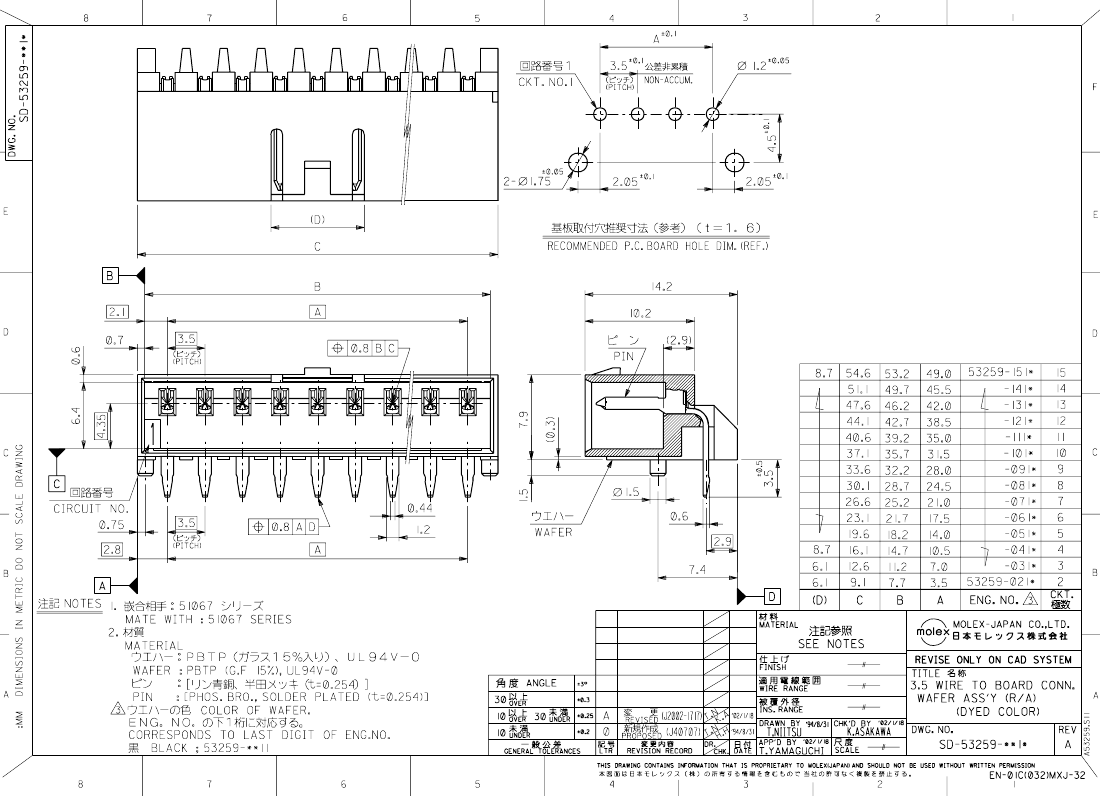

Board Connector, 13 Contact(s), 1 Row(s), Male, Right Angle, 0.138 inch Pitch, Press Fit Terminal, Locking, Receptacle
| Parameter Name | Attribute value |
| Maker | Molex |
| Reach Compliance Code | unknown |
| Other features | TRAY PACKAGE |
| Board mount options | PEG |
| body width | 0.311 inch |
| subject depth | 0.559 inch |
| body length | 1.874 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | SN ON NI |
| Contact completed and terminated | TIN OVER NICKEL |
| Contact point gender | MALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 10 mΩ |
| Contact style | BLADE PIN-SKT |
| Dielectric withstand voltage | 1500VAC V |
| Durability | 30 Cycles |
| maximum insertion force | 9.7856 N |
| Insulation resistance | 1000000000 Ω |
| insulator material | GLASS FILLED PBTP |
| Manufacturer's serial number | 53259 |
| Plug contact pitch | 0.138 inch |
| Installation option 1 | LOCKING |
| Installation option 2 | FRICTION LOCK |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 1 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| PCB contact pattern | RECTANGULAR |
| Plating thickness | 10u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 5.5 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.138 inch |
| Terminal pitch | 3.5052 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 13 |
| Evacuation force-minimum value | .5004 N |
| Base Number Matches | 1 |
