55PC0212-10-9: Description55PC0212-10-9; CategoryWire/cable; File Size33KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

55PC0212-10-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	55PC0212-10-9	-	-	View	Buy Now

55PC0212-10-9 Overview

55PC0212-10-9

55PC0212-10-9 Parametric

Parameter Name	Attribute value
Cable type	Specifications 55PC
Product Categories	High performance - Spec 44, 55 and RCW
Cable type	primary
Number of shares	37
Number of conductors	1
Rated voltage (V)	600
Insulation Materials	Irradiation cross-linked modified ETFE
conductor material	silver coated copper, silver coated copper
Wire color	White
Stock size (AWG)	26
Wire size (AWG)	10
Wire size (mm²)	5.26
Overall outside diameter (in)	.129
Operating temperature range (°C)	-65 – 200

Preview

Download Datasheet

View All

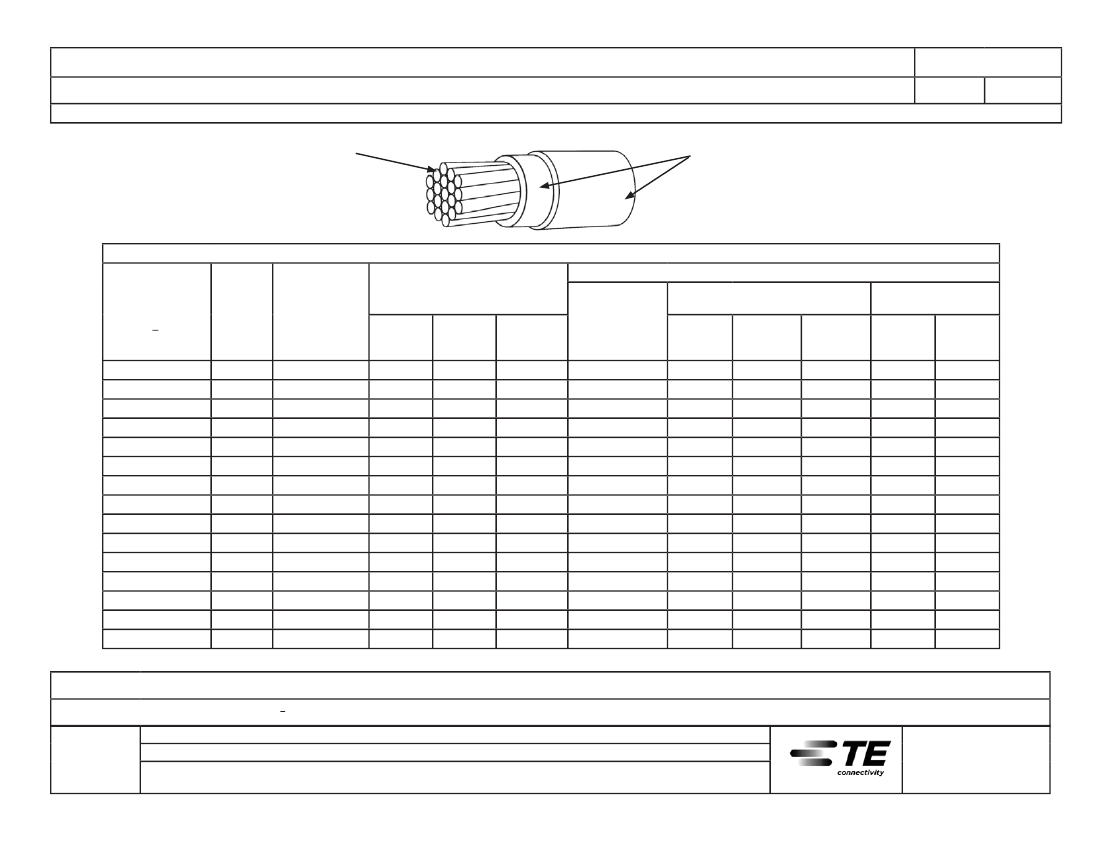

TITLE

SPECIFICATION CONTROL DRAWING

WIRE, RADIATION-CROSSLINKED, MODIFIED ETFE-INSULATED, MEDIUM WEIGHT, GENERAL PURPOSE, 600 VOLT

This speciﬁcation sheet forms a part of the latest issue of Raychem Speciﬁcation 55PC.

CONDUCTOR - SILVER-COATED COPPER

INSULATION - RADIATION - CROSSLINKED,

MODIFIED ETFE

Date

55PC0212

8-6-13

Revision

D

CONSTRUCTION DETAILS

CONDUCTOR DIAMETER

(in.)

LOWER

SPEC

LIMIT

.0175

.0225

.0285

.0365

.0452

.0514

.0644

.0825

.1050

.158

.198

.250

.320

.360

.395

TARGET

VALUE

.0183

.0233

.0293

.0375

.0464

.0527

.0659

.0845

.1070

.163

.205

.260

.330

.370

.415

UPPER

SPEC

LIMIT

.0191

.0241

.0301

.0385

.0476

.0538

.0674

.0865

.1090

.169

.212

.268

.340

.380

.425

FINISHED WIRE

MAXIMUM

RESISTANCE

AT 20°C

(ohms/1000 ft.)

38.4

24.3

15.1

9.19

5.79

4.52

2.88

1.90

1.19

.658

.418

.264

.170

.139

.108

DIAMETER

(in.)

LOWER

SPEC

LIMIT

.0328

.0378

.0438

.0523

.0616

.0690

.0838

.1020

.1252

.188

.233

.300

.370

.410

.449

TARGET

VALUE

.0345

.0395

.0455

.0540

.0635

.0710

.0860

.1047

.1290

.196

.242

.311

.383

.424

.466

UPPER

SPEC

LIMIT

.0362

.0412

.0472

.0557

.0654

.0730

.0882

.1074

.1328

.203

.251

.322

.397

.438

.483

WEIGHT

(lbs/1000 ft.)

TARGET

VALUE

1.38

1.98

2.90

4.38

6.59

8.37

12.88

19.73

31.12

56.8

89.7

146.

227.

278.

343.

UPPER

SPEC

LIMIT

1.52

2.13

3.06

4.57

6.90

8.70

13.33

20.30

32.13

59.9

94.7

154.

240.

291.

366.

PART

NUMBER

1/

WIRE

SIZE

(AWG)

CONDUCTOR

STRANDING

(number x AWG)

55PC0212-26-*

55PC0212-24-*

55PC0212-22-*

55PC0212-20-*

55PC0212-18-*

55PC0212-16-*

55PC0212-14-*

55PC0212-12-*

55PC0212-10-*

55PC0212-8-*

55PC0212-6-*

55PC0212-4-*

55PC0212-2-*

55PC0212-1-*

55PC0212-0-*

26

24

22

20

18

16

14

12

10

8

6

4

2

1

0

19 x 38

19 x 36

19 x 34

19 x 32

19 x 30

19 x 29

19 x 27

37 x 28

37 x 26

133 x 29

133 x 27

133 x 25

665 x 30

817 x 30

1045 x 30

Users should evaluate the suitability of this product for their application. Speciﬁcations are subject to change without notice.

Tyco Electronics Corporation also reserves the right to make changes in materials or processing, which do not affect compliance with any speciﬁcation, without notiﬁcation to Buyer.

1/ COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. OTHER CODES AND SUFFIXES MAY BE

ADDED TO THE PART NUMBER, AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER.

Raychem, TE Connectivity, TE connectivity (logo) and TE (logo) are trademarks.

Raychem Wire & Cable

501 Oakside Avenue

Redwood City, CA 94063-3800

Phone: 1-800-227-8816

Fax: 1-650-361-6297

Page 1 of 2

DIMENSIONS ARE IN INCHES, AND UNLESS OTHERWISE DESIGNATED ARE NOMINAL.

THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN.

REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID.

55PC0212-10-9 Related Products

	55PC0212-10-9	55PC0212-14-9	55PC0212-20-9	55PC0212-16-9	55PC0212-18-9	55PC0212-22-9
Description	55PC0212-10-9	55PC0212-14-9	55PC0212-20-9	55PC0212-16-9	55PC0212-18-9	55PC0212-22-9
Product Categories	High performance - Spec 44, 55 and RCW	High performance - Spec 44, 55 and RCW	High performance - Spec 44, 55 and RCW	High performance - Spec 44, 55 and RCW	High performance - Spec 44, 55 and RCW	High performance - Spec 44, 55 and RCW
Number of shares	37	19	19	19	19	19
Number of conductors	1	1	1	1	1	1
Rated voltage (V)	600	600	600	600	600	600
Insulation Materials	Irradiation cross-linked modified ETFE	Irradiation cross-linked modified ETFE	Irradiation cross-linked modified ETFE	Irradiation cross-linked modified ETFE	Irradiation cross-linked modified ETFE	Irradiation cross-linked modified ETFE
conductor material	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper
Wire color	White	White	White	White	White	White
Stock size (AWG)	26	27	32	29	30	34
Wire size (AWG)	10	14	20	16	18	22
Wire size (mm²)	5.26	2.08	.52	1.31	.82	.33
Overall outside diameter (in)	.129	.086	.054	.071	.0635	.0455
Operating temperature range (°C)	-65 – 200	-65 – 200	-65 – 200	-65 – 200	-65 – 200	-65 – 200
Cable type	primary	primary	primary	primary	primary	primary
