2327678-9 Overview

Board Connector

2327678-9 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Factory Lead Time	6 weeks 2 days
Connector type	BOARD CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

RELEASED

REVISED PER ECO-19-011736

17MAY2019

07AUG2019

CJV

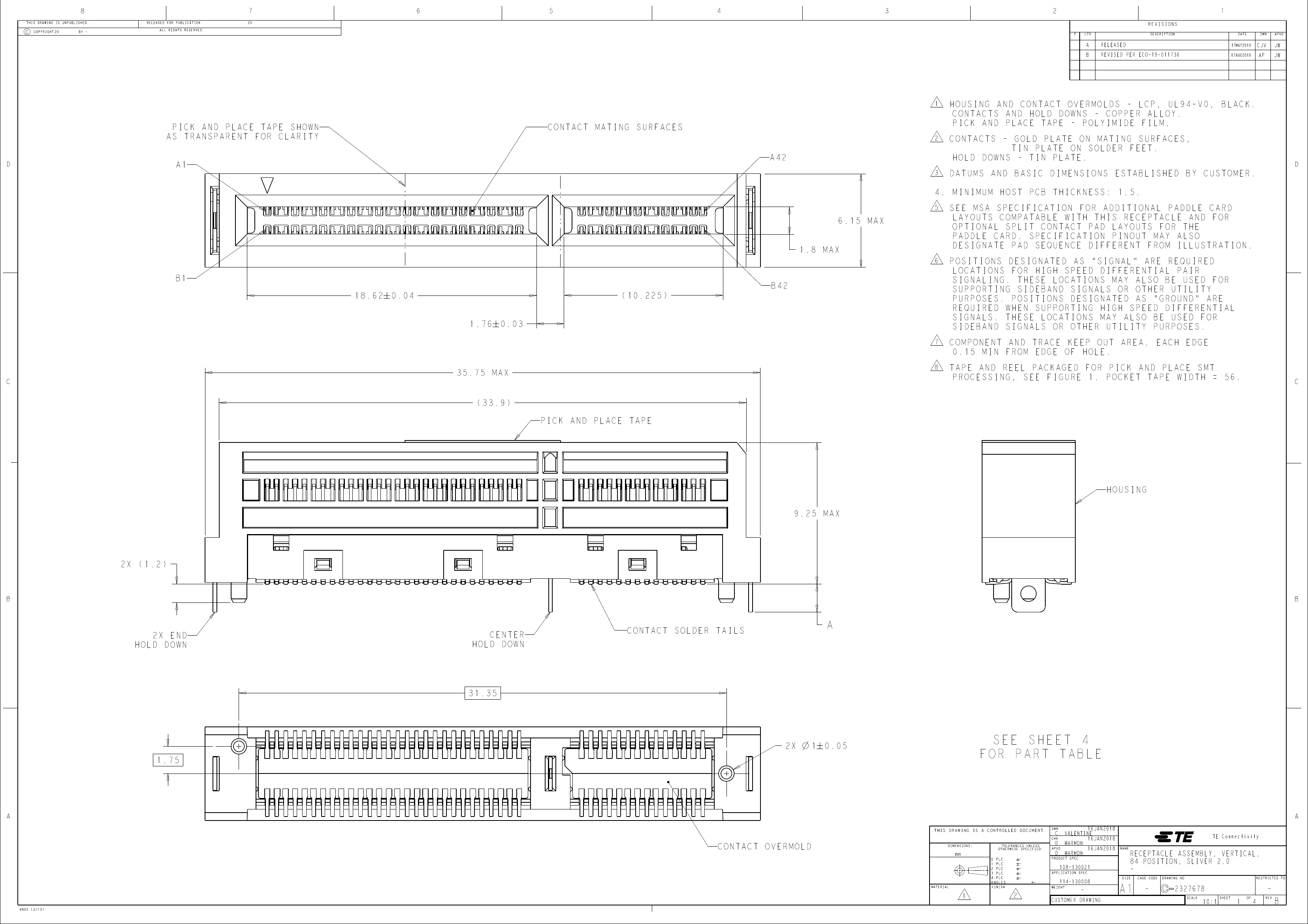

PICK AND PLACE TAPE SHOWN

AS TRANSPARENT FOR CLARITY

CONTACT MATING SURFACES

A42

HOUSING AND CONTACT OVERMOLDS - LCP, UL94-V0, BLACK.

CONTACTS AND HOLD DOWNS - COPPER ALLOY.

PICK AND PLACE TAPE - POLYIMIDE FILM.

CONTACTS - GOLD PLATE ON MATING SURFACES,

TIN PLATE ON SOLDER FEET.

HOLD DOWNS - TIN PLATE.

DATUMS AND BASIC DIMENSIONS ESTABLISHED BY CUSTOMER.

4. MINIMUM HOST PCB THICKNESS: 1.5.

6.15 MAX

1.8 MAX

18.62

0.04

1.76

0.03

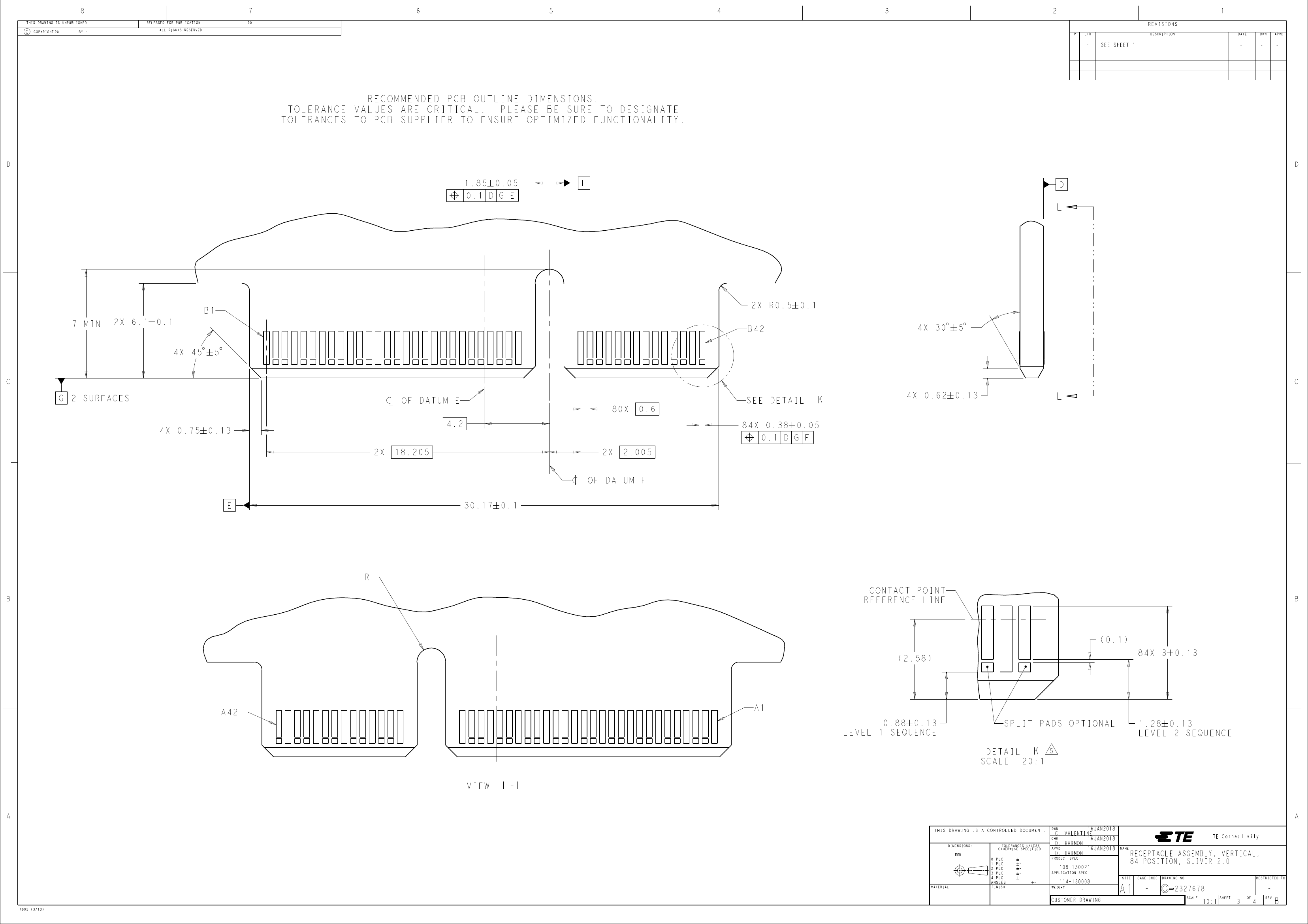

SEE MSA SPECIFICATION FOR ADDITIONAL PADDLE CARD

LAYOUTS COMPATABLE WITH THIS RECEPTACLE AND FOR

OPTIONAL SPLIT CONTACT PAD LAYOUTS FOR THE

PADDLE CARD. SPECIFICATION PINOUT MAY ALSO

DESIGNATE PAD SEQUENCE DIFFERENT FROM ILLUSTRATION.

POSITIONS DESIGNATED AS "SIGNAL" ARE REQUIRED

LOCATIONS FOR HIGH SPEED DIFFERENTIAL PAIR

SIGNALING. THESE LOCATIONS MAY ALSO BE USED FOR

SUPPORTING SIDEBAND SIGNALS OR OTHER UTILITY

PURPOSES. POSITIONS DESIGNATED AS "GROUND" ARE

REQUIRED WHEN SUPPORTING HIGH SPEED DIFFERENTIAL

SIGNALS. THESE LOCATIONS MAY ALSO BE USED FOR

SIDEBAND SIGNALS OR OTHER UTILITY PURPOSES.

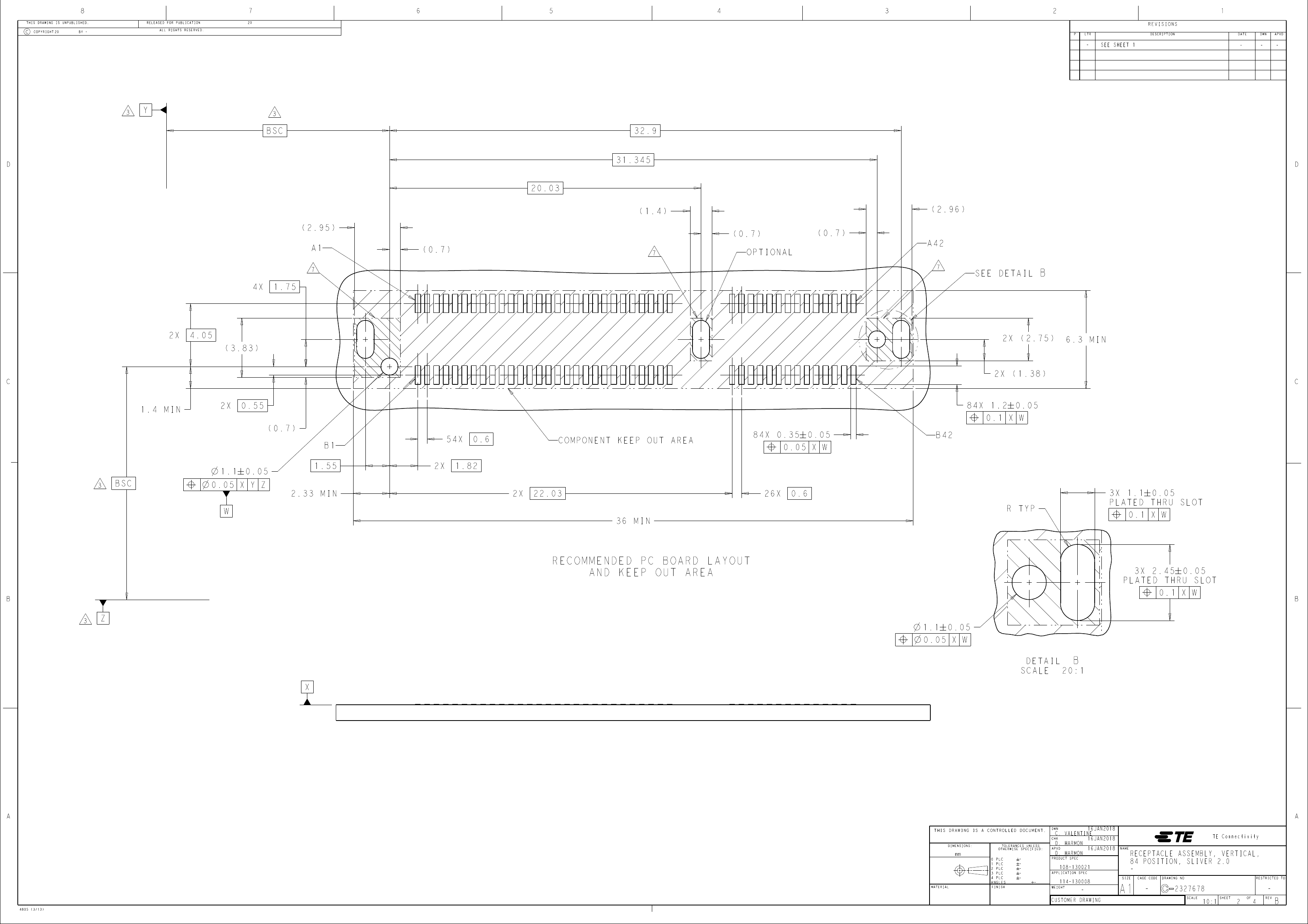

COMPONENT AND TRACE KEEP OUT AREA. EACH EDGE

0.15 MIN FROM EDGE OF HOLE.

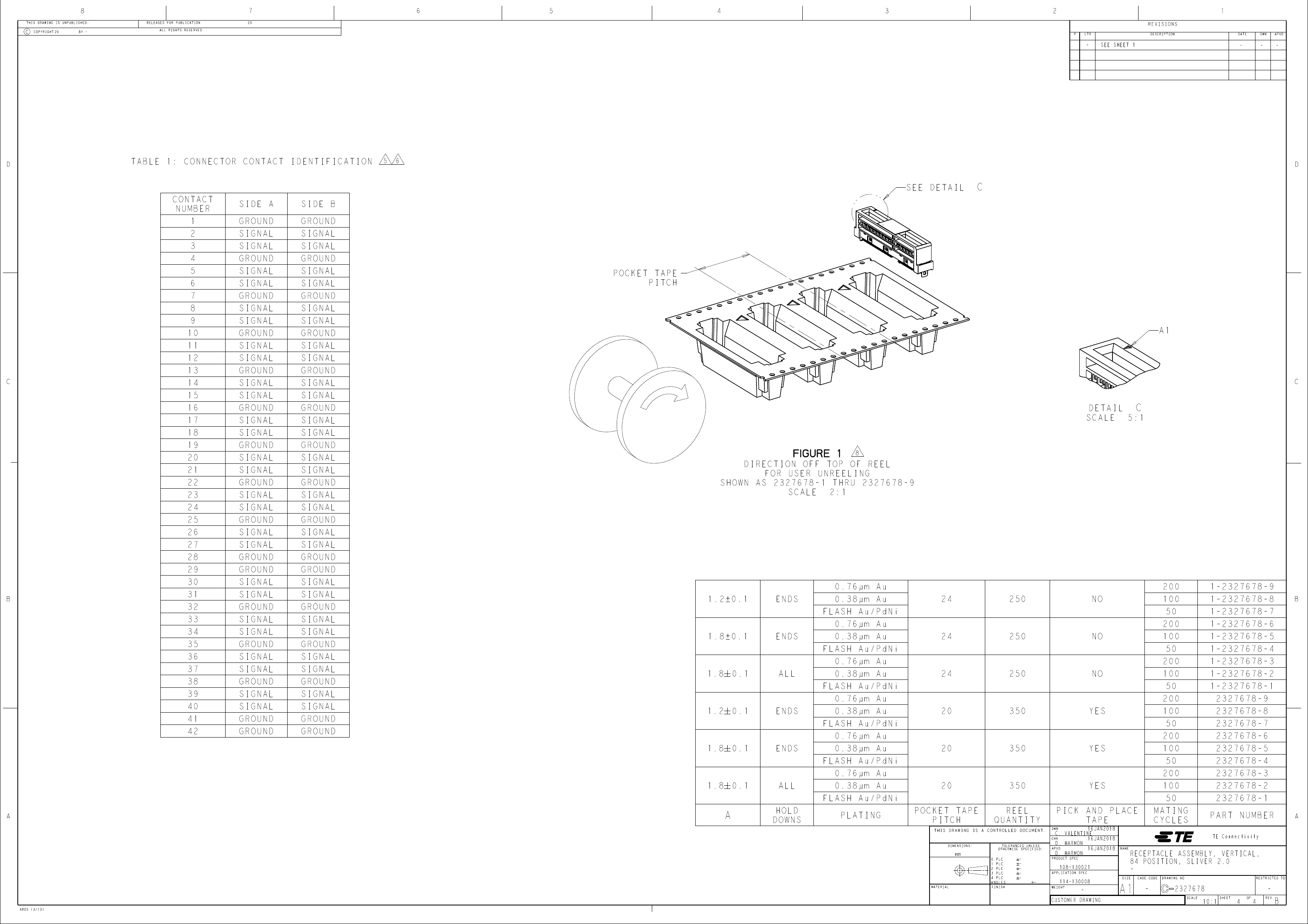

TAPE AND REEL PACKAGED FOR PICK AND PLACE SMT

PROCESSING, SEE FIGURE 1. POCKET TAPE WIDTH = 56.

( 10.225 )

B42

35.75 MAX

( 33.9 )

PICK AND PLACE TAPE

HOUSING

9.25 MAX

2X ( 1.2 )

2X END

HOLD DOWN

CENTER

HOLD DOWN

CONTACT SOLDER TAILS

31.35

1.75

0.05

SEE SHEET 4

FOR PART TABLE

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

C. VALENTINE

D. HARMON

108-130021

114-130008

SIZE

16JAN2018

NAME

CONTACT OVERMOLD

TE Connectivity

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

PRODUCT SPEC

APPLICATION SPEC

RECEPTACLE ASSEMBLY, VERTICAL,

84 POSITION, SLIVER 2.0

CAGE CODE

DRAWING NO

WEIGHT

4805 (3/13)

CUSTOMER DRAWING

RESTRICTED TO

2327678

SCALE

10:1

SHEET

REV
