THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
7
20
6
5
4
3
2
REVISIONS
P
LTR
DESCRIPTION
1
DATE
DWN
APVD
C
COPYRIGHT
20
A
B
RELEASED
REVISED PER ECO-19-011736
17MAY2019
07AUG2019
CJV
AP
JW
JW

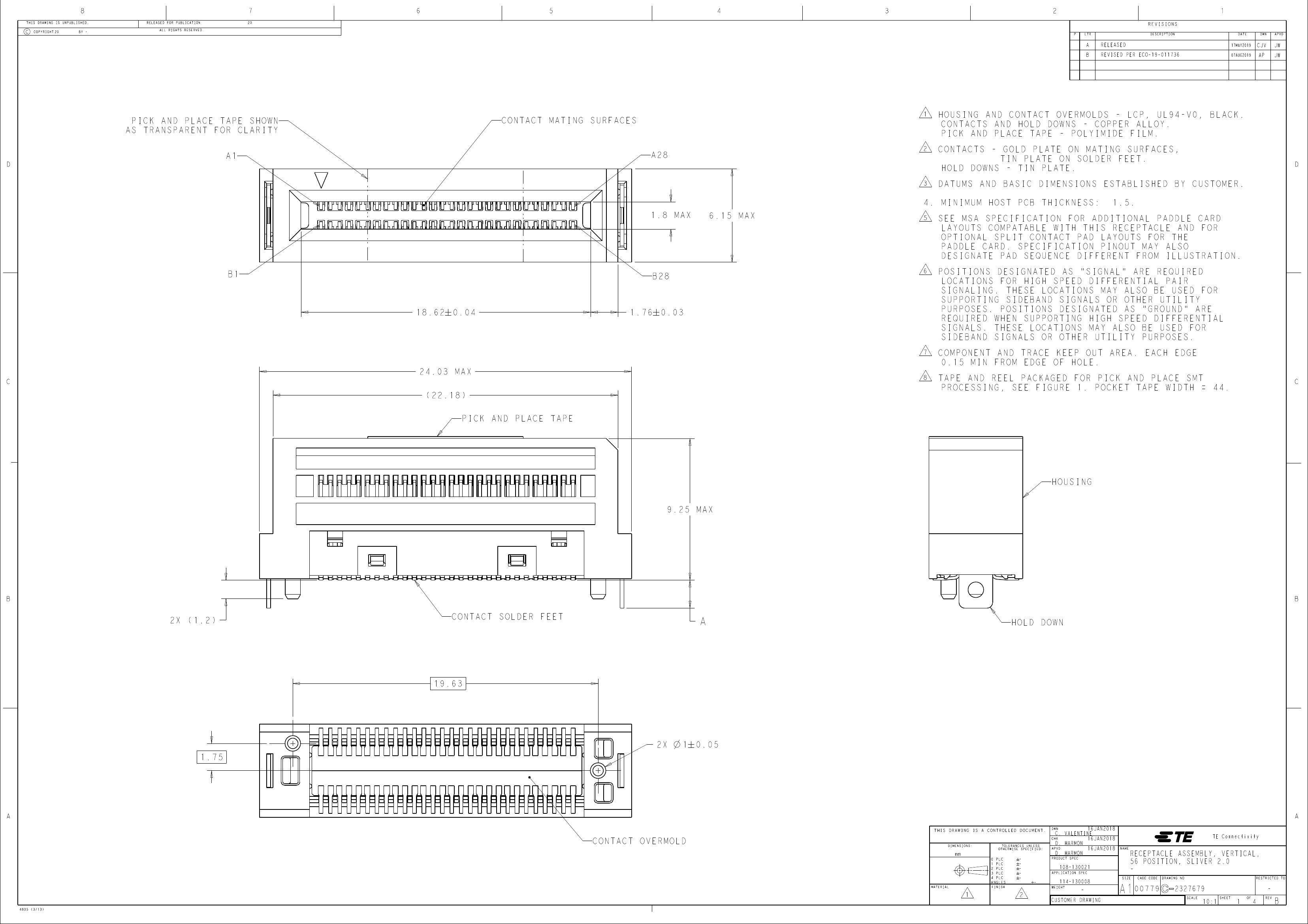

PICK AND PLACE TAPE SHOWN
AS TRANSPARENT FOR CLARITY
A1
CONTACT MATING SURFACES
1
HOUSING AND CONTACT OVERMOLDS - LCP, UL94-V0, BLACK.
CONTACTS AND HOLD DOWNS - COPPER ALLOY.
PICK AND PLACE TAPE - POLYIMIDE FILM.
CONTACTS - GOLD PLATE ON MATING SURFACES,
TIN PLATE ON SOLDER FEET.
HOLD DOWNS - TIN PLATE.
DATUMS AND BASIC DIMENSIONS ESTABLISHED BY CUSTOMER.
1.5.
D
D
A28
2
3
1.8 MAX
6.15 MAX
4. MINIMUM HOST PCB THICKNESS:
5
SEE MSA SPECIFICATION FOR ADDITIONAL PADDLE CARD
LAYOUTS COMPATABLE WITH THIS RECEPTACLE AND FOR
OPTIONAL SPLIT CONTACT PAD LAYOUTS FOR THE
PADDLE CARD. SPECIFICATION PINOUT MAY ALSO
DESIGNATE PAD SEQUENCE DIFFERENT FROM ILLUSTRATION.
POSITIONS DESIGNATED AS "SIGNAL" ARE REQUIRED
LOCATIONS FOR HIGH SPEED DIFFERENTIAL PAIR
SIGNALING. THESE LOCATIONS MAY ALSO BE USED FOR
SUPPORTING SIDEBAND SIGNALS OR OTHER UTILITY
PURPOSES. POSITIONS DESIGNATED AS "GROUND" ARE
REQUIRED WHEN SUPPORTING HIGH SPEED DIFFERENTIAL
SIGNALS. THESE LOCATIONS MAY ALSO BE USED FOR
SIDEBAND SIGNALS OR OTHER UTILITY PURPOSES.

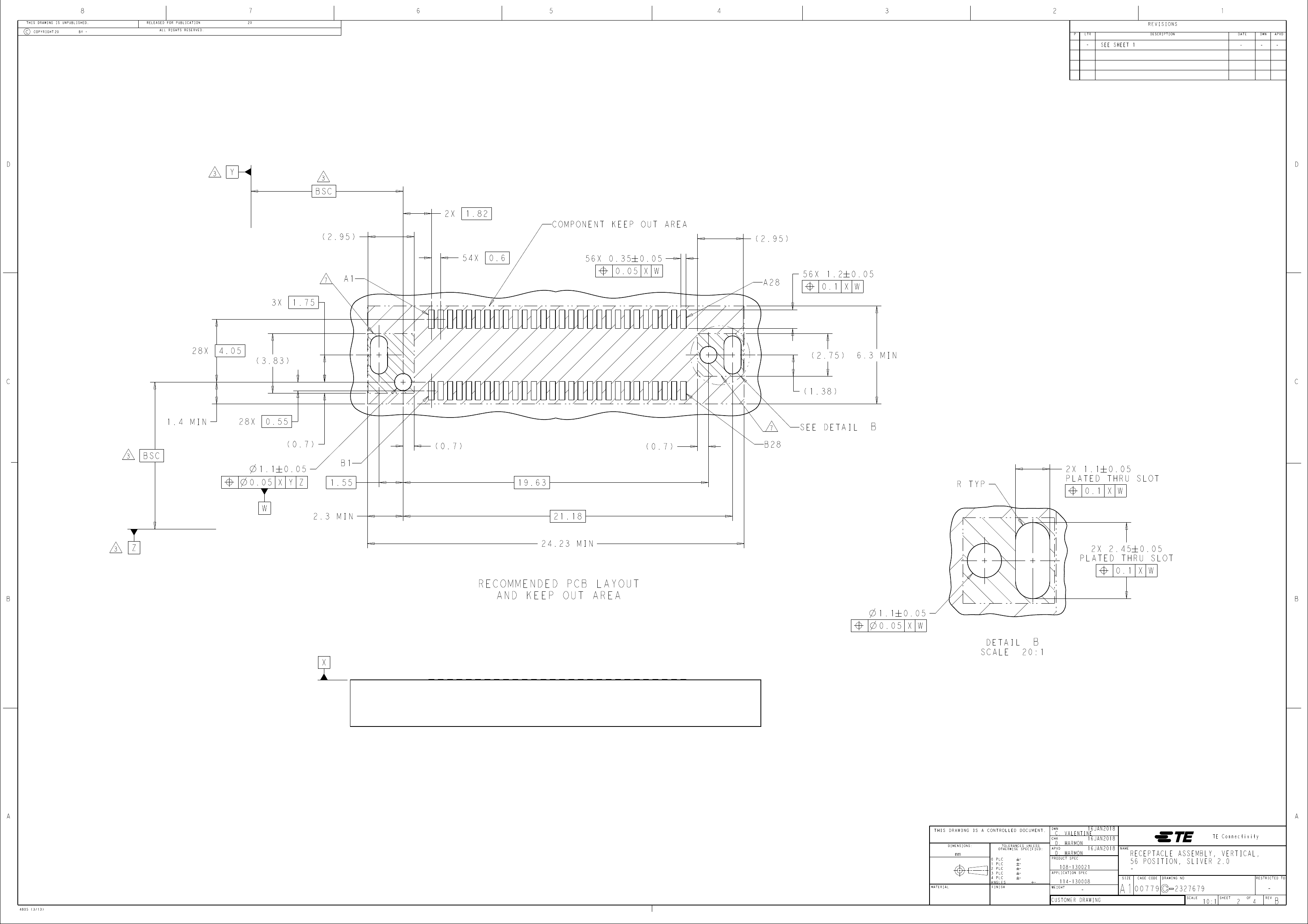

COMPONENT AND TRACE KEEP OUT AREA. EACH EDGE
0.15 MIN FROM EDGE OF HOLE.
TAPE AND REEL PACKAGED FOR PICK AND PLACE SMT
PROCESSING, SEE FIGURE 1. POCKET TAPE WIDTH = 44.
C
B1
B28
6
18.62
0.04
1.76
0.03
7
C
24.03 MAX
( 22.18 )
PICK AND PLACE TAPE
8
HOUSING
9.25 MAX
B
B
2X ( 1.2 )
CONTACT SOLDER FEET
A
HOLD DOWN
19.63
1.75
2X
1
0.05
A
THIS DRAWING IS A CONTROLLED DOCUMENT.
DWN
CHK
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
A
CONTACT OVERMOLD
C. VALENTINE
D. HARMON
D. HARMON
108-130021
114-130008
16JAN2018
16JAN2018
16JAN2018
NAME
TE Connectivity
mm
APVD
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
-
-
-
-
PRODUCT SPEC
APPLICATION SPEC
-
WEIGHT
1
4805 (3/13)
2
-
CUSTOMER DRAWING
A1
00779
SIZE
RECEPTACLE ASSEMBLY, VERTICAL,
56 POSITION, SLIVER 2.0
-
CAGE CODE
DRAWING NO
RESTRICTED TO
2327679
SCALE
10:1
SHEET
1
OF
4
REV
-
B
8
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
7
20
6
5
4
3
2
REVISIONS
P
LTR
DESCRIPTION
1
DATE
DWN
APVD
C
COPYRIGHT
20
-
SEE SHEET 1
-
-
-
D
D
D
2X R 0.5
0.1
B28
B1
2X 6.1
2X 45 $ 5 $
0.1
2X
30 $ 5 $
A28
A1
C
54X
2X
0.6
8.015
18.48
0.1
56X
0.38
0.05
G
2X 0.62
0.13
1.57 0.13
OVER PADS
SEE DETAIL
J
C
2X 0.75
E
0.13

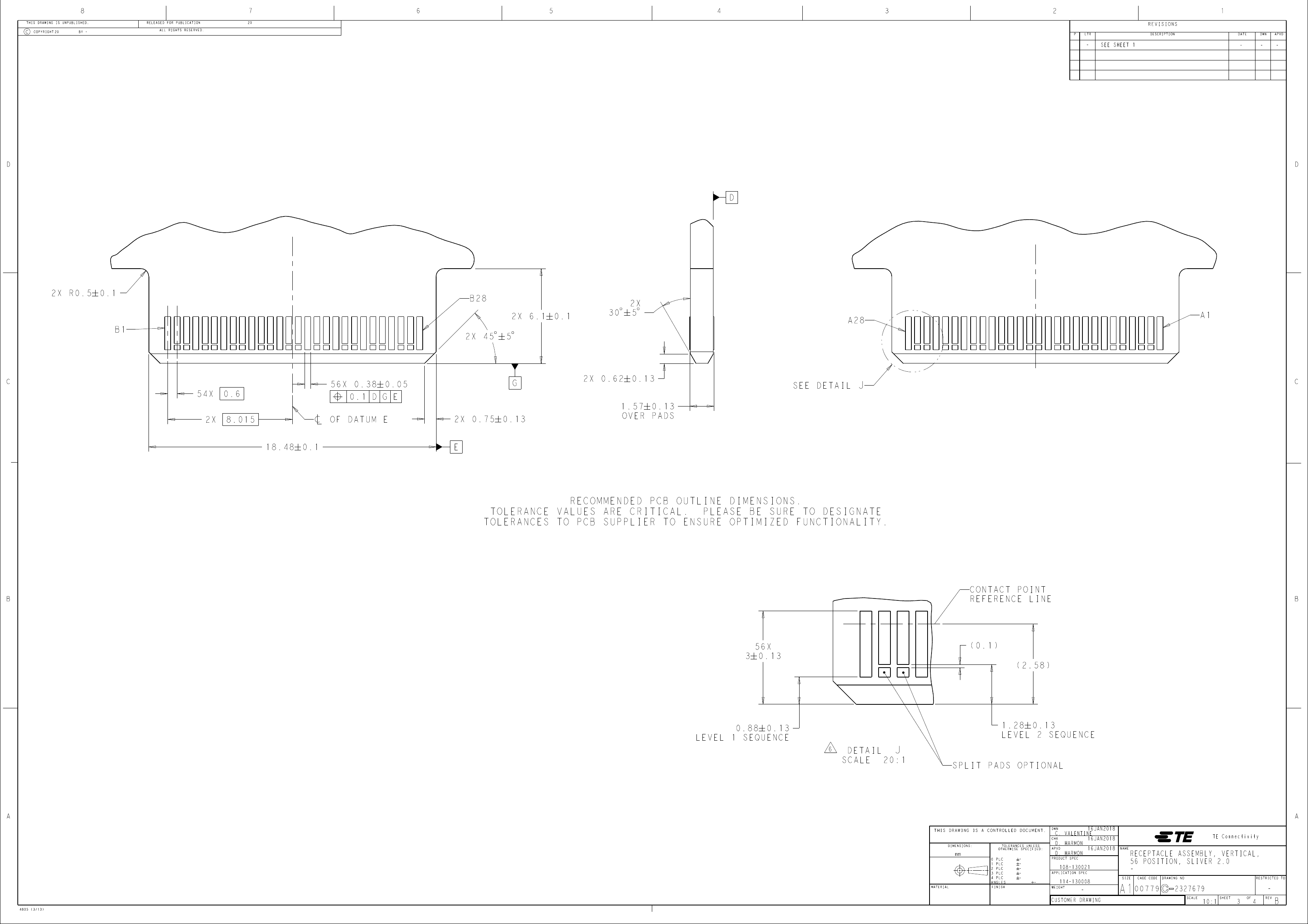

RECOMMENDED PCB OUTLINE DIMENSIONS.
TOLERANCE VALUES ARE CRITICAL. PLEASE BE SURE TO DESIGNATE
TOLERANCES TO PCB SUPPLIER TO ENSURE OPTIMIZED FUNCTIONALITY.
B
CONTACT POINT
REFERENCE LINE
B
56X
3 0.13
( 0.1 )
( 2.58 )
0.88 0.13
LEVEL 1 SEQUENCE
1.28 0.13
LEVEL 2 SEQUENCE
6
J
DETAIL
SCALE
20:1
SPLIT PADS OPTIONAL
A
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DWN
CHK
A
C. VALENTINE
D. HARMON
D. HARMON
108-130021
114-130008
SIZE
16JAN2018
16JAN2018
16JAN2018
NAME
TE Connectivity
mm
APVD
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
-
-
-
-
PRODUCT SPEC
APPLICATION SPEC
RECEPTACLE ASSEMBLY, VERTICAL,
56 POSITION, SLIVER 2.0
-
CAGE CODE
DRAWING NO
-
WEIGHT
-
CUSTOMER DRAWING
4805 (3/13)
A1
00779
RESTRICTED TO
2327679
SCALE
10:1
SHEET
3
OF
4
REV
-
B
8
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
7
20
6
5
4
3
2
REVISIONS
P
LTR
DESCRIPTION
1
DATE
DWN
APVD
C
COPYRIGHT
20
-
SEE SHEET 1
-
-
-

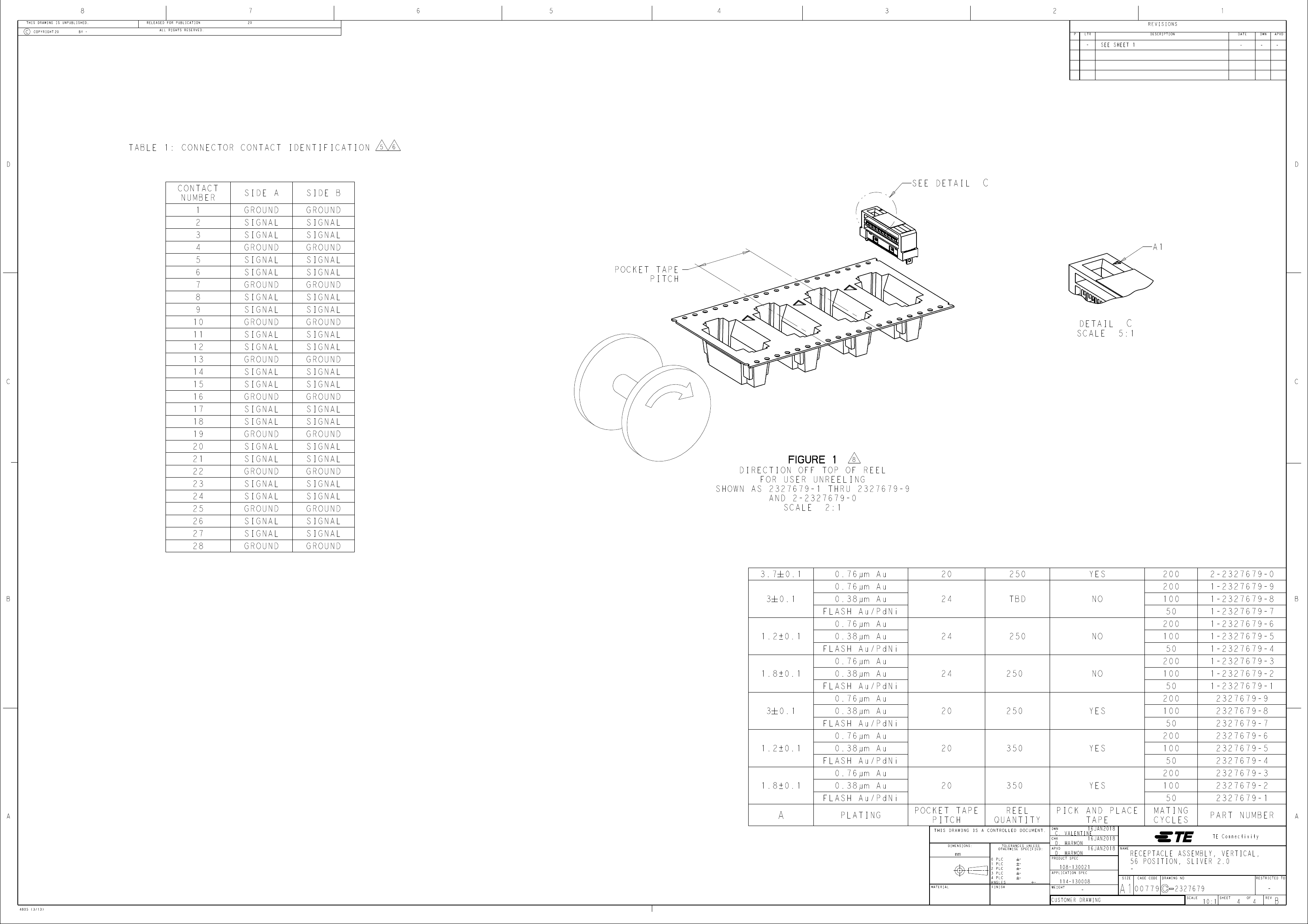

TABLE 1: CONNECTOR CONTACT IDENTIFICATION
D
5
6
D
CONTACT
NUMBER
1
2
3
4
5
6
7
8
10
11
12
13
C
SIDE A
GROUND
SIGNAL
SIGNAL
GROUND
SIGNAL
SIGNAL
GROUND
SIGNAL
SIGNAL
GROUND
SIGNAL
SIGNAL
GROUND
SIGNAL
SIGNAL
GROUND
SIGNAL
SIGNAL
GROUND
SIGNAL
SIGNAL
GROUND
SIGNAL
SIGNAL
GROUND
SIGNAL
SIGNAL
GROUND
SIDE B
GROUND
SIGNAL
SIGNAL
GROUND
SIGNAL
SIGNAL
GROUND
SIGNAL
SIGNAL
GROUND
SIGNAL
SIGNAL
GROUND
SIGNAL
SIGNAL
GROUND
SIGNAL
SIGNAL
GROUND
SIGNAL
SIGNAL
GROUND
SIGNAL
SIGNAL
GROUND
SIGNAL
SIGNAL
GROUND
3.7 # 0.1
0.76µm Au
0.76µm Au
0.38µm Au
0.76µm Au
POCKET TAPE
PITCH
SEE DETAIL
C
A1
9
C
DETAIL
SCALE
5:1
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
C
DIRECTION OFF TOP OF REEL
FOR USER UNREELING
SHOWN AS 2327679-1 THRU 2327679-9
AND 2-2327679-0
SCALE
2:1
FIGURE 1
8
20
24
250
TBD
YES
NO
200
200
100
200
50
50
2-2327679-0
1-2327679-9
1-2327679-8
1-2327679-7
1-2327679-6
1-2327679-5
1-2327679-4
1- 2327679-2
1- 2327679-1
2327679-9
2327679-8
2327679-7
2327679-6
2327679-5
2327679-4
2327679-3
2327679-2
2327679-1
PART NUMBER
TE Connectivity
B
3 # 0.1
B
FLASH Au/PdNi
0.38µm Au
0.76µm Au
0.38µm Au
0.76µm Au
1.2±0.1
FLASH Au/PdNi
24
250
NO
100
200
100
200
100
200
100
200
50
50
50
50
1.8±0.1
FLASH Au/PdNi
0.38µm Au
0.76µm Au
24
250
NO
1-2327679-3
3 # 0.1
FLASH Au/PdNi
0.38µm Au
0.76µm Au
0.38µm Au
PLATING
20
250
YES
1.2±0.1
FLASH Au/PdNi
20
350
YES
1.8±0.1
A
FLASH Au/PdNi
20
POCKET TAPE
PITCH
DIMENSIONS:
350
REEL
QUANTITY
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
YES
PICK AND PLACE
TAPE
16JAN2018
16JAN2018
16JAN2018
NAME
100
A
THIS DRAWING IS A CONTROLLED DOCUMENT.
DWN
CHK
MATING
CYCLES
A
C. VALENTINE
D. HARMON
D. HARMON
108-130021
114-130008
mm
APVD
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
-
-
-
-
PRODUCT SPEC
APPLICATION SPEC
-
WEIGHT
-
CUSTOMER DRAWING
4805 (3/13)
A1
00779
SIZE
RECEPTACLE ASSEMBLY, VERTICAL,
56 POSITION, SLIVER 2.0
-
CAGE CODE
DRAWING NO
RESTRICTED TO
2327679
SCALE
10:1
SHEET
4
OF
4
REV
-
B
