2327677-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2327677-9

2327677-9: DescriptionBoard Connector; CategoryThe connector The connector; File Size762KB，4 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

2327677-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2327677-9	-	-	View	Buy Now

2327677-9 Overview

Board Connector

2327677-9 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Factory Lead Time	7 weeks 2 days
Connector type	BOARD CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

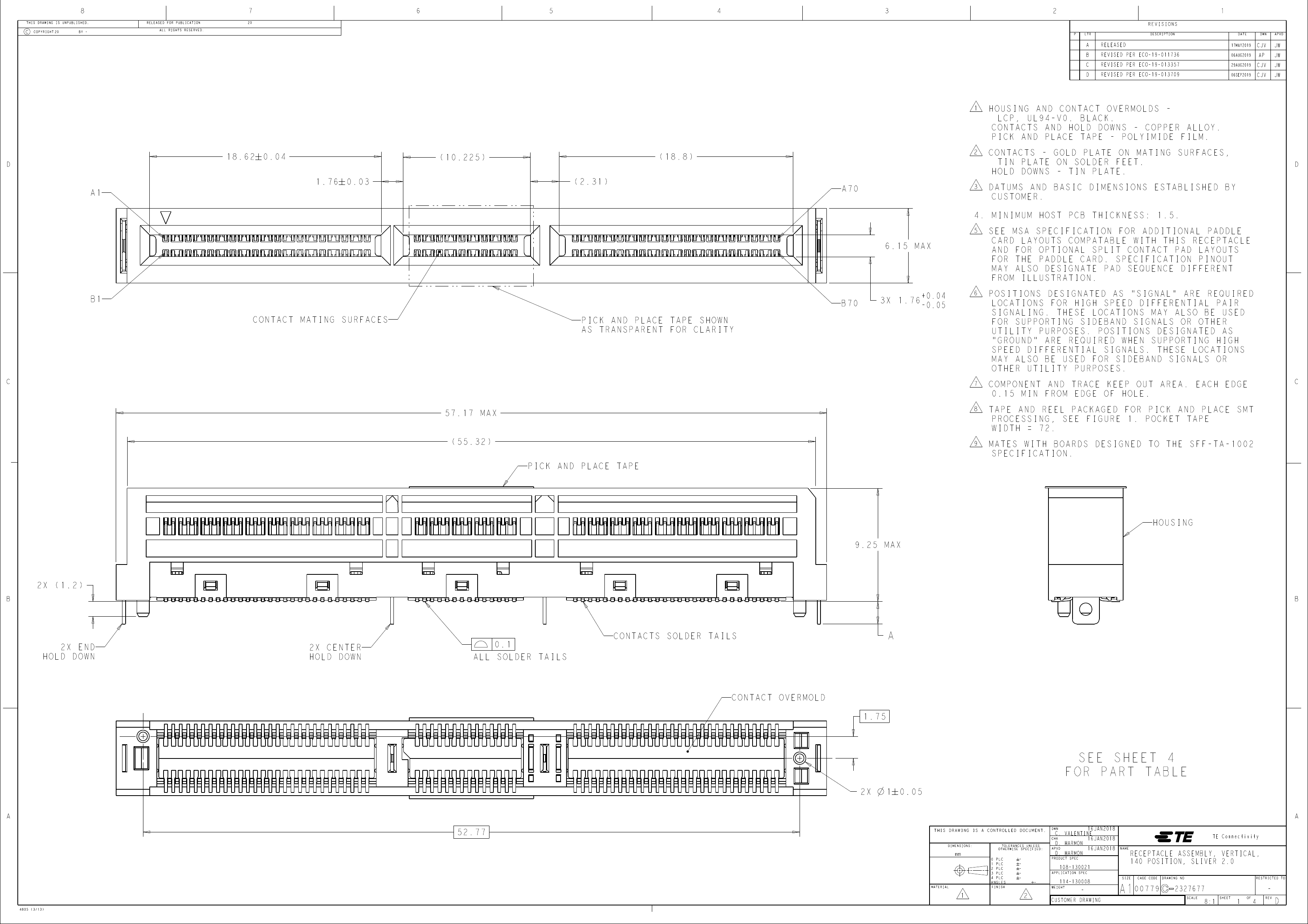

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

RELEASED

REVISED PER ECO-19-011736

REVISED PER ECO-19-013357

REVISED PER ECO-19-013709

17MAY2019

06AUG2019

29AUG2019

06SEP2019

CJV

HOUSING AND CONTACT OVERMOLDS -

LCP, UL94-V0. BLACK.

CONTACTS AND HOLD DOWNS - COPPER ALLOY.

PICK AND PLACE TAPE - POLYIMIDE FILM.

CONTACTS - GOLD PLATE ON MATING SURFACES,

TIN PLATE ON SOLDER FEET.

HOLD DOWNS - TIN PLATE.

DATUMS AND BASIC DIMENSIONS ESTABLISHED BY

CUSTOMER.

18.62

0.04

1.76

0.03

( 10.225 )

( 2.31 )

( 18.8 )

A70

4. MINIMUM HOST PCB THICKNESS: 1.5.

6.15 MAX

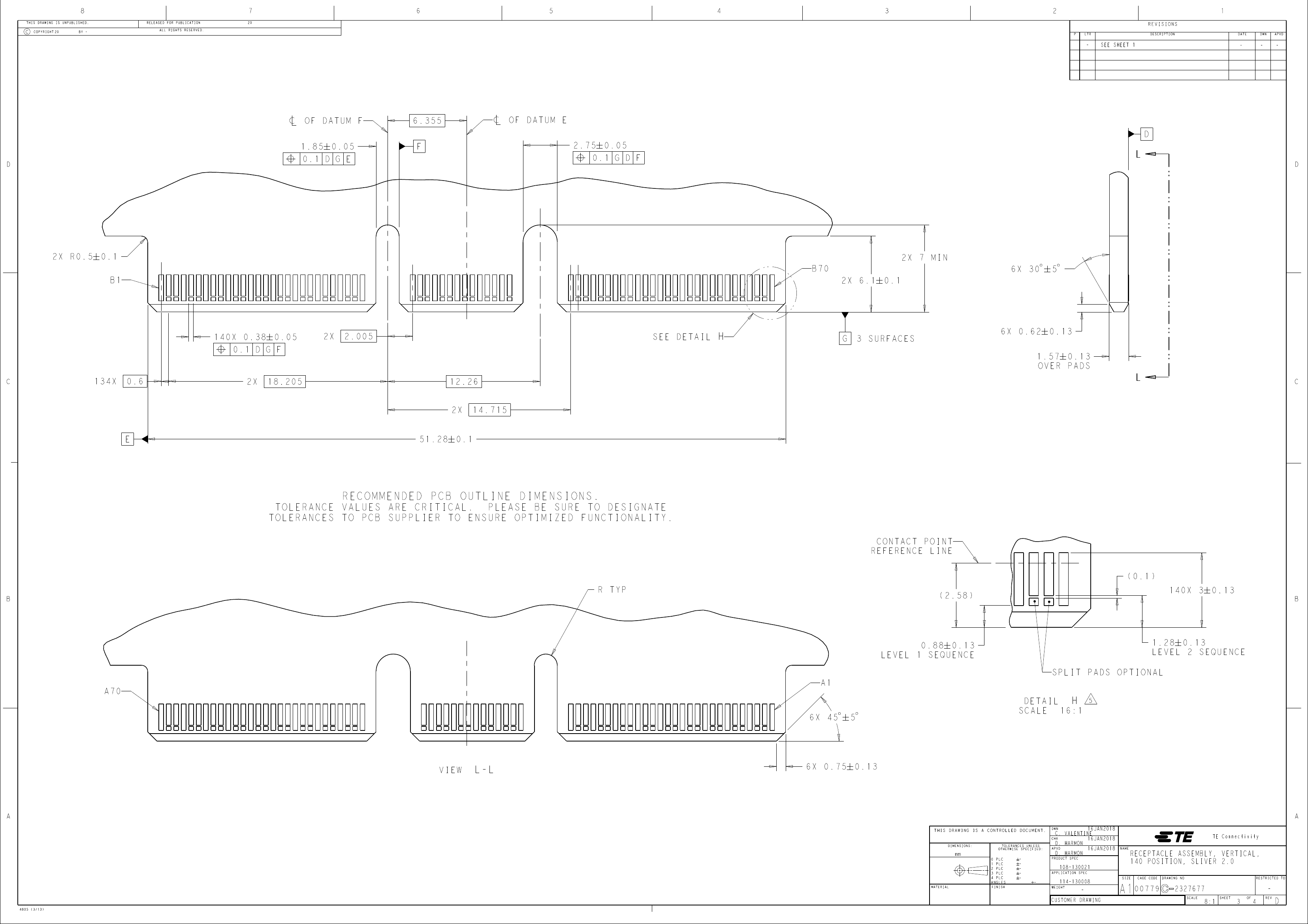

SEE MSA SPECIFICATION FOR ADDITIONAL PADDLE

CARD LAYOUTS COMPATABLE WITH THIS RECEPTACLE

AND FOR OPTIONAL SPLIT CONTACT PAD LAYOUTS

FOR THE PADDLE CARD. SPECIFICATION PINOUT

MAY ALSO DESIGNATE PAD SEQUENCE DIFFERENT

FROM ILLUSTRATION.

POSITIONS DESIGNATED AS "SIGNAL" ARE REQUIRED

LOCATIONS FOR HIGH SPEED DIFFERENTIAL PAIR

SIGNALING. THESE LOCATIONS MAY ALSO BE USED

FOR SUPPORTING SIDEBAND SIGNALS OR OTHER

UTILITY PURPOSES. POSITIONS DESIGNATED AS

"GROUND" ARE REQUIRED WHEN SUPPORTING HIGH

SPEED DIFFERENTIAL SIGNALS. THESE LOCATIONS

MAY ALSO BE USED FOR SIDEBAND SIGNALS OR

OTHER UTILITY PURPOSES.

COMPONENT AND TRACE KEEP OUT AREA. EACH EDGE

0.15 MIN FROM EDGE OF HOLE.

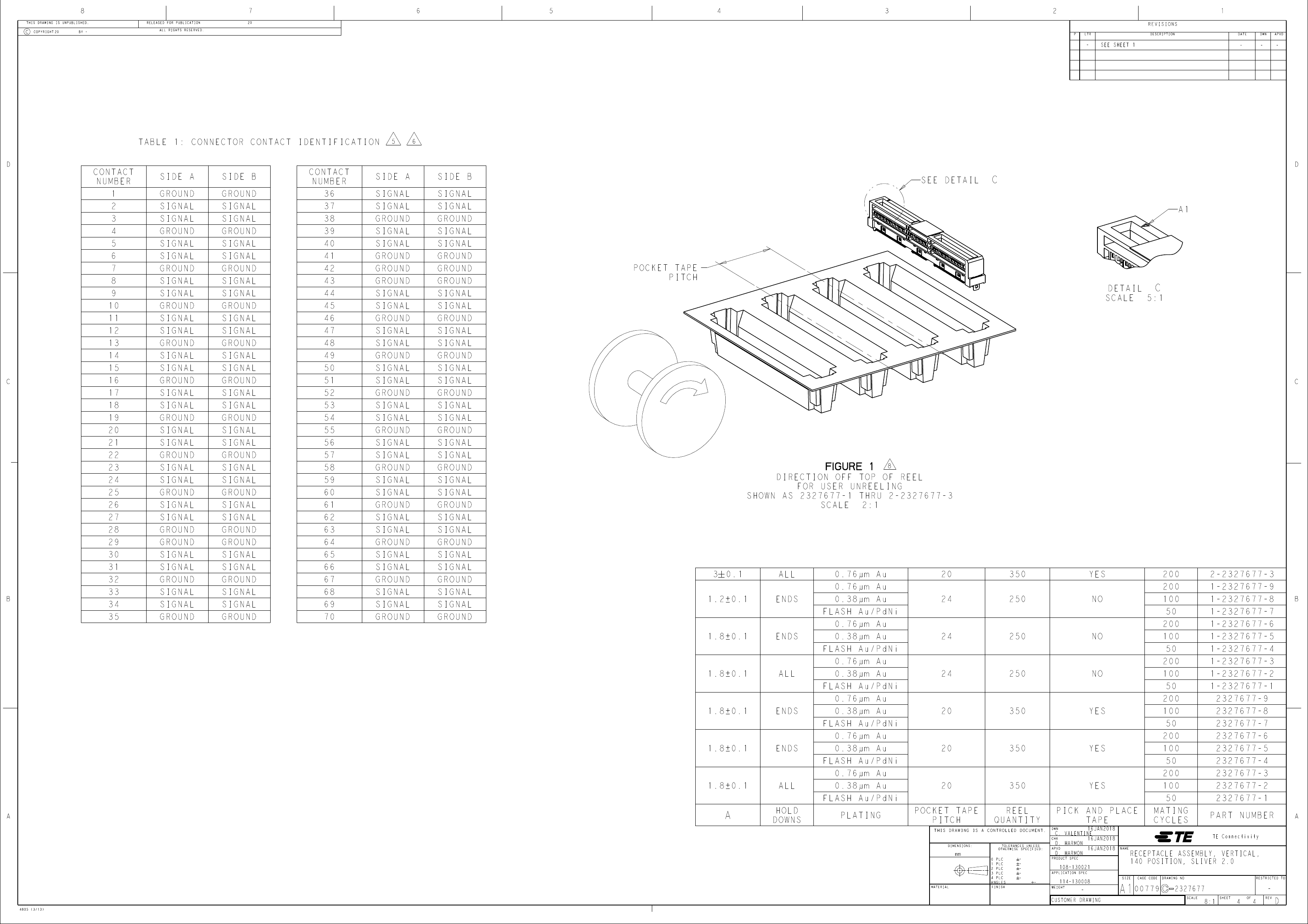

TAPE AND REEL PACKAGED FOR PICK AND PLACE SMT

PROCESSING, SEE FIGURE 1. POCKET TAPE

WIDTH = 72.

MATES WITH BOARDS DESIGNED TO THE SFF-TA-1002

SPECIFICATION.

CONTACT MATING SURFACES

PICK AND PLACE TAPE SHOWN

AS TRANSPARENT FOR CLARITY

B70

+0.04

3X 1.76

-0.05

57.17 MAX

( 55.32 )

PICK AND PLACE TAPE

HOUSING

9.25 MAX

2X ( 1.2 )

2X END

HOLD DOWN

2X CENTER

HOLD DOWN

CONTACTS SOLDER TAILS

ALL SOLDER TAILS

CONTACT OVERMOLD

1.75

SEE SHEET 4

FOR PART TABLE

0.05

52.77

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

C. VALENTINE

D. HARMON

108-130021

114-130008

16JAN2018

NAME

TE Connectivity

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

PRODUCT SPEC

RECEPTACLE ASSEMBLY, VERTICAL,

140 POSITION, SLIVER 2.0

CAGE CODE

DRAWING NO

RESTRICTED TO

APPLICATION SPEC

WEIGHT

4805 (3/13)

CUSTOMER DRAWING

00779

SIZE

2327677

SCALE

8:1

SHEET

REV
