2205105-2 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wire/cable> 2205105-2

Preview

2205105-2: DescriptionCA 150MM 08 POS. MOW-MOW M-M VALUE LINE; CategoryWire/cable; File Size158KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

2205105-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2205105-2	-	-	View	Buy Now

2205105-2 Overview

CA 150MM 08 POS. MOW-MOW M-M VALUE LINE

2205105-2 Parametric

Parameter Name	Attribute value
Harness category	Industry standard
Cable assembly type	MOW to MOW
product name	Jumper
Number of power supply locations	8
keying	no
Configuration	Double ended
balanced	no
color	grey
Wire size (AWG)	28
Flammability level	UL 2651
IEEE 1394	no
Cable assembly length	.15 m [ .492 ft ]
CLOUDSPLITTER	no

Preview

Download Datasheet

View All

4

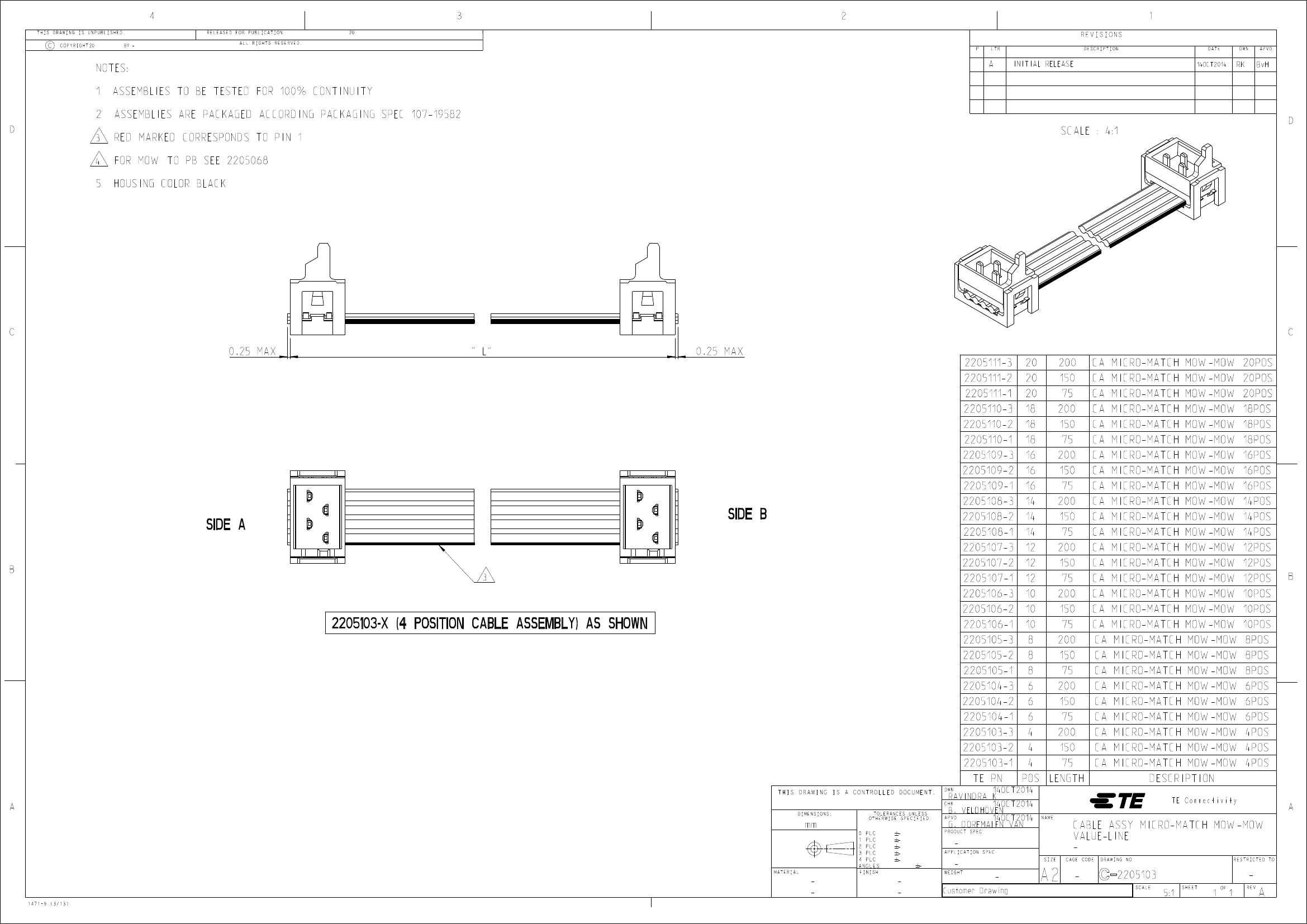

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

20

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT

20

BY -

NOTES:

1

D

A

INITIAL RELEASE

14OCT2014

RK

BvH

ASSEMBLIES TO BE TESTED FOR 100% CONTINUITY

ASSEMBLIES ARE PACKAGED ACCORDING PACKAGING SPEC 107-19582

RED MARKED CORRESPONDS TO PIN 1

FOR MOW TO PB SEE 2205068

HOUSING COLOR BLACK

SCALE : 4:1

D

2

3

4

5

C

0.25 MAX

" L"

0.25 MAX

2205111-3

2205111-2

2205111-1

2205110-3

2205110-2

2205110-1

2205109-3

2205109-2

2205109-1

2205108-3

2205108-2

2205108-1

2205107-3

2205107-2

2205107-1

2205106-3

2205106-2

2205106-1

2205105-3

2205105-2

2205105-1

2205104-3

2205104-2

2205104-1

2205103-3

2205103-2

2205103-1

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

20

18

16

14

12

10

8

6

4

200

75

150

200

150

200

150

200

150

200

150

200

75

CA MICRO-MATCH MOW-MOW 20POS

CA MICRO-MATCH MOW-MOW 18POS

CA MICRO-MATCH MOW-MOW 16POS

CA MICRO-MATCH MOW-MOW 14POS

CA MICRO-MATCH MOW-MOW 12POS

CA MICRO-MATCH MOW-MOW 10POS

CA MICRO-MATCH MOW-MOW 8POS

CA MICRO-MATCH MOW-MOW 6POS

CA MICRO-MATCH MOW-MOW 4POS

DESCRIPTION

TE Connectivity

SIDE A

B

3

SIDE B

B

2205103-X (4 POSITION CABLE ASSEMBLY) AS SHOWN

150

200

150

200

150

200

150

75

A

DIMENSIONS:

mm

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

14OCT2014

RAVINDRA K

CHK

14OCT2014

B. VELDHOVEN

APVD

14OCT2014

NAME

G. DOREMALEN VAN

PRODUCT SPEC

APPLICATION SPEC

TE PN

POS LENGTH

A

-

1471-9 (3/13)

-

WEIGHT

-

Customer Drawing

A2

SIZE

CAGE CODE DRAWING NO

CABLE ASSY MICRO-MATCH MOW-MOW

VALUE-LINE

-

RESTRICTED TO

-

2205103

SCALE

5:1

SHEET

1

OF

1

REV

-

A
