2205118-3 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wire/cable> 2205118-3

Preview

2205118-3: DescriptionCA 200MM 16 POS. MOW-PB M-M VALUE LINE; CategoryWire/cable; File Size191KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

2205118-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2205118-3	-	-	View	Buy Now

2205118-3 Overview

CA 200MM 16 POS. MOW-PB M-M VALUE LINE

2205118-3 Parametric

Parameter Name	Attribute value
Harness category	Industry standard
Cable assembly type	MOW to PB
product name	Jumper
Number of power supply locations	16
keying	no
Configuration	Double ended
balanced	no
color	grey
Wire size (AWG)	28
Flammability level	UL 2651
IEEE 1394	no
Cable assembly length	.2 m [ .656 ft ]
CLOUDSPLITTER	no

Preview

Download Datasheet

View All

4

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

20

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT

20

BY -

NOTES:

1

D

A

INITIAL RELEASE

14OCT2014

RK

BvH

ASSEMBLIES TO BE TESTED FOR 100% CONTINUITY

ASSEMBLIES ARE PACKAGED ACCORDING PACKAGING SPEC 107-19582

RED MARKED CORRESPONDS TO PIN 1

FOR MOW TO MOW SEE 2205060

HOUSING COLOR BLACK

SCALE : 4:1

D

2

3

4

5

C

0.25 MAX

" L "

0.25 MAX

2205120-3

2205120-2

2205120-1

2205119-3

2205119-2

2205119-1

2205118-3

2205118-2

2205118-1

2205117-3

2205117-2

2205117-1

2205116-3

2205116-2

2205116-1

20

18

16

14

12

10

8

6

4

200

150

200

75

CA MICRO-MATCH MOW-PB 20POS

CA MICRO-MATCH MOW-PB 18POS

CA MICRO-MATCH MOW-PB 16POS

CA MICRO-MATCH MOW-PB 14POS

CA MICRO-MATCH MOW-PB 12POS

CA MICRO-MATCH MOW-PB 10POS

CA MICRO-MATCH MOW-PB 8POS

CA MICRO-MATCH MOW-PB 6POS

CA MICRO-MATCH MOW-PB 4POS

DESCRIPTION

TE Connectivity

150

200

150

200

150

200

150

200

150

200

150

200

150

200

150

75

SIDE A

B

3

SIDE B

B

2205115-3

2205115-2

2205115-1

2205114-3

2205114-2

2205114-1

2205113-3

2205113-2

2205113-1

2205112-3

2205112-2

2205112-1

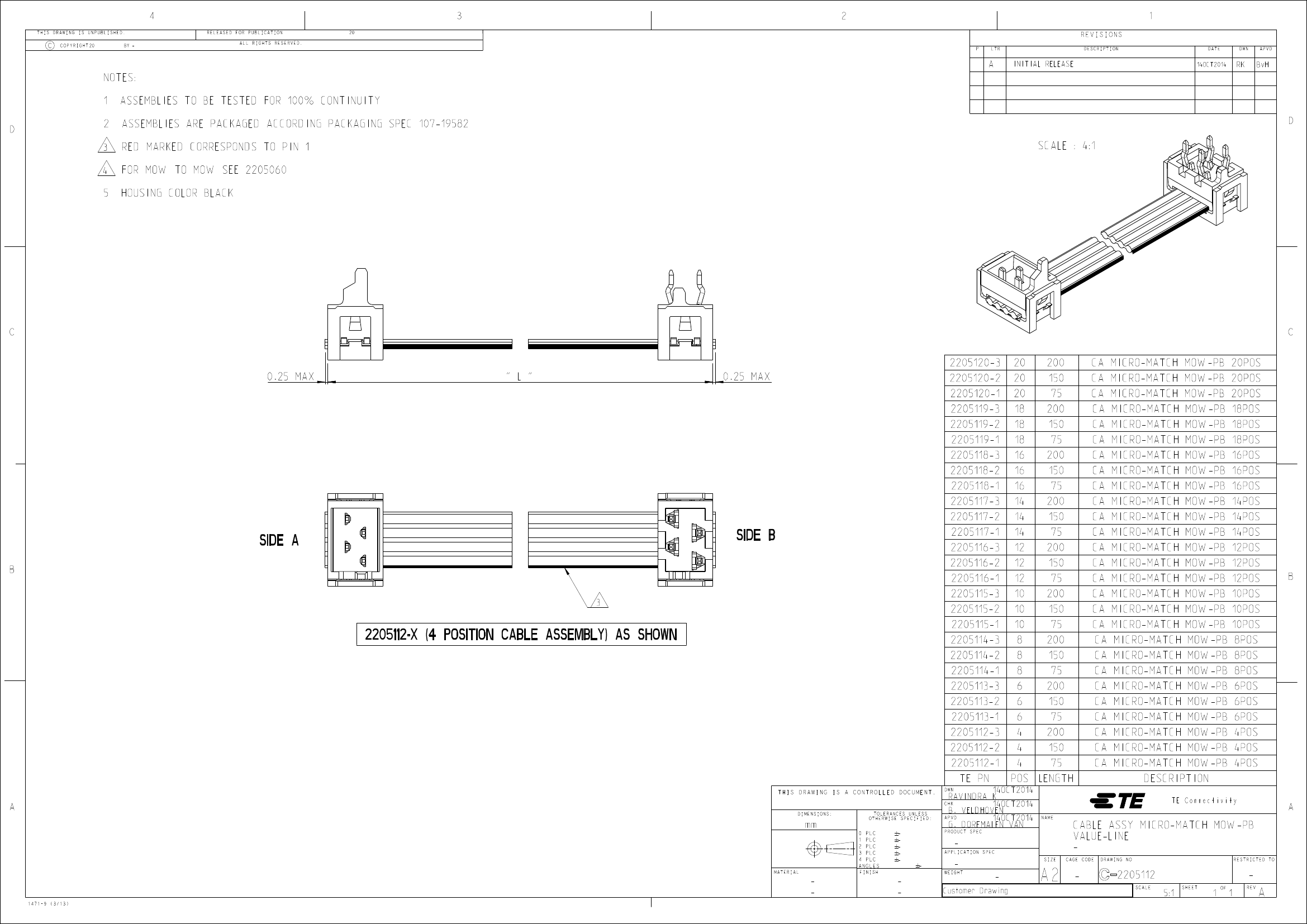

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

2205112-X (4 POSITION CABLE ASSEMBLY) AS SHOWN

A

DIMENSIONS:

mm

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

14OCT2014

RAVINDRA K

CHK

14OCT2014

B. VELDHOVEN

APVD

14OCT2014

NAME

G. DOREMALEN VAN

PRODUCT SPEC

APPLICATION SPEC

TE PN

POS LENGTH

A

-

1471-9 (3/13)

-

WEIGHT

-

Customer Drawing

A2

SIZE

CAGE CODE DRAWING NO

CABLE ASSY MICRO-MATCH MOW-PB

VALUE-LINE

-

RESTRICTED TO

-

2205112

SCALE

5:1

SHEET

1

OF

1

REV

-

A
