302-112 datasheet, PDF - EEWORLD Datasheet

302-112: DescriptionCard Edge Connector, 112 Contact(s), 2 Row(s), Female, Straight, Solder Terminal; CategoryThe connector The connector; File Size328KB，2 Pages; ManufacturerEDAC

Download Datasheet Parametric Compare View All

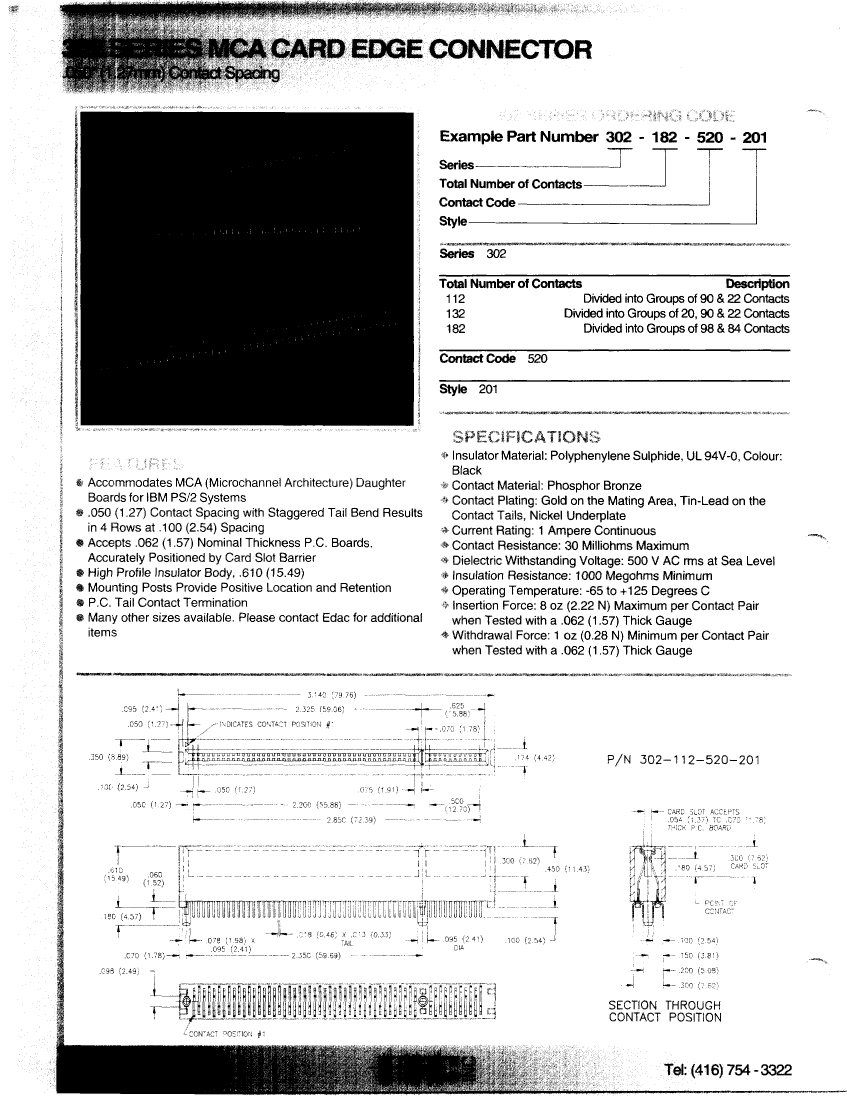

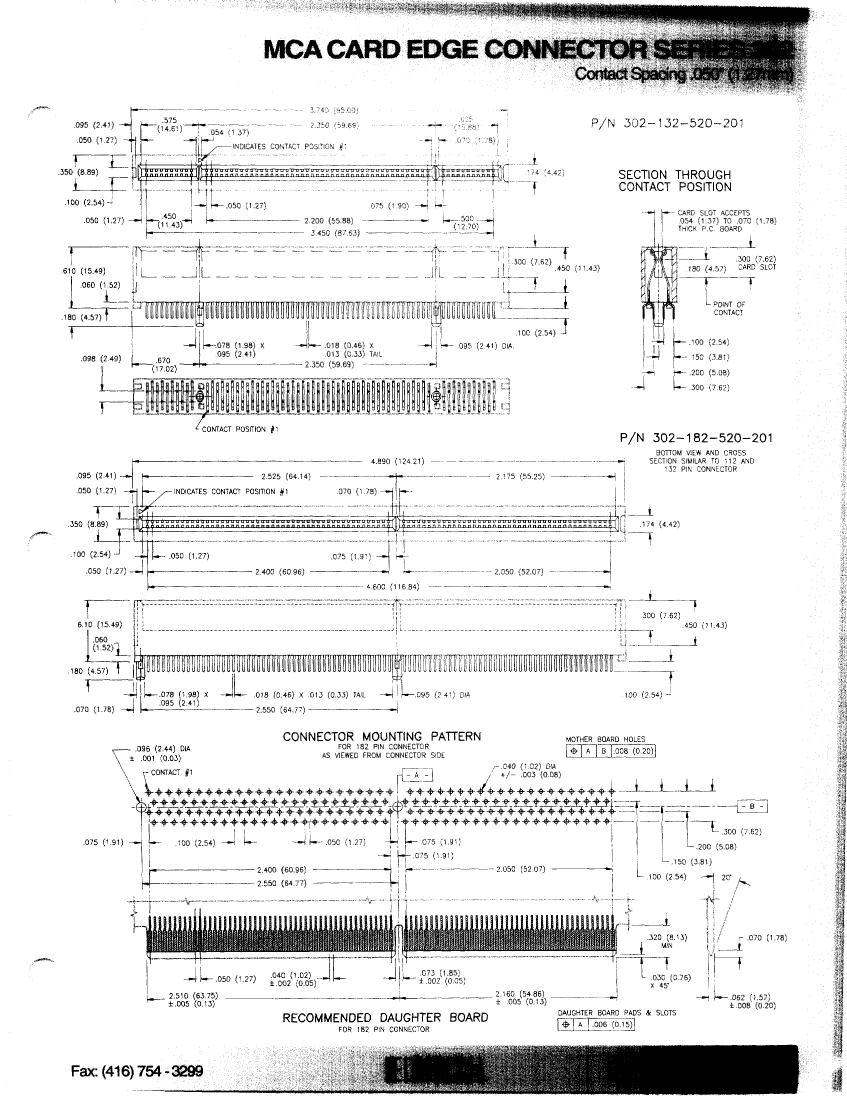

302-112 Overview

Card Edge Connector, 112 Contact(s), 2 Row(s), Female, Straight, Solder Terminal

Parameter Name	Attribute value
Maker	EDAC
Reach Compliance Code	compliant
Other features	HIGH PROFILE, STAGGERED CONFIGURATION
Connector type	CARD EDGE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	302
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	112
UL Flammability Code	94V-0
Base Number Matches	1

	302-112	302-182	302-132
Description	Card Edge Connector, 112 Contact(s), 2 Row(s), Female, Straight, Solder Terminal	Card Edge Connector, 182 Contact(s), 2 Row(s), Female, Straight, Solder Terminal	Card Edge Connector, 132 Contact(s), 2 Row(s), Female, Straight, Solder Terminal
Maker	EDAC	EDAC	EDAC
Reach Compliance Code	compliant	compliant	compliant
Other features	HIGH PROFILE, STAGGERED CONFIGURATION	HIGH PROFILE, STAGGERED CONFIGURATION	HIGH PROFILE, STAGGERED CONFIGURATION
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Manufacturer's serial number	302	302	302
Mixed contacts	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	112	182	132
UL Flammability Code	94V-0	94V-0	94V-0
Base Number Matches	1	1	1
