22759/44-24-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> 22759/44-24-2

22759/44-24-2: Description22759/44-24-2; CategoryWire/cable; File Size60KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

22759/44-24-2 Overview

22759/44-24-2

22759/44-24-2 Parametric

Parameter Name	Attribute value
Cable type	Spec 55A
Cable type	primary
Product Categories	Cables - High Performance - Spec 44, 55 and RCW
Number of shares	19
Number of conductors	1
Rated voltage (V)	600
Wire color	red
Stock size (AWG)	36
Wire size (AWG)	24
Wire size (mm²)	.2
Conductor diameter	.6 mm [ .024 in ]
Overall outer diameter	.94 mm [ .037 in ]
Insulation thickness (in)	.005
Wire diameter	.94 mm [ .037 in ]
Operating temperature range (°C)	-65 – 200
Wire source	USA

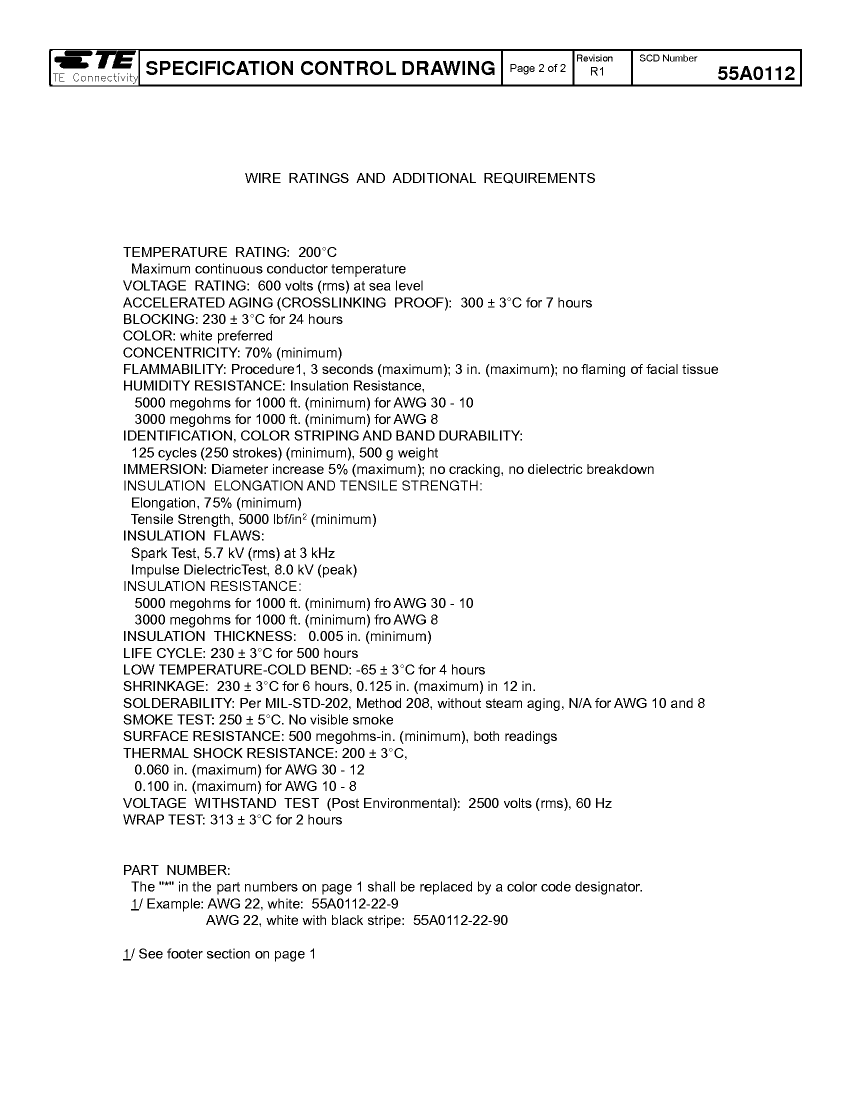

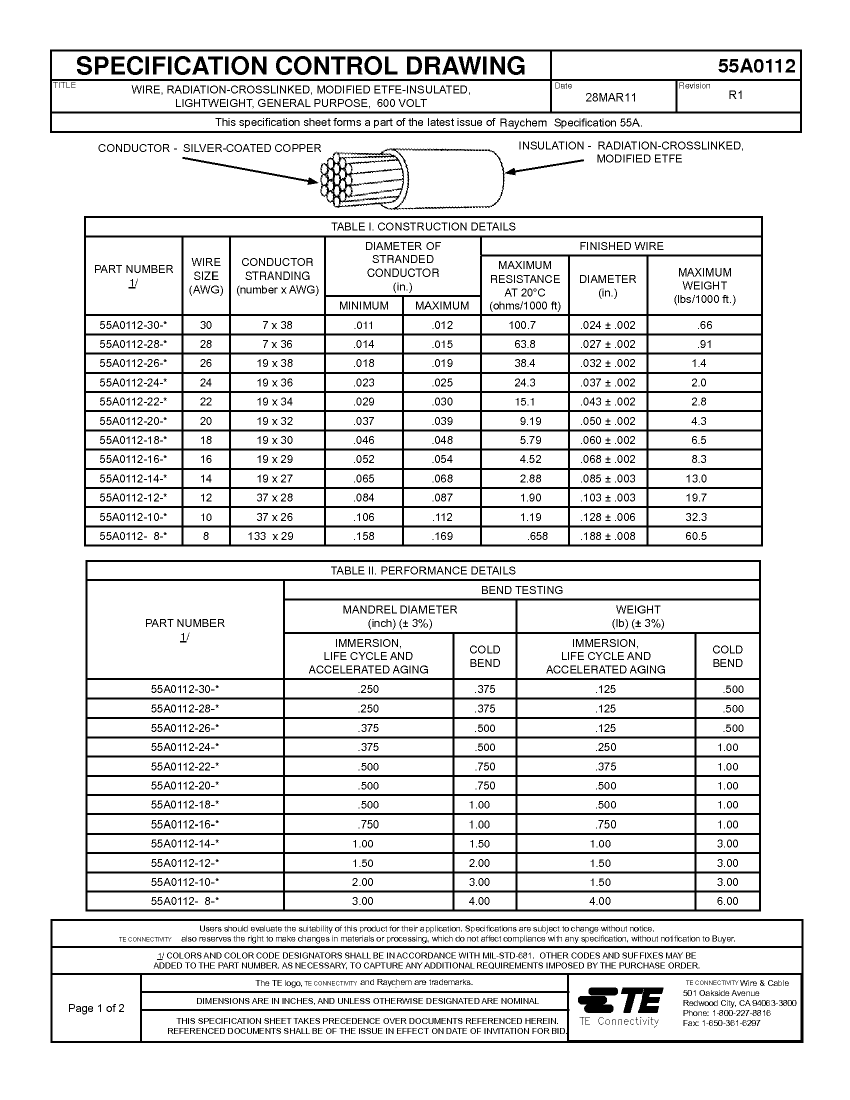

Preview

Download Datasheet

View All

22759/44-24-2 Related Products

	22759/44-24-2	55A0112-16-6	55A0112-24-4	22759/44-24-9	22759/44-16-2	22759/44-24-3	22759/44-16-9	22759/44-22-6	22759/44-28-9
Description	22759/44-24-2	55A0112-16-6	55A0112-24-4	22759/44-24-9	22759/44-16-2	22759/44-24-3	22759/44-16-9	22759/44-22-6	22759/44-28-9
Product Categories	Cables - High Performance - Spec 44, 55 and RCW	High performance - Spec 44, 55 and RCW	High performance - Spec 44, 55 and RCW	Cables - High Performance - Spec 44, 55 and RCW	Cables - High Performance - Spec 44, 55 and RCW	Cables - High Performance - Spec 44, 55 and RCW	Cables - High Performance - Spec 44, 55 and RCW	Cables - High Performance - Spec 44, 55 and RCW	Cables - High Performance - Spec 44, 55 and RCW
Number of shares	19	19	19	19	19	19	19	19	7
Number of conductors	1	1	1	1	1	1	1	1	1
Rated voltage (V)	600	600	600	600	600	600	600	600	600
Wire color	red	blue	yellow	White	red	orange color	White	blue	White
Stock size (AWG)	36	29	36	36	29	36	29	34	36
Wire size (AWG)	24	16	24	24	16	24	16	22	28
Wire size (mm²)	.2	1.31	.2	.2	1.31	.2	1.31	.33	.08
Conductor diameter	.6 mm [ .024 in ]	1.42 mm [ .056 in ]	.64 mm [ .025 in ]	.6 mm [ .024 in ]	1.34 mm [ .053 in ]	.64 mm [ .025 in ]	1.42 mm [ .056 in ]	.79 mm [ .031 in ]	.38 mm [ .015 in ]
Overall outer diameter	.94 mm [ .037 in ]	1.73 mm [ .068 in ]	.94 mm [ .037 in ]	.94 mm [ .037 in ]	1.73 mm [ .068 in ]	.94 mm [ .037 in ]	1.73 mm [ .068 in ]	1.09 mm [ .043 in ]	.69 mm [ .027 in ]
Wire diameter	.94 mm [ .037 in ]	1.73 mm [ .068 in ]	.94 mm [ .037 in ]	.94 mm [ .037 in ]	1.73 mm [ .068 in ]	.94 mm [ .037 in ]	1.73 mm [ .068 in ]	1.09 mm [ .043 in ]	.69 mm [ .027 in ]
Operating temperature range (°C)	-65 – 200	-65 – 200	-65 – 200	-65 – 200	-65 – 200	-65 – 200	-65 – 200	-65 – 200	-65 – 200
Wire source	USA	USA	USA	USA	USA	USA	USA	USA	USA
Cable type	primary	primary	primary	primary	primary	primary	primary	primary	primary
Insulation thickness (in)	.005	-	-	.005	.005	-	.005	.005	.005
