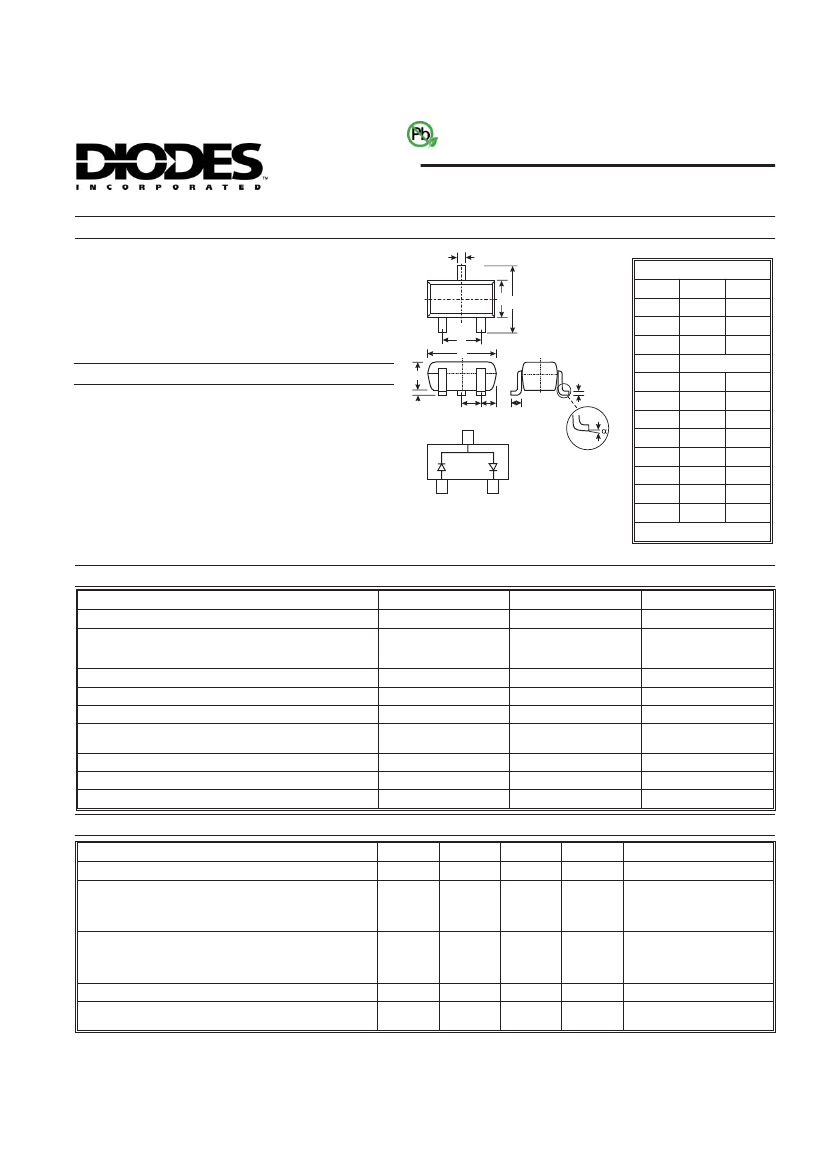

Lead-free Green
BAV99W
DUAL SURFACE MOUNT SWITCHING DIODE
Features
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
Fast Switching Speed
Ultra-small Surface Mount Package
For General Purpose Switching Applications
High Conductance
Lead Free/RoHS Compliant (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
"Green" Device (Note 4 and 5)
K
G
H
M
B
C
A
SOT-323
Dim
A
B
C
D
E
G
D
E
L
Min
0.25
1.15
2.00
0.30
1.20
1.80
0.0
0.90
0.25
0.10
0°
Max
0.40
1.35
2.20
0.40
1.40
2.20
0.10
1.00
0.40
0.18
8°
Mechanical Data
Case: SOT-323
Case Material: Molded Plastic, "Green" Molding
Compound, Note 5. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Solderable per MIL-STD-202, Method 208
Lead Free Plating (Matte Tin Finish annealed over
Alloy 42 leadframe).
Polarity: See Diagram
Marking: KJG (See Page 3)
Weight: 0.006 grams (approximate)
0.65 Nominal
J
H
J
K
L
TOP VIEW
M
a
All Dimensions in mm
Maximum Ratings
@ T
A
= 25°C unless otherwise specified
Characteristic
Non-Repetitive Peak Reverse Voltage
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current (Note 1)
Average Rectified Output Current (Note 1)
Non-Repetitive Peak Forward Surge Current @ t = 1.0ms
(Note 1)
@ t = 1.0s
Power Dissipation (Note 1)
Thermal Resistance Junction to Ambient Air (Note 1)
Operating and Storage Temperature Range
Symbol
V
RM
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
O
I
FSM
P
d
R
qJA
T
j
, T
STG
Value
100
75
53
300
150
2.0
1.0
200
625
-65 to +150
Unit
V
V
V
mA
mA
A
mW
°C/W
°C
Electrical Characteristics
Characteristic
Reverse Breakdown Voltage (Note 2)
Forward Voltage
@ T
A
= 25°C unless otherwise specified
Symbol
V
(BR)R
V
F
Min
75
¾
Max
¾
0.715
0.855
1.0
1.25
2.5
50
30
25
2.0
4.0
Unit
V
V
mA
mA
mA
nA
pF
ns
Test Condition
I
R
= 2.5mA
I
F
= 1.0mA
I
F
= 10mA
I
F
= 50mA
I
F
= 150mA
V
R
= 75V
V
R
= 75V, T
j
= 150°C
V
R
= 25V, T
j
= 150°C
V
R
= 20V
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 10mA,
I
rr
= 0.1 x I
R
, R
L
= 100W
Reverse Current (Note 2)
Total Capacitance
Reverse Recovery Time
Notes: 1.
2.
3.
4.
5.
I
R
C
T
t
rr
¾
¾
¾
Device mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
Short duration test pulse used to minimize self-heating effect.
No purposefully added lead.
Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com./products/lead_free/index.php.
Product manufactured with Date Code 0609 (week 9, 2006) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code 0609 are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants.
DS30045 Rev. 7 - 2
1 of 3
www.diodes.com
BAV99W
ã
Diodes Incorporated
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
I
R
, INSTANTANEOUS REVERSE CURRENT (nA)
1
10000
T
A
= 150ºC
T
A
= 125ºC
1000
0.1
T
A
= 150ºC
T
A
= 75ºC
T
A
= 25ºC
T
A
= 0ºC
T
A
= -40ºC
100
T
A
= 75ºC
10
T
A
= 25ºC
T
A
= 0ºC
0.01
1
T
A
= -40ºC
0.001
0
0.5
1.0
1.5
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

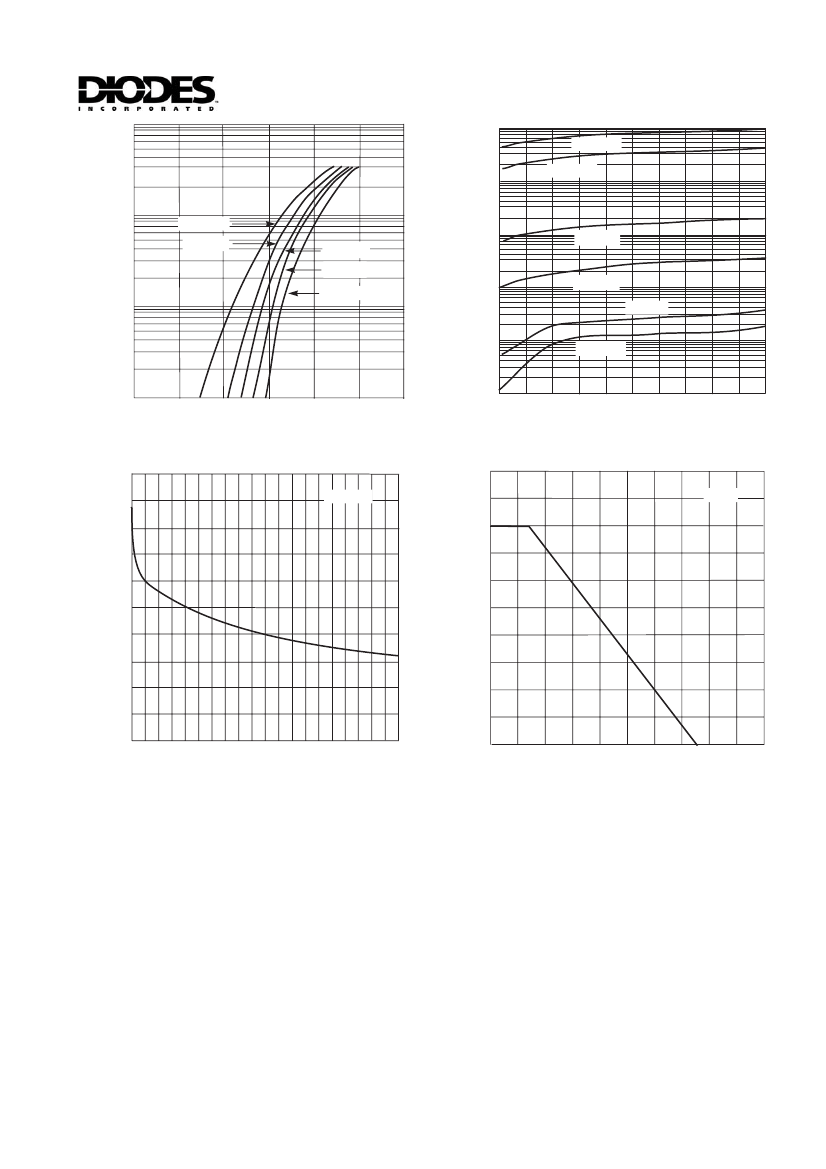

Fig. 1 Forward Characteristics
2.0
1.8
f = 1.0MHz
0.1
0
20
40
60
80
100
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 2 Typical Reverse Characteristics
250
Note 1
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
0
10
20
30
40
P
d
, POWER DISSIPATION (mW)
C
T
, TOTAL CAPACITANCE (pF)
200
150
100
50
0
0
40
80
120
160
200
T
A
, AMBIENT TEMPERATURE (
°
C)
Fig. 4 Power Derating Curve, Total Package
V
R
, REVERSE VOLTAGE (V)
Fig. 3 Typical Capacitance vs. Reverse Voltage
DS30045 Rev. 7 - 2
2 of 3
www.diodes.com
BAV99W
Ordering Information
Device
BAV99W-7-F
Notes:
(Note 5 & 6)
Packaging
SOT-323
Shipping
3000/Tape & Reel
5. Product manufactured with Date Code 0609 (week 9, 2006) and newer are built with Green Molding Compound. Product manufactured prior
to Date Code 0609 are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants.
6. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
KJG
Date Code Key
Year
Code
Month
Code
2000
L
2001
M
Jan
1
2002
N
Feb
2
2003
P
March
3
KJG = Product Type Marking Code
YM = Date Code Marking
Y = Year ex: N = 2002
M = Month ex: 9 = September
YM
2004
R
Apr
4
2005
S
May
5
2006
T
Jun
6
2007
U
Jul
7
2008
V
Aug
8
2009
W
Sep
9
2010
X
Oct
O
2011
Y
Nov
N
2012
Z
Dec
D
IMPORTANT NOTICE
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further
notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither
does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will
agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages.
LIFE SUPPORT
Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the
President of Diodes Incorporated.
DS30045 Rev. 7 - 2
3 of 3
www.diodes.com
BAV99W
