364402K00 datasheet, PDF - EEWORLD Datasheet

364402K00: DescriptionBoard Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.197 inch Pitch, Solder Terminal, Beige Insulator, Receptacle; CategoryThe connector The connector; File Size176KB，2 Pages; ManufacturerLumberg; Websitehttp://www.lumberg.com/zh/

Download Datasheet Parametric View All

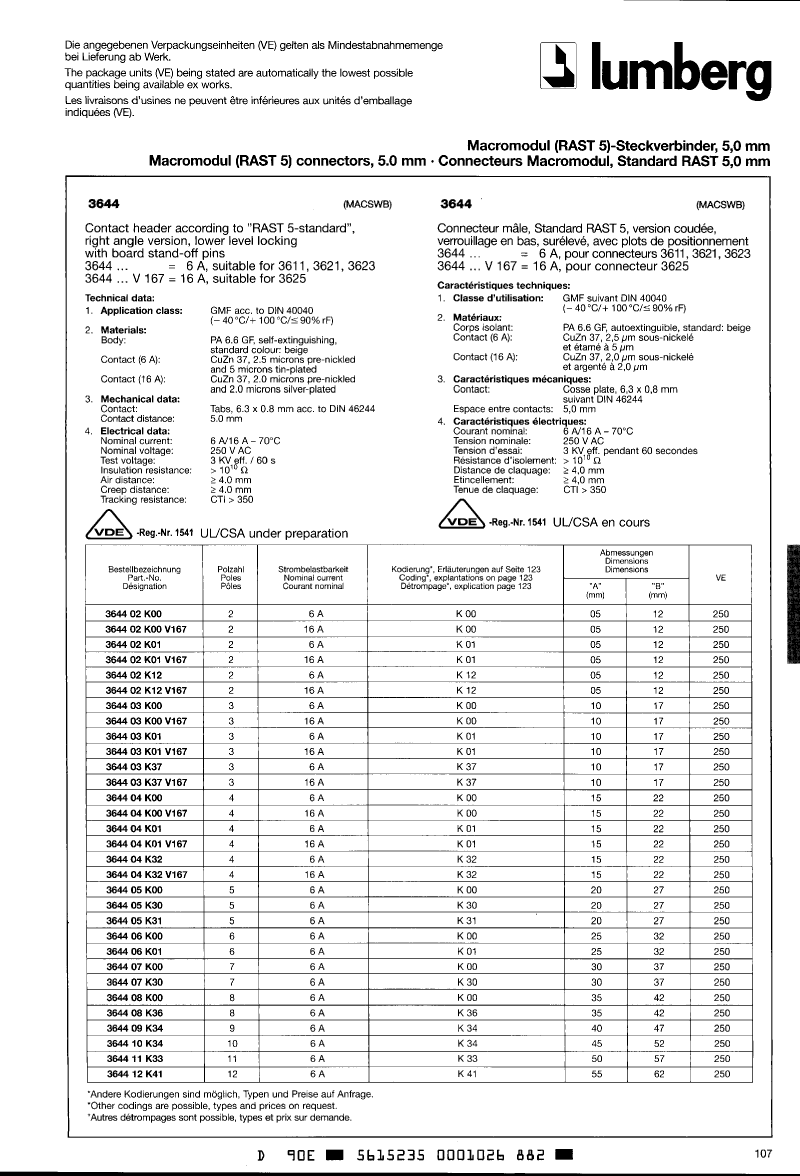

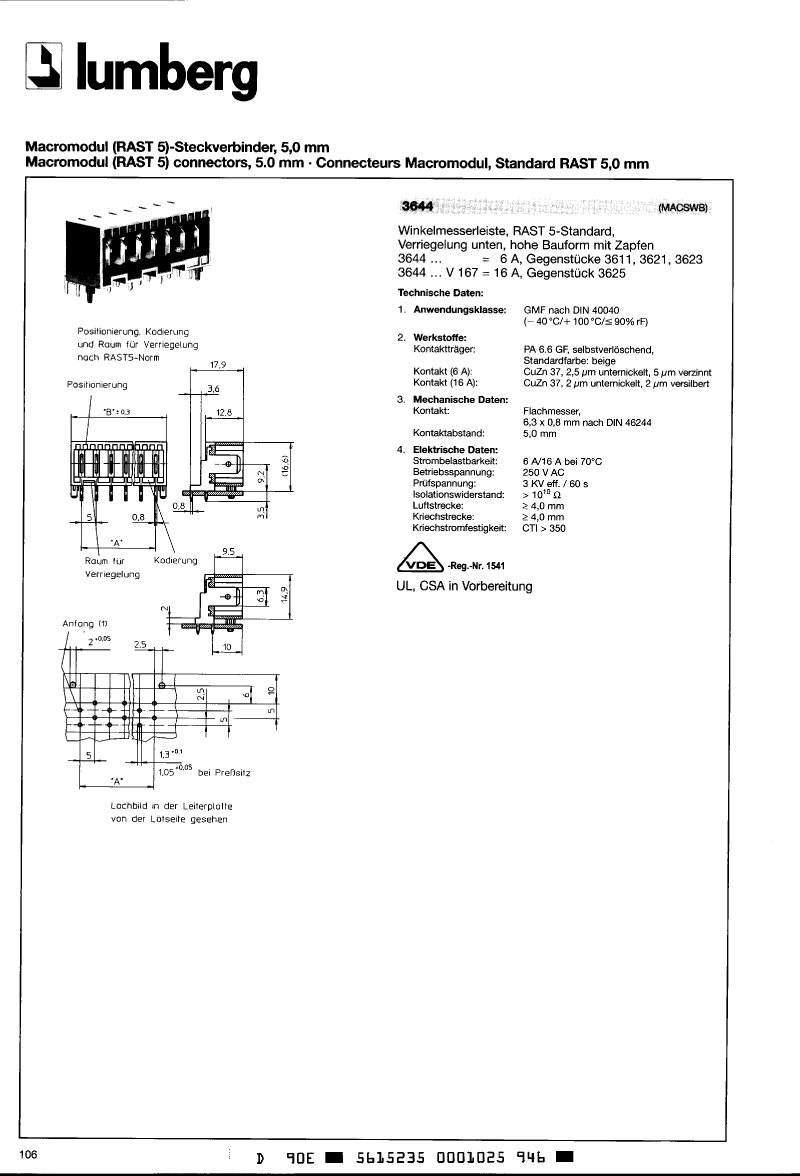

364402K00 Overview

Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.197 inch Pitch, Solder Terminal, Beige Insulator, Receptacle

Parameter Name	Attribute value
Maker	Lumberg
Reach Compliance Code	compliant
Other features	LOWER LEVEL LOCKING
Board mount options	POLARIZATION POST
body width	0.654 inch
subject depth	0.705 inch
body length	0.472 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	BLADE PIN-SKT
Dielectric withstand voltage	3000VAC V
Insulation resistance	10000000000 Ω
Insulator color	BEIGE
insulator material	POLYAMIDE
Manufacturer's serial number	3644
Plug contact pitch	0.197 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	1
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.4892 mm
Plating thickness	80u inch
polarization key	GUIDE SLOT(S)
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	10.0076 mm
Termination type	SOLDER
Total number of contacts	2
Base Number Matches	1
