• Ideal for a variety of DC-DC converter inductor applications
Pb
RoHS
Compliant
APPLICATIONS:
• Desktop, notebook, servers
• Network hubs, bridges, routers
• Partable communication equipment
• OA equipment
• LCD, DVD, modem, set-top box
• Battery charger
• DC/DC converters
3.2 x 3.2mm
STANDARD SPECIFICATIONS:
PARAMETERS
ABRACON P/N:
Operating temperature:
Storage temperature:
Test Frequency:
ASPI-2D09-
1R2
1R5
1R8
2R2
2R7
3R3
3R9
4R7
5R6
6R8
8R2
100
ASPI-2D11-
1R5
2R2
3R3
4R7
6R8
100
ASPI-2DXX Series
-30ºC to +100ºC
Under 25ºC; Humidity<75% RH
100kHz, 1Vrms
RDC max
(Ω)
0.0975
0.11
0.1313
0.1438
0.15
0.1938
0.225
0.2875
0.325
0.425
0.475
0.5375
RDC max
(Ω)
0.068
0.098
0.123
0.17
0.26
0.4
L
(µH)
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
L
(µH)
1.5
2.2
3.3
4.7
6.8
10
Tolerance
N
N
N
N
N
N
N
M, N
N
N
N
M, N
Tolerance
N
N
N
M, N
N
M, N
Rated Current
(A)
0.8
0.73
0.65
0.6
0.53
0.47
0.45
0.41
0.37
0.33
0.3
0.28
Rated Current
(A)
0.9
0.78
0.6
0.5
0.44
0.35
Irms typ.
(A)
1.24
1.15
1.06
1.05
0.98
0.84
0.72
0.64
0.59
0.53
0.46
0.42
Irms typ.
(A)
1.48
1.27
1.02
0.88
0.8
0.65
ABRACON IS
ISO9001:2008
CERTIFIED
Revised: 08.10.10
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
SHIELDED, LOW PROFILE WIREWOUND POWER INDUCTOR
ASPI-2D
ASPI-2D14-
1R5
1R8
2R2
2R7
3R3
3R9
4R1
4R7
5R6
6R8
8R2
100
120
ASPI-2D18L-
2R2
3R3
4R7
6R8
100
150
220
330
470
Pb
RoHS
Compliant
L
(µH)
1.5
1.8
2.2
2.7
3.3
3.9
4.1
4.7
5.6
6.8
8.2
10
12
L
(µH)
2.2
3.3
4.7
6.8
10
15
22
33
47
3.2 x 3.2mm
Tolerance
N
N
N
N
N
N
M, N
M, N
M, N
M, N
M, N
M, N
M, N
Tolerance
RDC max
(Ω)
0.063
0.075
0.094
0.106
0.125
0.138
0.169
0.169
0.188
0.213
0.281
0.294
0.394
RDC max
(
Ω
)
0.041
0.054
0.078
0.106
0.18
0.22
0.32
0.46
0.66
Rated Current
(A)
1.8
1.65
1.5
1.35
1.2
1.1
1
1
0.95
0.85
0.8
0.7
0.62
Rated Current
(A)
0.85
0.75
0.63
0.52
0.43
0.35
0.3
0.24
0.2
Irms typ.
(A)
2
1.8
1.6
1.4
1.24
1.12
1
1
0.98
0.92
0.8
0.76
0.64
Irms typ.
(A)
2.3
2.1
1.65
1.32
1
0.8
0.68
0.56
0.48
M,N
M,N
M,N
M,N
M,N
M,N
M,N
M,N
M,N
ASPI-2D18H-
1R7
2R2
3R3
4R7
6R3
100
150
L
(µH)
1.7
2.2
3.3
4.7
6.3
10
15
Tolerance
M, N
M, N
M, N
M, N
M, N
M, N
M, N
RDC max
(Ω)
0.044
0.06
0.086
0.14
0.16
0.245
0.345
Rated Current
(A)
1.85
1.6
1.45
1.2
1.05
0.85
0.7
Irms typ.
(A)
2.2
1.9
1.55
1.2
1.15
0.9
0.64
NOTE:
* Rated Current: The rated current indicates
the current when the inductance decrease to
65% over of its nominal value or DC current
when the temperature rising 40ºC, which-
ever is lower.
* Test Frequency: 100KHz, 1V
TEST INSTRUMENT:
L: HP4192A LF impedance analyzer
Rdc: CH502BC
Rated Current: HP4284+42841A or
CH1061+CH301A
OPTIONS AND PART IDENTIFICATION:
(Left blank if standard)
ASPI-
P/N
-
-
-
Packaging
T: Tape and Reel
2D09:3.2x3.2x1.0mm
2D11:3.2x3.2x1.2mm
2D14:3.2x3.2x1.55mm
2D09:3.2x3.2x2.0mm
Inductance Code
Please refer to the
table on page 2 and 3
Tolerance %
M: ±20%
N: ±30%
ABRACON IS
ISO9001:2008
CERTIFIED
Revised: 08.10.10
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
SHIELDED, LOW PROFILE WIREWOUND POWER INDUCTOR
ASPI-2D

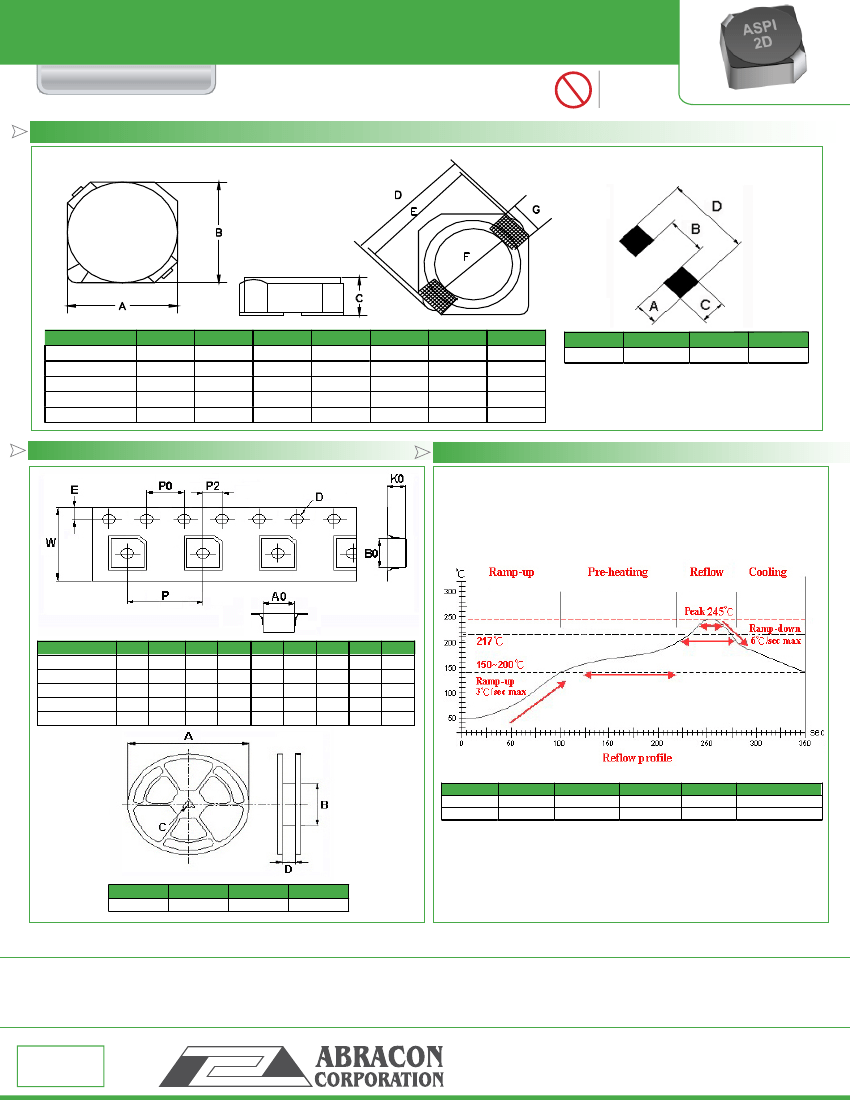

OUTLINE DRAWING:
Dimensions: Inches (mm)
Recommended Land Pattern
Pb
RoHS
Compliant
3.2 x 3.2mm
P/N
ASPI-2D09
ASPI-2D11
ASPI-2D14
ASPI-2D18L
ASPI-2D18H
A(Max)
3.2
3.2
3.2
3.2
3.2
B(Max)
3.2
3.2
3.2
3.2
3.2
C(Max)
1.0
1.2
1.55
2.0
2.0
D(Max)
4.5
4.5
4.5
4.5
4.5
E
3.3
3.3
3.3
3.3
3.3
F
2.1
2.1
2.1
2.1
2.1
G
1.0
1.0
1.0
1.0
1.0
A
1.3
B
1.7
C
1.3
D
4.3
TAPE & REEL:
T= tape and reel(1,000pcs per reel)
REFLOW PROFILE:
P/N
ASPI-2D09
ASPI-2D11
ASPI-2D14
ASPI-2D18L
ASPI-2D18H
A0
3.35
3.35
3.35
3.35
3.35
B0
3.35
3.35
3.35
3.35
3.35
K0
1.4
1.4
1.7
2.1
2.1
D
1.55
1.55
1.55
1.55
1.55
E
1.75
1.75
1.75
1.75
1.75
W
12
12
12
12
12
P
8
8
8
8
8
P0
4
4
4
4
4
P2
2
2
2
2
2
Item
Temp. scope
Time spec.
Ramp-up
R.T. ~ 150°C
--
Pre-heating
150°C ~ 200°C
60 ~ 180 sec
Reflow
217°C
60 ~ 150 sec
Peak Temp.
260? 5°C
20 ~ 40 sec
Cooling
Peak Temp. ~ 150°C
--
Dimensions:
mm
A
178
B
60
C
13
D
13.2
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automo-
tive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requir-
ing high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme
operating environment, written consent and authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information.
ABRACON IS
ISO9001:2008
CERTIFIED
Revised: 08.10.10
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
