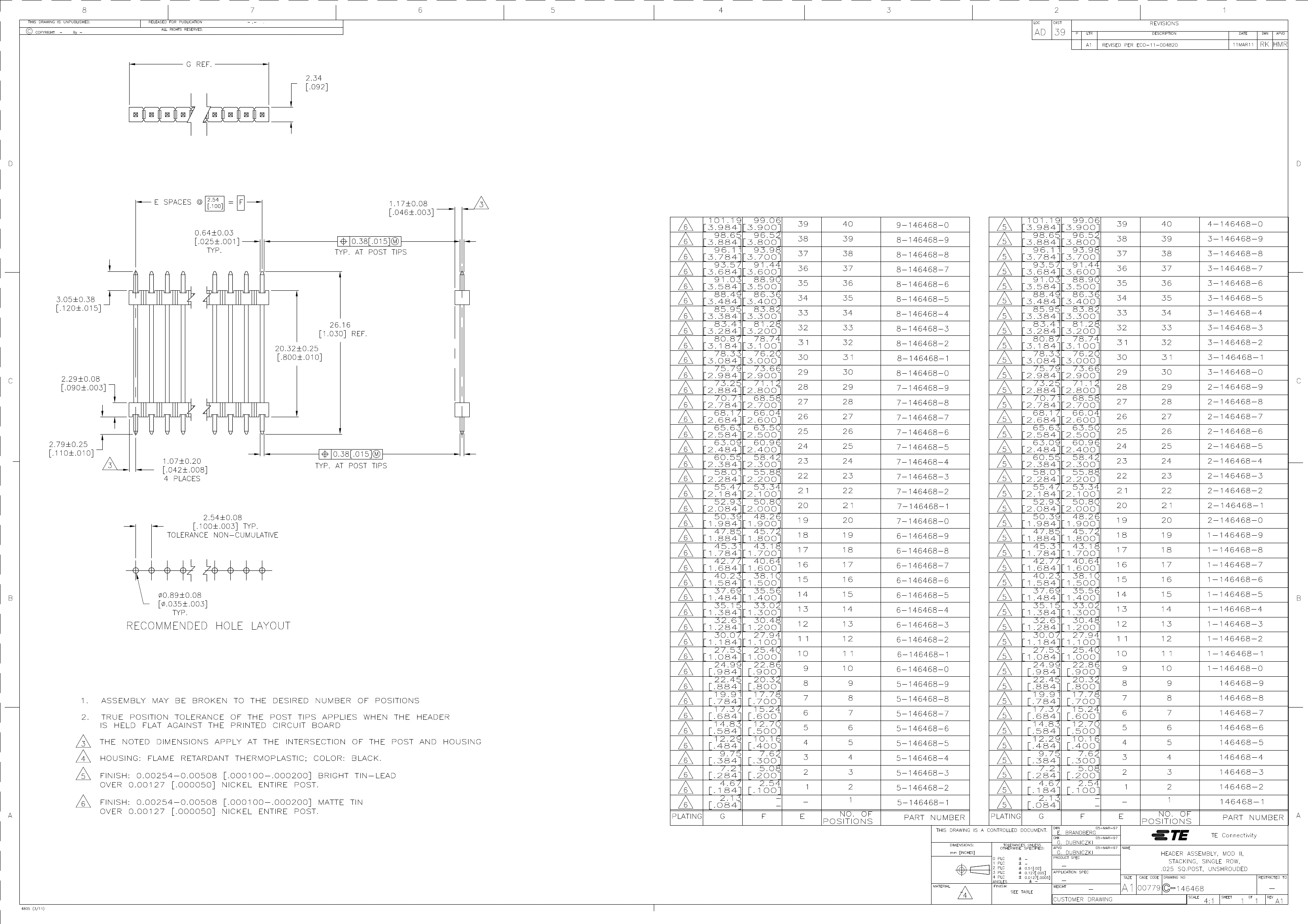

5-146468-7

Description
07 MODII HDR SRST UNSHRD STKG
CategoryThe connector
File Size236KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

5-146468-7 Online Shopping

Suppliers Part Number Price MOQ In stock
5-146468-7 - - View Buy Now

5-146468-7 Overview

07 MODII HDR SRST UNSHRD STKG

5-146468-7 Parametric

Parameter NameAttribute value
PCB Connector Component TypesPCB mounting header
Connectors and terminals terminate toA printed circuit board
seriesAMPMODU
Stackableyes
PCB mounting directionvertical
Number of Positions7
Rows1
Insulation resistance (MΩ)5000
Cylinder size.64 mm [ .025 in ]
Terminal base materialbrass
PCB terminal termination area plating materialstin
Terminal shapesquare
Terminal contact plating materialtin
Terminal Contact Plating Thickness (µin)100 – 200
Terminal typePin
Contact Current Rating (Max) (A)3
PCB Terminal Termination Area Plating Thickness (µin)100 – 200
Terminal layoutDirect plug-in
PCB Termination MethodsThrough hole
Termination cylinder length26.16 mm [ 1.03 in ]
PCB installation and fixationWithout
Centerline (Pitch)2.54 mm [ .1 in ]
Shell colorblack
Shell materialthermoplastic
stacking height20.32 mm [ .8 in ]
tail length3.05 mm [ .12 in ]
Joint post length2.79 mm [ .109 in ]
Working group temperature range (°C)-65 – 125
pick and place coverWithout
Applicable toFemale components
approved standardsCSA LE7189, UL E28476
UL flammability ratingUL 94V-0
