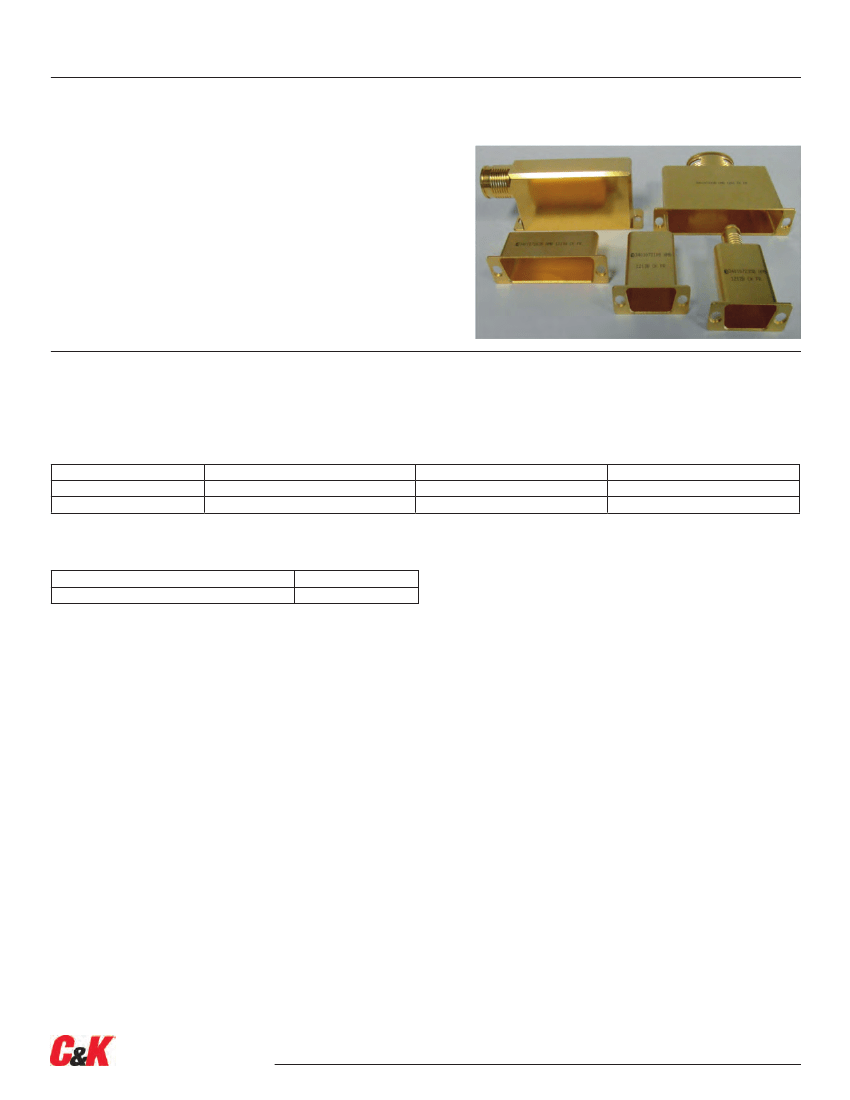

3401-072 D*Sub Lightweight Backshells
3401-072 D*Sub Lightweight Backshells for Connectors, Electrical, Rectangular compliant with ESA/ESCC
specifications 3401/001 and 3401/002 Connectors
Features/Benefits
•
Compliant with ESA specifications 3401/072
•
Ultra light weight
•
Solid fully machined aluminium alloy
Typical Applications
• Space
equipment
• Avionics
/ Military
• Industrials
applications
Specification
Compliant to ESCC specifications 3401/072.
Compatible with D*M ESCC 3401/001, D*MA ESCC 3401/002 connectors and Accessories 3401/022, 3401/085.
SIZES AVAILABLE: E, A, B, C, D and F.
Material and finishes
Type Parts
Material
Finish
Shells and Clamps
Aluminium alloy 6061-T6
0,7 µm min. Gold over 25,4 µm min. Ni
Screws
Brass
0,7 µm min. Gold over 1 µm min. Cu
Gasket
Silicone conductive elastomere
None
Temperature Range
Operating Temperature range
Storage Temperature Range
-55 to +125 °C
-55 to +125 °C
Other features are available on ESA/ESCC specifications.
Quality Level
ESA / ESCC: code 3401 (Flying model)
(Qualification reviewed every 2 years)
FR022 C&K Specification
Packaging
Individual packaging and traceability associated as per
ESA/ESCC specifications
Dimensions are shown in mm (inch)
Dimensions subject to change
A10-1
www.ck-components.com
Rev. 23APR13
3401-072 D*Sub Lightweight Backshells

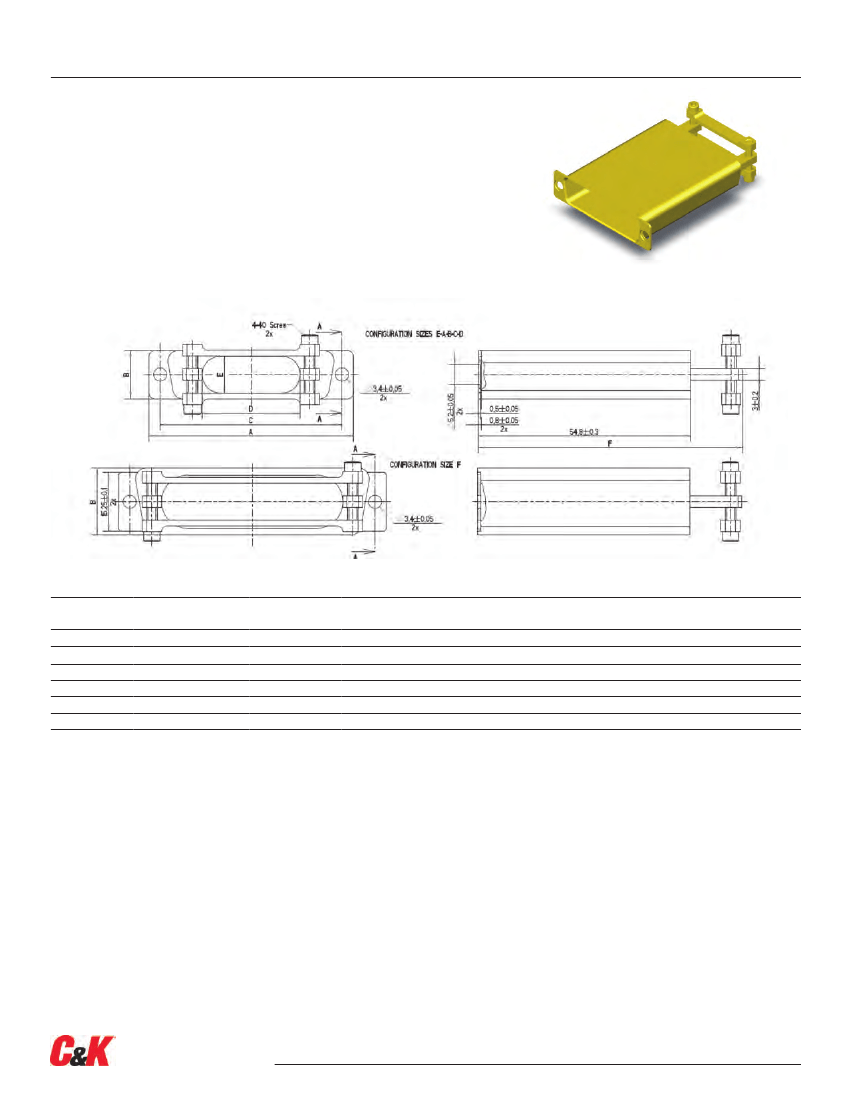

Lightweight Backshell with saddle clamps for strain relief
Max weight (grams):
Size E: 15,5
Size A: 19
Size B: 23
Size C: 29
Size D: 33
Size F: 37
Packaging unit: 1 piece (plastic bag)
Residual magnetism level NMB (200 Gamma max)
Shell
Size
E
A
ESA/ESCC
Variant
05
06
A
± 0,20 (.008)
30,68 (1.208)
39,01 (1.536)
B
± 0,15 (.006)
12,50 (.492)
12,50 (.492)
C
± 0,13 (.005)
33,32 (1.312)
24,99 (.984)
D
± 0,30 (.012)
18,10 (.713)
9,50 (.374)
E
± 0,15 (.006)
9,50 (.374)
9,50 (.374)
F
± 0,50 (.020)
66,75 (2.628)
66,75 (2.628)
B
C
D
F
07
08
09
72
52,91 (2.083)
69,19 (2.724)
66,80 (2.630)
69,30 (2.728)
12,50 (.492)
12,50 (.492)
15,30 (.602)
17,30 (.681)
47,04 (1.852)
63,50 (2.500)
61,12 (2.406)
63,50 (2.500)
25,40 (1.000)
34,90 (1.374)
35,70 (1.405)
47,00 (1.850)
9,50 (.374)
9,50 (.374)
11,90 (.468)
13,90 (.547)
68,35 (2.691)
68,35 (2.691)
68,35 (2.691)
68,35 (2.691)
Cross References
Type
Size
E
A
B
C
D
F
Saddle clamp for strain relief
340107205B NMBA
340107206B NMBA
340107207B NMBA
340107208B NMBA
340107209B NMBA
340107272B NMB
Description
ESA/ESCC Quality Level
C115366-2586C
C115366-2587C
C115366-2588C
C115366-2589C
C115366-2590C
C115366-2687C
Part Number
DE115366-2586
DA115366-2587
DB115366-2588
DC115366-2589
DD115366-2590
DF115366-2687
Description
FR022 Quality Level
C115366-2586A
C115366-2587A
C115366-2588A
C115366-2589A
C115366-2590A
C115366-2687A
Part Number
Dimensions are shown in mm (inch)
Dimensions subject to change
A10-2
www.ck-components.com
Rev. 23APR13
3401-072 D*Sub Lightweight Backshells

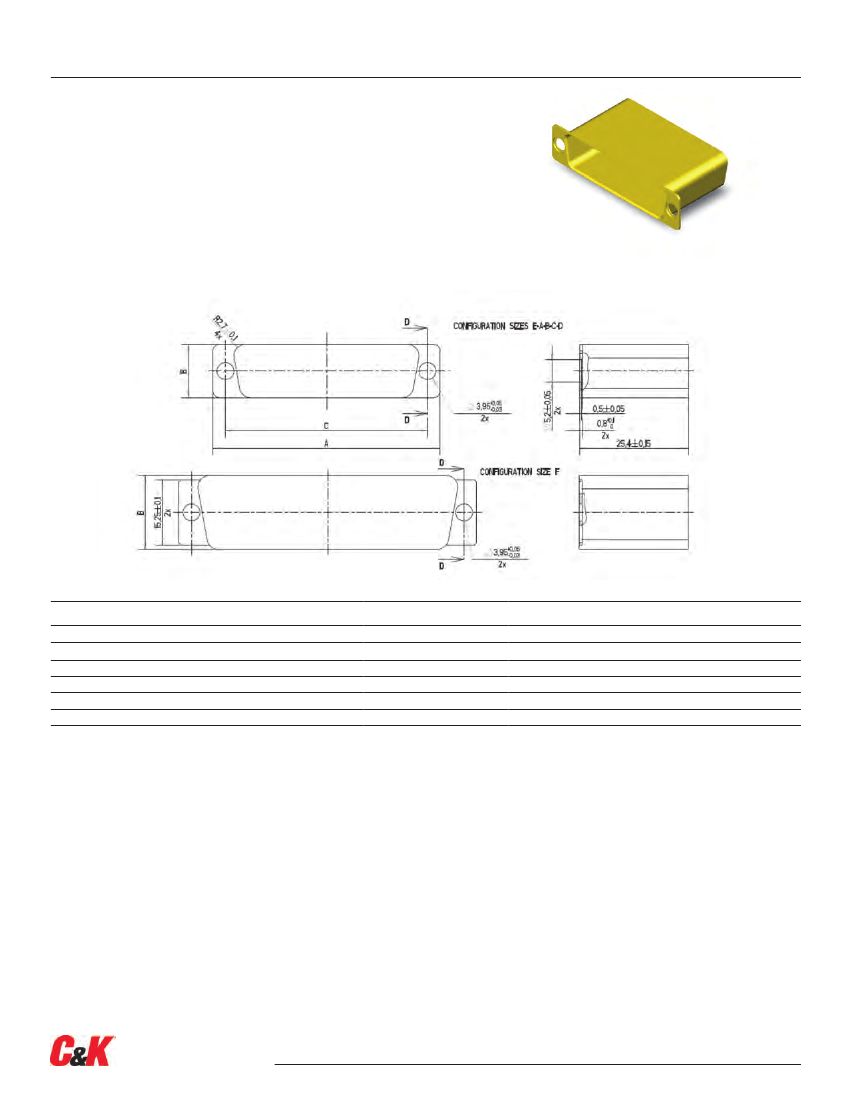

Lightweight Backshell shorting can
Max weight (grams):
Size E: 8
Size A: 10
Size B: 14
Size C: 20
Size D: 26
Size F: 30
Packaging unit: 1 piece (plastic bag)
Residual magnetism level NMB (200 Gamma max)
Shell Size
E
A
ESA/ESCC Variant
10
12
13
14
73
11
A±
0,20 (.008)
30,68 (1.208)
39,01 (1.536)
B±
0,15 (.006)
12,50 (.492)
12,50 (.492)
C±
0,13 (.005)
33,32 (1.312)
24,99 (.984)
B
C
D
F
52,91 (2.083)
69,19 (2.724)
66,80 (2.630)
69,30 (2.728)
12,50 (.492)
12,50 (.492)
15,30 (.602)
17,30 (.681)
47,04 (1.852)
63,50 (2.500)
61,12 (2.406)
63,50 (2.500)
Cross References
Type
Size
E
A
B
C
D
F
ESA/ESCC Quality Level
340107210B NMBA
340107211B NMBA
340107212B NMBA
340107213B NMBA
340107214B NMBA
340107273B NMB
FR022 Quality Level
DE115366-2591
DA115366-2592
DB115366-2593
DC115366-2594
DD115366-2595
DF115366-2688
Shorting Can
Description
C115366-2591C
C115366-2592C
C115366-2593C
C115366-2594C
C115366-2595C
C115366-2688C
Part Number
Description
C115366-2591A
C115366-2592A
C115366-2593A
C115366-2594A
C115366-2595A
C115366-2688A
Part Number
Dimensions are shown in mm (inch)
Dimensions subject to change
A10-3
www.ck-components.com
Rev. 23APR13
3401-072 D*Sub Lightweight Backshells

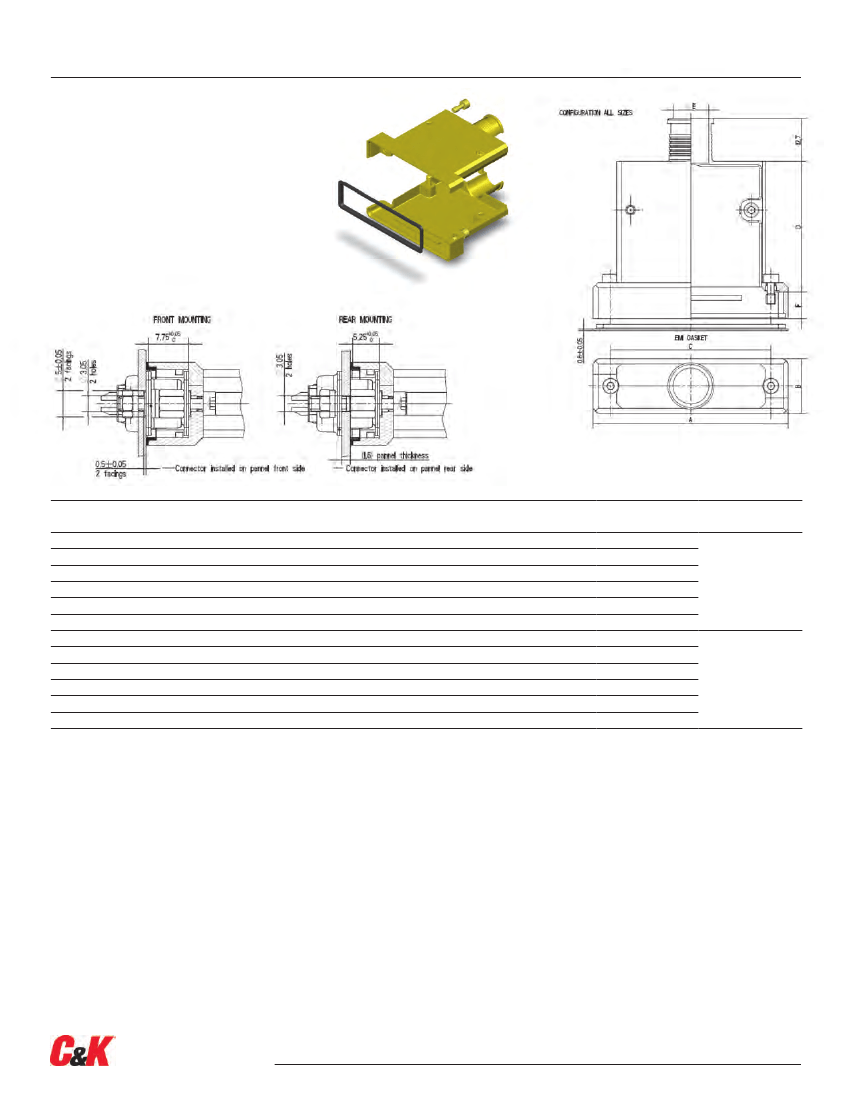

Lightweight EMI Shielded Backshell straight cable outlet
Max weight (grams):
Size E: 21
Size A: 26
Size B: 30
Size C: 35
Size D: 40
Size F: 45
Packaging unit: 1 piece (plastic bag)
Residual magnetism level NMB (200 Gamma max)
Shell Size ESA/ESCC Variant A±
0,25 (.010)
B±
0,25 (.010)
C±
0,13 (.005)
D±
0,30 (.012)
Ø E±
0,25 (.010)
F0/+
0,05 (.002)
E
A
B
C
D
F
E
A
B
C
D
F
15
16
17
18
19
74
20
21
22
23
24
75
35,03 (1.379)
43,36 (1.707)
57,25 (2.254)
73,53 (2.895)
71,14 (2.801)
73,50 (2.894)
35,03 (1.379)
43,36 (1.707)
57,25 (2.254)
73,53 (2.895)
71,14 (2.801)
73,50 (2.894)
15,98 (.629)
15,98 (.629)
15,98 (.629)
15,98 (.629)
18,75 (.738)
20,80 (.819)
15,98 (.629)
15,98 (.629)
15,98 (.629)
15,98 (.629)
18,75 (.738)
20,80 (.819)
24,99 (.984)
33,32 (1.312)
47,04 (1.852)
63,50 (2.500)
61,12 (2.406)
63,50 (2.500)
24,99 (.984)
33,32 (1.312)
47,04 (1.852)
63,50 (2.500)
61,12 (2.406)
63,50 (2.500)
32,70 (1.287)
32,70 (1.287)
38,30 (1.508)
38,30 (1.508)
38,30 (1.508)
38,30 (1.508)
32,70 (1.287)
32,70 (1.287)
38,30 (1.508)
38,30 (1.508)
38,30 (1.508)
38,30 (1.508)
6,73 (.265)
9,90 (.390)
10,54 (.415)
10,54 (.415)
13,33 (.525)
15,40 (.606)
6,73 (.265)
9,90 (.390)
10,54 (.415)
10,54 (.415)
13,33 (.525)
15,40 (.606)
7,75 (.305)
5,25 (.207)
Cross References
Type
EMI Shielded straight cable
Front Mounting
Size
E
A
B
C
D
F
E
A
B
C
D
F
EMI Shielded straight cable
Rear Mounting
340107215B NMBA
340107216B NMBA
340107217B NMBA
340107218B NMBA
340107219B NMBA
340107274B NMB
340107220B NMBA
340107221B NMBA
340107222B NMBA
340107223B NMBA
340107224B NMBA
340107275B NMB
Description
ESA/ESCC Quality Level
C115366-2596C
C115366-2597C
C115366-2598C
C115366-2599C
C115366-2600C
C115366-2689C
C115366-2601C
C115366-2602C
C115366-2603C
C115366-2604C
C115366-2605C
C115366-2690C
Part Number
DE115366-2596
DA115366-2597
DB115366-2598
DC115366-2599
DD115366-2600
DF115366-2689
DE115366-2601
DA115366-2602
DB115366-2603
DC115366-2604
DD115366-2605
DF115366-2690
Description
FR022 Quality Level
C115366-2596A
C115366-2597A
C115366-2598A
C115366-2599A
C115366-2600A
C115366-2689A
C115366-2601A
C115366-2602A
C115366-2603A
C115366-2604A
C115366-2605A
C115366-2690A
Part Number
Dimensions are shown in mm (inch)
Dimensions subject to change
A10-4
www.ck-components.com
Rev. 23APR13
3401-072 D*Sub Lightweight Backshells

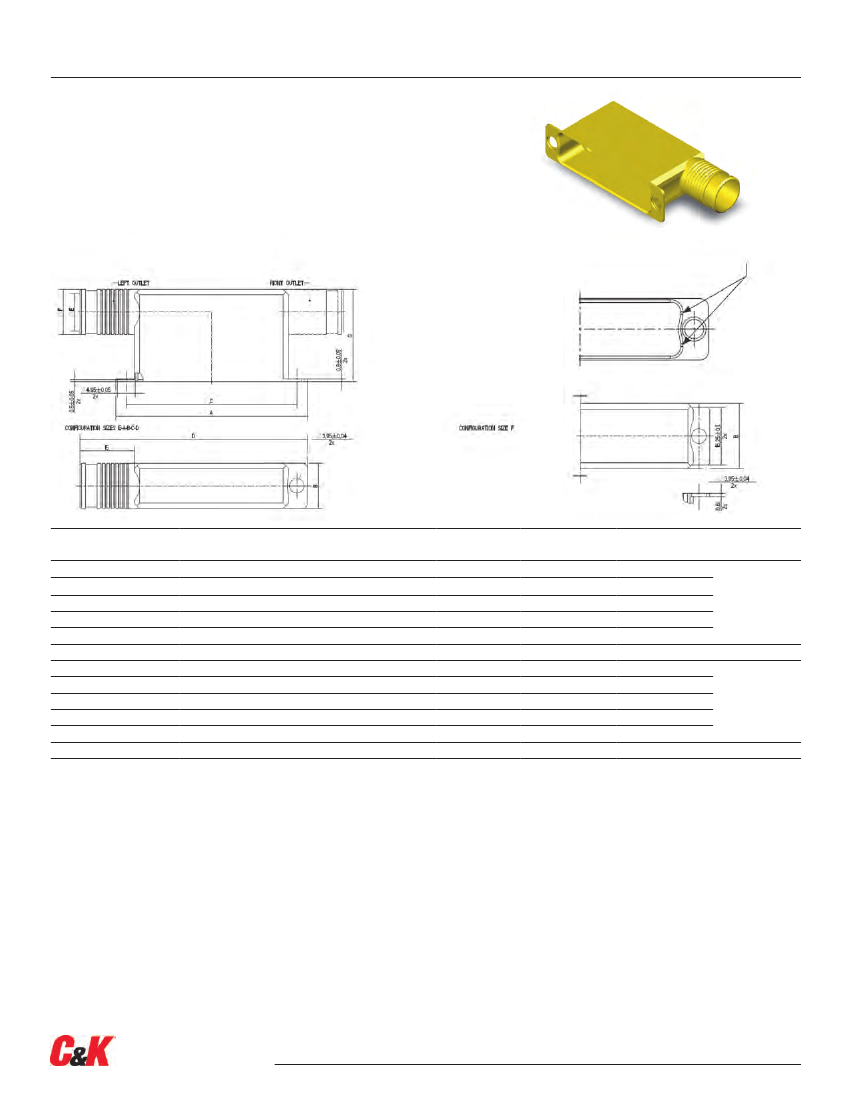

Lightweight Shielded Backshell 90° longitudinal cable outlet
Max weight (grams):
Size E: 6,5
Size A: 10
Size B: 13,5
Size C: 18
Size D: 23
Size F: 28
Packaging unit: 1 piece (plastic bag)
Residual magnetism level NMB (200 Gamma max)
** Our design accept right or left mounting
Shell
Size
E
A
ESA/ESCC
Variant
25
26
30,68 (1.208)
A±
0,20
(.008)
B
C
D
F
E
A
B
C
D
F
27
28
29
76
30
31
32
33
34
76
39,01 (1.536)
12,50 (.492)
B±
0,15
(.006)
52,91 (2.083)
69,19 (2.724)
66,80 (2.630)
69,30 (2.728)
30,68 (1.208)
39,01 (1.536)
52,91 (2.083)
69,19 (2.724)
66,80 (2.630)
69,30 (2.728)
12,50 (.492)
12,50 (.492)
12,50 (.492)
15,30 (.602)
17,30 (.681)
12,50 (.492)
12,50 (.492)
12,50 (.492)
12,50 (.492)
15,30 (.602)
17,30 (.681)
33,32 (1.312)
24,99 (.984)
C±
0,13
(.005)
40,60 (1.598)
D±
0,50
(.020)
Ø E±
0,15
(.006)
10,00 (.394)
7,00 (.276)
Ø F±
0,15
(.006)
12,00 (.472)
9,00 (.354)
G±
0,15
(.006)
25,40 (1.000)
47,04 (1.852)
63,50 (2.500)
61,12 (2.406)
63,50 (2.500)
24,99 (.984)
33,32 (1.312)
47,04 (1.852)
63,50 (2.500)
61,12 (2.406)
63,50 (2.500)
49,00 (1.929)
62,70 (2.469)
79,20 (3.118)
76,70 (3.02)
79,90 (3.146)
40,60 (1.598)
49,00 (1.929)
62,70 (2.469)
79,20 (3.118)
76,70 (3.02)
79,90 (3.146)
10,50 (.413)
10,50 (.413)
13,30 (.524)
15,30 (.602)
7,00 (.276)
10,00 (.394)
10,50 (.413)
10,50 (.413)
13,30 (.524)
15,30 (.602)
12,50 (.492)
12,50 (.492)
15,30 (.602)
17,30 (.681)
9,00 (.354)
12,00 (.472)
12,50 (.492)
12,50 (.492)
15,30 (.602)
17,30 (.681)
35,40 (1.394)
25,40 (1.000)
35,40 (1.394
Cross References
Type
Shielded 90° cable
Right Outlet
Size
E
A
B
C
D
F
E
A
B
C
D
F
ESA/ESCC Quality Level
340107225B NMBA
340107226B NMBA
340107227B NMBA
340107228B NMBA
340107229B NMBA
340107276B NMB
340107230B NMBA
340107231B NMBA
340107232B NMBA
340107233B NMBA
340107234B NMBA
340107276B NMB
FR022 Quality Level
DE115366-2606
DA115366-2607
DB115366-2608
DC115366-2609
DD115366-2610
DF115366-2691
DE115366-2611
DA115366-2612
DB115366-2613
DC115366-2614
DD115366-2615
DF115366-2691
Description
Shielded 90° cable
Left Outlet
C115366-2606C
C115366-2607C
C115366-2608C
C115366-2609C
C115366-2610C
C115366-2691C
C115366-2611C
C115366-2612C
C115366-2613C
C115366-2614C
C115366-2615C
C115366-2691C
Part Number
Description
C115366-2606A
C115366-2607A
C115366-2608A
C115366-2609A
C115366-2610A
C115366-2691A
C115366-2611A
C115366-2612A
C115366-2613A
C115366-2614A
C115366-2615A
C115366-2691A
Dimensions are shown in mm (inch)
Dimensions subject to change
Part Number
A10-5
www.ck-components.com
Rev. 23APR13
