2-120603-2: Description1FHR,84,30A/P,R,N,S11,12; CategoryThe connector; File Size308KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

2-120603-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-120603-2	-	-	View	Buy Now

2-120603-2 Overview

1FHR,84,30A/P,R,N,S11,12

2-120603-2 Parametric

Parameter Name	Attribute value
PCB Connector Component Types	PCB mounting female terminal
Connector System	Board to Board
Line spacing (mm)	1
Connectors and terminals terminate to	A printed circuit board
series	1 mm FH
lugs	yes
Stackable	yes
Number of columns	42
PCB mounting direction	vertical
Number of Positions	84
Board-to-board configuration	mezzanine
Rows	2
Voltage (VAC)	250
Insulation resistance (MΩ)	2
Terminal base material	Phosphor bronze
PCB terminal termination area plating materials	tin lead
Terminal configuration	single beam
Terminal contact plating material	gold
Terminal contact plating thickness	.76 µm [ 29.9212 µin ]
Contact Current Rating (Max) (A)	1
PCB terminal termination area plating thickness	3.81 µm [ 150 µin ]
Base plate material thickness	1.27 µm [ 50 µin ]
Terminal plating thickness	.127 – .254, 2
Terminal layout	Direct plug-in
PCB Termination Methods	surface mount
PCB mounting fixation type	none
joint alignment	Without
Joint alignment type	none
PCB installation and fixation	Without
PCB mounting alignment	with
PCB Mount Alignment Type	Positioning post
Centerline (Pitch)	1 mm [ .039 in ]
Shell material	high temperature thermoplastics
Shell entry method	top
Stacking height (mm)	11, 12
stack height (in)	.472
PCB thickness (recommended) (in)	.76
width	3.81 mm [ 150 in ]
Height (mm)	7.37
Height (in)	.29, .2902
Tail length (in)	.081
Joint post length (mm)	2
Working group temperature range	-55 – 110 °C [ -67 – 230 °F ]
pick and place cover	Without
Circuit Application	Signal
UL flammability rating	UL 94V-0
Encapsulation method	tape carrier
Package quantity	450

Preview

Download Datasheet

View All

8

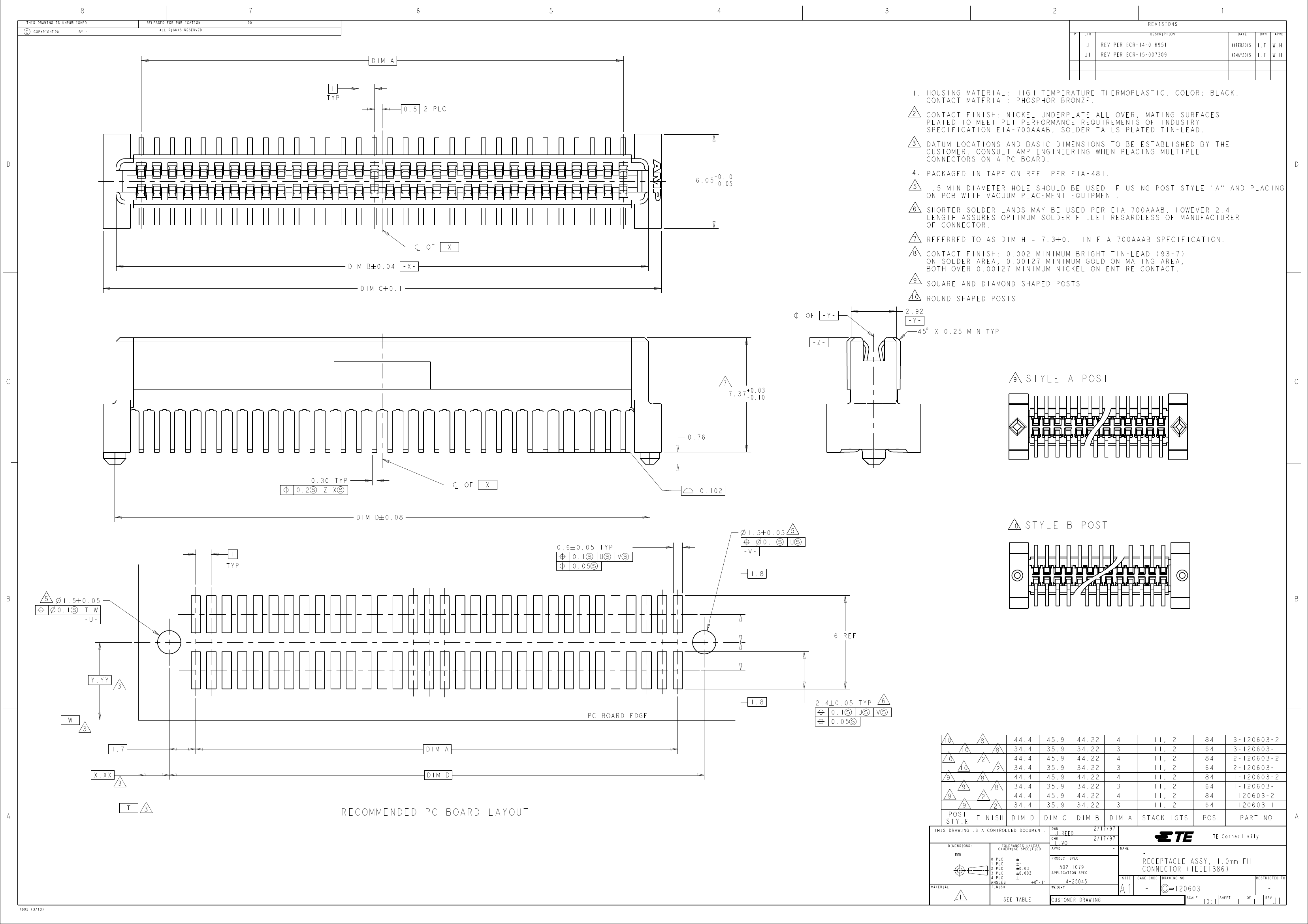

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

7

20

6

5

4

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT

20

J

REV PER ECR-14-016951

REV PER ECR-15-007309

11FEB2015

12MAY2015

I.T

W.H

DIM A

J1

1

TYP

0.5

2 PLC

1.

2

HOUSING MATERIAL: HIGH TEMPERATURE THERMOPLASTIC. COLOR; BLACK.

CONTACT MATERIAL: PHOSPHOR BRONZE.

CONTACT FINISH: NICKEL UNDERPLATE ALL OVER, MATING SURFACES

PLATED TO MEET PL1 PERFORMANCE REQUIREMENTS OF INDUSTRY

SPECIFICATION EIA-700AAAB, SOLDER TAILS PLATED TIN-LEAD.

DATUM LOCATIONS AND BASIC DIMENSIONS TO BE ESTABLISHED BY THE

CUSTOMER. CONSULT AMP ENGINEERING WHEN PLACING MULTIPLE

CONNECTORS ON A PC BOARD.

PACKAGED IN TAPE ON REEL PER EIA-481.

1.5 MIN DIAMETER HOLE SHOULD BE USED IF USING POST STYLE "A" AND PLACING

ON PCB WITH VACUUM PLACEMENT EQUIPMENT.

SHORTER SOLDER LANDS MAY BE USED PER EIA 700AAAB, HOWEVER 2.4

LENGTH ASSURES OPTIMUM SOLDER FILLET REGARDLESS OF MANUFACTURER

OF CONNECTOR.

REFERRED TO AS DIM H = 7.3 # 0.1 IN EIA 700AAAB SPECIFICATION.

CONTACT FINISH: 0.002 MINIMUM BRIGHT TIN-LEAD (93-7)

ON SOLDER AREA, 0.00127 MINIMUM GOLD ON MATING AREA,

BOTH OVER 0.00127 MINIMUM NICKEL ON ENTIRE CONTACT.

SQUARE AND DIAMOND SHAPED POSTS

ROUND SHAPED POSTS

3

D

+0.10

6.05

-0.05

4.

5

6

D

-X-

DIM B # 0.04

DIM C # 0.1

-X-

7

8

9

10

-Y-

2.92

-Y-

45 $

-Z-

X 0.25 MIN TYP

C

7

7.37

9

+0.03

-0.10

STYLE A POST

C

0.76

0.2 s

0.3 0 TYP

Z X s

-X-

0.102

DIM D # 0.08

1.5

1

TYP

0.6

0.1 s

TYP

U s

V s

-V-

1.8

0.05

5

U s

10

STYLE B POST

0.05 s

B

5

1.5

0.05

-U-

B

T W

6 REF

Y.YY

3

1.8

2.4

TYP

6

V s

-W-

PC BOARD EDGE

3

1.7

DIM A

0.1 s

0.05 s

U s

10

9

10

9

8

2

8

2

8

2

8

2

34.4

44.4

34.4

44.4

34.4

44.4

45.9

35.9

45.9

35.9

45.9

35.9

DIM C

DWN

CHK

44.22

34.22

44.22

34.22

44.22

34.22

DIM B

2/17/97

-

45.9

34.22

31

41

31

41

31

41

11,12

STACK HGTS

11,12

84

64

84

64

84

64

POS

84

3-120603-2

3-120603-1

2-120603-2

2-120603-1

1-120603-2

1-120603-1

120603-2

120603-1

PART NO

X.XX

3

-T-

DIM D

A

3

RECOMMENDED PC BOARD LAYOUT

9

POST

STYLE

FINISH

DIM D

DIM A

A

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

J.REED

L.VO

-

TE Connectivity

NAME

mm

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.03

0.003

-

PRODUCT SPEC

APPLICATION SPEC

502-1079

0 $ -1'

-

1

-

SEE TABLE

WEIGHT

114-25045

-

CUSTOMER DRAWING

A1

SIZE

CAGE CODE

-

RECEPTACLE ASSY, 1.0mm FH

CONNECTOR (IEEE1386)

DRAWING NO

RESTRICTED TO

-

120603

SCALE

4805 (3/13)

10:1

SHEET

1

OF

1

REV

-

J1
