SBL1630 - SBL1660
16A SCHOTTKY BARRIER RECTIFIER
L
B
C
D
M
Features
•
•
•
•
•
•
•
Schottky Barrier Chip
Guard Ring Die Construction for
Transient Protection
Low Power Loss, High Efficiency
High Surge Capability
High Current Capability and Low Forward Voltage Drop
For Use in Low Voltage, High Frequency Inverters, Free
Wheeling, and Polarity Protection Applications
Lead Free Finish, RoHS Compliant (Note 3)

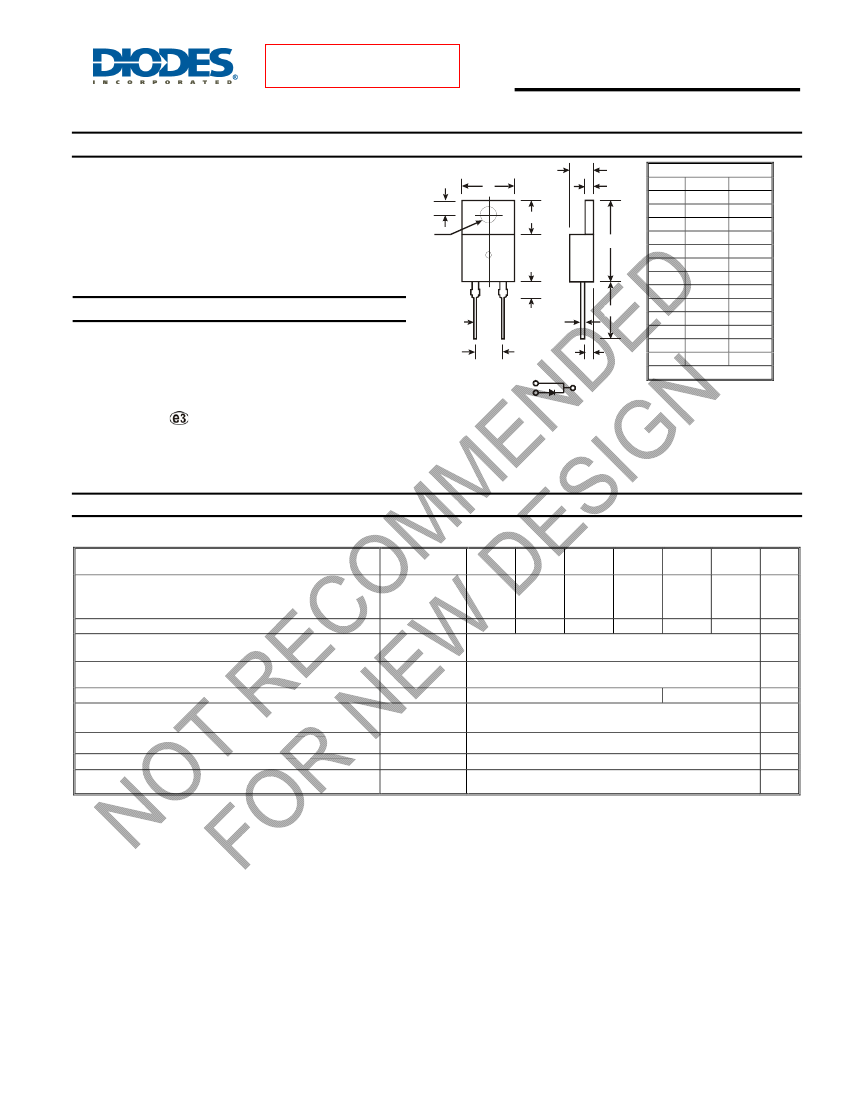

TO-220AC
Dim
Min
Max
A
14.48 15.75
B
10.00 10.40
C
2.54
3.43
D
5.90
6.40
E
2.80
3.93
G
12.70 14.27
J
0.69
0.93
K
3.54
3.78
L
4.07
4.82
M
1.15
1.39
N
0.30
0.50
P
2.04
2.79
R
4.83
5.33
All Dimensions in mm
K
A
Pin 1
Pin 2
E
G
J
N
R
P
Pin 1 +
Pin 2 -
+
Case
Mechanical Data
•
•
•
•
•
•
•
•
Case: TO-220AC
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Polarity: See Diagram
Terminals: Finish – Tin. Solderable per MIL-STD-202,
Method 208
Mounting Position: Any
Marking: Type Number
Weight: 2.24 grams (approximate)
Maximum Ratings and Electrical Characteristics
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
(Note 1)
@ T
C
= 95°C
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Forward Voltage Drop
@ I
F
=16A, T
C
= 25°C
Peak Reverse Current
@T
C
= 25°C
at Rated DC Blocking Voltage
@ T
C
= 100°C
Typical Junction Capacitance (Note 2)
Thermal Resistance Junction to Case (Note 1)
Operating and Storage Temperature Range
Notes:
@T
A
= 25°C unless otherwise specified
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
V
FM
I
RM
C
j
R
θ
JC
T
j
,
T
STG
SBL
1630
30
21
SBL
1635
35
24.5
SBL
1640
40
28
16
275
0.57
1.0
50
700
3.5
SBL
1645
45
31.5
SBL
1650
50
35
SBL
1660
60
42
Unit
V
V
A
A
0.75
V
mA
pF
°C/W
°C
-65 to +150
1. Thermal resistance junction to case mounted on heatsink.
2. Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
3. RoHS revision 13.2.2003. Glass and high temperature solder exemptions applied, see
EU Directive Annex Notes 5 and 7.
DS23045 Rev. 5 - 3
1 of 3
www.diodes.com
SBL1630 - SBL1660
© Diodes Incorporated
NOT RECOMMENDED
FOR NEW DESIGN
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
20
I
(AV)
, AVERAGE FORWARD CURRENT (A)
100
16
SBL1630 - SBL1645
10
12
SBL1650 - SBL1660
8
1.0
4
0
0
50
100
150
T
C
, CASE TEMPERATURE (
°
C)

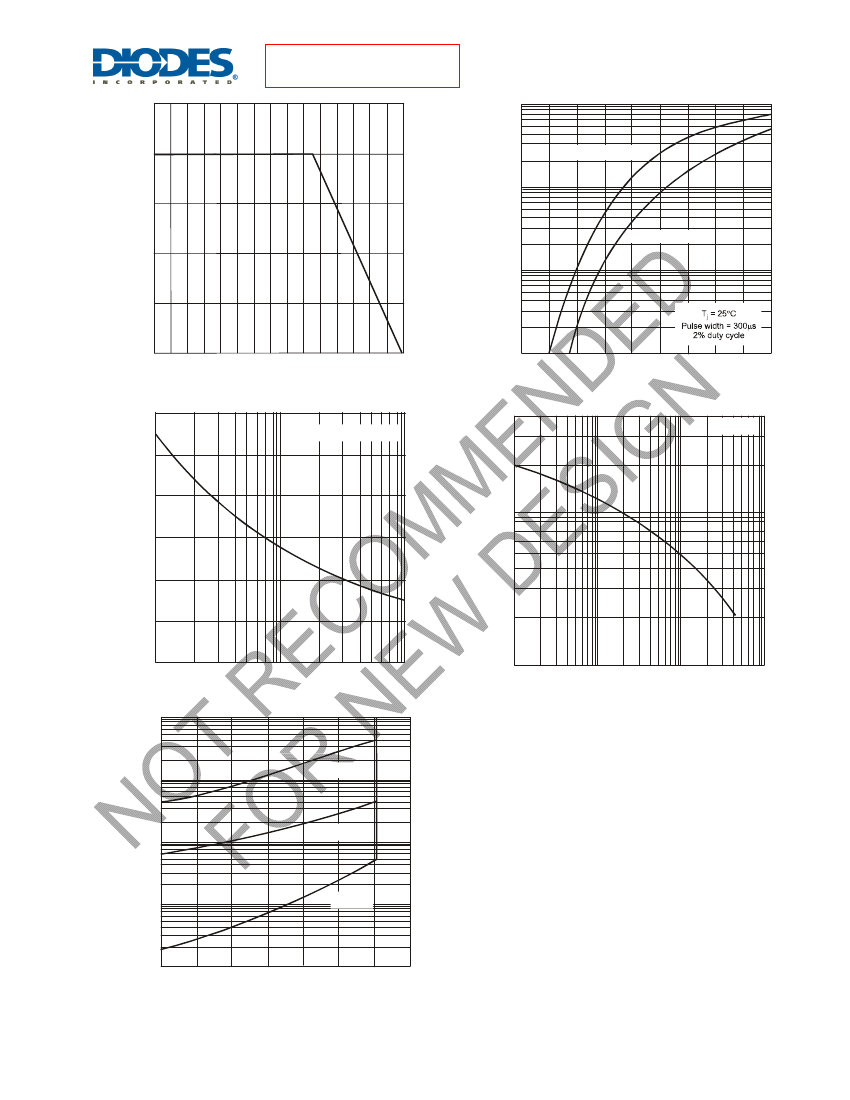

Fig. 1 Forward Current Derating Curve
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
300
8.3 ms single half-sine-wave
0.1
0.1
0.3
0.5
0.7
0.9
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
4,000
T
j
= 25
°
C
250
200
C
j
, CAPACITANCE (pF)
1
10
NUMBER OF CYCLES AT 60Hz
Fig. 3 Max Non-Repetitive Surge Current
100
1,000
150
100
50
0
100
0.1
1.0
10
V
R
, REVERSE VOLTAGE (V)
Fig. 4 Typical Junction Capacitance
100
I
R
, INSTANTANEOUS REVERSE CURRENT (A)
100
10
T
j
= 100
°
C
1.0
T
j
= 75
°
C
0.1
T
j
= 25
°
C
0.01
0
40
80
120
PERCENT OF PEAK REVERSE VOLTAGE (%)
Fig. 5 Typical Reverse Characteristics
DS23045 Rev. 5 - 3
2 of 3
www.diodes.com
SBL1630 - SBL1660
© Diodes Incorporated
NOT RECOMMENDED
FOR NEW DESIGN
Ordering Information
Device
SBL16xx*
(Note 4)
Packaging
TO-220AC
Shipping
50/Tube
* xx = Device type, e.g. SBL1645
Notes:
4. For packaging details, visit our website at http://www.diodes.com/datasheets/ap02008.pdf.
