UF1002 Overview

10 A, 200 V, SILICON, RECTIFIER DIODE, TO-220AC

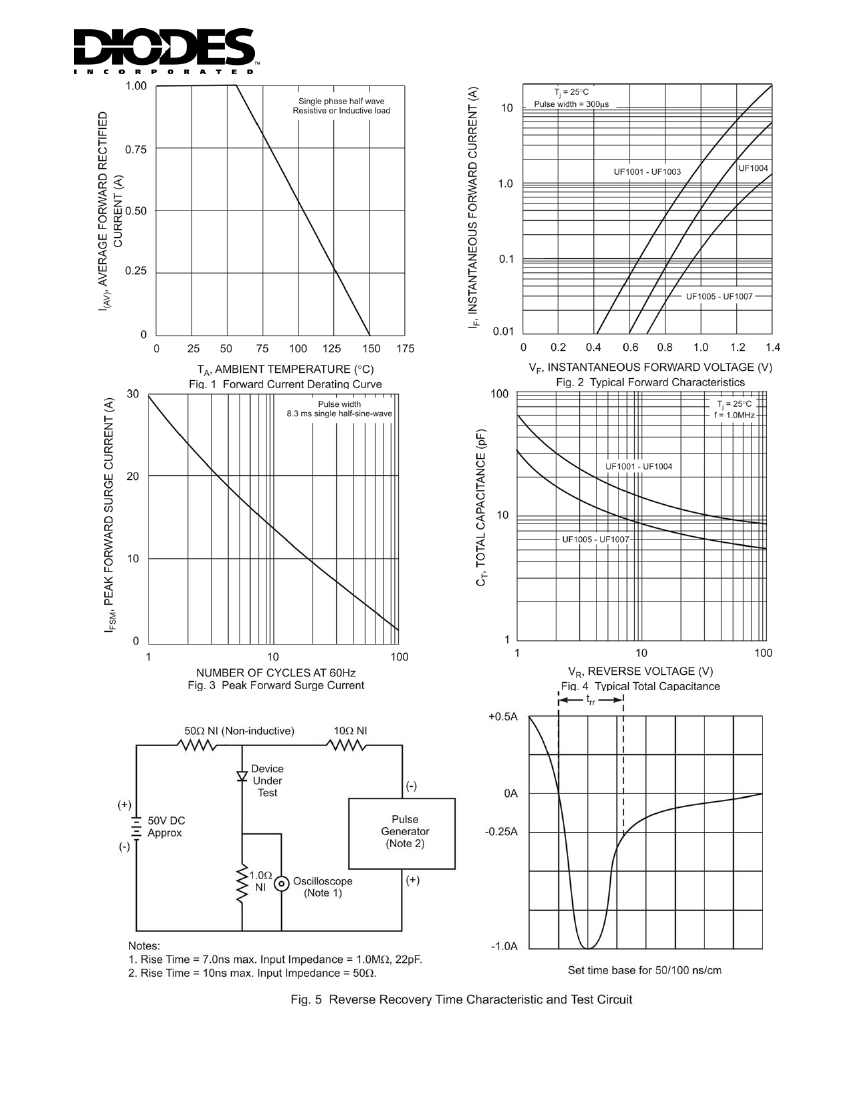

UF1001 - UF1007
1.0A ULTRA-FAST RECTIFIER
Features
Diffused Junction
Ultra-Fast Switching for High Efficiency
Low Reverse Leakage Current
Surge Overload Rating to 30A Peak
IEC 61000-4-2 (ESD - 150pF/330Ω)
UF1001 – UF1003: Contact: discharge
- ±15kV
Lead Free Finish, RoHS Compliant (Note 4)
DO-41
Dim
A
B
C
D
Min
25.40
4.06
0.71
2.00
Max
5.21
0.864
2.72
Mechanical Data
Case: DO-41
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Finish - Tin. Plated Leads Solderable per MIL-STD-202,
Method 208
Polarity: Cathode Band
Marking: Type Number
Ordering Information: See Page
Weight: 0.35 grams (approximate)
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
@T
A
= 25°C unless otherwise specified
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage (Note 5)
RMS Reverse Voltage
Average Rectified Output Current
@ T
A
= 55°C
(Note 1)
Non-Repetitive Peak Forward Surge Current
8.3ms Single half sine-wave Superimposed on Rated Load
Forward Voltage
@ I
F
= 1.0A
Peak Reverse Current
@ T
A
= 25°C
at Rated DC Blocking Voltage (Note 5)
@ T
A
= 100°C
Reverse Recovery Time (Note 3)
Typical Total Capacitance (Note 2)
Typical Thermal Resistance Junction to Ambient
Operating and Storage Temperature Range
Notes:
1.
2.
3.
4.
5.
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
V
FM
I
RM
t
rr
C
T
R
θJA
T
j,
T
STG
UF
1001
50
35
UF
1002
100
70
UF
1003
200
140
UF
1004
400
280
1.0
30
UF
1005
600
420
UF
1006
800
560
UF
1007
1000
700
Unit
V
V
A
A
1.0
1.3
5.0
100
50
20
95
-65 to +150
1.7
V
μA
75
10
ns
pF
°C/W
°C
Valid provided that leads are maintained at ambient temperature at a distance of 9.5mm from the case.
Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
Measured with I
F
= 0.5A, I
R
= 1.0A, I
rr
= 0.25A. See figure 5.
RoHS revision 13.2.2003. High temperature solder exemption applied, see
EU Directive Annex Note 7.
Short duration pulse test used to minimize self-heating effect.
DS25002 Rev. 11 - 2
1 of 3
www.diodes.com
