MMBD4148TW / BAS16TW
SURFACE MOUNT FAST SWITCHING DIODE ARRAY
A
Features
·
·
·
·
·
Fast Switching Speed
Ultra-Small Surface Mount Package
For General Purpose Switching Applications
High Conductance
Lead Free/RoHS Compliant (Note 3)
G
H
K
M
TOP VIEW
B C
SOT-363
Dim
A
B
C
D
F
H
J
K
L
M
a
Min
0.10
1.15
2.00
0.30
1.80
¾
0.90
0.25
0.10
0°
Max
0.30
1.35
2.20
0.40
2.20
0.10
1.00
0.40
0.25
8°
Mechanical Data
·
·
·
·
·
·
·
·
Case: SOT-363
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Solderable per MIL-STD-202, Method 208
Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe). Please See Ordering Information, Note 5, on
Page 2
Polarity: See Diagram
Marking: KA2 (See Page 2)
Weight: 0.006 grams (approximate)
C
1
0.65 Nominal
J
D
C
2
C
3
F
L
A
1
A
2
A
3
All Dimensions in mm
TOP VIEW
Maximum Ratings
@ T
A
= 25°C unless otherwise specified
Characteristic
Non-Repetitive Peak Reverse Voltage
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current (Note 1)
Average Rectified Output Current (Note 1)
Non-Repetitive Peak Forward Surge Current
Power Dissipation (Note 1)
Thermal Resistance Junction to Ambient Air (Note 1)
Operating and Storage Temperature Range
@ t = 1.0ms
@ t = 1.0s
Symbol
V
RM
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
O
I
FSM
P
d
R
qJA
T
j
, T
STG
Value
100
75
53
300
150
2.0
1.0
200
625
-65 to +150
Unit
V
V
V
mA
mA
A
mW
°C/W
°C
Electrical Characteristics
@ T
A
= 25°C unless otherwise specified
Characteristic
Reverse Breakdown Voltage (Note 2)
Forward Voltage
Symbol
V
(BR)R
V
F
Min
75
¾
Max
¾
0.715
0.855
1.0
1.25
1.0
50
30
25
2.0
4.0
Unit
V
V
mA
mA
mA
nA
pF
ns
Test Condition
I
R
= 1mA
I
F
= 1.0mA
I
F
= 10mA
I
F
= 50mA
I
F
= 150mA
V
R
= 75V
V
R
= 75V, T
j
= 150°C
V
R
= 25V, T
j
= 150°C
V
R
= 20V
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 10mA,
I
rr
= 0.1 x I
R
, R
L
= 100W
Reverse Current (Note 2)
Total Capacitance
Reverse Recovery Time
Notes:
I
R
C
T
t
rr
¾
¾
¾
1. Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch; pad layout as shown on Diodes Inc. suggested pad layout
document AP02001, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
2. Short duration test pulse used to minimize self-heating effect.
3. No purposefully added lead.
DS30154 Rev. 9 - 2
1 of 3
www.diodes.com
MMBD4148TW / BAS16TW
ã
Diodes Incorporated
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
I
R
, INSTANTANEOUS REVERSE CURRENT (nA)
1
10000
T
A
= 150ºC
T
A
= 125ºC
1000
0.1
T
A
= 150ºC
T
A
= 75ºC
T
A
= 25ºC
T
A
= 0ºC
T
A
= -40ºC
100
T
A
= 75ºC
10
T
A
= 25ºC
T
A
= 0ºC
0.01
1
T
A
= -40ºC
0.001
0
0.5
1.0
1.5
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

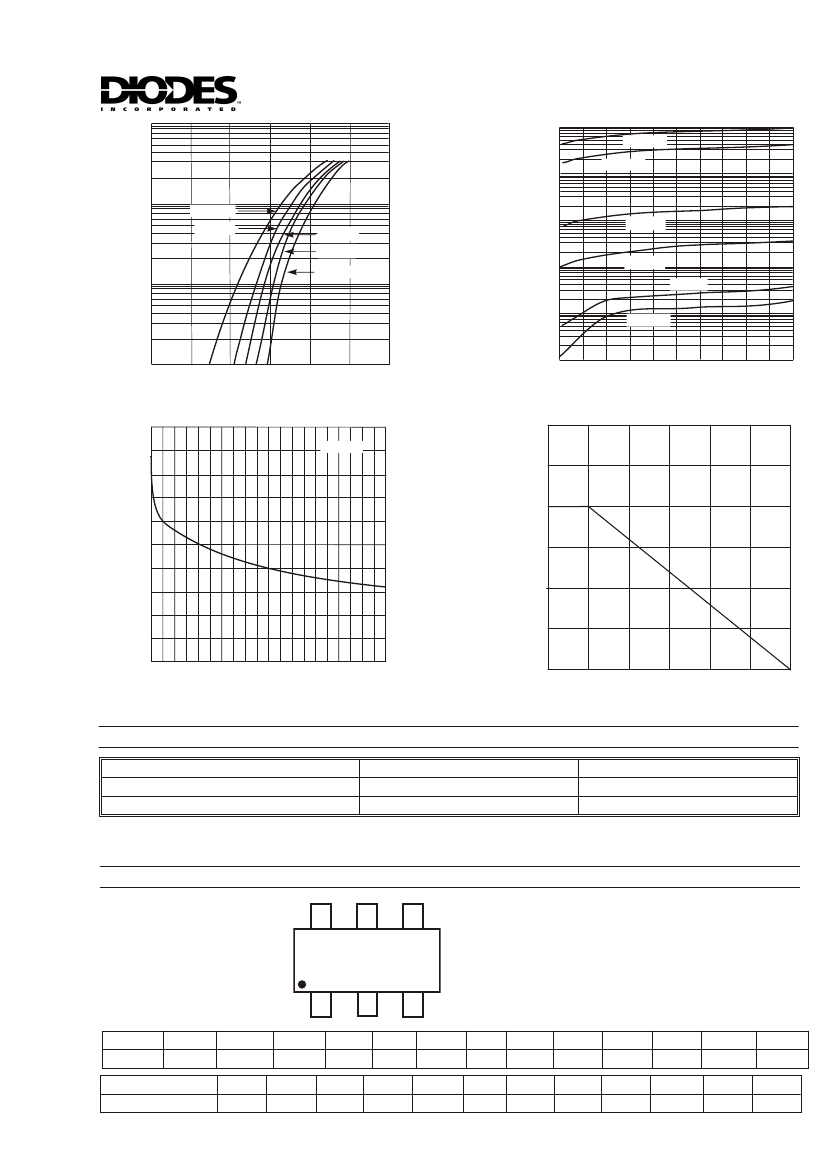

Fig. 1 Forward Characteristics
2.0
1.8
C
T
, TOTAL CAPACITANCE (pF)
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
0
10
20
30
40
f = 1.0MHz
0.1
0
20
40
60
80
100
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 2 Typical Reverse Characteristics
300
P
d
,
POWER DISSIPATION (mW)
250
200
150
100
50
0
0
25
50
75
100
125
150
V
R
, REVERSE VOLTAGE (V)
Fig. 3 Typical Capacitance vs. Reverse Voltage
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 4 Power Derating Curve
Ordering Information
Device
(Note 4)
Packaging
SOT-363
SOT-363
Shipping
3000/Tape & Reel
3000/Tape & Reel
MMBD4148TW-7-F
BAS16TW-7-F
Notes:
4. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
KA2
Date Code Key
Year
Code
Month
Code
2000
L
2001
M
Jan
1
2002
N
Feb
2
2003
P
March
3
2004
R
Apr
4
KA2 = Product Type Marking Code
YM = Date Code Marking
Y = Year ex: N = 2002
M = Month ex: 9 = September
YM
2005
S
May
5
2006
T
Jun
6
2007
U
Jul
7
2008
V
Aug
8
2009
W
Sep
9
2010
X
Oct
O
2011
Y
Nov
N
2012
Z
Dec
D
