BC856AW_1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> BC856AW_1

BC856AW_1: Description100 mA, 45 V, PNP, Si, SMALL SIGNAL TRANSISTOR; Categorysemiconductor Discrete semiconductor; File Size186KB，5 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric Compare View All

BC856AW_1 Overview

100 mA, 45 V, PNP, Si, SMALL SIGNAL TRANSISTOR

BC856AW_1 Parametric

Parameter Name	Attribute value
Number of terminals	3
Transistor polarity	PNP
Maximum collector current	0.1000 A
Maximum Collector-Emitter Voltage	45 V
Processing package description	GREEN, PLASTIC PACKAGE-3
Lead-free	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	ACTIVE
packaging shape	RECTANGULAR
Package Size	SMALL OUTLINE
surface mount	Yes
Terminal form	GULL WING
terminal coating	MATTE TIN
Terminal location	DUAL
Packaging Materials	PLASTIC/EPOXY
structure	SINGLE
Number of components	1
transistor applications	SWITCHING
Transistor component materials	SILICON
Transistor type	GENERAL PURPOSE SMALL SIGNAL
Minimum DC amplification factor	220
Rated crossover frequency	200 MHz

Preview

Download Datasheet

View All

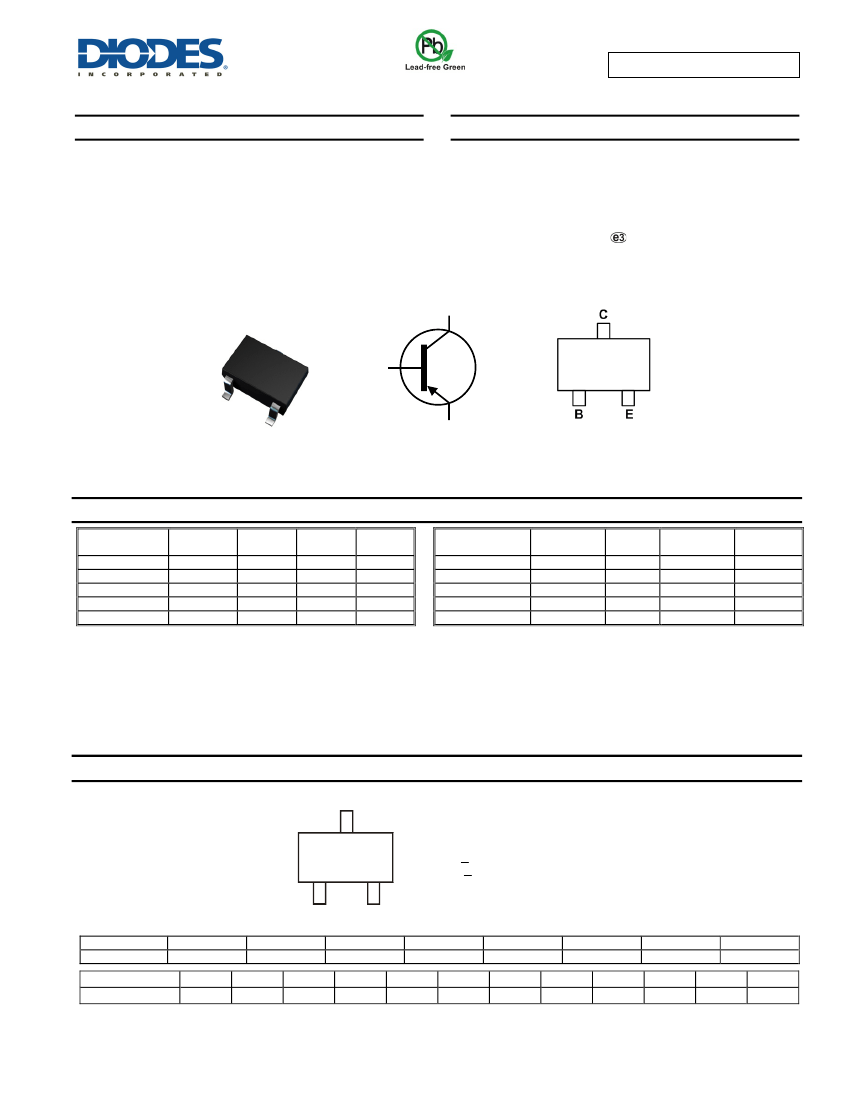

BC856AW-BC858CW

PNP SMALL SIGNAL TRANSISTOR IN SOT323

Features



Ideally Suited for Automatic Insertion

Complementary NPN Types Available (BC846AW – BC848CW)

For switching and AF Amplifier Applications

Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)

Halogen and Antimony Free. "Green" Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

PPAP capable (Note 4)

Mechanical Data



Case: SOT323

Case material: molded plastic, “Green” molding compound

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish – Matte Tin Plated Leads, Solderable per

MIL-STD-202, Method 208

Weight: 0.006 grams (Approximate)

SOT323

Top View

Device Symbol

Top View

Pin-Out

Ordering Information

(Notes 4 & 5)

Product

BC856AW-7-F

BC856BW-7-F

BC856BW-13-F

BC857AW-7-F

BC857BW-7-F

Notes:

Compliance

AEC-Q101

Marking

K3A

K3B

K3A

K3B

Reel Size

(inches)

Quantity

per Reel

3,000

10,000

3,000

Product

BC857BWQ-13-F

BC857CW-7-F

BC858AW-7-F

BC858BW-7-F

BC858CW-7-F

Compliance

Automotive

AEC-Q101

Marking

K3B

K3G

K3A

K3B

K3G

Reel Size

(inches)

Quantity

per Reel

10,000

3,000

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally

the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.

5. Tape width is 8mm. For packaging details, go to our website at http://www.diodes.com/products/packages.html

Marking Information

xxx

xxx = Product Type Marking Code (See Ordering Information)

YM = Date Code Marking

Y or Y = Year (ex: A = 2013)

M or M = Month (ex: 9 = September)

Date Code Key

Year

Code

Month

Code

2010

Jan

Feb

2011

Mar

2012

Apr

May

2013

Jun

2014

Jul

Aug

2015

Sep

2016

Oct

Nov

2017

Dec

BC856AW – BC858CW

Document Number: DS30251 Rev. 10 - 2

1 of 5

www.diodes.com

November 2013
