DDTA (R1 = R2 SERIES) CA
PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Features
Epitaxial Planar Die Construction
Complementary NPN Types Available (DDTC)
Built-In Biasing Resistors, R1
½R2
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Part Number
DDTA123ECA
DDTA143ECA
DDTA114ECA
DDTA124ECA
DDTA144ECA
DDTA115ECA
SOT23
Mechanical Data
Case: SOT23
Case Material: Molded Plastic, “Green” Molding Compound
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight: 0.008 grams (Approximate)
R1, R2 (NOM)
2.2kΩ
4.7kΩ
10kΩ
22kΩ
47kΩ
100kΩ
O UT
3
C
B
R1
R2
E
1
IN
2
G N D (+ )
Top View
Device Schematic
Equivalent Inverter Circuit
Ordering Information
(Notes 4, 5 & 6)
Part Number
DDTA123ECA-7-F
DDTA143ECA-7-F
DDTA114ECA-7-F
DDTA114ECAQ-7-F
DDTA114ECAQ-13-F
DDTA124ECA-7-F
DDTA144ECA-7-F
DDTA144ECAQ-13-F
DDTA115ECA-7-F
Notes:
Status
Active
Active
Active
NRND (Use ADTA114ECAQ)
NRND (Use ADTA114ECAQ)
Active
Active
NRND (Use ADTA144ECAQ)
Active
Compliance
AEC-Q101
AEC-Q101
AEC-Q101
Automotive
Automotive
AEC-Q101
AEC-Q101
Automotive
AEC-Q101
Marking
P04
P08
P13
P13
P13
P17
P20
P20
P24
Reel Size
(inches)
7
7
7
7
13
7
7
13
7
Tape Width
(mm)
8
8
8
8
8
8
8
8
8
Quantity Per
Reel
3,000
3,000
3,000
3,000
10,000
3,000
3,000
10,000
3,000
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified. For more information, please refer to https://www.diodes.com/quality/.
5. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
6. NRND = Not Recommended for New Design.
Marking Information
XXX = Product Type Marking Code, See Ordering Information
YM = Date Code Marking
Y = Year (ex: F = 2018)
M = Month (ex: 9 = September)
Date Code Key
Year
2018
Code
F
Month
Code
Jan
1
2019
G
2020
H
2021
I
Mar
3
2022
J
Apr
4
2023
K
2024
L
2025
M
Jun
6
2026
N
Jul
7
2027
O
2028
P
2029
Q
Sep
9
2030
R
Oct
O
2031
S
2032
T
2033
U
Dec
D
Feb
2
May
5
Aug
8
Nov
N
DDTA (R1 = R2 SERIES) CA
Document number: DS30333 Rev. 10 - 2
1 of 5
www.diodes.com
September 2018
© Diodes Incorporated
DDTA (R1 = R2 SERIES) CA
Absolute Maximum Ratings
(@T
A
= +25° unless otherwise specified.)
C,
Characteristic
Supply Voltage <Pin: (3) to (2)>
DDTA123ECA
DDTA143ECA
DDTA114ECA
DDTA124ECA
DDTA144ECA
DDTA115ECA
DDTA123ECA
DDTA143ECA
DDTA114ECA
DDTA124ECA
DDTA144ECA
DDTA115ECA
Symbol
V
CC
Value
-50
+10 to –12
+10 to –30
+10 to –40
+10 to –40
+10 to –40
+10 to –40
-100
-100
-50
-30
-30
-20
-100
Unit
V
Input Voltage
<Pin: (1) to (2)>
V
IN
V
Output Current
I
O
mA
Output Current
I
C
(Max)
mA
Thermal Characteristics
(@T
A
= +25° unless otherwise specified.)
C,
Characteristic
Power Dissipation (Note 7)
Thermal Resistance, Junction to Ambient Air (Note 7)
Operating and Storage Temperature Range
Notes:
7. Mounted on FR-4 PC Board with minimum recommended pad layout.
Symbol
P
D
R
JA
T
J
, T
STG
Value
200
625
-55 to +150
Unit
mW
°
C/W
°
C
Electrical Characteristics
(@T
A
= +25° unless otherwise specified.)
C,
Characteristic
Symbol
V
l(off)
Min
-0.5
Typ
-1.1
Max
Unit
Test Condition
V
CC
= -5V, I
O
= -100A
V
O
= -0.3V, I
O
= -20mA, DDTA123ECA
V
O
= -0.3V, I
O
= -20mA, DDTA143ECA
V
O
= -0.3V, I
O
= -10mA, DDTA114ECA
V
O
= -0.3V, I
O
= -5mA, DDTA124ECA
V
O
= -0.3V, I
O
= -2mA, DDTA144ECA
V
O
= -0.3V, I
O
= -1mA, DDTA115ECA
I
O
/I
l
= -10mA/-0.5mA, DDTA123ECA
I
O
/I
l
= -10mA/-0.5mA, DDTA143ECA
I
O
/I
l
= -10mA/-0.5mA, DDTA114ECA
I
O
/I
l
= -10mA/-0.5mA, DDTA124ECA
I
O
/I
l
= -10mA/-0.5mA, DDTA144ECA
I
O
/I
l
= -5mA/-0.25mA, DDTA115ECA
Input Voltage
V
l(on)
-1.9
-3
V
Output Voltage
V
O(on)
-0.1
-0.3
V
Input Current
DDTA123ECA
DDTA143ECA
DDTA114ECA
DDTA124ECA
DDTA144ECA
DDTA115ECA
DDTA123ECA
DDTA143ECA
DDTA114ECA
DDTA124ECA
DDTA144ECA
DDTA115ECA
I
l
Output Current
I
O(off)
20
20
30
56
68
82
-30
0.8
-3.8
-1.8
-0.88
-0.36
-0.18
-0.15
-0.5
mA
V
I
= -5V
A
DC Current Gain
G
l
Input Resistor Tolerance
Resistance Ratio Tolerance
Gain-Bandwidth Product (Note 8)
Note:
8. Transistor - For Reference Only
R
1
R
2
/R
1
f
T
1
250
+30
1.2
%
%
MHz
V
CC
= -50V, V
I
= 0V
V
O
= -5V, I
O
= -20mA
V
O
= -5V, I
O
= -10mA
V
O
= -5V, I
O
= -5mA
V
O
= -5V, I
O
= -5mA
V
O
= -5V, I
O
= -5mA
V
O
= -5V, I
O
= -5mA
V
CE
= -10V, I
E
= -5mA,
f = 100MHz
DDTA (R1 = R2 SERIES) CA
Document number: DS30333 Rev. 10 - 2
2 of 5
www.diodes.com
September 2018
© Diodes Incorporated
DDTA (R1 = R2 SERIES) CA

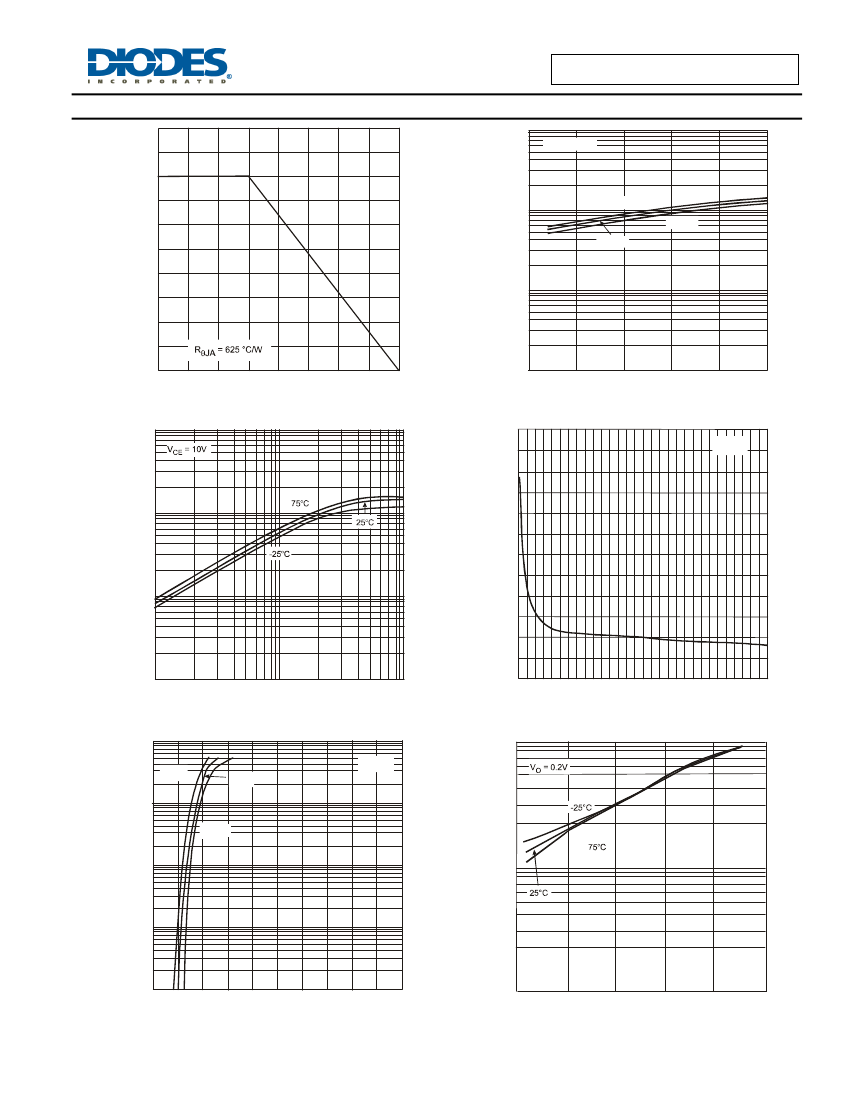

Typical Characteristics – DDTA143ECA
(@T
A
= +25° unless otherwise specified.)
C,
V
CE(SAT)
, COLLECTOR EMITTER VOLTAGE (V)
250
1
I
C
/I
B
= 10
P
d
, POWER DISSIPATION (mW)
200
0.1
75°
C
-25°
C
25°
C
150
100
0.01
50
0
-50
0
50
100
150
T
A
, AMBIENT TEMPERATURE (°
C)
Fig. 1 Derating Curve
0.001
0
10
20
30
40
50
I
C
, COLLECTOR CURRENT (mA)
Fig. 2 V
CE(SAT)
vs. I
C
1,000
12
f = 1MHz
10
h
FE
, DC CURRENT GAIN
100
C
OB
, CAPACITANCE (pF)
8
6
10
4
2
1
1
10
I
C
, COLLECTOR CURRENT (mA)
Fig. 3 DC Current Gain
100
0
0
5
10
15
20
25
30
V
R
, REVERSE BIAS VOLTAGE (V)
Fig. 4 Output Capacitance
100
75°
C
V
O
= 5V
25癈
25°
C
10
I
C
, COLLECTOR CURRENT (mA)
-25癈
-25°
C
1
V
in
, INPUT VOLTAGE (V)
10
1
0.1
0.01
0
1
6
7
8
9 10
3
4
5
V
in
, INPUT VOLTAGE (V)
Fig. 5 Collector Current vs. Input Voltage
2
3 of 5
www.diodes.com
0
0
10
20
30
40
50
I
C
, COLLECTOR CURRENT (mA)
Fig. 6 Input Voltage vs. Collector Current
September 2018
© Diodes Incorporated
DDTA (R1 = R2 SERIES) CA
Document number: DS30333 Rev. 10 - 2
DDTA (R1 = R2 SERIES) CA
Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT23
H
J
All 7°
GAUGE PLANE
0.25
K1
K
a
A
M
L
L1
C
B
D
F
G
SOT23
Dim
Min
Max
Typ
A
0.37
0.51
0.40
B
1.20
1.40
1.30
C
2.30
2.50
2.40
D
0.89
1.03 0.915
F
0.45
0.60 0.535
G
1.78
2.05
1.83
H
2.80
3.00
2.90
J
0.013 0.10
0.05
K
0.890 1.00 0.975
K1
0.903 1.10 1.025
L
0.45
0.61
0.55
L1
0.25
0.55
0.40
M
0.085 0.150 0.110
a
0°
8°
--
All Dimensions in mm
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT23
Y
Y1
C
Dimensions
C
X
X1
Y
Y1
Value (in mm)
2.0
0.8
1.35
0.9
2.9
X
X1
DDTA (R1 = R2 SERIES) CA
Document number: DS30333 Rev. 10 - 2
4 of 5
www.diodes.com
September 2018
© Diodes Incorporated
DDTA (R1 = R2 SERIES) CA
