Compound, Note 4. UL Flammability Classification Rating
94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminal Connections: See Diagram
Terminals: Solderable per MIL-STD-202, Method 208
Lead Free Plating (Matte Tin Finish annealed over Alloy
42 leadframe).
Marking: Date Code and Type Code (See Diagrams &
Page 2)
Type Code: See Table Below
Ordering Information (See Page 2)
Weight: 0.006 grams (approximate)
P/N
DDTC113TUA
DDTC123TUA
DDTC143TUA
DDTC114TUA
DDTC124TUA
DDTC144TUA
DDTC115TUA
DDTC125TUA
R1 (NOM)
1KW
2.2KW
4.7KW
10KW
22KW
47KW
100KW
200KW
Type Code
N01
N03
N07
N12
N16
N19
N23
N25
J
0.65 Nominal
E
G
H
J
K
L
M
a
D
F
L
All Dimensions in mm
R
1
B
C
E
SCHEMATIC DIAGRAM
Maximum Ratings
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current
Power Dissipation
@ T
A
= 25°C unless otherwise specified
Symbol
V
CBO
V
CEO
V
EBO
I
C
(Max)
P
d
R
qJA
T
j
, T
STG
Value
50
50
5
100
200
833
-55 to +150
Unit
V
V
V
mA
mW
°C/W
°C
Characteristic
Thermal Resistance, Junction to Ambient Air (Note 1)
Operating and Storage and Temperature Range
Note:
1.
2.
3.
4.
Mounted on FR4 PC Board with recommended pad layout at http://www.diodes.com/datasheets/ap02001.pdf.
No purposefully added lead.
Diodes Inc.'s "Green" Policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
Product manufactured with date code 0609 (week 9, 2006) and newer are built with Green Molding Compound. Product manufactured prior to date
code 0609 are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants.
DS30323 Rev. 6 - 2
1 of 4
www.diodes.com
DDTC (R1-ONLY SERIES) UA
ã
Diodes Incorporated
Electrical Characteristics
Characteristic
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cutoff Current
Emitter Cutoff Current
@ T
A
= 25°C unless otherwise specified
Symbol
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
Min
50
50
5
¾
¾
Typ
¾
¾
¾
¾
¾
Max Unit
¾
¾
¾
0.5
0.5
V
V
V
mA
mA
I
C
= 50mA
I
C
= 1mA
I
E
= 50mA
V
CB
= 50V
V
EB
= 4V
I
C/
I
B
= 10mA/1mA
I
C/
I
B
= 5mA/0.5mA
I
C/
I
B
= 2.5mA/.25mA
I
C/
I
B
= 1mA/.1mA
I
C/
I
B
= 5mA/0.5mA
I
C/
I
B
= 2.5mA/.25mA
I
C/
I
B
= 1mA/0.1mA
I
C/
I
B
= .5mA/.05mA
I
C
= 1mA, V
CE
= 5V
¾
V
CE
= 10V, I
E
= -5mA,
f = 100MHz
DDTC113TUA
DDTC123TUA
DDTC143TUA
DDTC114TUA
DDTC124TUA
DDTC144TUA
DDTC115TUA
DDTC125TUA
Test Condition
Collector-Emitter Saturation Voltage
V
CE(sat)
¾
¾
0.3
V
DC Current Transfer Ratio
Input Resistor (R
1
) Tolerance
Gain-Bandwidth Product*
* Transistor - For Reference Only
h
FE
DR
1
f
T
100
-30
¾
250
¾
250
600
+30
¾
¾
%
MHz
Ordering Information
Device
DDTC1xxTUA-7-F
DDTC1xxTUA-13-F
Notes:
(Note 4 & 5)
Packaging
SOT-323
SOT-323
Shipping
3000/Tape & Reel
10,000/Tape & Reel
4. Product manufactured with date code 0609 (week 9, 2006) and newer are built with Green Molding Compound. Product manufactured prior to date
code 0609 are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants.
5. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
XXX
XXX = Product Type Marking Code, See Table on Page 1
YM = Date Code Marking
Y = Year ex: N = 2002
M = Month ex: 9 = September
Date Code Key
Year
Code
Month
Code
Jan
1
2002
N
Feb
2
2003
P
March
3
Apr
4
2004
R
May
5
2005
S
Jun
6
2006
T
Jul
7
Aug
8
2007
U
Sep
9
2008
V
Oct
O
Nov
N
2009
W
Dec
D
DS30323 Rev. 6 - 2
YM
2 of 4
www.diodes.com
DDTC (R1-ONLY SERIES) UA

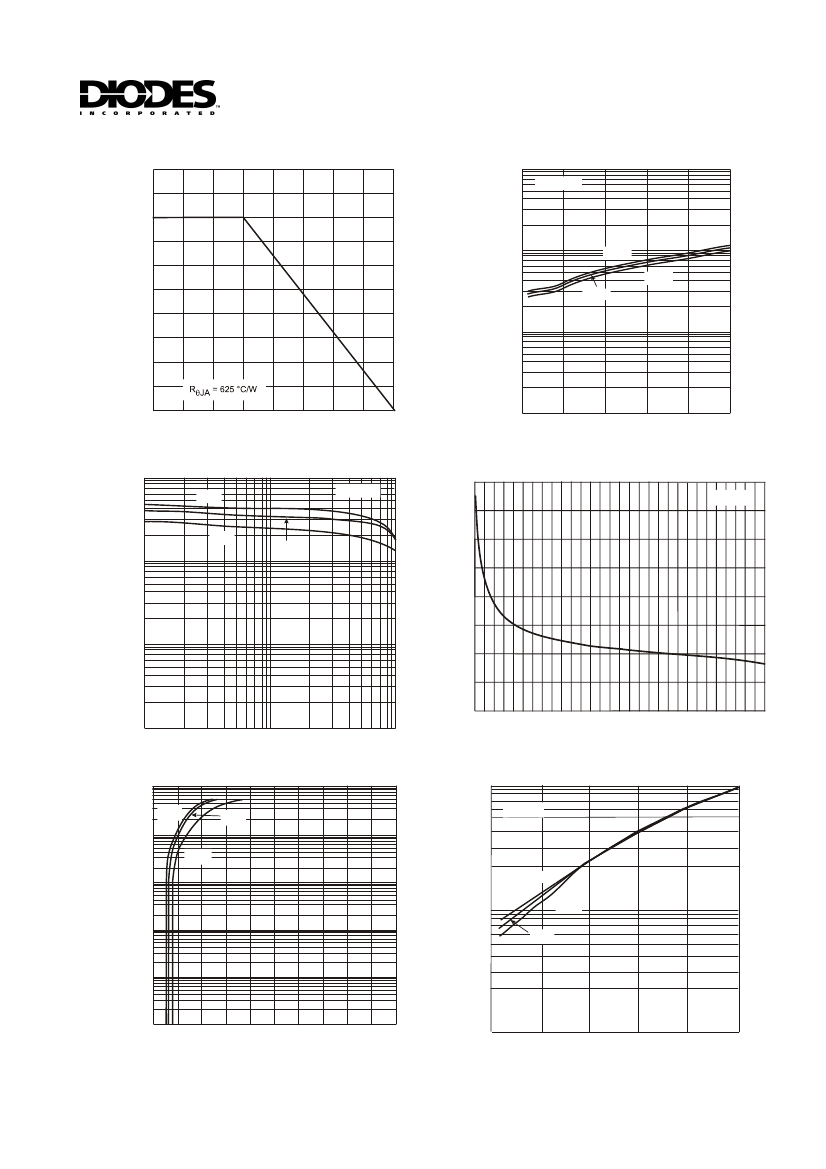

TYPICAL CURVES - DDTC114TUA
V
CE(SAT)
, MAXIMUM COLLECTOR VOLTAGE (V)
250
P
D
, POWER DISSIPATION (MILLIWATTS)
1
I
C
/I
B
= 10
200
0.1
75°C
-25°C
25°C
150
100
0.01
50
0
-50
0
50
100
150
0.001
0
10
20
30
40
50
I
C
, COLLECTOR CURRENT (mA)
Fig. 2 V
CE(SAT)
vs. I
C
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 1 Derating Curve
1000
h
FE
, DC CURRENT GAIN (NORMALIZED)
75°C
V
CE
= 10
4
I
E
= 0mA
C
OB
, CAPACITANCE (pF)
-25°C
25°C
3
100
2
10
1
0
1
1
10
I
C
, COLLECTOR CURRENT (mA)
Fig. 3 DC Current Gain
100
0
5
10
15
20
25
30
V
R
, REVERSE BIAS VOLTAGE (V)
Fig. 4 Output Capacitance
10
100
75°C
I
C
, COLLECTOR CURRENT (mA)
25°C
V
O
= 0.2
10
-25°C
V
in
, INPUT VOLTAGE (V)
1
-25°C
75°C
1
25°C
0.1
0.01
0.001
0
1
2
3
4
5
6
7
8
9
10
V
in
, INPUT VOLTAGE (V)
Fig. 5 Collector Current Vs. Input Voltage
1
0
10
20
30
40
50
I
C
, COLLECTOR CURRENT (mA)
Fig. 6 Input Voltage vs. Collector Current
DS30323 Rev. 6 - 2
3 of 4
www.diodes.com
DDTC (R1-ONLY SERIES) UA
