VSB06P05LCI_06: Description600 W, BIDIRECTIONAL, 4 ELEMENT, SILICON, TVS DIODE; Categorysemiconductor Discrete semiconductor; File Size72KB，4 Pages; ManufacturerProTek Devices; Websitehttp://www.protekdevices.com/

Download Datasheet Compare View All

VSB06P05LCI_06 Overview

600 W, BIDIRECTIONAL, 4 ELEMENT, SILICON, TVS DIODE

Preview

Download Datasheet

View All

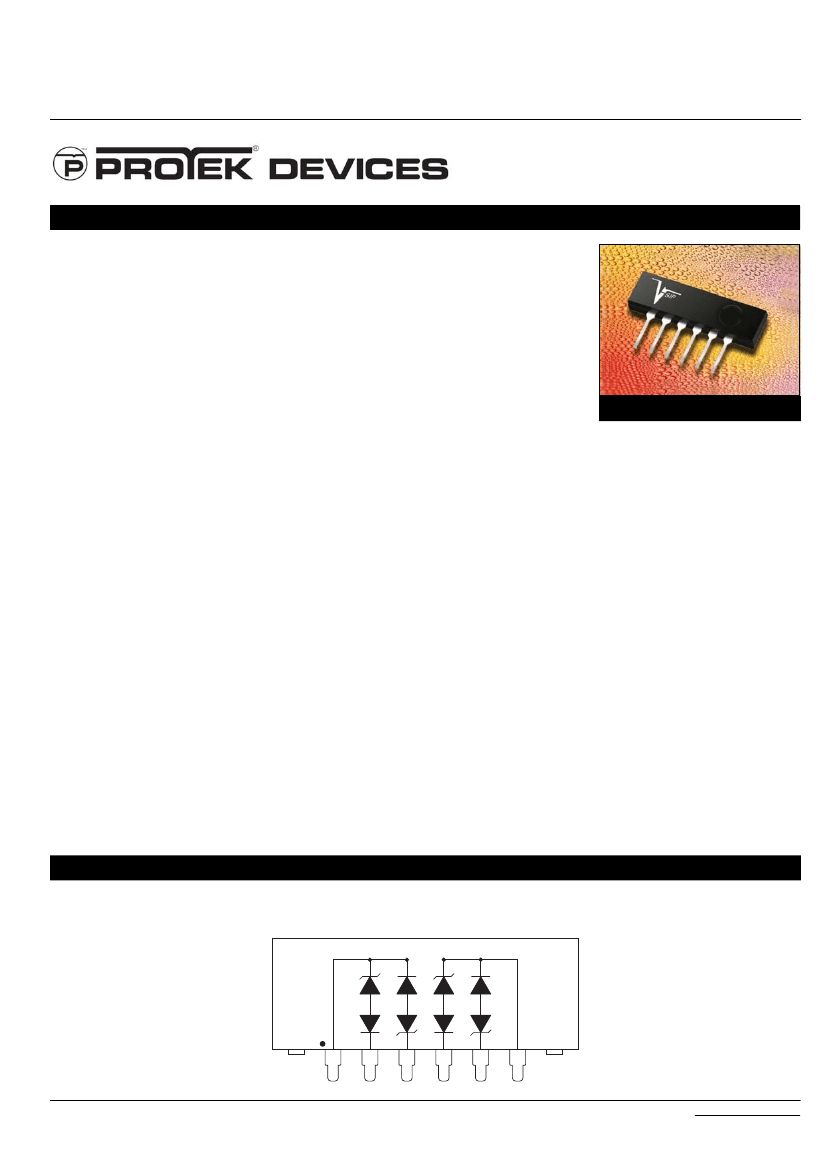

05062

VSB06P05LCI

thru

VSB06P12LCI

LOW CAPACITANCE TVS ARRAY

APPLICATIONS

✔

RS-232 and RS-423 Data Lines

✔

T1/E1 & T3/E3

✔

ATM Circuit Interfaces

✔

ADSL/HDSL & ISDN Interfaces

✔

V.34/V.90

✔

Cable Modem Intra-Structure Protection

IEC COMPATIBILITY

(EN61000-4)

✔

61000-4-2 (ESD): Air - 15kV, Contact - 8kV

✔

61000-4-4 (EFT): 40A - 5/50ns

✔

61000-4-5 (Surge): 8/20µs - 95A, L4(Line-Gnd) & 48A, L4(Line-Line) & 83A, L2(Power)

F E AT U R E S

✔

600 Watts Peak Pulse Power per Line (tp=10/1000µs)

✔

100A (2/10µs) per Bellcore GR-1089 (Intra-Building)

✔

Isolated VSIP

Technology

✔

ESD Protection > 40 kilovolts

✔

High Surge Capability

✔

Lead Spacing of 0.100”

✔

Available in 3 Voltages: 5V, 6.5V & 12V

✔

Low Capacitance < 50pF

✔

RoHS Compliant in Lead-Free Versions

MECHANICAL

CHARACTERISTICS

6 PIN VSIP

✔

Molded Plastic VSIP

Package

✔

Weight 1.5 grams (Approximate)

✔

Available in Tin-Lead or Lead-Free Pure-Tin Plating(Annealed)

✔

Solder Reflow Temperature:

Tin-Lead - Sn/Pb, 85/15: 240-245°C

Pure-Tin - Sn, 100: 260-270°C

✔

Flammability Rating UL 94V-0

✔

Marking: Logo, Part Number, Date Code & Pin One Defined By Dot on Top of Package

PIN CONFIGURATION

05062.R4 9/06

www.protekdevices.com

VSB06P05LCI_06 Related Products

	VSB06P05LCI_06	VSB06P05LCI	VSB06P6.5LCI	VSB06P12LCI	VSB06P6.5LCI-LF	VSB06P05LCI-LF	VSB06P12LCI-LF
Description	600 W, BIDIRECTIONAL, 4 ELEMENT, SILICON, TVS DIODE	600 W, BIDIRECTIONAL, 4 ELEMENT, SILICON, TVS DIODE	600 W, BIDIRECTIONAL, 4 ELEMENT, SILICON, TVS DIODE	600 W, BIDIRECTIONAL, 4 ELEMENT, SILICON, TVS DIODE	600 W, BIDIRECTIONAL, 4 ELEMENT, SILICON, TVS DIODE	600 W, BIDIRECTIONAL, 4 ELEMENT, SILICON, TVS DIODE	600 W, BIDIRECTIONAL, 4 ELEMENT, SILICON, TVS DIODE
Is it Rohs certified?	-	incompatible	incompatible	incompatible	conform to	conform to	conform to
Maker	-	ProTek Devices	ProTek Devices	ProTek Devices	ProTek Devices	ProTek Devices	ProTek Devices
package instruction	-	R-PSIP-T6	R-PSIP-T6	R-PSIP-T6	R-PSIP-T6	R-PSIP-T6	R-PSIP-T6
Contacts	-	6	6	6	6	6	6
Reach Compliance Code	-	compli	compli	compli	compli	compli	compli
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	-	LOW CAPACITANCE	LOW CAPACITANCE	LOW CAPACITANCE	-	LOW CAPACITANCE	-
Minimum breakdown voltage	-	6 V	7.2 V	13.3 V	7.2 V	6 V	13.3 V
Configuration	-	2 BANKS, SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMPLEX	COMPLEX	COMPLEX	2 BANKS, SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMPLEX
Diode component materials	-	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	-	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	-	R-PSIP-T6	R-PSIP-T6	R-PSIP-T6	R-PSIP-T6	R-PSIP-T6	R-PSIP-T6
JESD-609 code	-	e0	e0	e0	e3	e3	e3
Maximum non-repetitive peak reverse power dissipation	-	600 W	600 W	600 W	600 W	600 W	600 W
Number of components	-	4	4	4	4	4	4
Number of terminals	-	6	6	6	6	6	6
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	-	245	245	245	270	270	270
polarity	-	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
Certification status	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	-	5 V	6.5 V	12 V	6.5 V	5 V	12 V
surface mount	-	NO	NO	NO	NO	NO	NO
technology	-	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal form	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	-	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
