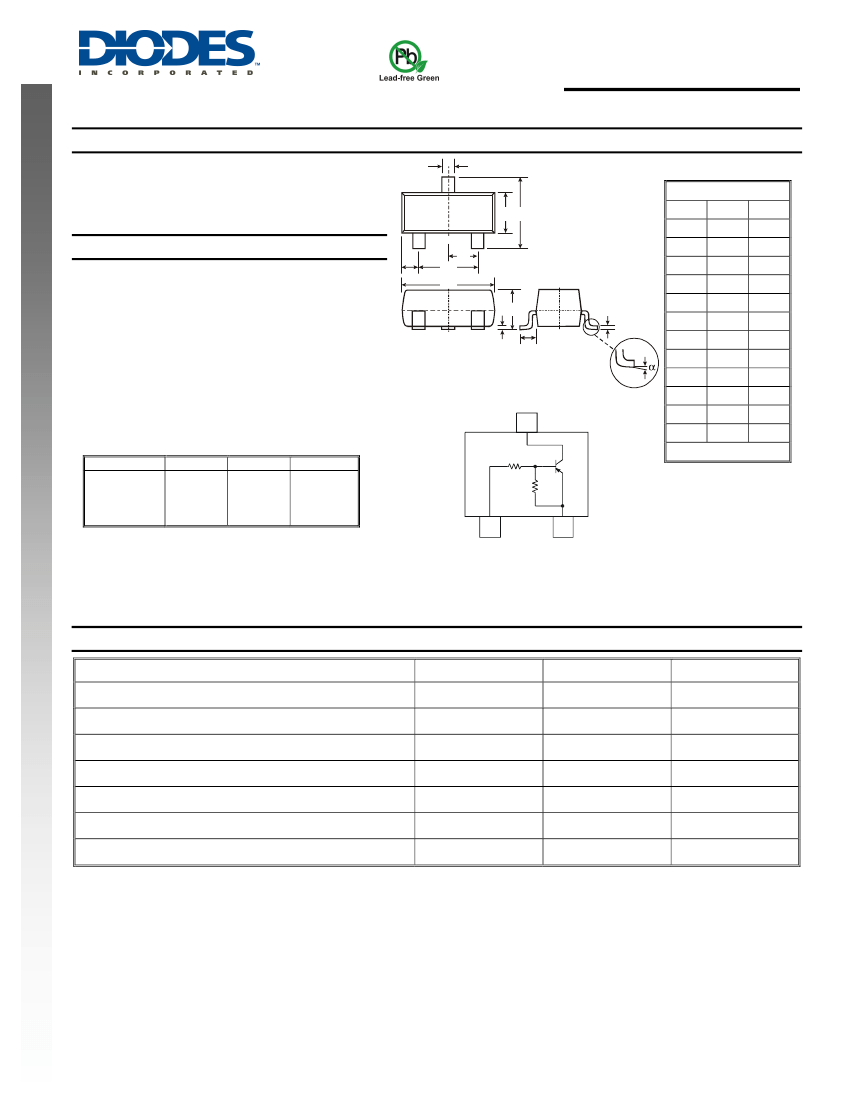

DDTB (LO-R1) C
PNP PRE-BIASED 500 mA SURFACE MOUNT TRANSISTOR
Please click here to visit our online spice models database.
Features
•
•
•
•
Epitaxial Planar Die Construction
Complementary NPN Types Available (DDTD)
Built-In Biasing Resistors
Lead, Halogen and Antimony Free, RoHS Compliant
"Green" Device (Notes 1 and 3)
E
A
SOT-23
TOP VIEW
B
C
NEW P RO DUC T
Dim
A
B
C
D
E
G
H
J
K
L
M
α
Min
0.37
1.20
2.30
0.89
0.45
1.78
2.80
0.013
0.903
0.45
0.085
0°
Max
0.51
1.40
2.50
1.03
0.60
2.05
3.00
0.10
1.10
0.61
0.180
8°
Mechanical Data
•
•
•
•
•
•
•
•
•
Case: SOT-23
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminal Connections: See Diagram
Terminals: Solderable per MIL-STD-202, Method 208
Lead Free Plating (Matte Tin Finish annealed over Alloy
42 leadframe).
Marking Information: See Table Below & Page 3
Ordering Information: See Page 3
Weight: 0.008 grams (approximate)
D
G
H
K
J
L
M
OUT
3
C
P/N
DDTB122LC
DDTB142JC
DDTB122TC
DDTB142TC
R1 (NOM)
0.22KΩ
0.47KΩ
0.22KΩ
0.47KΩ
R2 (NOM)
10KΩ
10KΩ
OPEN
OPEN
Type Code
P75
P76
P77
P78
B
R1
R2
All Dimensions in mm
E
1
IN
2
GND(+)
Schematic and Pin Diagram
Maximum Ratings
Supply Voltage, (3) to (2)
Input Voltage, (1) to (2)
Input Voltage, (2) to (1)
Output Current
Power Dissipation
@T
A
= 25°C unless otherwise specified
Symbol
V
CC
DDTB122LC
DDTB142JC
DDTB122TC
DDTB142TC
All
(Note 2)
(Note 2)
V
IN
V
EBO (MAX)
I
C
P
D
R
θ
JA
T
J
, T
STG
Value
-50
+5 to -6
+5 to -6
-5
-500
200
625
-55 to +150
Unit
V
V
V
mA
mW
°C/W
°C
Characteristic
Thermal Resistance, Junction to Ambient Air
Operating and Storage Temperature Range
Notes:
1. No purposefully added lead. Halogen and Antimony Free.
2. Mounted on FR4 PC Board with recommended pad layout at http://www.diodes.com/datasheets/ap02001.pdf.
3. Product manufactured with Data Code V9 (week 33, 2008) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code V9 are built with Non-Green Molding Compound and may contain Halogens or Sb
2
O
3
Fire Retardants.
DS30403 Rev. 6 - 2
1 of 3
www.diodes.com
DDTB (LO-R1) C
© Diodes Incorporated
Electrical Characteristics
Characteristic
Input Voltage
@T
A
= 25°C unless otherwise specified
Symbol
DDTB122LC
DDTB142JC
DDTB122LC
DDTB142JC
V
l(off)
V
l(on)
V
O(on)
DDTB122LC
DDTB142JC
I
l
I
O(off)
DDTB122LC
DDTB142JC
G
l
f
T
Min
-0.3
-0.3
⎯
⎯
⎯
⎯
56
56
⎯
Typ
⎯
⎯
⎯
⎯
⎯
⎯
200
R1, R2 Types
Max
⎯
-2.0
-2.0
-0.3V
-28
-13
-0.5
⎯
⎯
Unit
V
V
V
mA
μA
⎯
Test Condition
V
CC
= -5V, I
O
= -100μA
V
O
= -0.3V, I
O
= -20mA
V
O
= -0.3V, I
O
= -20mA
I
O
/I
l
= -50mA/-2.5mA
V
I
= -5V
V
CC
= -50V, V
I
= 0V
V
O
= -5V, I
O
= -50mA
NEW PRODUCT
Output Voltage
Input Current
Output Current
DC Current Gain
Gain-Bandwidth Product*
* Transistor - For Reference Only
MHz V
CE
= -10V, I
E
= -5mA, f = 100MHz
Electrical Characteristics
Characteristic
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cutoff Current
Emitter Cutoff Current
Collector-Emitter Saturation Voltage
DC Current Transfer Ratio
Gain-Bandwidth Product*
* Transistor - For Reference Only
@T
A
= 25°C unless otherwise specified
Symbol
BV
CBO
BV
CEO
DDTB122TC
DDTB142TC
BV
EBO
I
CBO
DDTB122TC
DDTB142TC
I
EBO
V
CE(sat)
DDTB122TC
DDTB142TC
h
FE
f
T
Min
-50
-40
-5
⎯
⎯
⎯
⎯
100
100
⎯
Typ
⎯
⎯
⎯
⎯
⎯
⎯
250
250
200
R1- Only Types
Max
⎯
⎯
⎯
-0.5
-0.5
-0.5
-0.3
600
600
⎯
Unit
V
V
V
μA
μA
V
⎯
I
C
= -50μA
I
C
= -1mA
I
E
= -50μA
I
E
= -50μA
V
CB
= -50V
V
EB
= -4V
I
C
= -50mA, I
B
= -2.5mA
I
C
= -5mA, V
CE
= -5V
Test Condition
MHz V
CE
= -10V, I
E
= 5mA, f = 100MHz
250
P
d
, POWER DISSIPATION (mW)
200
150
100
50
0
-50
0
50
100
150
T
A
, AMBIENT TEMPERATURE (
°
C)
Fig. 1 Power Derating Curve
DS30403 Rev. 6 - 2
2 of 3
www.diodes.com
DDTB (LO-R1) C
© Diodes Incorporated
Ordering Information
(Note 4)
Device
DDTB122LC-7-F
DDTB142JC-7-F
DDTB122TC-7-F
Packaging
SOT-23
SOT-23
SOT-23
SOT-23
Shipping
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
NEW PRODUCT
DDTB142TC-7-F
Notes:
4.
For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
XXX
XXX = Product Type Marking Code, See Table on Page 1
YM = Date Code Marking
Y = Year ex: T = 2006
M = Month ex: 9 = September
Date Code Key
Year
Code
Month
Code
2006
T
Jan
1
Feb
2
2007
U
Mar
3
Apr
4
YM
2008
V
2009
W
Jun
6
Jul
7
2010
X
Aug
8
Sep
9
2011
Y
Oct
O
Nov
N
2012
Z
Dec
D
May
5
