PZT3906: Description200 mA, 40 V, PNP, Si, SMALL SIGNAL TRANSISTOR; CategoryDiscrete semiconductor The transistor; File Size87KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

PZT3906 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PZT3906	-	-	View	Buy Now

PZT3906 Overview

200 mA, 40 V, PNP, Si, SMALL SIGNAL TRANSISTOR

PZT3906 Parametric

Parameter Name	Attribute value
Brand Name	Fairchild Semiconduc
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	SOT-223
package instruction	SMALL OUTLINE, R-PDSO-G4
Contacts	4
Manufacturer packaging code	MOLDED PACKAGE, SOT-223, 4 LEAD
Reach Compliance Code	compli
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	0.2 A
Collector-emitter maximum voltage	40 V
Configuration	SINGLE
Minimum DC current gain (hFE)	30
JESD-30 code	R-PDSO-G4
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	4
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	PNP
Maximum power dissipation(Abs)	1.5 W
Certification status	Not Qualified
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	250 MHz
Maximum off time (toff)	300 ns
Maximum opening time (tons)	70 ns
Base Number Matches	1

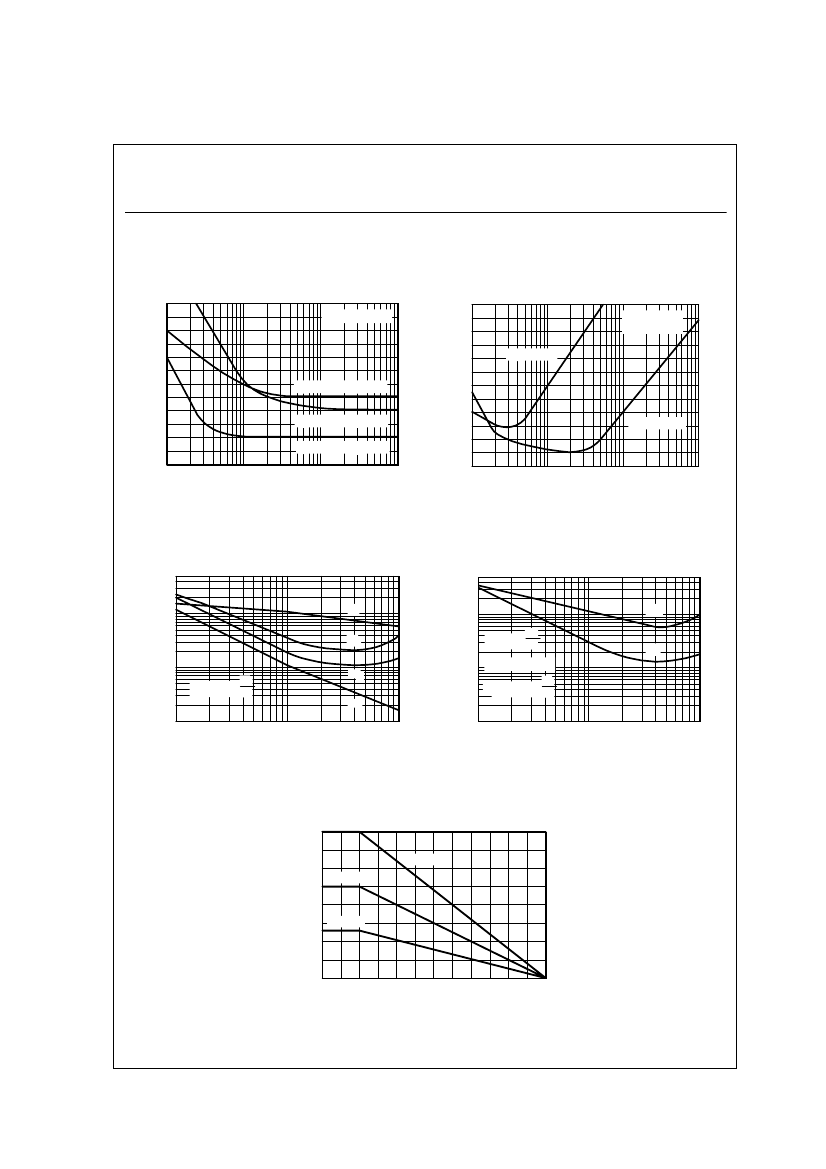

Preview

Download Datasheet

View All

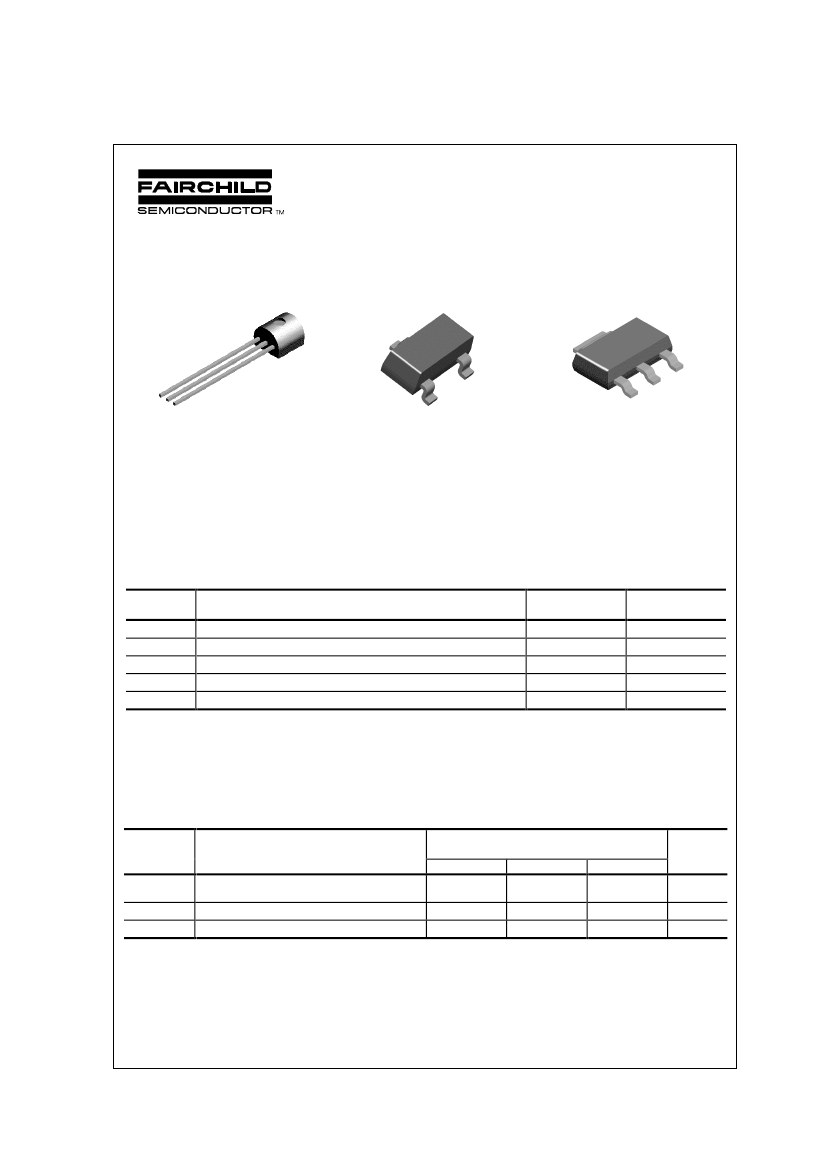

2N3906 / MMBT3906 / PZT3906

2N3906

MMBT3906

PZT3906

TO-92

SOT-23

Mark: 2A

SOT-223

PNP General Purpose Amplifier

This device is designed for general purpose amplifier and switching

applications at collector currents of 10

µA

to 100 mA.

Absolute Maximum Ratings*

Symbol

CEO

CBO

EBO

, T

stg

Collector-Emitter Voltage

Collector-Base Voltage

Emitter-Base Voltage

Collector Current - Continuous

= 25°C unless otherwise noted

Parameter

Value

5.0

200

-55 to +150

Units

°C

Operating and Storage Junction Temperature Range

These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.

NOTES:

These ratings are based on a maximum junction temperature of 150 degrees C.

These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.

All voltages (V) and currents (A) are negative polarity for PNP transistors.

Thermal Characteristics

Symbol

θJC

θJA

= 25°C unless otherwise noted

Characteristic

Total Device Dissipation

Derate above 25°C

Thermal Resistance, Junction to Case

Thermal Resistance, Junction to Ambient

2N3906

625

5.0

83.3

200

Max

*MMBT3906

350

2.8

357

**PZT3906

1,000

8.0

125

Units

mW/°C

°C/W

Device mounted on FR-4 PCB 1.6" X 1.6" X 0.06."

Device mounted on FR-4 PCB 36 mm X 18 mm X 1.5 mm; mounting pad for the collector lead min. 6 cm



2001 Fairchild Semiconductor Corporation

2N3906/MMBT3906/PZT3906, Rev A

PZT3906 Related Products

	PZT3906	2N3906_01	2N3906
Description	200 mA, 40 V, PNP, Si, SMALL SIGNAL TRANSISTOR	200 mA, 40 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92	200 mA, 40 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92
Number of components	1	1	1
Number of terminals	4	3	3
Terminal form	GULL WING	THROUGH-hole	THROUGH-HOLE
Terminal location	DUAL	BOTTOM	BOTTOM
transistor applications	SWITCHING	switch	SWITCHING
Transistor component materials	SILICON	silicon	SILICON
Is it Rohs certified?	conform to	-	conform to
Parts packaging code	SOT-223	-	TO-92
package instruction	SMALL OUTLINE, R-PDSO-G4	-	CYLINDRICAL, O-PBCY-T3
Contacts	4	-	3
Reach Compliance Code	compli	-	unknow
ECCN code	EAR99	-	EAR99
Maximum collector current (IC)	0.2 A	-	0.2 A
Collector-emitter maximum voltage	40 V	-	40 V
Configuration	SINGLE	-	SINGLE
Minimum DC current gain (hFE)	30	-	30
JESD-30 code	R-PDSO-G4	-	O-PBCY-T3
JESD-609 code	e3	-	e3
Maximum operating temperature	150 °C	-	150 °C
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY
Package shape	RECTANGULAR	-	ROUND
Package form	SMALL OUTLINE	-	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT APPLICABLE
Polarity/channel type	PNP	-	PNP
Maximum power dissipation(Abs)	1.5 W	-	0.35 W
Certification status	Not Qualified	-	Not Qualified
surface mount	YES	-	NO
Terminal surface	Matte Tin (Sn)	-	Matte Tin (Sn)
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT APPLICABLE
Nominal transition frequency (fT)	250 MHz	-	250 MHz
Maximum off time (toff)	300 ns	-	300 ns
Maximum opening time (tons)	70 ns	-	70 ns
Base Number Matches	1	-	1
