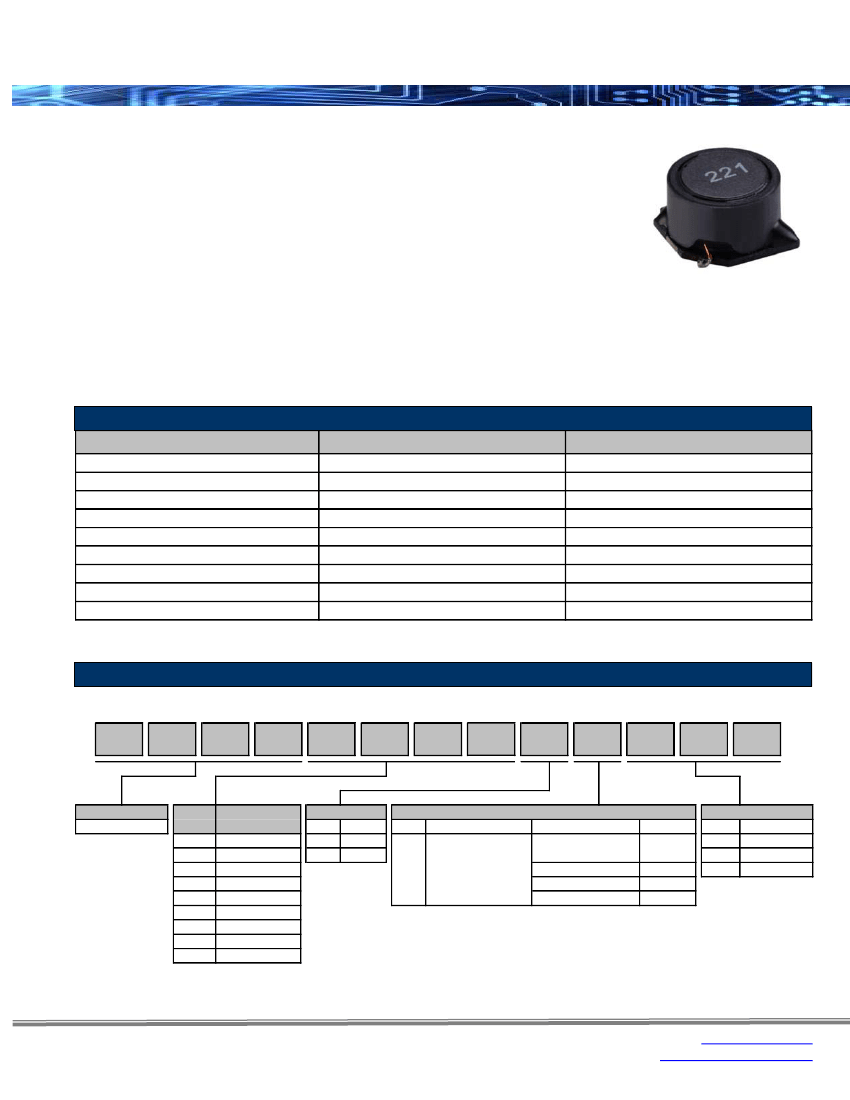

PCDR Series
SMD Shielded Power Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions
Features:
•
•
•
•
•
Compact, low profile with low DCR and high current
Provides magnetic shielding against radiation
Flat bottom provides reliable surface mounting
Contact factory for inductance values outside those
listed
Find environmental information and packaging
specification in relate supplemental documents
Portable telephones
GPS and PDAs
Personal computers
DC/DC converters
Applications:
•
•
•
•
Inductance and Current Ranges
Type
PCDR0628
PCDR0728
PCDR0730
PCDR0732
PCDR0745
PCDR1045
PCDR1255
PCDR1265
PCDR1275
Electrical specifications at 25ºC.
Inductance (μH)
4.7 - 100
3.3 - 56
3.3 - 100
3.3 - 1000
3.3 - 1000
10.0 - 1500
6.0 - 1500
2.0 - 150
1.2 - 220
Current Range (A)
1.6 - 0.42
1.6 - 0.50
1.8 - 0.35
1.9 - 0.13
2.5 - 0.14
3.0 - 0.22
3.6 - 0.29
10.0 - 1.00
13.0 - 1.30
How to Order
1
2
3
4
5
6
7
8
9
10
11
12
13
P
C
D
R
0
6
2
8
M
T
1
0
1
Product Series
PCDR
Code
0628
0728
0730
0732
0745
1045
1255
1265
1275
Dimensions
(mm)
6.0x2.8
7.0x2.8
7.0x3.0
7.0x3.2
7.0x4.5
10.1x4.5
12.5x5.5
12.5x6.5
12.5x7.5
Tolerance
Tol
Code
20%
M
30%
N
Packaging
Code
Description
Size
0628, 0728, 0730,
0732, 0745
1045
1255, 1265
1275
Quantity
1,000
750
500
350
T
13" Tape and Reel
Inductance
Code Inductance
1R1
1.1 uH
470
47 uH
101
100 uH
Rev Date: 05/14/2012
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
1
www.seielect.com
marketing@seielect.com
PCDR Series
SMD Shielded Power Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions

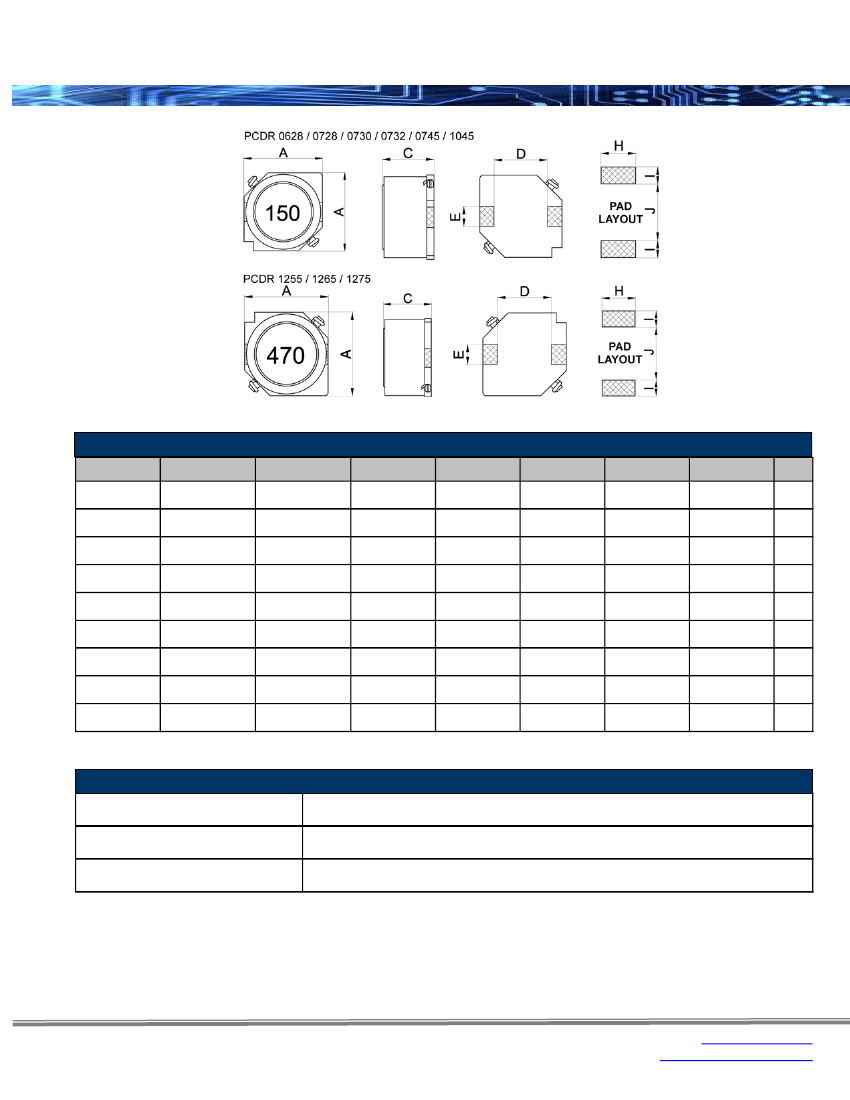

Mechanical Specifications
Type/Code
PCDR0628
PCDR0728
PCDR0730
PCDR0732
PCDR0745
PCDR1045
PCDR1255
PCDR1265
PCDR1275
0.236
6.00
0.276
7.00
0.276
7.00
0.276
7.00
0.276
7.00
0.398
10.10
0.492
12.50
0.492
12.50
0.492
12.50
A
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
0.008
0.20
0.008
0.20
0.008
0.20
0.008
0.20
0.008
0.20
0.012
0.30
0.012
0.30
0.012
0.30
0.012
0.30
0.110
2.80
0.110
2.80
0.118
3.00
0.126
3.20
0.177
4.50
0.177
4.50
0.217
5.50
0.256
6.50
0.295
7.50
C
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
0.008
0.20
0.008
0.20
0.008
0.20
0.008
0.20
0.012
0.30
0.012
0.30
0.014
0.35
0.014
0.35
0.014
0.35
D
0.157
4.00
0.157
4.00
0.157
4.00
0.157
4.00
0.157
4.00
0.236
6.00
0.339
8.60
0.339
8.60
0.339
8.60
E
0.079
2.00
0.079
2.00
0.079
2.00
0.079
2.00
0.079
2.00
0.118
3.00
0.118
3.00
0.118
3.00
0.118
3.00
H
0.087
2.20
0.087
2.20
0.087
2.20
0.087
2.20
0.087
2.20
0.126
3.20
0.126
3.20
0.126
3.20
0.126
3.20
I
0.059
1.50
0.059
1.50
0.059
1.50
0.059
1.50
0.059
1.50
0.098
2.50
0.098
2.50
0.098
2.50
0.098
2.50
J
0.157
4.00
0.157
4.00
0.157
4.00
0.157
4.00
0.157
4.00
0.220
5.60
0.339
8.60
0.339
8.60
0.339
8.60
Unit
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
Performance Characteristics
Saturation Rated Current (I sat)
Temperature Rated Current (I rms)
Operating Temperature Range
0628 ~ 1275
The current when the inductance becomes 30% lower than its nominal value (Ta=25ºC)
The actual current when the temperature of coil becomes to
∆40ºC
(Ta=25ºC)
-40 ~ 85ºC
Rev Date: 05/14/2012
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
2
www.seielect.com
marketing@seielect.com
PCDR Series
SMD Shielded Power Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions
Electrical Specifications – PCDR 0628, 0728, 0730
Type / Code
3R3
4R7
6R8
100
150
220
330
470
560
680
101
L
(μH)
3.3
4.7
6.8
10
15
22
33
47
56
68
100
Tolerance
M
M
M
M
M
M
M
M
M
M
M
Test
Condition
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
DCR (Ω) ±20%
0628
-
0.036
0.052
0.068
0.100
0.120
0.180
0.270
0.330
0.390
0.620
0728
0.037
0.045
0.059
0.083
0.130
0.180
0.240
0.340
0.420
-
-
0730
0.023
0.036
0.041
0.053
0.084
0.110
0.160
0.240
0.280
0.310
0.450
0628
-
1.60
1.50
1.30
1.00
0.77
0.69
0.59
0.51
0.50
0.42
IDC (A) max.
I sat
0728
1.60
1.50
1.30
1.10
0.88
0.75
0.65
0.54
0.50
-
-
0730
1.80
1.60
1.50
1.30
1.00
0.86
0.65
0.57
0.53
0.49
0.35
0628
-
2.50
2.20
1.80
1.40
1.30
1.10
0.92
0.85
0.78
0.64
I rms
0728
1.60
1.50
1.30
1.10
0.88
0.75
0.65
0.54
0.45
-
-
0730
1.80
1.60
1.50
1.30
1.00
0.86
0.65
0.57
0.60
0.49
0.35
Electrical Specifications – PCDR 0732, 0745, 1045
Type / Code
3R3
4R7
6R8
100
150
220
330
470
560
680
101
151
221
331
471
681
102
152
L
(μH)
3.3
4.7
6.8
10
15
22
33
47
56
68
100
150
220
330
470
680
1000
1500
Tolerance
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
Test
Condition
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
DCR (Ω) ±20%
0732
0.023
0.036
0.041
0.053
0.075
0.110
0.160
0.240
0.300
0.310
0.450
0.650
1.050
1.670
2.050
3.150
4.780
-
0745
0.020
0.030
0.039
0.036
0.052
0.061
0.096
0.125
0.130
0.175
0.250
0.340
0.520
0.740
1.050
1.480
2.280
-
1045
-
-
-
0.036
0.047
0.059
0.082
0.100
0.110
0.140
0.200
0.350
0.370
0.680
1.030
1.600
2.800
3.400
0732
1.90
1.70
1.60
1.40
1.10
0.96
0.75
0.67
0.60
0.59
0.45
0.37
0.29
0.22
0.20
0.16
0.13
-
IDC (A) max.
I sat
0745
2.50
2.00
1.70
1.30
1.10
0.90
0.82
0.75
0.67
0.60
0.50
0.40
0.33
0.25
0.22
0.20
0.14
-
1045
-
-
-
3.00
2.40
2.10
1.60
1.40
1.30
1.20
1.00
0.79
0.65
0.54
0.47
0.38
0.32
0.22
0732
1.90
1.70
1.60
1.40
1.10
0.96
0.75
0.67
0.70
0.59
0.45
0.37
0.29
0.22
0.20
0.16
0.13
-
I rms
0745
2.30
2.10
1.74
1.78
1.53
1.34
1.09
0.92
0.88
0.77
0.65
0.55
0.45
0.37
0.31
0.27
0.25
-
1045
-
-
-
2.50
2.20
1.90
1.70
1.50
1.40
1.30
1.10
0.81
0.70
0.58
0.47
0.38
0.29
0.26
Rev Date: 05/14/2012
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
3
www.seielect.com
marketing@seielect.com
PCDR Series
SMD Shielded Power Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions
Electrical Specifications – PCDR 1255, 1265, 1275
Type / Code
1R2
2R0
2R7
3R9
4R2
5R6
6R0
6R8
7R0
100
150
220
330
470
560
680
101
121
151
221
331
471
681
102
152
L
(μH)
1.2
2.0
2.7
3.9
4.2
5.6
6.0
6.8
7.0
10
15
22
33
47
56
68
100
120
150
220
330
470
680
1000
1500
Tolerance
N
N
N
N
N
N
N
N
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
Test
Condition
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
1KHz, 0.5V
DCR (Ω) ±20%
1255
-
-
-
-
-
-
0.0164
-
-
0.0215
0.0259
0.0338
0.0415
0.0618
0.0750
0.0832
0.1170
-
0.1900
0.2700
0.4100
0.5200
0.7600
1.1200
1.7300
1265
-
0.0117
-
-
0.0150
-
-
-
0.0177
0.0202
0.0237
0.0316
0.0406
0.0578
0.0750
0.0787
0.1230
0.1850
0.2730
-
-
-
-
-
-
1275
0.0069
-
0.0094
0.0104
-
0.0116
-
0.0131
-
0.0156
0.0184
0.0263
0.0395
0.0528
0.0670
0.0778
0.1250
-
0.1750
0.2580
-
-
-
-
-
1255
-
-
-
-
-
-
3.60
-
-
3.40
2.80
2.30
1.90
1.60
1.45
1.30
1.10
-
0.88
0.72
0.59
0.49
0.43
0.34
0.29
IDC (A) max.
I sat
1265
-
10.00
-
-
7.30
-
-
-
5.70
5.00
4.20
3.50
2.80
2.40
2.20
2.00
1.60
1.30
1.00
-
-
-
-
-
-
1275
13.00
-
10.00
9.00
-
7.80
-
7.20
-
5.50
4.70
4.00
3.20
2.70
2.30
2.00
1.90
-
1.50
1.30
-
-
-
-
-
1255
-
-
-
-
-
-
4.90
-
-
4.30
3.90
3.40
3.10
2.50
2.30
2.20
1.80
-
1.40
1.20
1.00
0.88
0.73
0.60
0.48
I rms
1265
-
6.20
-
-
5.50
-
-
-
5.00
4.80
4.40
3.80
3.40
2.80
2.50
2.40
1.90
1.50
1.20
-
-
-
-
-
-
1275
8.20
-
7.00
6.70
-
6.30
-
5.90
-
5.40
5.00
4.00
3.40
3.00
2.60
2.40
1.90
-
1.60
1.30
-
-
-
-
-
Rev Date: 05/14/2012
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
4
www.seielect.com
marketing@seielect.com
