Plunger Style Test Clips
Altech Plunger Style Test clips are easy to work with Test & Measurement
Tools. They can handle high voltages, allow accessing difficult to reach areas
and keep your hands free for other tasks. The grabber can access every
measurement point even on the smallest Device or PCB Board circuit. The
KLEPS 2700 is patented and its stainless steel piercing tip allows access to the
wire without stripping.
•

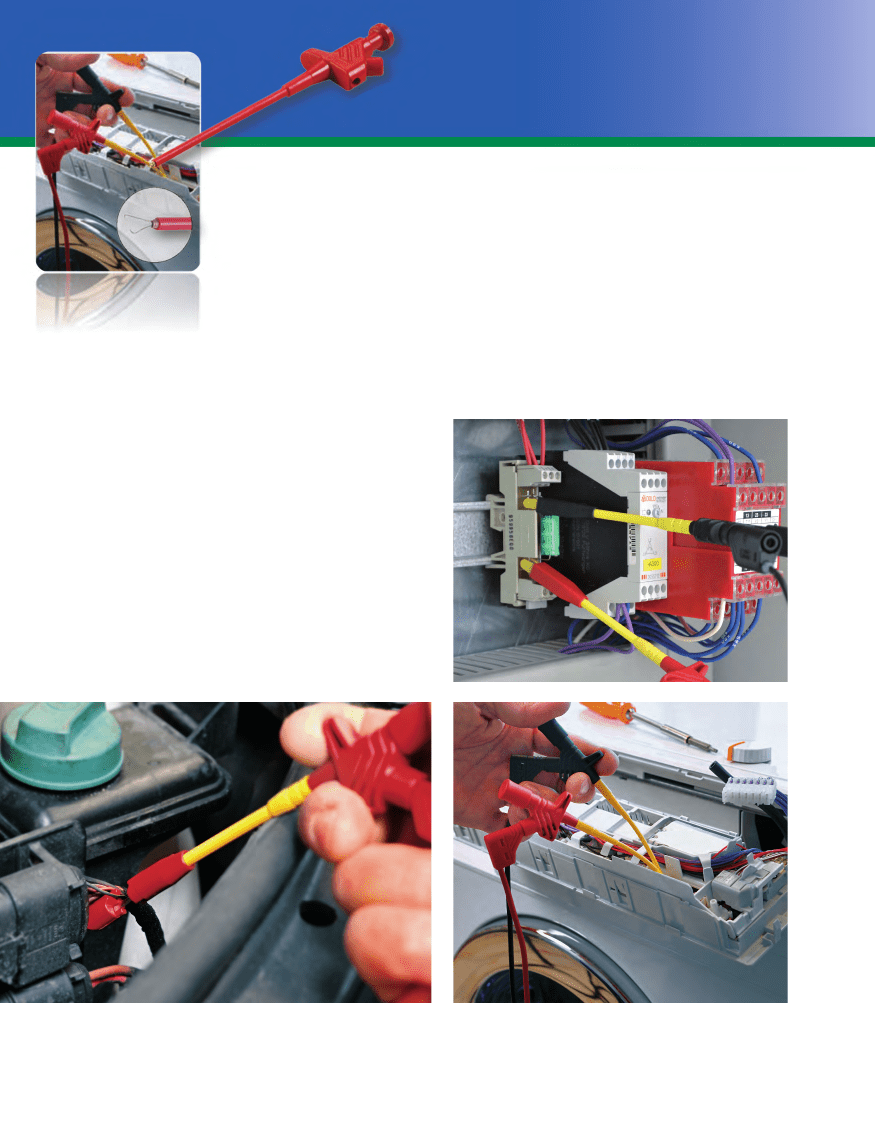

Measuring “difficult to access”
testing points
•
Various designs for different
applications
•
Handle with multiple connection
points
•
Patented KLEPS 2700 with special
design steel tip for accessing
connected wire
4
For the latest on Altech Test & Measurement specifications please visit www.altechcorp.com/test-equipment
Plunger Style Test Clips
Test Probes
0.64 mm System

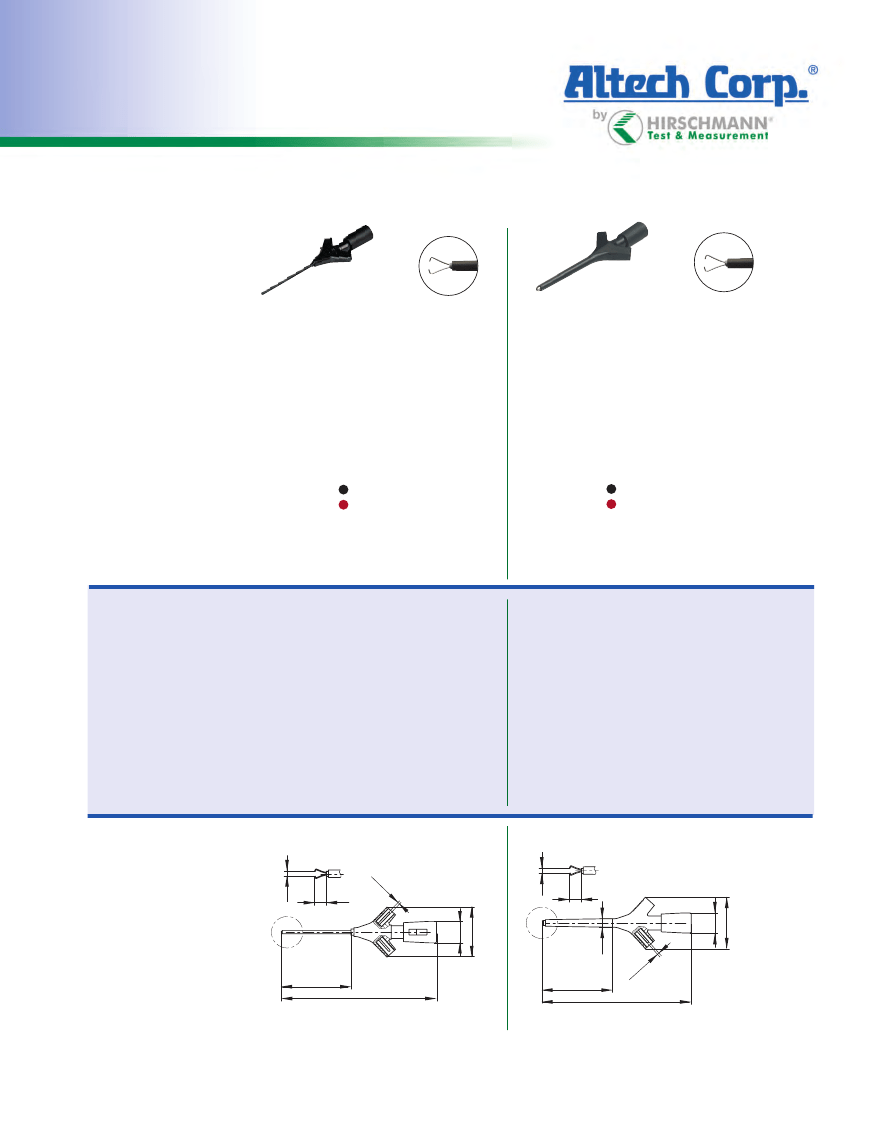

Type
MICRO-KLEPS
Mini plunger style test probe with
rotating pincers, insulated shaft
bendable up to 35°, suitable for very
thin wires and densely packed contact
points, fits MKL and MAL leads.
KLEPS 3 ST
Mini plunger style test probe with
rotating pincers, suitable for very
thin wires and densely packed
contact points, fits MKL and MAL
leads.
Clamping range
Clamp type
PART NO. /
Housing color
2 mm (0.079”)
Rotating Pincers
3.5 mm (0.138”)
Rotating Pincers
973972100
973972101
973592100
973592101
Technical Data
Connection Type
Voltage Rating
Measurement Category (IEC61010)
Current Rating*
Contact Resistance
Material Specifications
Pincers/ hook
Connection pin/ socket
Contact Spring
Housing
Environmental Conditions
Temperature Range
Flamability Rating
Housing
Drawing
Measurements are shown in millimeters.
Multiply by 0.03937 to convert to inches.
ø
0,
64
2x pin Ø 0.64 mm
30 VAC / 60 VDC
CAT I
2A
10 mOhm
tin plated spring steel
nickel plated brass
–
PBT
-25 °C to +100 °C (13°F to 212°F)
UL 94 HB
pin Ø 0.64 mm
30 VAC / 60 VDC
CAT I
2A
10 mOhm
tin plated spring steel
nickel plated brass
–
PBT
-25 °C to +100 °C (13°F to 212°F)
UL 94 HB
2
1,6
3,6
ø 7,5
18
4
ø3
24
53,8
ø
0,
64
24
52
* Please consider derating graph on page 80.
