RT0805FRD132K10 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> RT0805FRD132K10

RT0805FRD132K10: DescriptionFixed Resistor, Thin Film, 0.125W, 2100ohm, 150V, 1% +/-Tol, -25,25ppm/Cel, 0805; CategoryPassive components The resistor; File Size244KB，8 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

RT0805FRD132K10 Overview

Fixed Resistor, Thin Film, 0.125W, 2100ohm, 150V, 1% +/-Tol, -25,25ppm/Cel, 0805

RT0805FRD132K10 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	YAGEO
Reach Compliance Code	compliant
structure	Chip
JESD-609 code	e3
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.5 mm
Package length	2 mm
Package form	SMT
Package width	1.25 mm
method of packing	TR, Paper, 13 Inch
Rated power dissipation(P)	0.125 W
resistance	2100 Ω
Resistor type	FIXED RESISTOR
series	RT0805(F, 25T)POW
size code	0805
technology	THIN FILM
Temperature Coefficient	-25,25 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Tolerance	1%
Operating Voltage	150 V
Base Number Matches	1

Preview

Download Datasheet

View All

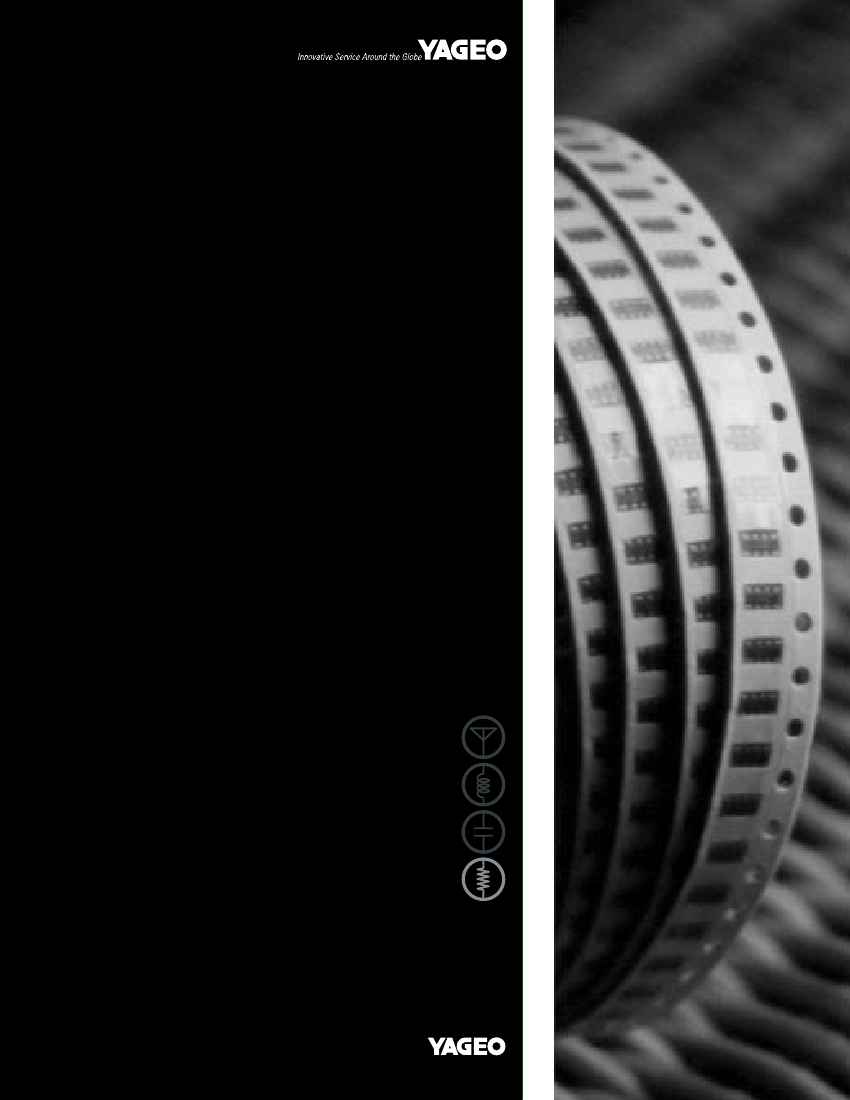

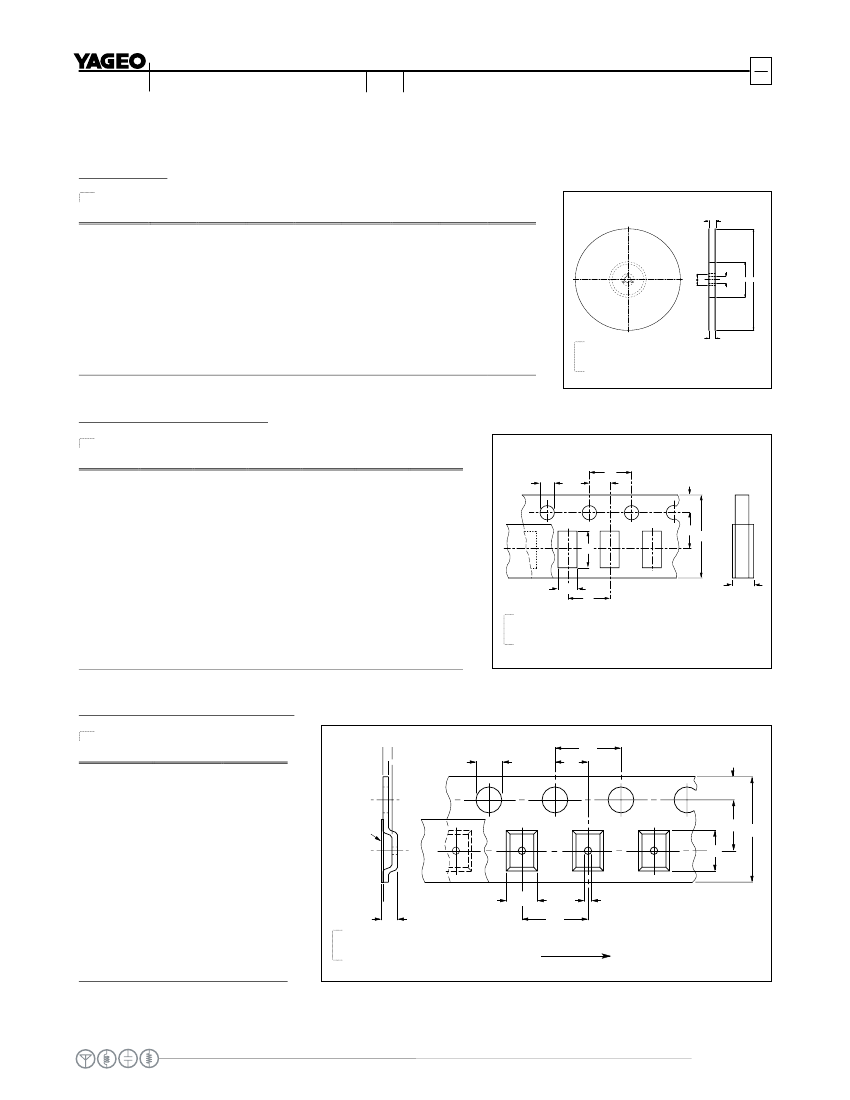

CHIP RESISTORS

RT Series

DATA SHEET

1%; 0.5%; 0.25%; 0.1%

Product Specification - Apr. 04, 2003 V.04

Supersedes Date of Dec. 20, 2002

RT0805FRD132K10 Related Products

	RT0805FRD132K10	RT0201BRD132770	RT0201DRD132770	RT0201CRD133440	RT0201BRD133440	RT0603DRE132K10	RT1206CRD132K10	RT0201DRD105420	RT0201CRD105420
Description	Fixed Resistor, Thin Film, 0.125W, 2100ohm, 150V, 1% +/-Tol, -25,25ppm/Cel, 0805	Fixed Resistor, Thin Film, 0.05W, 277ohm, 15V, 0.1% +/-Tol, -25,25ppm/Cel, 0201	Fixed Resistor, Thin Film, 0.05W, 277ohm, 15V, 0.5% +/-Tol, -25,25ppm/Cel, 0201	Fixed Resistor, Thin Film, 0.05W, 344ohm, 15V, 0.25% +/-Tol, -25,25ppm/Cel, 0201	Fixed Resistor, Thin Film, 0.05W, 344ohm, 15V, 0.1% +/-Tol, -25,25ppm/Cel, 0201	Fixed Resistor, Thin Film, 0.1W, 2100ohm, 75V, 0.5% +/-Tol, -50,50ppm/Cel, 0603	Fixed Resistor, Thin Film, 0.125W, 2100ohm, 200V, 0.25% +/-Tol, -25,25ppm/Cel, 1206	Fixed Resistor, Thin Film, 0.05W, 542ohm, 15V, 0.5% +/-Tol, -25,25ppm/Cel, 0201	Fixed Resistor, Thin Film, 0.05W, 542ohm, 15V, 0.25% +/-Tol, -25,25ppm/Cel, 0201
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
structure	Chip	Chip	Chip	Chip	Chip	Chip	Chip	Chip	Chip
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	155 °C	125 °C	125 °C	125 °C	125 °C	125 °C	155 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package height	0.5 mm	0.25 mm	0.25 mm	0.25 mm	0.25 mm	0.45 mm	0.55 mm	0.25 mm	0.25 mm
Package length	2 mm	0.6 mm	0.6 mm	0.6 mm	0.6 mm	1.6 mm	3.1 mm	0.6 mm	0.6 mm
Package form	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT
Package width	1.25 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.8 mm	1.6 mm	0.3 mm	0.3 mm
method of packing	TR, Paper, 13 Inch	TR, Paper, 13 Inch	TR, Paper, 13 Inch	TR, Paper, 13 Inch	TR, Paper, 13 Inch	TR, Paper, 13 Inch	TR, Paper, 13 Inch	TR, Paper, 10 Inch	TR, Paper, 10 Inch
Rated power dissipation(P)	0.125 W	0.05 W	0.05 W	0.05 W	0.05 W	0.1 W	0.125 W	0.05 W	0.05 W
resistance	2100 Ω	277 Ω	277 Ω	344 Ω	344 Ω	2100 Ω	2100 Ω	542 Ω	542 Ω
Resistor type	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
series	RT0805(F, 25T)POW	RT0201(B,C,D 25T)STD	RT0201(B,C,D 25T)STD	RT0201(B,C,D 25T)STD	RT0201(B,C,D 25T)STD	RT0603(B,C,D 50T)STD	RT1206(B,C,D 25T)POW	RT0201(B,C,D 25T)STD	RT0201(B,C,D 25T)STD
size code	0805	0201	0201	0201	0201	0603	1206	0201	0201
technology	THIN FILM	THIN FILM	THIN FILM	THIN FILM	THIN FILM	THIN FILM	THIN FILM	THIN FILM	THIN FILM
Temperature Coefficient	-25,25 ppm/°C	-25,25 ppm/°C	-25,25 ppm/°C	-25,25 ppm/°C	-25,25 ppm/°C	-50,50 ppm/°C	-25,25 ppm/°C	-25,25 ppm/°C	-25,25 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier
Tolerance	1%	0.1%	0.5%	0.25%	0.1%	0.5%	0.25%	0.5%	0.25%
Operating Voltage	150 V	15 V	15 V	15 V	15 V	75 V	200 V	15 V	15 V
Base Number Matches	1	1	1	1	1	1	1	1	1
