53118: DescriptionRing Terminal, 323mm2,; CategoryThe connector terminals; File Size106KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/; Environmental Compliance

Download Datasheet Parametric View All

53118 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	53118	-	-	View	Buy Now

53118 Overview

Ring Terminal, 323mm2,

53118 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Thomas & Betts Corporation
Reach Compliance Code	compliant
ECCN code	EAR99
terminal gender	FEMALE
Terminal and terminal strip types	RING TERMINAL
Conductor cross section	323 mm2
Base Number Matches	1

Preview

Download Datasheet

View All

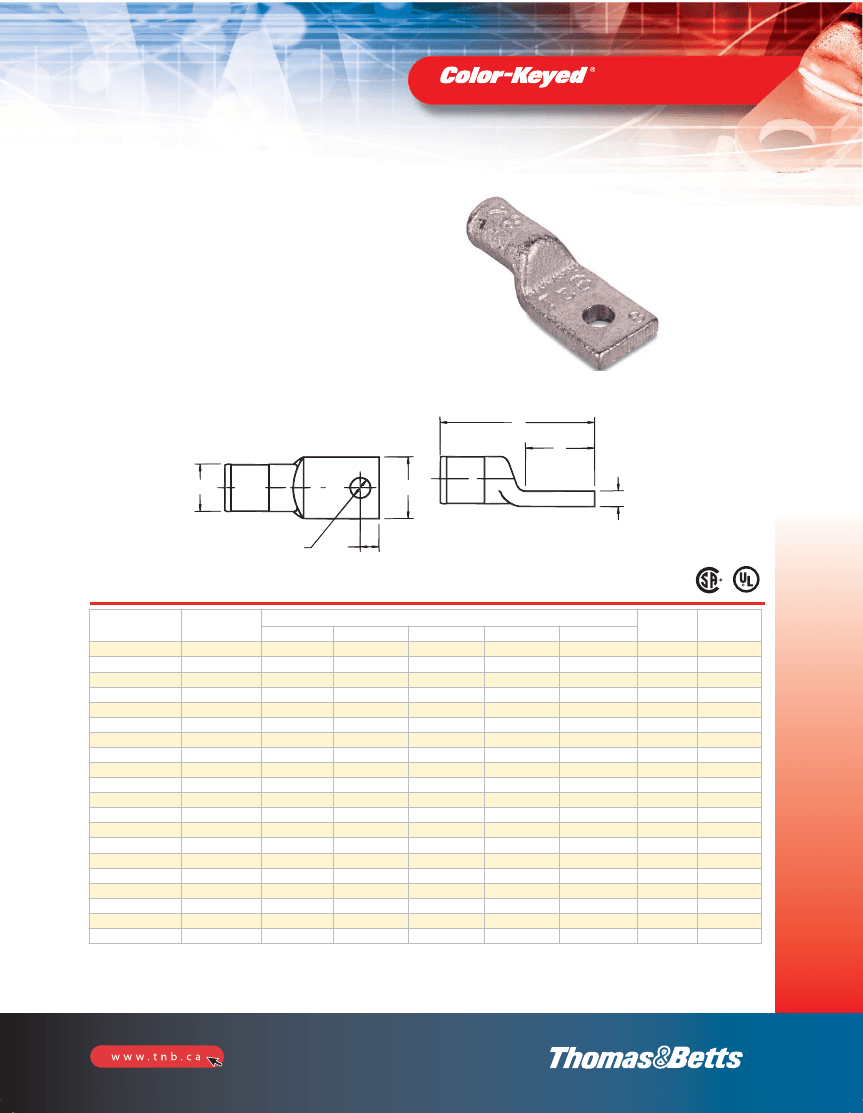

Connectors for Copper Conductors

Cast Copper One-Hole Lugs

Certified to 600V

and Recommended

up to 35 kV

¥

– Heavy-Duty

Material:

Finish:

High-Conductivity

Wrought Copper

Electro Tin Plate

C o m p r e s s i o n

A

B

E

C

D

Bolt size

F

CAT. NO.

53104

53105

53106

53107

53108

53109

53161*

53110

53111

53112

53165*

53113

53114

53115

53116

53118

53168*

53169*

53123

53173*

Cable Size

Code

Dimensions in. (mm)

A

B

C

D

F

Bolt

Size (in.)

Die

Code

8

6

4

2

1

1/0

325/24

2/0

3/0

4/0

650/24

250 kcmil

300 kcmil

350 kcmil

400 kcmil

500 kcmil

1100/24

1325/24

750 kcmil

2750/24

1.43 (36.3)

2.00 (50.8)

2.18 (55.4)

2.63 (66.8)

3.06 (91.4)

3.81 (96.8)

4.18 (106.2)

5.06 (142.2)

0.75 (19.1)

1.00 (25.4)

0.75 (19.1)

1.25 (31.8)

1.38 (35.1)

1.50 (38.1)

2.00 (50.8)

1.63 (41.4)

2.12 (53.8)

1.88 (47.8)

0.50 (12.7)

0.75 (19.1)

0.81 (20.6)

1.00 (25.4)

1.18 (30.0)

1.38 (35.1)

1.63 (41.4)

2.12 (53.8)

0.12 (3.0)

0.25 (6.4)

0.21 (5.3)

0.28 (7.1)

0.31 (7.9)

0.38 (9.7)

0.40 (10.2)

0.43 (10.9)

0.56 (14.2)

0.28 (7.1)

0.43 (10.9)

0.53 (13.5)

0.75 (19.1)

0.81 (20.6)

0.88 (22.4)

1.00 (25.4)

1.18 (30.0)

#10

1/4

3/8

1/2

29

45

54

66

76

99

107

112

150

Applicable tools: 12, 14, 15 and 40 Ton (see tool section pp. 126–130)

* Not UL listed and CSA non applicable

Die Selector Chart: pp.146–153

¥ For installations from 16 kV up to 35 kV, consult shielded cable manufacturers for stress relief and insulation requirements.
