3-6450870-2: DescriptionHEADER CONNECTOR,HYBRID,RECEPT,48+5 CONTACTS,SKT,PC TAIL TERMINAL,LOCKING,BLACK; CategoryThe connector The connector; File Size2MB，20 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

3-6450870-2 Overview

HEADER CONNECTOR,HYBRID,RECEPT,48+5 CONTACTS,SKT,PC TAIL TERMINAL,LOCKING,BLACK

3-6450870-2 Parametric

Parameter Name	Attribute value
Objectid	313169997
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITH GUIDES
Board mount options	SPLIT BOARD LOCK
body width	0.47 inch
subject depth	0.82 inch
body length	2.89 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	HYBRID
Dielectric withstand voltage	2500VDC V
Durability	500 Cycles
Filter function	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYETHYLENE
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Plating thickness	30u inch
Guideline	UL
Terminal length	0.135 inch
Termination type	SOLDER

Preview

Download Datasheet

View All

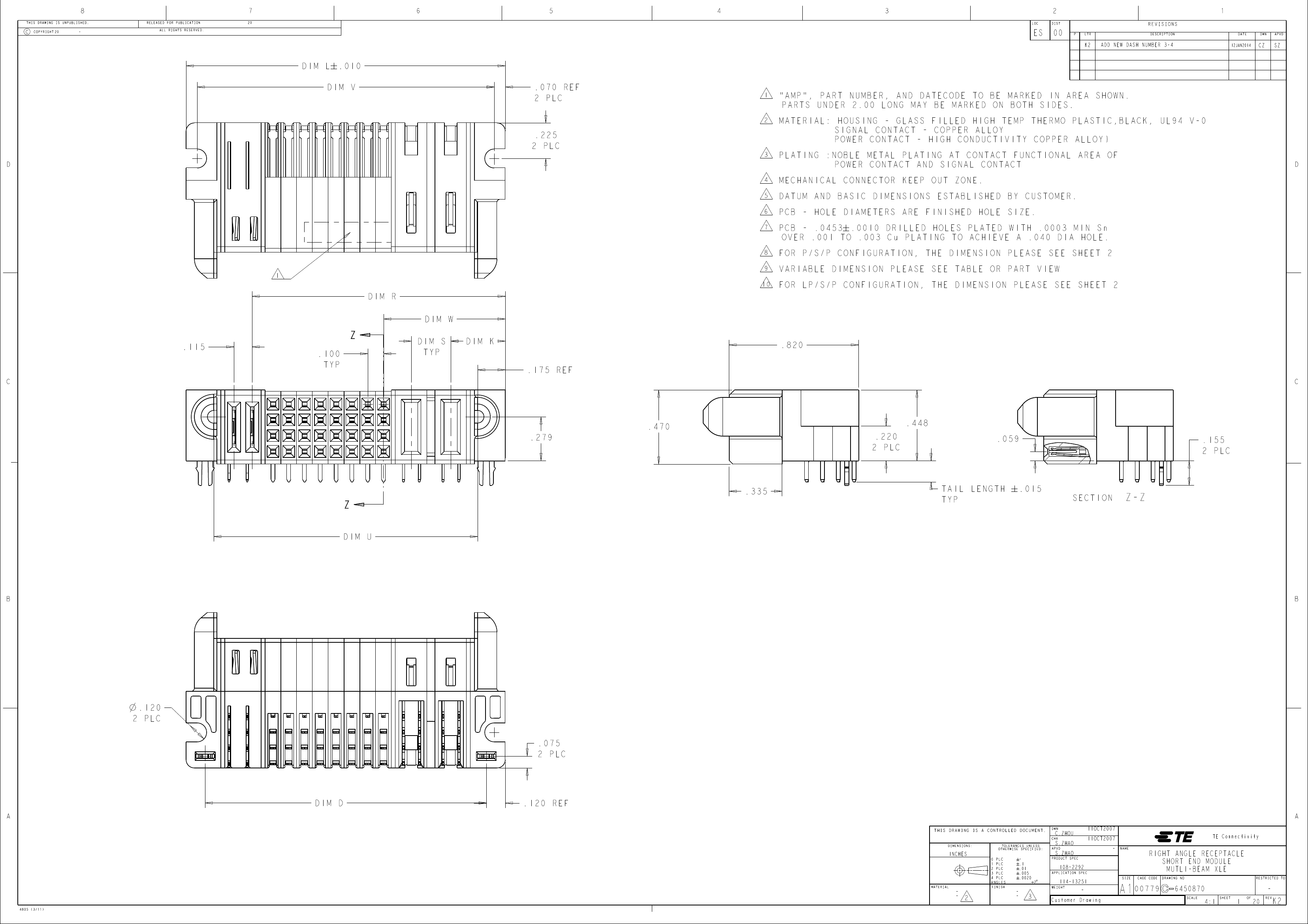

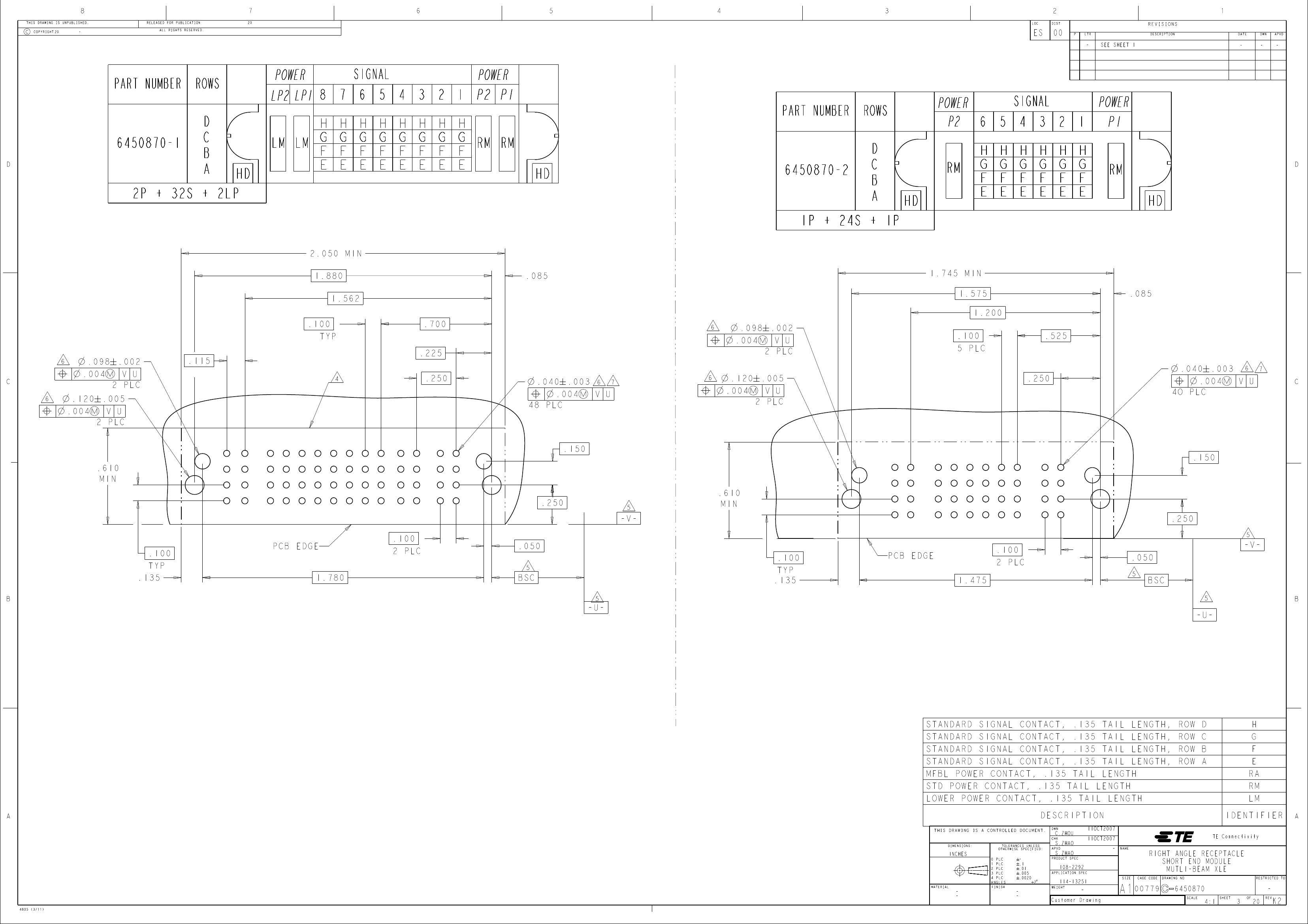

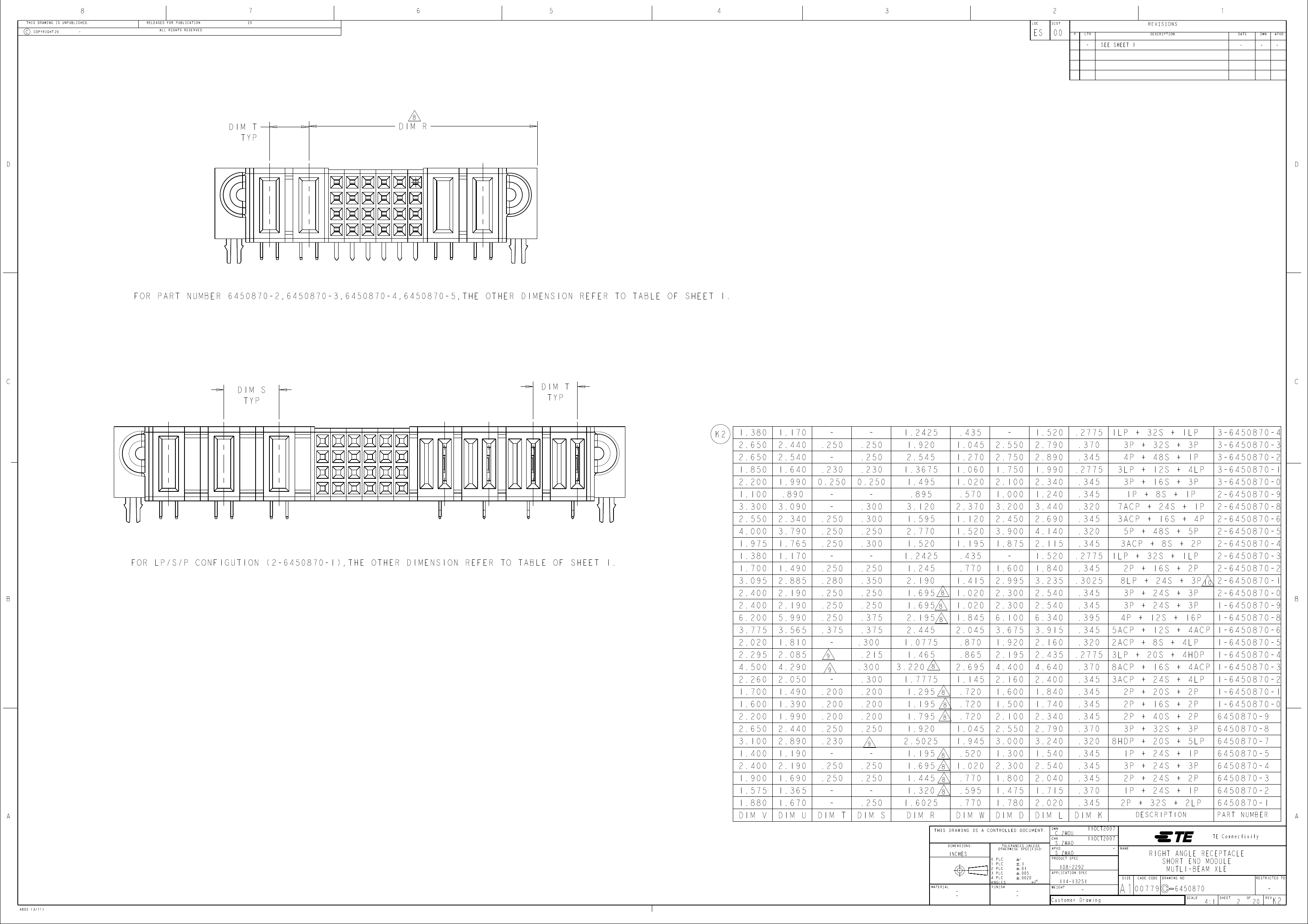

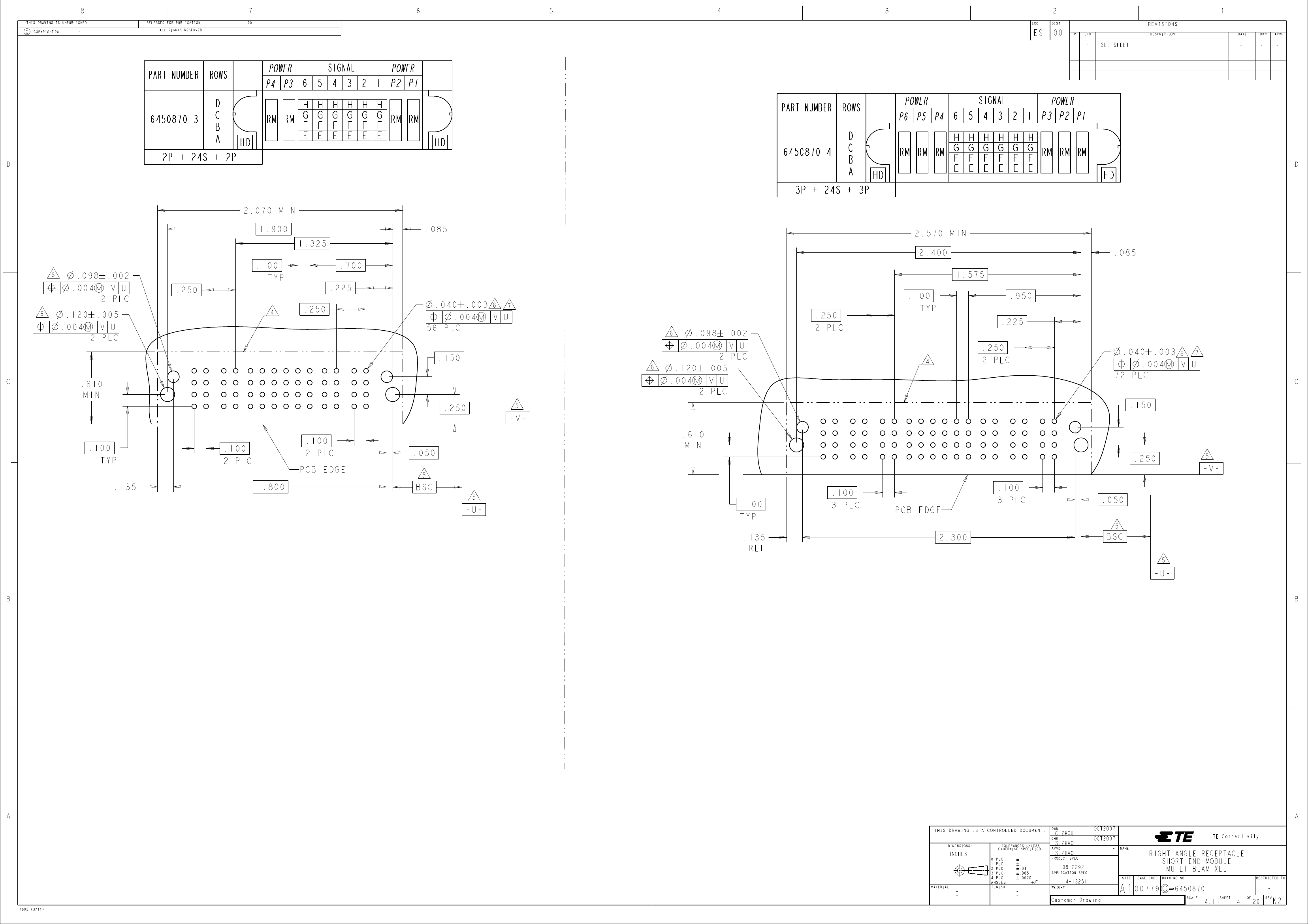

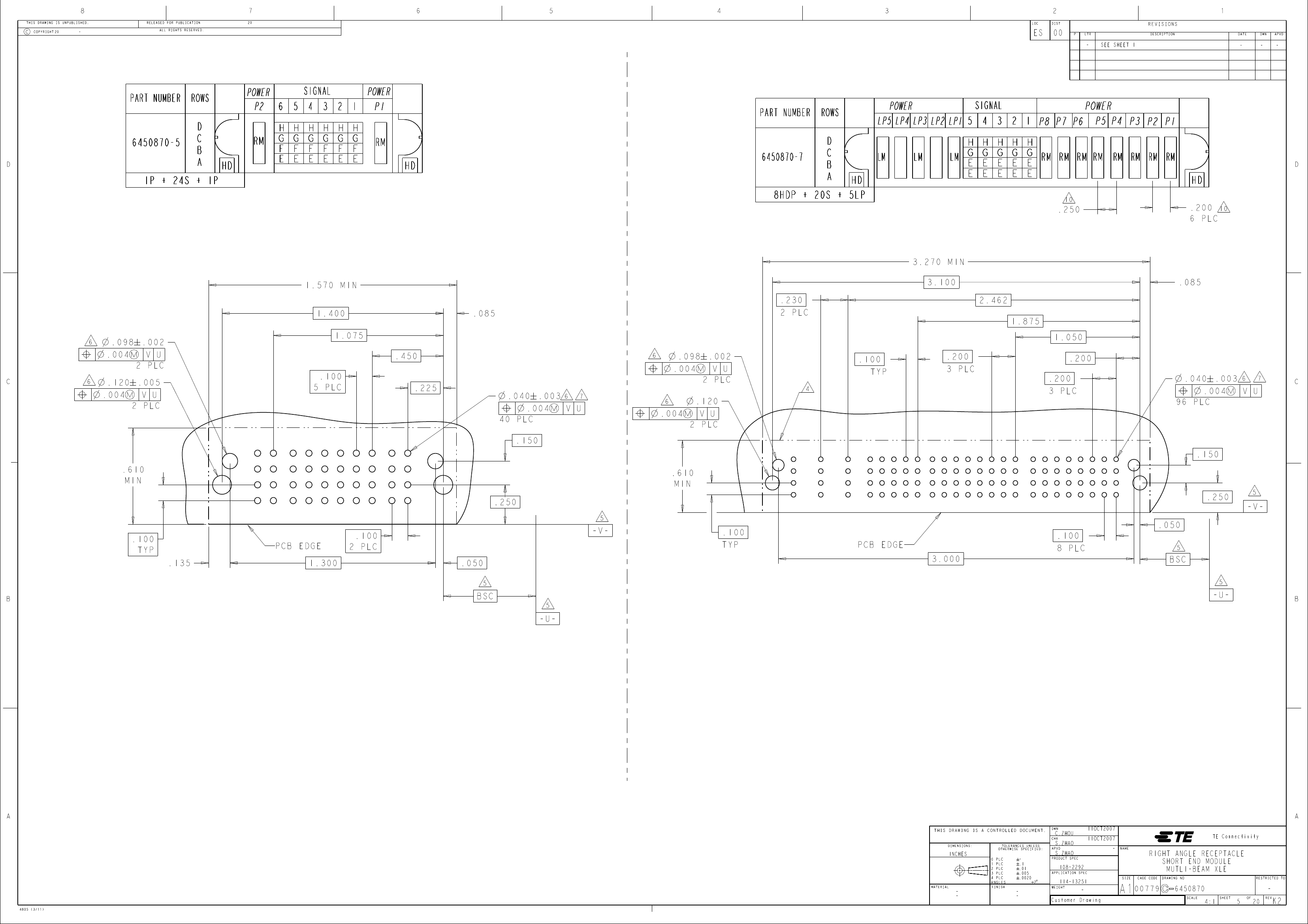

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

DIM L # .010

DIM V

.070 REF

2 PLC

ADD NEW DASH NUMBER 3-4

12JAN2014

"AMP", PART NUMBER, AND DATECODE TO BE MARKED IN AREA SHOWN.

PARTS UNDER 2.00 LONG MAY BE MARKED ON BOTH SIDES.

MATERIAL: HOUSING - GLASS FILLED HIGH TEMP THERMO PLASTIC,BLACK, UL94 V-0

SIGNAL CONTACT - COPPER ALLOY

POWER CONTACT - HIGH CONDUCTIVITY COPPER ALLOY}

PLATING :NOBLE METAL PLATING AT CONTACT FUNCTIONAL AREA OF

POWER CONTACT AND SIGNAL CONTACT

MECHANICAL CONNECTOR KEEP OUT ZONE.

DATUM AND BASIC DIMENSIONS ESTABLISHED BY CUSTOMER.

PCB - HOLE DIAMETERS ARE FINISHED HOLE SIZE.

PCB - .0453 # .0010 DRILLED HOLES PLATED WITH .0003 MIN Sn

OVER .001 TO .003 Cu PLATING TO ACHIEVE A .040 DIA HOLE.

FOR P/S/P CONFIGURATION, THE DIMENSION PLEASE SEE SHEET 2

VARIABLE DIMENSION PLEASE SEE TABLE OR PART VIEW

FOR LP/S/P CONFIGURATION, THE DIMENSION PLEASE SEE SHEET 2

.225

2 PLC

DIM R

DIM W

.115

DIM S

TYP

DIM K

.175

REF

.100

TYP

.820

.279

.470

.220

2 PLC

.448

.059

.155

2 PLC

.335

TAIL LENGTH

TYP

# .015

SECTION

Z-Z

DIM U

.120

2 PLC

.075

2 PLC

DIM D

.120

REF

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

C.ZHOU

S.ZHAO

11OCT2007

NAME

TE Connectivity

INCHES

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

.01

.005

.0020

PRODUCT SPEC

APPLICATION SPEC

108-2292

2 $

WEIGHT

114-13251

Customer Drawing

00779

SIZE

CAGE CODE

RIGHT ANGLE RECEPTACLE

SHORT END MODULE

MUTLI-BEAM XLE

DRAWING NO

RESTRICTED TO

6450870

SCALE

4805 (3/11)

4:1

SHEET

REV
