2SD2217

Description
Power Bipolar Transistor, 0.3A I(C), 300V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin
CategoryDiscrete semiconductor    The transistor
File Size97KB,4 Pages
ManufacturerNEC Electronics
Download Datasheet Parametric View All

2SD2217 Overview

Power Bipolar Transistor, 0.3A I(C), 300V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin

2SD2217 Parametric

Parameter NameAttribute value
MakerNEC Electronics
package instructionFLANGE MOUNT, R-PSFM-T3
Reach Compliance Codeunknown
ECCN codeEAR99
Maximum collector current (IC)0.3 A
Collector-emitter maximum voltage300 V
ConfigurationDARLINGTON WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)1500
JESD-30 codeR-PSFM-T3
JESD-609 codee0
Number of components1
Number of terminals3
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Polarity/channel typeNPN
Certification statusNot Qualified
surface mountNO
Terminal surfaceTIN LEAD
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
transistor applicationsSWITCHING
Transistor component materialsSILICON
Nominal transition frequency (fT)45 MHz
Base Number Matches1
DATA SHEET
DARLINGTON POWER TRANSISTOR
2SD2217
NPN SILICON EPITAXIAL TRANSISTOR (DARLINGTON CONNECTION)
FOR LOW-FREQUENCY POWER AMPLIFIERS AND LOW-SPEED SWITCHING
The 2SD2217 is a mold power transistor developed for low-
frequency power amplifiers and low-speed switching.
pulse motor drivers and relay drivers in OA and FA equipment.
This
transistor is ideal for direct driving from the IC out to drivers such as
PACKAGE DRAWING (UNIT: mm)
QUALITY GRADES
• Standard
Please refer to “Quality Grades on NEC Semiconductor Devices”
(Document No. C11531E) published by NEC Corporation to know
the specification of quality grade on the devices and its
recommended applications.

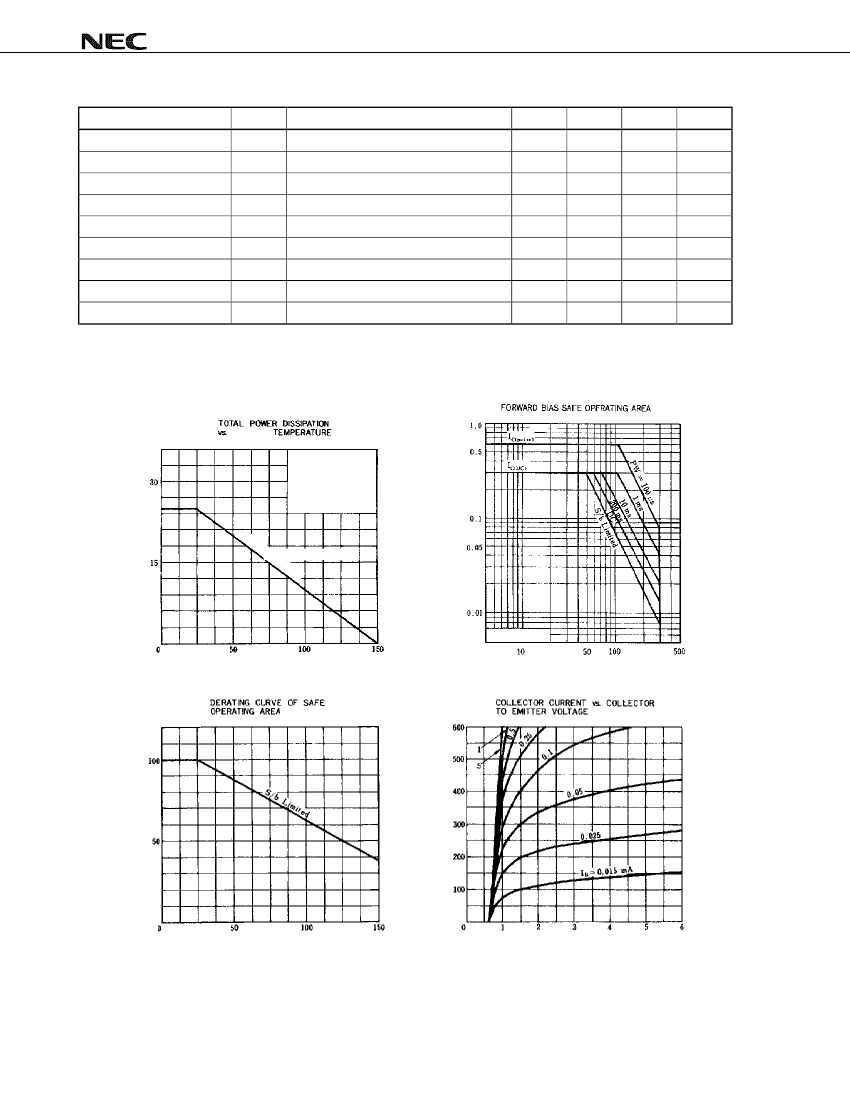

ABSOLUTE MAXIMUM RATINGS (Ta = 25°C)
°
Parameter
Collector to base voltage
Collector to emitter voltage
Emitter to base voltage
Collector current
Collector current
Base current
Total power dissipation
Total power dissipation
Junction temperature
Storage temperature
Symbol
V
CBO
V
CEO
V
EBO
I
C(DC)
I
C(pulse)
*
I
B(DC)
P
T
(Tc = 25°C)
P
T
(Ta = 25°C)
T
j
T
stg
Ratings
300
300
7
300
600
30
25
2.0
150
−55
to +150
Unit
V
V
V
mA
Electrode Connection
mA
mA
W
W
°C
°C
1. Base (B)
2. Collector (C)
3. Emitter (E)
* PW
10 ms, duty cycle
50%
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for
availability and additional information.
Document No. D16140EJ1V0DS00 (1st edition)
Date Published April 2002 N CP(K)
Printed in Japan
©
2002
1998
