5433-2-24-1: DescriptionBoard Connector, 24 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Locking; CategoryThe connector The connector; File Size198KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric Compare View All

5433-2-24-1 Overview

Board Connector, 24 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Locking

5433-2-24-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.197 inch
subject depth	0.142 inch
body length	1.28 inch
Connector type	BOARD CONNECTOR
Contact point gender	MALE
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	IDC
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	5433
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	24
Base Number Matches	1

Preview

Download Datasheet

View All

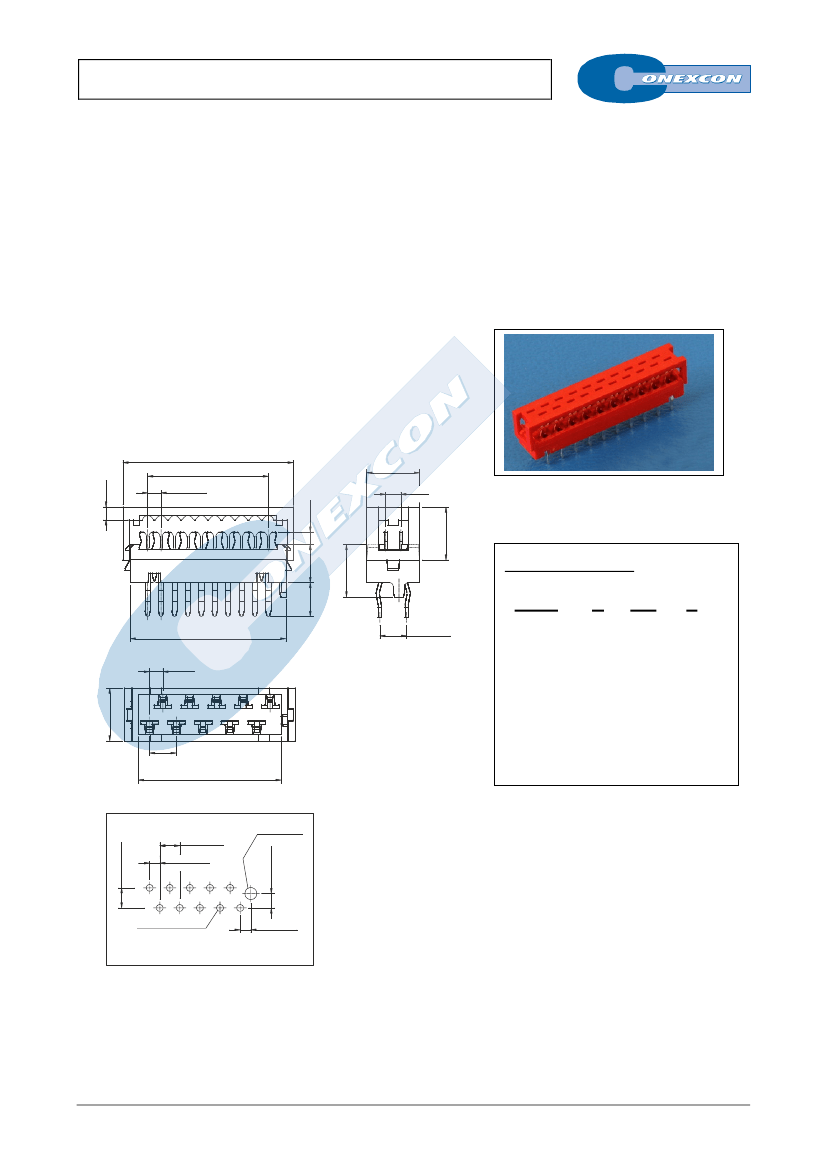

FLAT CABLE IDC DIP PLUG

5433 SERIES.

2.54 x 2.54 mm. (0.100 x 0.100”) pitch.

General Features

Electrical Features



Available in 4 through 26 circuits

Alows to solder the flat cable to the PCB

Use flat cable 1.27 mm. pitch 9127 series



Voltage rating: < 250V

Current rating: < 1.50 A

Dielectric withstanding Voltage: 500 V AC/minute

Contact resistance: < 10 mΩ

Insulation resistance: >1000 MΩ

Materials



Insulator: glass filled polyester UL 94V-0

Terminal: Phosphor bronze

Operating temperature. -25ºC to +85ºC

RoHS compliant

Dimension Information

D± 0.30

A± 0.10

1.20

.047

1.27 ± 0.05

.050 ± .002

1.20

.047

5.0

.197

1.50

.059

3.60

.142

5.0

.197

4.95

.195

Ordering Information:

5433 -

2.54 ± 0.3

.100 ± .012

T-

2

XX-

3

1

4

3.2

.126

B± 0.30

1

1.27

.050

1. Connector Series

2. (T) Contact Plating



2.54

.100

C± 0.20

5.0

.197

T =

2.

Tin plated

3. (XX) Number of circuits



Available in 4 through 26 circuits

2.54 ± 0.05

.100 ± .002

1.80 ± 0.05

.071 ± .002

2.54 ± 0.05

.100 ± .002

1.27 ± 0.05

.050 ± .002

Ø1.5 ± 0.10

.059 ± .004

Dimensions:

A

= 1.27 x (XX-1)

B

= 1.27 x (XX)+2.03

C

= 1.27 x (XX)+0.83

D

= 1.27 x (XX)+3.43

(XX) = Number of circuits

Ø0.85 ± 0.10

.033 ± .004

1.40 ± 0.05

.055 ± .002

RECOMMENDED HOLE PATTERN

A-XX

FULL LINE CATALOGUE
