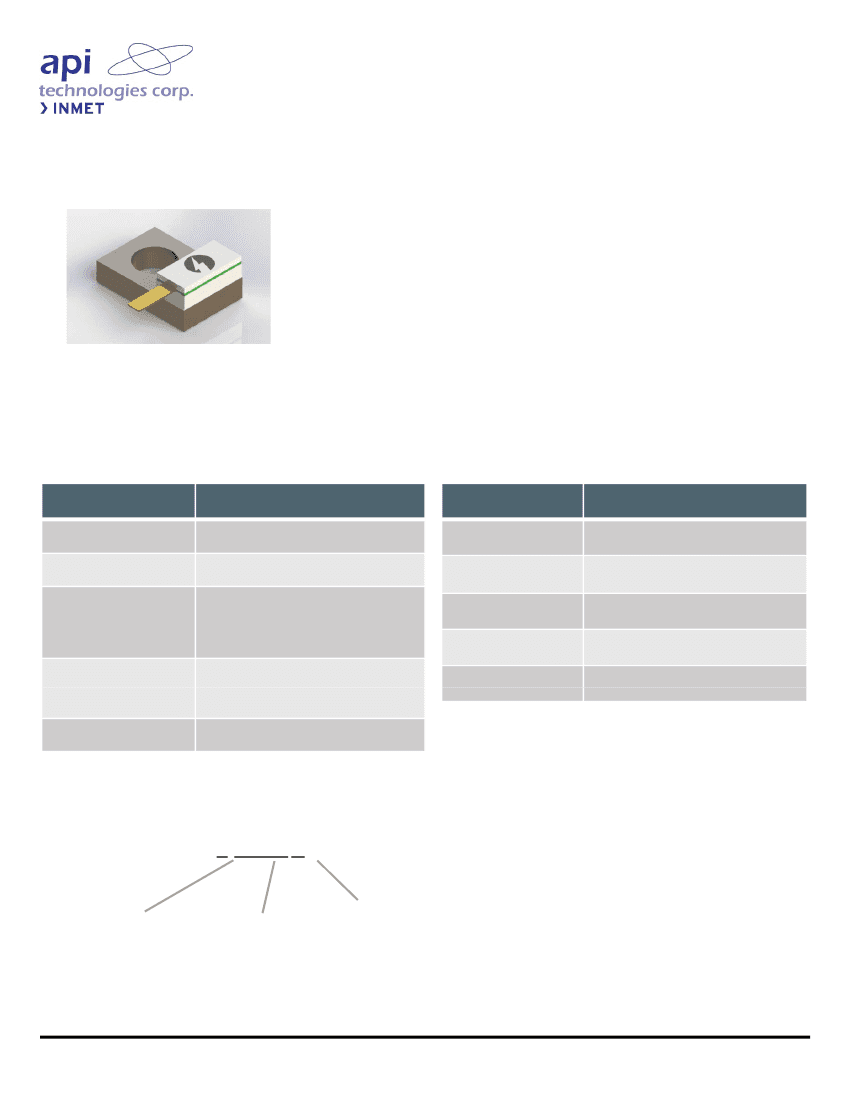

Model KAT300-25

Termination,

Termination Flanged

Frequency Range: DC to 3.0 GHz, Power: 25 Watts

Features

•

Integrated Heat sink

•

Thick Film Resistor

h k l

•

Tabbed Contacts

•

Low VSWR

KAT300-25 series Terminations are designed to dissipate up to 25 watts of RF power. These flange resistives are

integrated on .300” x .200” heat sink and are used in Isolators, Attenuators and Power Dividers. Standard models of

KAT300 25

KAT300-25 have resistance values of 50 ohms with 5% tolerance but other designs are available upon request.

tolerance,

request

Technical Specifications

Parameter

Frequency Range

Impedance

Power Handling*

Material

Feature

Substrate

Resistor Material

Cover

Flange

Value

DC to 3.0 GHz

50 ±5% Standard

25 Watts Avg.

Derated Linearly to 0 Watts @

+150°C

DC - 2 GHz _______ 1.20:1 Max.

2 - 3 GHz ________ 1 35:1 Max

1.35:1 Max.

-55°C to +150°C

Material

Aluminum Nitride

Proprietary Thick Film

Alumina Ceramic

Nickel Plated Copper

Gold Plated Beryllium Copper

VSWR

Tab

Temperature Range

*Mounting surfaces shall not exceed 100°C. Max

.

How to Order

KAT300-25L-XXXX Y

Tolerance

G =

±2%

J =

±5%

Ordering Examples

Model Number: KAT300-25-50R0J

Right tab placement; 50 Ohms; 5%

Model Number: KAT300-25L-1000G

Left tab placement; 100 Ohms; 2%

Tab Placement

□

= Right

L = Left

Ohm Value

50R0 = 50 Ohms

1000 = 100 Ohms

Revision:

A

Page # 1

+1 734‐426‐5553 | inmet‐sales@apitech.com
