5-0518-10TL: DescriptionIC Socket, SIP5, 5 Contact(s),; CategoryThe connector socket; File Size270KB，1 Pages; ManufacturerAries Electronics

Download Datasheet Parametric Compare View All

5-0518-10TL Overview

IC Socket, SIP5, 5 Contact(s),

5-0518-10TL Parametric

Parameter Name	Attribute value
Maker	Aries Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: UL 94V-0
Contact to complete cooperation	GOLD (10) OVER NICKEL
Contact completed and terminated	TIN LEAD (200) OVER NICKEL
Device slot type	IC SOCKET
Type of equipment used	SIP5
Shell material	NYLON46
JESD-609 code	e0
Number of contacts	5
Base Number Matches	1

Preview

Download Datasheet

View All

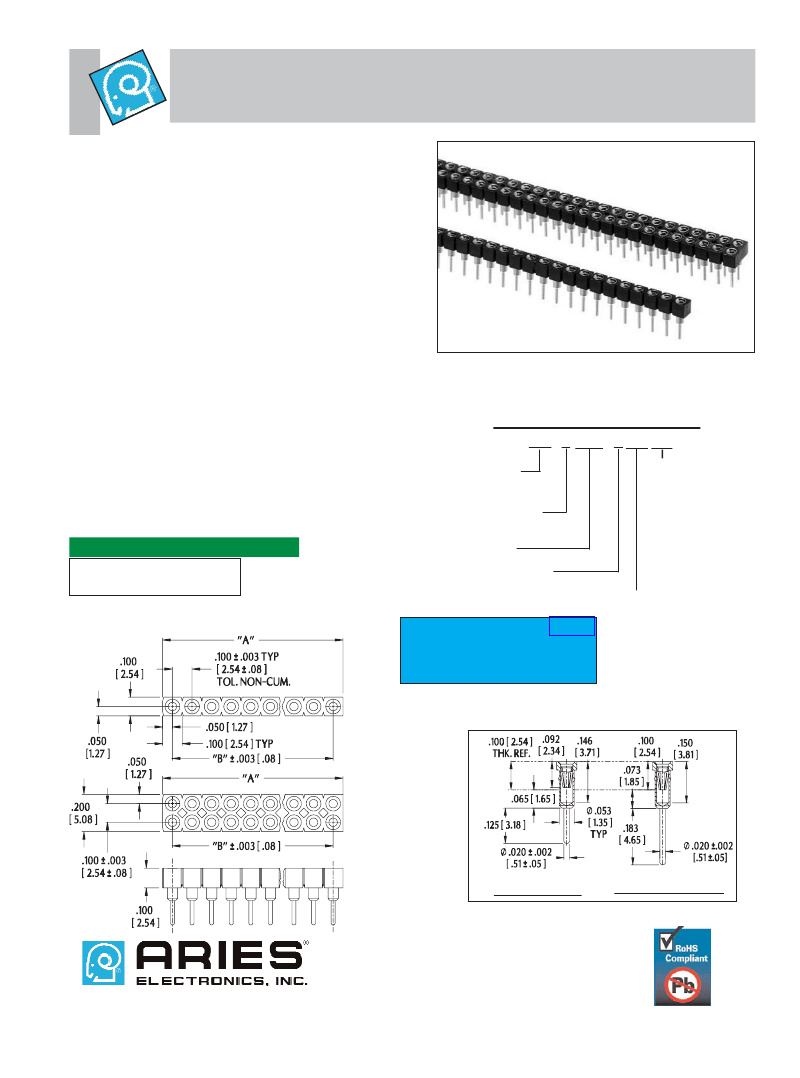

Series X518 Single and Dual Row

Collet Sockets with Solder Tail Pins

FEATURES:

• Aries collet sockets are available in single or dual rows.

• Cuttable to the number of pins desired to fit the application.

• Side-to-side and end-to-end stackable.

SPECIFICATIONS:

• Body material is black UL 94V-0 Glass-filled 4/6 Nylon.

• Pin body is Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-00.

• Pin body plating is either 10

[.25μm] min. Gold per MIL-G-45204 or

200μ [5.08μm] min. 93/7 Tin/Lead per ASTM B545 or 200μ [5.08μm]

min. Tin per ASTM B545 Type 1 over 100μ [2.54μm] min. Nickel per

SAE-AMS-QQ-N-290.

• 4-fingered collet contact is Beryllium Copper Alloy per UNS C17200

ASTM-B194-01.

• Contact plating is either 200

[5.08μm] min. 93/7 Tin/Lead per ASTM

B545 or 200μ [5.08μm] min Tin per ASTM B545 Type 1 or 10μ [.25μm]

Gold per MIL-G-45204 over 50

min. [1.27μm] Nickel per SAE-AMS-

Note: Aries specializes in custom design and production. In addition to

QQ-N-290. Heavy 30μ [.76μm] Gold Plating also available.

the standard products shown on this page, special materials, platings,

• Contact current rating=3 Amps.

sizes, and configurations can be furnished, depending on quantities.

• Insertion Force=180 grams/pin; Withdrawal Force=90 grams/pin; Normal

Aries reserves the right to change product specifications without notice.

Force=140 grams/pin; based on a .018 [.46] dia. test lead.

ORDERING INFORMATION

• Operating temperature=221°F [105°C] Tin & Tin/Lead plating

=257°F [125°C] Gold plating.

XX-X518-1XXXX

• Insertion Force=180 grams/pin; Withdrawal Force=90 grams/pin; Normal

Optional suffix:

No. of pins:

Force=140 grams/pin; based on a .018 [.46] dia. test lead.

H=Heavy Gold

Single row: 1-40 pins

• Accepts leads .015-.025 [.38-.64] in diameter.

plating on collet

Dual row: 2-40 pins

• Accepts lead lengths from .100 [2.54] min.

T=Tin collet/ Tin

MOUNTING CONSIDERATIONS:

0=Single row

shell

•Suggested PCB hole size=.030 ± .002 [.76 ± .05] dia.

1=Dual row

LL DIMENSIONS

INCHES

[

MILLIMETERS

]

All tolerances ± .005 [.13]

unless otherwise specified

“A”=(NO. OF PINS PER ROW) X .100 [2.54]

“B”=(NO. OF PINS PER ROW - 1) X .100 [2.54]

Series

Solder tail pin

TL=Tin/Lead collet/

Tin/Lead shell

E=Extra long solder

tail pin

Consult Data Sheet No. 12021

for Series X518 Collet Sockets

with wire wrap pins.

Plating:

0=Gold collet/Tin shell

0TL=Gold collet/

Tin/Lead Shell

1=Gold collet/Gold shell

SOLDER TAIL

EXTRA LONG “E”

12020

http://www.arieselec.com • info@arieselec.com

REV. G

PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED

Bristol, PA USA

TEL: (215) 781-9956

FAX: (215) 781-9845

abc

5-0518-10TL Related Products

	5-0518-10TL	5-0518-10	5-0518-11	8-0518-11	8-1518-11	8-0518-10	8-0518-10TL	9-0518-10	9-0518-10TL
Description	IC Socket, SIP5, 5 Contact(s),	IC Socket, SIP5, 5 Contact(s), ROHS COMPLIANT	IC Socket, SIP5, 5 Contact(s), ROHS COMPLIANT	IC Socket, SIP9, 8 Contact(s), ROHS COMPLIANT	IC Socket, SIP9, 8 Contact(s), ROHS COMPLIANT	IC Socket, SIP9, 8 Contact(s), ROHS COMPLIANT	IC Socket, SIP9, 8 Contact(s)	IC Socket, SIP9, 9 Contact(s), ROHS COMPLIANT	IC Socket, SIP9, 9 Contact(s),
Maker	Aries Electronics	Aries Electronics	Aries Electronics	Aries Electronics	Aries Electronics	Aries Electronics	Aries Electronics	Aries Electronics	Aries Electronics
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0
Contact to complete cooperation	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL
Contact completed and terminated	TIN LEAD (200) OVER NICKEL	Tin (Sn) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	TIN (200) OVER NICKEL (50)	TIN LEAD (200) OVER NICKEL	Tin (Sn) - with Nickel (Ni) barrier	TIN LEAD (200) OVER NICKEL
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	SIP5	SIP5	SIP5	SIP9	SIP9	SIP9	SIP9	SIP9	SIP9
Shell material	NYLON46	NYLON46	NYLON46	NYLON46	NYLON46	NYLON46	NYLON46	NYLON46	NYLON46
JESD-609 code	e0	e3	e4	e4	e4	e3	e0	e3	e0
Number of contacts	5	5	5	8	8	8	8	9	9
Base Number Matches	1	1	1	1	1	1	1	1	1
Is it lead-free?	-	Lead free	Lead free	Lead free	Lead free	Lead free	-	Lead free	-
Is it Rohs certified?	-	conform to	conform to	conform to	conform to	conform to	-	conform to	-
package instruction	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-	ROHS COMPLIANT	-
Contact material	-	BRASS	BRASS	BRASS	BRASS	BRASS	-	BRASS	-
