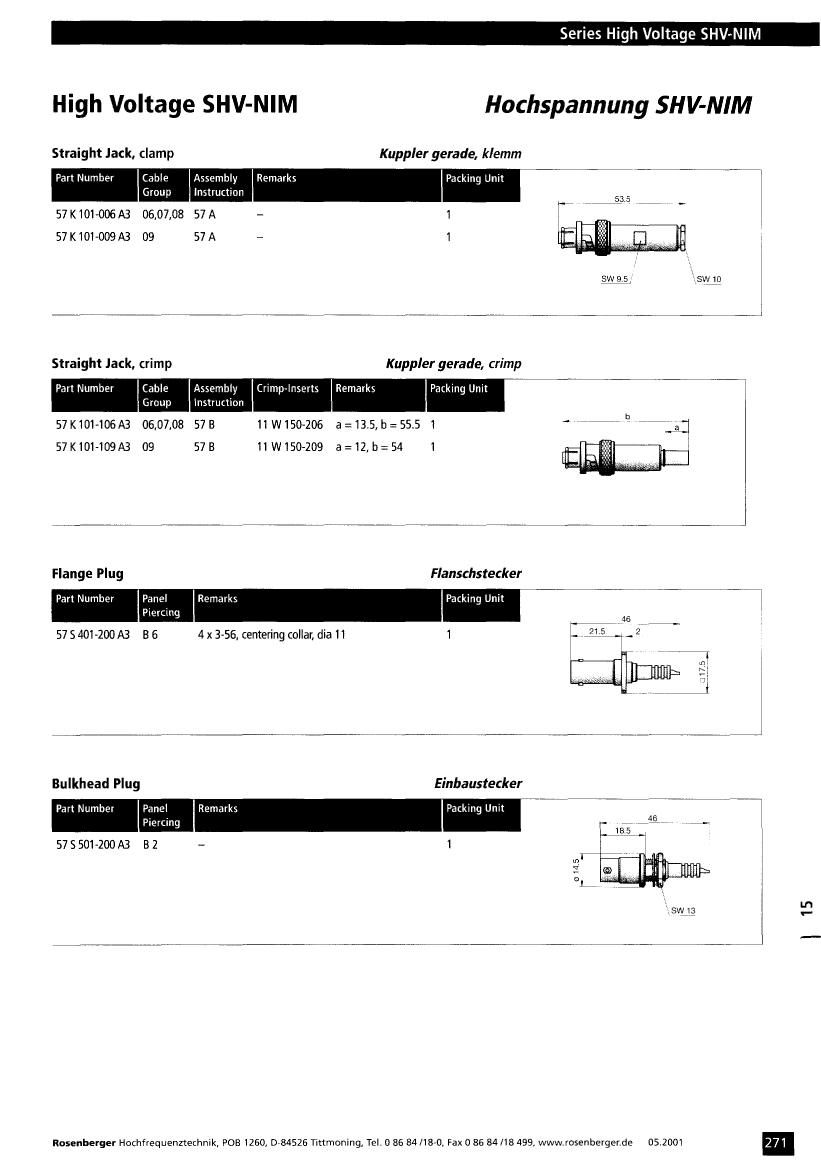

RF SHV Connector, Male, Panel Mount, Solder Terminal, Plug,
| Parameter Name | Attribute value |
| Maker | Rosenberger |
| Reach Compliance Code | compliant |
| Other features | STANDARD: IEC 498, VSWR AT 2 GHZ: 1.2 |
| Body/casing type | PLUG |
| Characteristic impedance | 50 Ω |
| Connector type | RF SHV CONNECTOR |
| Contact to complete cooperation | GOLD |
| Contact completed and terminated | GOLD |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| Coupling type | BAYONET |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | YES |
| insulator material | POLYTETRAFLUORO ETHYLENE |
| JESD-609 code | e4 |
| MIL compliance | NO |
| Manufacturer's serial number | SHV-NIM |
| Installation method | STRAIGHT |
| Maximum operating frequency | 4 GHz |
| Options | GENERAL PURPOSE |
| Panel mounting | YES |
| Termination type | SOLDER |
| voltage standing wave ratio | 1.4 |
| Base Number Matches | 1 |
| 57S401-200A3 | 57K101-006A3 | 57K101-009A3 | 57S501-200A3 | 57K101-106A3 | 57K101-109A3 | |
|---|---|---|---|---|---|---|
| Description | RF SHV Connector, Male, Panel Mount, Solder Terminal, Plug, | RF SHV Connector, Female, Cable Mount, Clamp Terminal, Jack, | RF SHV Connector, Female, Cable Mount, Clamp Terminal, Jack, | RF SHV Connector, Male, Panel Mount, Solder Terminal, Plug, | RF SHV Connector, Male, Cable Mount, Crimp Terminal, Jack, | RF SHV Connector, Male, Cable Mount, Crimp Terminal, Jack, |
| Maker | Rosenberger | Rosenberger | Rosenberger | Rosenberger | Rosenberger | Rosenberger |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant |
| Other features | STANDARD: IEC 498, VSWR AT 2 GHZ: 1.2 | STANDARD: IEC 498, APPLICABLE CABLES: RG 58; RG 141; RG 142; RG 223, VSWR AT 2 GHZ: 1.2 | STANDARD: IEC 498, VSWR AT 2 GHZ: 1.2 | STANDARD: IEC 498, VSWR AT 2 GHZ: 1.2 | STANDARD: IEC 498, APPLICABLE CABLES: RG 58; RG 141; RG 142; RG 223, VSWR AT 2 GHZ: 1.2 | STANDARD: IEC 498, VSWR AT 2 GHZ: 1.2 |
| Body/casing type | PLUG | JACK | JACK | PLUG | JACK | JACK |
| Characteristic impedance | 50 Ω | 50 Ω | 50 Ω | 50 Ω | 50 Ω | 50 Ω |
| Connector type | RF SHV CONNECTOR | RF SHV CONNECTOR | RF SHV CONNECTOR | RF SHV CONNECTOR | RF SHV CONNECTOR | RF SHV CONNECTOR |
| Contact to complete cooperation | GOLD | GOLD | GOLD | GOLD | NOT SPECIFIED | NOT SPECIFIED |
| Contact point gender | MALE | FEMALE | FEMALE | MALE | MALE | MALE |
| Contact material | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Coupling type | BAYONET | BAYONET | BAYONET | BAYONET | BAYONET | BAYONET |
| DIN compliance | NO | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO | NO |
| IEC compliance | YES | YES | YES | YES | YES | YES |
| insulator material | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE |
| MIL compliance | NO | NO | NO | NO | NO | NO |
| Manufacturer's serial number | SHV-NIM | SHV-NIM | SHV-NIM | SHV-NIM | SHV-NIM | SHV-NIM |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Maximum operating frequency | 4 GHz | 4 GHz | 4 GHz | 4 GHz | 4 GHz | 4 GHz |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Panel mounting | YES | NO | NO | YES | NO | NO |
| Termination type | SOLDER | CLAMP | CLAMP | SOLDER | CRIMP | CRIMP |
| voltage standing wave ratio | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 |
| Contact completed and terminated | GOLD | GOLD | GOLD | GOLD | - | - |
| JESD-609 code | e4 | e4 | e4 | e4 | - | - |
| Base Number Matches | 1 | 1 | 1 | 1 | - | - |
| Installation type | - | CABLE | CABLE | - | CABLE | CABLE |
