550T005NF3R1B0G03

Description
Connector Accessory, Backshell,
CategoryThe connector    Connector bracket
File Size217KB,2 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet Parametric View All

550T005NF3R1B0G03 Online Shopping

Suppliers Part Number Price MOQ In stock
550T005NF3R1B0G03 - - View Buy Now

550T005NF3R1B0G03 Overview

Connector Accessory, Backshell,

550T005NF3R1B0G03 Parametric

Parameter NameAttribute value
MakerGlenair
Reach Compliance Codenot_compliant
Factory Lead Time8 weeks
Other featuresCABLE ENTRY TOP STYLE, SHIELDED
Assembly nameBACKSHELL
Connector bracket typeCONNECTOR ACCESSORY
DIN complianceNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial number550T005NF3R1B0G03
Installation option 1LOCKING
Installation option 2FILLISTER HEAD
Base Number Matches1

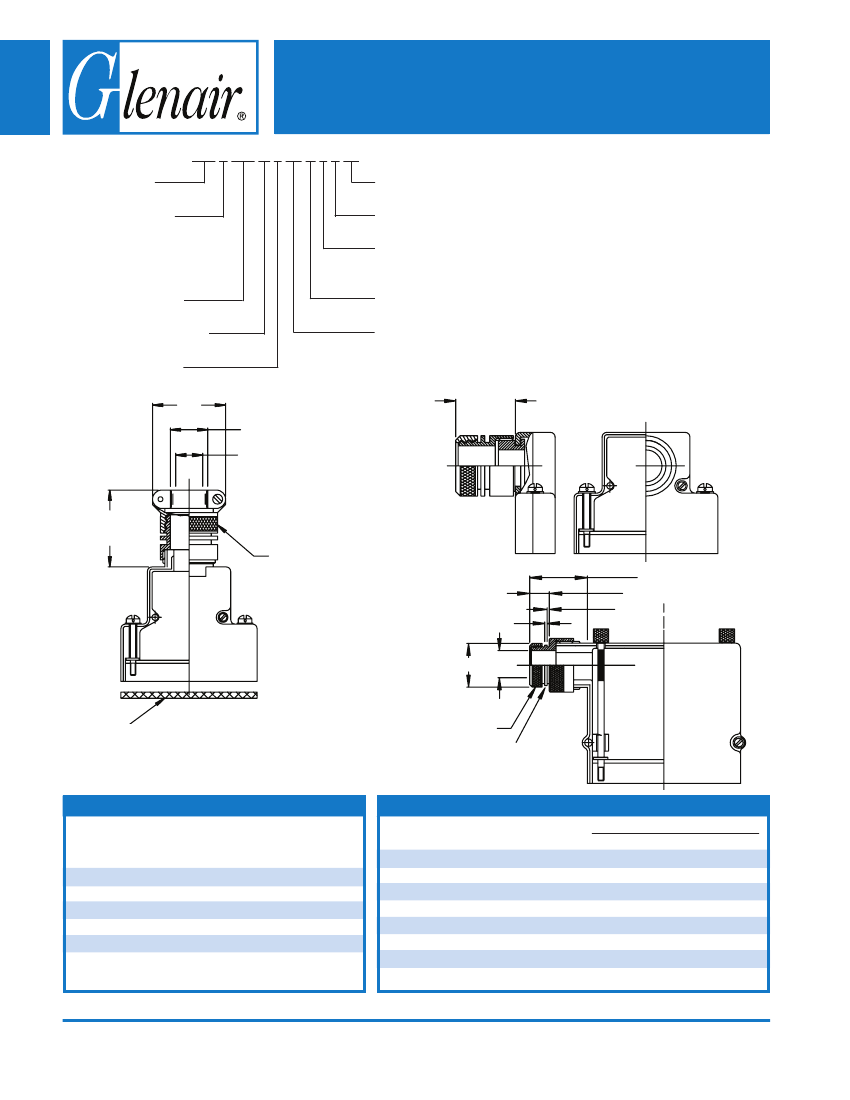

550-005
EMI/RFI D-Subminiature Split Backshell
Lamp-Thread Type Shield Termination
With Shrink Boot Groove
550 T 005 M 2 F0 B 1 F 02
Basic Part No.
Cable Entry Style
T = Top
S = Side
E = End
Basic Part Number
Finish Symbol (Page 3)
Shell Size (Table I)
H
Cable Range
Shell I.D.
MIL-DTL-24308
D-Subminiature
Cable Entry Dash No. (Table II)
E = Strain Relief, G = Gland Nut
0 = Without EMI Gasket,
1 = With EMI Gasket
Jackscrew Type (Page A-4)
Receptacle Mounting (Right Page)
CC = Cable-to-Cable Mounting
F0 = Front Mounting
R1-R9 = Rear Mounting
1.060
(26.9)
Max
1. Metric dimensions
(mm) are indicated in
parentheses.
2.
DO NOT USE
CONNECTORS
WITH FLOAT
MOUNTINGS.
3. Overall shield thick-
ness range:
Max to .031 (0.8)
1.280 (32.5)
Max
Style E
Strain Relief
S
SIDE
ENTR
Y
1.060 (26.9) Max
.573 (14.6)
.140/.130 (3.6/3.3)
T
TOP
ENTR
Y
.079 (2.01)
J
Shell
I.D.
EMI Gasket (Optional)
Style G Gland Nut
Accomodates MS3109-MS3117,
M85049/68 Lipped Type Shrink Boots
E
END
ENTR
Y
Com’l
Entry Style Entry Style
Shell Shell Size
T (Ref)
E
Size
Ref
Shell I.D.
Shell I.D.
1
E/09
.250 (6.4) .375 (9.5)
2
A/15
.375 (9.5) .375 (9.5)
3
B/25
.475 (12.1) .475 (12.1)
4
C/37
.475 (12.1) .475 (12.1)
5
D/50
.575 (14.6) .575 (14.6)
6*
F/104 1.000 (25.4)
n/a
* Shell Size 6 Available in Top Entry Only.
© 2011 Glenair, Inc.
TABLE I: SHELL SIZE & ENTRY
Dash
No.
02
03
04
05
06
07*
08*
TABLE II: BACKSHELL DIMENSIONS & CABLE
H
J
Cable Range
Max
Max
Min
Max
.968 (24.6) .515 (13.1) .125 (3.2) .250 (6.4)
1.046 (26.6) .640 (16.3) .250 (6.4) .375 (9.5)
1.156 (29.4) .765 (19.4) .312 (7.9) .500 (12.7)
1.218 (30.9) .920 (23.4) .437 (11.1) .625 (15.9)
1.343 (34.1) 1.015 (25.8) .562 (14.3) .750 (19.1)
1.468 (37.3) 1.140 (29.0) .687 (17.4) .875 (22.2)
1.593 (40.5) 1.265 (32.1) .812 (20.6) 1.000 (25.4)
* Available in Shell Size 6 Only
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-18
