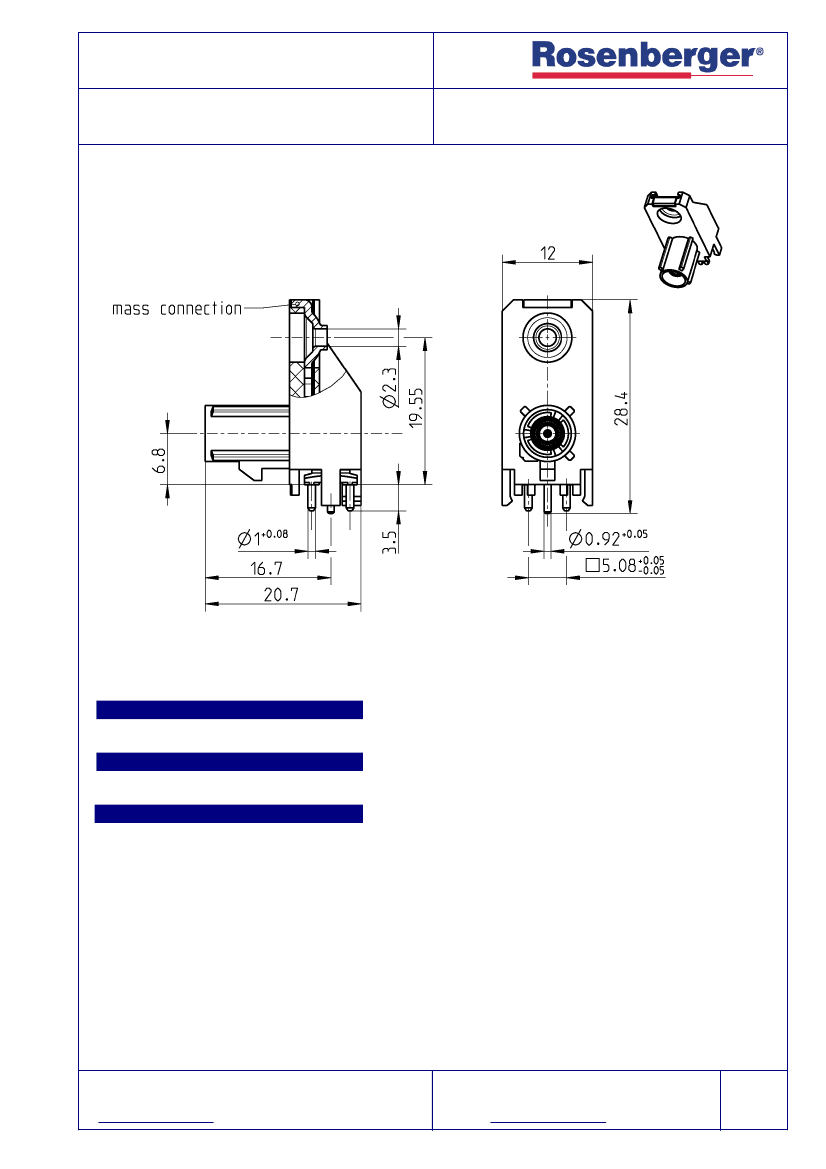

TECHNICAL DATA SHEET
FAKRA - HF
BULKHEAD PLUG
59S22N-400A4-Y
All dimensions are in mm; tolerances according to ISO 2768 m-H
Y = Part number has to be accomplished by codification
Interface
According to
DIN 72594-1
Documents
Panel piercing
MB_133
Material and plating
Connector parts
Center contact
Outer contact
Body
Contact sheet
Dielectric
Housing
Material
Brass
Brass
Brass
Brass
PTFE
PA 6.6T
Plating
Gold, min. 0.8 m, over chemical nickel
Nickel, 2.5-5 m
Gold, min. 0.15 m, over chemical nickel
Tin, 2-4 m
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/3
TECHNICAL DATA SHEET
FAKRA - HF
Electrical data
Impedance
Frequency
Return loss
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Power current
50
DC to 6 GHz
≥
26 dB, DC to 1 GHz
≤
0.1 x
f(GHz)
dB
≥
1x10
3
MΩ
≤
5 mΩ
≤
5 mΩ
750 V rms
335 V rms
≤
1 A DC
BULKHEAD PLUG
59S22N-400A4-Y
- Connector only, VSWR in application depends decisive on PCB layout -
Mechanical data
Mating cycles
Engagement force
Disengagement force
Coding efficiency
≥
25
≤
25 N
≥
2N
≥
40 N
Environmental data
Temperature range
Thermal shock
Temperature and humidity
Vibration and mechanical shock
Dry heat
-40°C to +105°C
DIN 72594-2 clause
DIN 72594-2 clause
DIN 72594-2 clause
DIN 72594-2 clause
6.2
6.3
6.1
6.4
Tooling
N/A
Packing
Standard
Weight
50 pcs in blister
6.86 g/pce
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/3
TECHNICAL DATA SHEET
FAKRA - HF
Coding
Part Number has to be accomplished by codification
Coding
A
B
C
D
E
F
G
H
I
K
Z
Color
black
white
blue
bordeauxviolet
green
brown
grey
violet
beige
curry
waterblue
RAL
sim. 9005
sim. 9001
sim. 5005
sim. 4004
sim. 6002
sim. 8011
sim. 7031
sim. 4003
sim. 1001
sim. 1027
sim. 5021
Part-Number
59S22N-400A4_A
59S22N-400A4_B
59S22N-400A4_C
59S22N-400A4_D
59S22N-400A4_E
59S22N-400A4_F
59S22N-400A4_G
59S22N-400A4_H
59S22N-400A4_I
59S22N-400A4_K
59S22N-400A4_Z
BULKHEAD PLUG
59S22N-400A4-Y
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Oberhöller, Denis
Date
11/04/05
Approved
Lankes, Wolfgang
Date
11/04/05
Rev.
e00
Engineering change number
05-0269
Name
Oberhöller, Denis
Date
23/05/05
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
3/3
