UNISONIC TECHNOLOGIES CO., LTD
8N60
7.5 Amps, 600/650 Volts
N-CHANNEL POWER MOSFET
DESCRIPTION
The UTC 8N60 is a high voltage and high current power
MOSFET, designed to have better characteristics, such as fast
switching time, low gate charge, low on-state resistance and have
a high rugged avalanche characteristics. This power MOSFET is
usually used at high speed switching applications in power
supplies, PWM motor controls, high efficient DC to DC converters
and bridge circuits.
Power MOSFET
FEATURES
* R
DS(ON)
= 1.2Ω @V
GS
= 10 V
* Ultra low gate charge ( typical 28 nC )
* Low reverse transfer capacitance ( C
RSS
= typical 12.0 pF )
* Fast switching capability
* Avalanche energy specified
* Improved dv/dt capability, high ruggedness
*Pb-free plating product number: 8N60L
SYMBOL
2.Drain
1.Gate
3.Source
ORDERING INFORMATION
Ordering Number
Normal
Lead Free Plating
8N60-x-TA3-T
8N60L-x-TA3-T
8N60-x-TF3-T
8N60L-x-TF3-T
Package
TO-220
TO-220F
Pin Assignment
1
2
3
G
D
S
G
D
S
Packing
Tube
Tube
www.unisonic.com.tw
Copyright © 2007 Unisonic Technologies Co., Ltd
1 of 8
QW-R502-115,B
8N60
ABSOLUTE MAXIMUM RATINGS
(T
C
= 25℃, unless otherwise specified)
PARAMETER
SYMBOL
Power MOSFET
RATINGS
UNIT
8N60-A
600
V
Drain-Source Voltage
V
DSS
8N60-B
650
V
Gate-Source Voltage
V
GSS
±30
V
Avalanche Current (Note 1)
I
AR
7.5
A
T
C
= 25°C
7.5
A
Continuous Drain Current
I
D
T
C
= 100°C
4.6
A
Pulsed Drain Current (Note 1)
I
DM
30
A
Single Pulsed (Note 2)
E
AS
230
mJ
Avalanche Energy
14.7
mJ
Repetitive (Note 1)
E
AR
Peak Diode Recovery dv/dt (Note 3)
dv/dt
4.5
V/ns
TO-220
147
W
Power Dissipation
P
D
TO-220F
48
W
Junction Temperature
T
J
+150
℃
Operating Temperature
T
OPR
-55 ~ +150
℃
Storage Temperature
T
STG
-55 ~ +150
℃
Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
THERMAL DATA
PARAMETER
Junction-to-Ambient
Junction-to-Case
TO-220
TO-220F
TO-220
TO-220F
SYMBOL
θ
JA
θ
JC
RATING
62.5
62.5
0.85
2.6
UNIT
°C/W
°C/W
°C/W
°C/W
ELECTRICAL CHARACTERISTICS
(T
C
=25℃, unless otherwise specified)
PARAMETER
OFF CHARACTERISTICS
Drain-Source Breakdown Voltage
Drain-Source Leakage Current
Gate-Source Leakage Current
Forward
Reverse
8N60-A
8N60-B
SYMBOL
BV
DSS
I
DSS
I
GSS
TEST CONDITIONS
V
GS
= 0 V, I
D
= 250 µA
V
DS
= 600 V, V
GS
= 0 V
V
GS
= 30 V, V
DS
= 0 V
V
GS
= -30 V, V
DS
= 0 V
0.7
2.0
1.0
4.0
1.2
MIN TYP MAX UNIT
600
650
10
100
-100
V
V
µA
nA
nA
V/℃
V
Ω
pF
pF
pF
ns
ns
ns
ns
nC
nC
nC
2 of 8
QW-R502-115,B
Breakdown Voltage Temperature
Coefficient
ON CHARACTERISTICS
Gate Threshold Voltage
Static Drain-Source On-State Resistance
DYNAMIC CHARACTERISTICS
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
SWITCHING CHARACTERISTICS
Turn-On Delay Time
Turn-On Rise Time
Turn-Off Delay Time
Turn-Off Fall Time
Total Gate Charge
Gate-Source Charge
Gate-Drain Charge
△
BV
DSS
/△T
J
I
D
= 250 µA, Referenced to 25°C
V
GS(TH)
R
DS(ON)
C
ISS
C
OSS
C
RSS
t
D(ON)
t
R
t
D(OFF)
t
F
Q
G
Q
GS
Q
GD
V
DS
= V
GS
, I
D
= 250 µA
V
GS
= 10 V, I
D
= 3.75 A
V
DS
= 25 V, V
GS
= 0 V, f = 1MHz
965 1255
105 135
12
16
16.5 45
60.5 130
81 170
64.5 140
28
36
4.5
12
V
DD
= 300V, I
D
= 7.5 A, R
G
= 25Ω
(Note 4, 5)
V
DS
= 480V,I
D
= 7.5A, V
GS
= 10 V
(Note 4, 5)
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
8N60
ELECTRICAL CHARACTERISTICS(Cont.)
PARAMETER
SYMBOL
TEST CONDITIONS
DRAIN-SOURCE DIODE CHARACTERISTICS AND MAXIMUM RATINGS
Drain-Source Diode Forward Voltage
V
SD
V
GS
= 0 V, I
S
= 7.5 A
Maximum Continuous Drain-Source Diode
I
S
Forward Current
Maximum Pulsed Drain-Source Diode
I
SM
Forward Current
Reverse Recovery Time
t
RR
V
GS
= 0 V, I
S
= 7.5 A,
dI
F
/dt = 100 A/µs (Note 4)
Reverse Recovery Charge
Q
RR
Notes: 1. Repetitive Rating : Pulse width limited by T
J
2. L = 7.3mH, I
AS
= 7.5A, V
DD
= 50V, R
G
= 25
Ω,
Starting T
J
= 25°C
3. I
SD
≤
7.5A, di/dt
≤200A/µs,
V
DD
≤
BV
DSS
, Starting T
J
= 25°C
4. Pulse Test: Pulse width
≤
300µs, Duty cycle
≤
2%
5. Essentially independent of operating temperature
Power MOSFET
MIN
TYP MAX UNIT
1.4
7.5
30
365
3.4
V
A
A
ns
µC
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
3 of 8
QW-R502-115,B
8N60
TEST CIRCUITS AND WAVEFORMS
Power MOSFET
D.U.T.
+
V
DS
-
+
-
L
R
G
Driver
V
GS
Same Type
as D.U.T.
* dv/dt controlled by R
G
* I
SD
controlled by pulse period
* D.U.T.-Device Under Test
V
DD
Fig. 1A Peak Diode Recovery dv/dt Test Circuit
V
GS
(Driver)
Period
P.W.
D=
P. W.
Period
V
GS
= 10V
I
FM
, Body Diode Forward Current
I
SD
(D.U.T.)
I
RM
Body Diode Reverse Current
di/dt
Body Diode Recovery dv/dt
V
DS
(D.U.T.)
V
DD
Body Diode
Forward Voltage Drop
Fig. 1B Peak Diode Recovery dv/dt Waveforms
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
4 of 8
QW-R502-115,B
8N60
TEST CIRCUITS AND WAVEFORMS (Cont.)
Power MOSFET

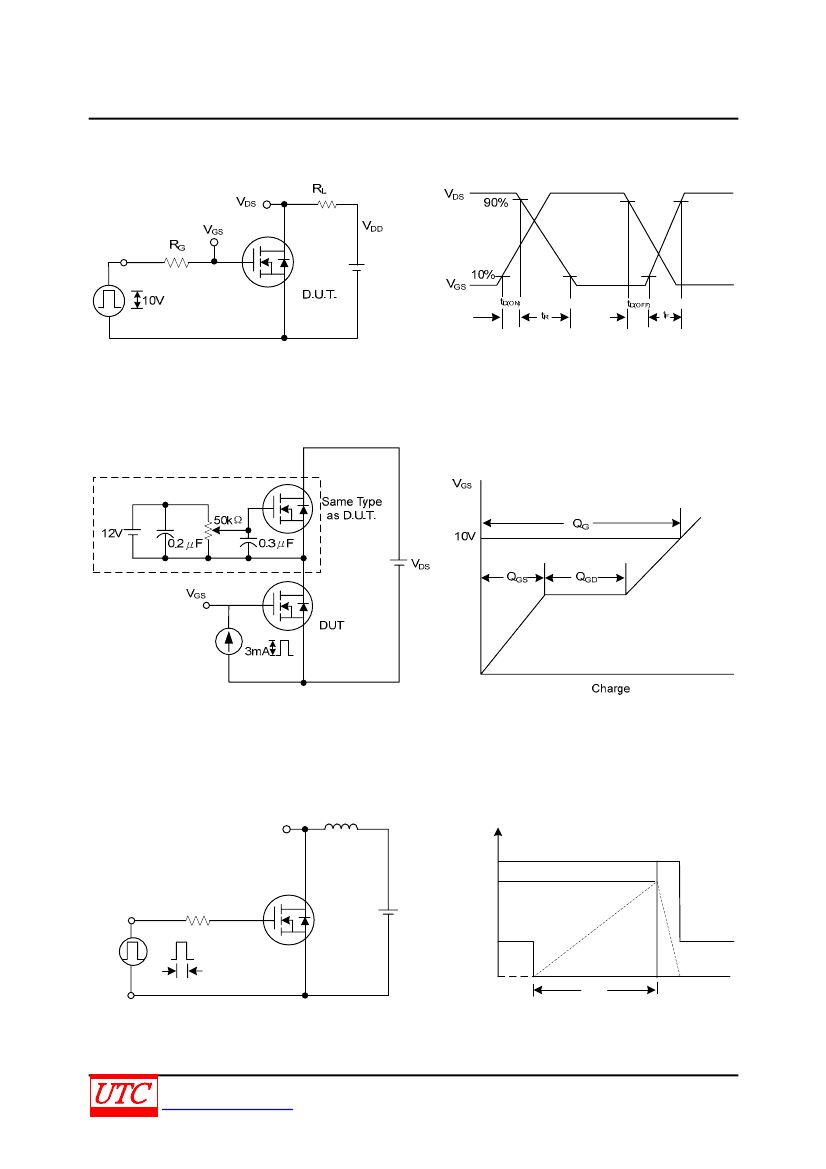

Fig. 2A Switching Test Circuit
Fig. 2B Switching Waveforms
Fig. 3A Gate Charge Test Circuit
Fig. 3B Gate Charge Waveform
L
V
DS
BV
DSS
I
AS
R
D
V
DD
D.U.T.
t
p
t
p
Time
V
DD
I
D(t)
V
DS(t)
10V
Fig. 4A Unclamped Inductive Switching Test Circuit
Fig. 4B Unclamped Inductive Switching Waveforms
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
5 of 8
QW-R502-115,B
