55K201-302H3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 55K201-302H3

55K201-302H3: DescriptionRF Connector, Female, Cable Mount, Crimp Terminal, Jack,; CategoryThe connector The connector; File Size141KB，2 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/; Environmental Compliance

Download Datasheet Parametric View All

55K201-302H3 Overview

RF Connector, Female, Cable Mount, Crimp Terminal, Jack,

55K201-302H3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Rosenberger
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	INSERTION LOSS MAX AT 0.5 GHZ, APPLICABLE CABLES: RG 316/U; RG 174A/U; RG 188A/U
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL
Contact completed and terminated	GOLD (50) OVER NICKEL
Contact point gender	FEMALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.07 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	2 GHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
voltage standing wave ratio	1.73
Base Number Matches	1

Preview

Download Datasheet

View All

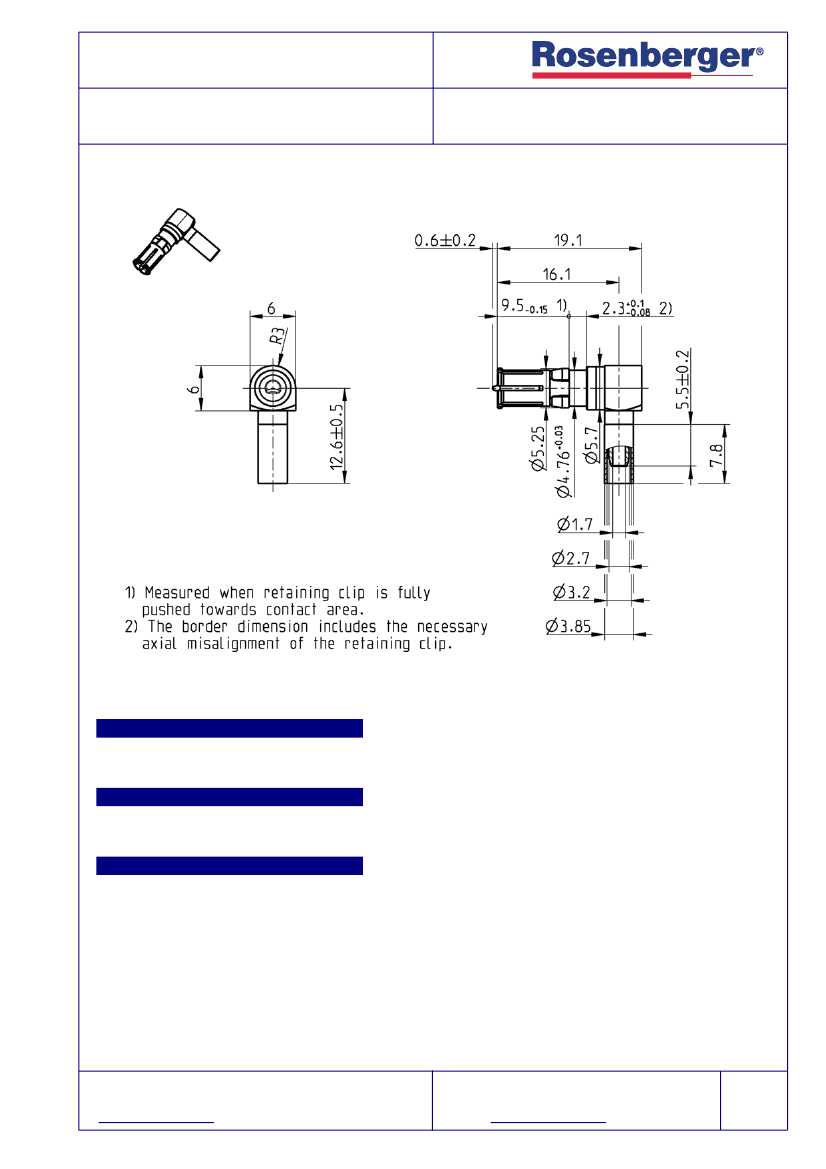

TECHNICAL DATA SHEET

D-SUB

Coax Insert

RIGHT ANGLE JACK

55K201-302H3

All dimensions are in mm; tolerances according to ISO 2768 m-H

Interface

According to

D-Sub

Documents

Assembly instruction

55 B

Material and plating

Connector parts

Center contact

Outer contact

Body

Clip

Dielectric

Crimping ferrule

Material

Brass

Beryllium copper

PTFE

Copper

Plating

Gold, min. 1.27 µm, over nickel

Nickel, 2.5-5 µm

Gold, 0.1 µm min.

RF_35/11.05/3.1

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

Fax: +49 8684 18-499

email: info@rosenberger.de

Page

1/2
