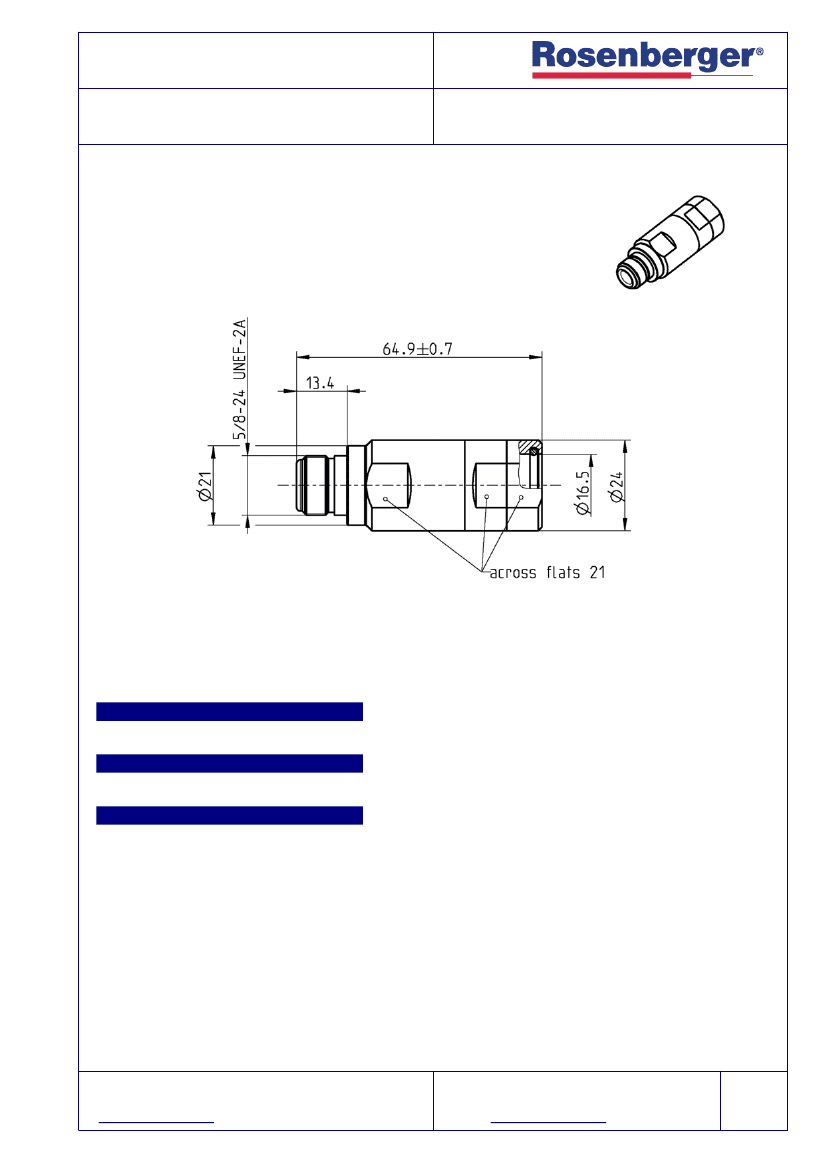

TECHNICAL DATA SHEET

N 50

STRAIGHT JACK

(1/2”R)

53K115-C03N1

All dimensions are in mm; tolerances according to ISO 2768 m-H

Interface

According to

IEC 60169-16, MIL-PRF-39012, CECC 22210

Documents

Assembly instruction

60 I18

Material and plating

Connector parts

Center contact

Outer contact

Body

Dielectric

Gasket

Material

Spring bronze

Brass

PTFE

Silicone

Plating

Silver, 3-6 µm

Flash white bronze over silver(e.g. Optargen®)

RF_35/12.04/3.0

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

Fax: +49 8684 18-499

email: info@rosenberger.de
