59S50F-500A4-K

Description
RF F Connector, Male, Panel Mount, Plug,
CategoryThe connector    The connector
File Size145KB,3 Pages
ManufacturerRosenberger
Websitehttps://www.rosenberger.com/
Download Datasheet Parametric View All

59S50F-500A4-K Overview

RF F Connector, Male, Panel Mount, Plug,

59S50F-500A4-K Parametric

Parameter NameAttribute value
MakerRosenberger
Reach Compliance Codecompliant
Body/casing typePLUG
Characteristic impedance50 Ω
Connector typeRF F CONNECTOR
Contact to complete cooperationGOLD (31) OVER NICKEL
Contact completed and terminatedGOLD (31) OVER NICKEL
Contact point genderMALE
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.24 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number59S50F-500A4
Installation methodSTRAIGHT
Maximum operating frequency6 GHz
OptionsGENERAL PURPOSE
Panel mountingYES
voltage standing wave ratio1.62
Base Number Matches1

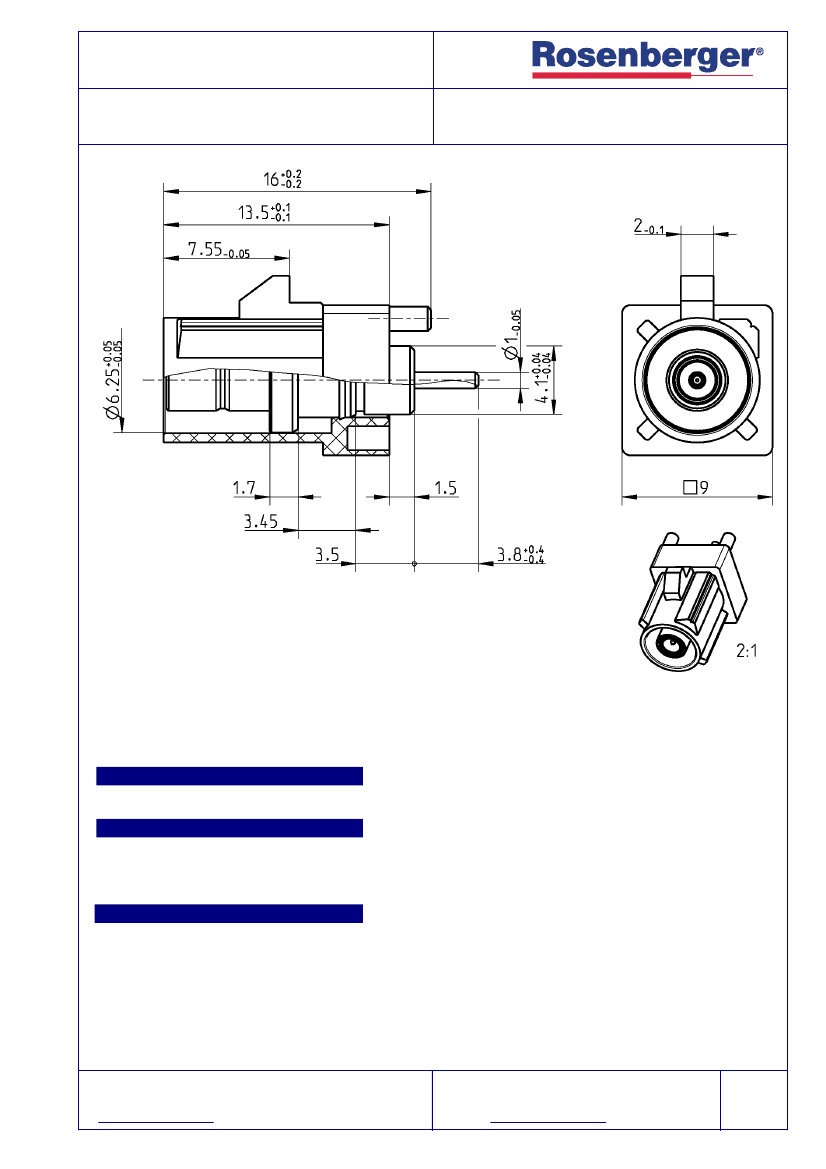

TECHNICAL DATA SHEET
FAKRA
Standard
BULKHEAD PLUG
59S50F-500A4-Y
All dimensions are in mm; tolerances according to ISO 2768 m-H
Y = Part number has to be accomplished by codification
Interface
According to
DIN 72594-1
Documents
Assembly instruction
Panel piercing
MA_59V051
MB_141
Material and plating
Connector parts
Center contact
Outer contact
Dielectric
Housing
Material
Brass
Brass
PTFE
PA 6.6T
Plating
Gold, min. 0.8 m, over chemical nickel
Nickel, 2.5-5 m
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
