KSC2881 NPN Epitaxial Silicon Transistor
July 2005
KSC2881
NPN Epitaxial Silicon Transistor
Power Amplifier
• Collector-Emitter Voltage : V
CEO
=120V
• Current Gain Bandwidth Productor : f
T
=120MHz
• Collector Dissipation : P
C
=1~2W in Mounted on Ceramic Board
• Complement to KSA1201
Marking
2 8
P Y
1
8 1
W W
Weekly code
Year code
h
FE
grage
SOT-89
1. Base 2. Collector 3. Emitter
Absolute Maximum Ratings
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
B
P
C
P
C
*
T
J
T
STG
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current
Base Current
T
a
= 25°C unless otherwise noted
Parameter
Value
120
120
5
800
160
500
1,000
150
-55 ~ 150
Units
V
V
V
mA
mA
mW
mW
°C
°C
Collector Power Dissipation
Junction Temperature
Storage Temperature
* Mounted on Ceramic Board (250mm
2
x 0.8mm)
Electrical Characteristics
T
Symbol
BV
CEO
BV
EBO
I
CBO
I
EBO
h
FE
V
CE
(sat)
V
BE
(on)
f
T
C
ob
a
=
25°C unless otherwise noted
Parameter
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cut-off Current
Emitter Cut-off Current
DC Current Gain
Collector-Emitter Saturation Voltage
Base-Emitter On Voltage
Current Gain Bandwidth Product
Output Capacitance
Test Condition
I
C
= 10µA, I
B
= 0
I
E
= 1mA, I
C
= 0
V
CB
= 120V, I
E
= 0
V
BE
= 5V, I
C
= 0
V
CE
= 5V, I
C
= 100mA
I
C
= 500mA, I
B
= 50mA
V
CE
= 5V, I
C
= 500mA
V
CE
= 5V, I
C
= 100mA
V
CB
= 10V, I
E
= 0, f = 1MHz
Min.
120
5
Typ.
Max.
Units
V
V
100
100
80
240
1.0
1.0
120
30
nA
nA
V
V
MHz
pF
©2005 Fairchild Semiconductor Corporation
1
www.fairchildsemi.com
KSC2881 Rev. B2
KSC2881 NPN Epitaxial Silicon Transistor
Typical Performance Characteristics

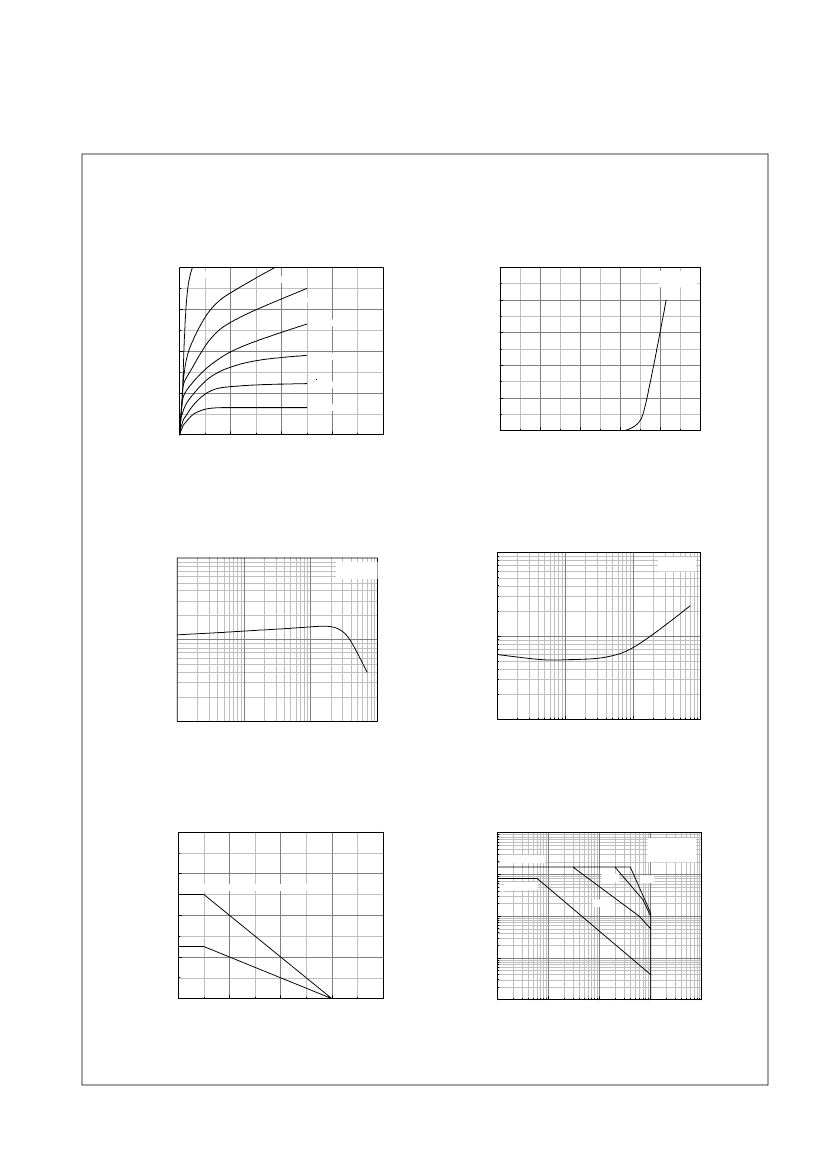

Figure 1. Static Characteristic
0.8
Figure 2. Base-Emitter On Voltage
1.0
I
B
= 50mA
I
B
= 20mA
V
CE
= 5V
I
C
[mA], COLLECTOR CURRENT
I
C
[mA], COLLECTOR CURRENT
I
B
= 10mA
0.6
I
B
= 5mA
0.8
0.6
0.4
I
B
= 3mA
0.4
I
B
= 2mA
0.2
I
B
= 1mA
0.2
0.0
0
4
8
12
16
0.0
0.0
0.2
0.4
0.6
0.8
1.0
V
CE
[V], COLLECTOR-EMITTER VOLTAGE
V
BE
[mV], SATURATION VOLTAGE
Figure 3. DC Current Gain
Figure 4. Collector-Emitter Saturation Voltage
1
1000
V
CE
(sat) [V], SATURATION VOLTAGE
V
CE
= 5 V
I
C
= 10 I
B
h
FE
, DC CURRENT GAIN
100
0.1
10
0.01
1
10
100
1000
1
10
100
1000
I
C
[mA], COLLECTOR CURRENT
I
C
[mA], COLLECTOR CURRENT
Figure 5. Power Derating
1.6
Figure 6. Safe Operating Area
10000
1.2
Mounted on Ceramic Board (250 mm x 0.8 mm)
2
I
C
[mA], COLLECTOR CURRENT
P
C
[W], POWER DISSIPATION
I
C
MAX. (Pulse)
1000
Ta = 25 C
Single Pulse
10 ms
1 ms
o
I
C
MAX. (DC)
100 ms
100
0.8
0.4
10
0.0
0
50
o
100
150
200
1
0.1
1
10
100
1000
Ta [ C], AMBIENT TEMPERATURE
V
CE
[V], COLLECTOR-EMITTER VOLTAGE
KSC2881 Rev. B2
