74ACT11000D-T datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> 74ACT11000D-T

Preview

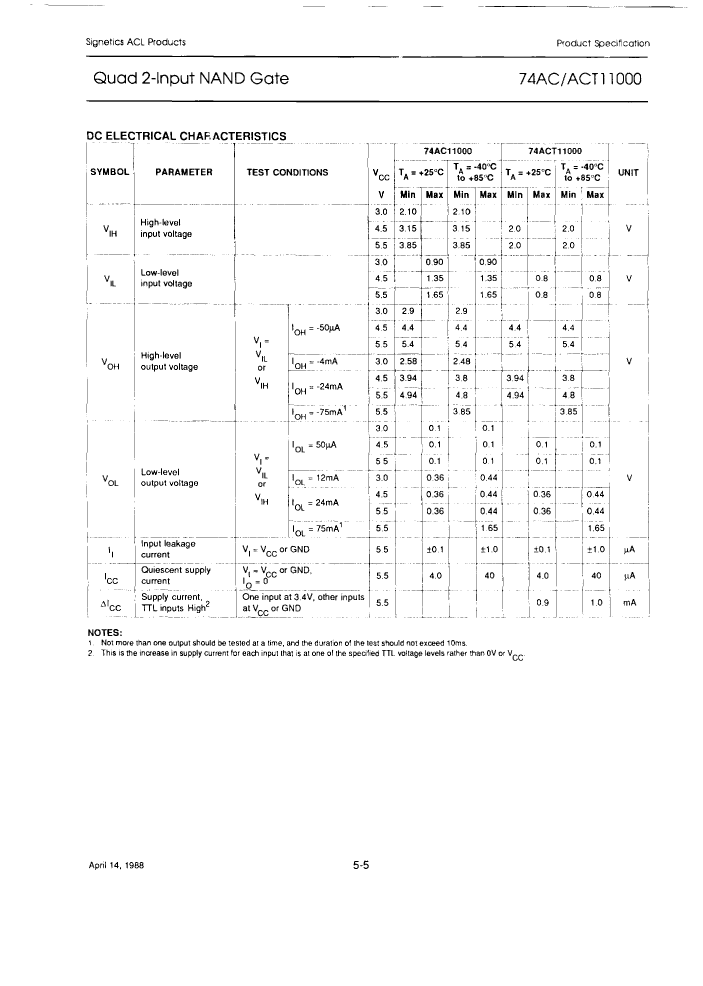

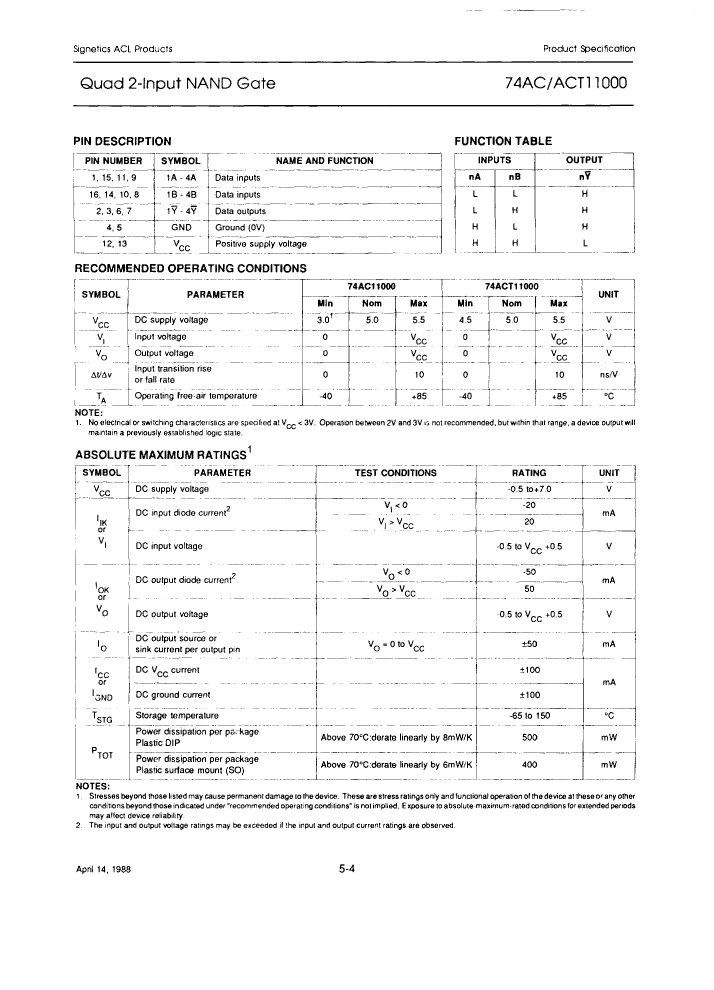

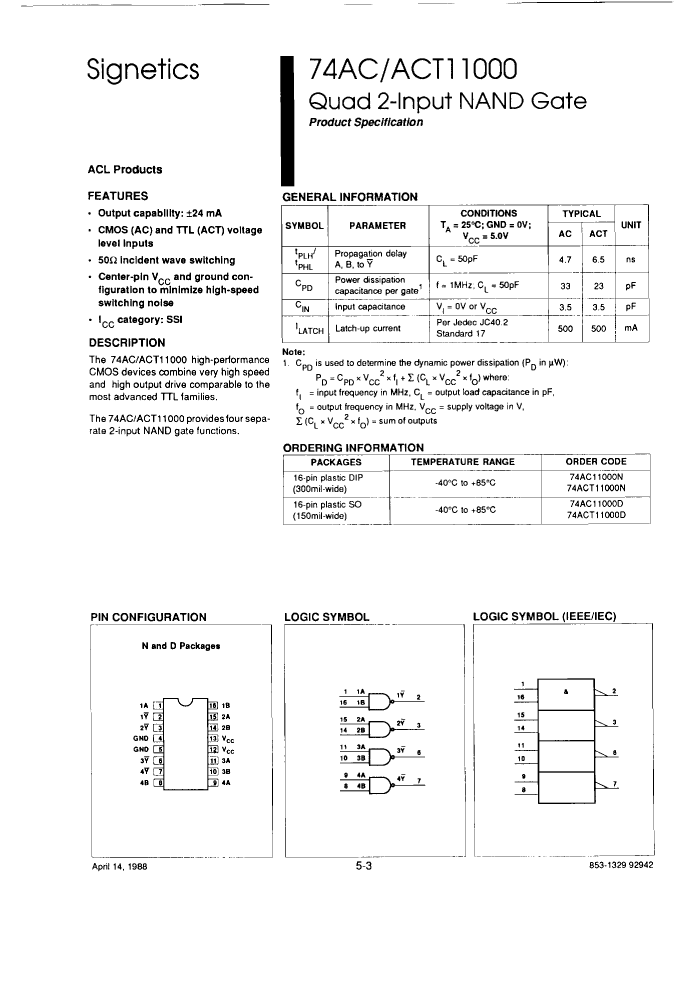

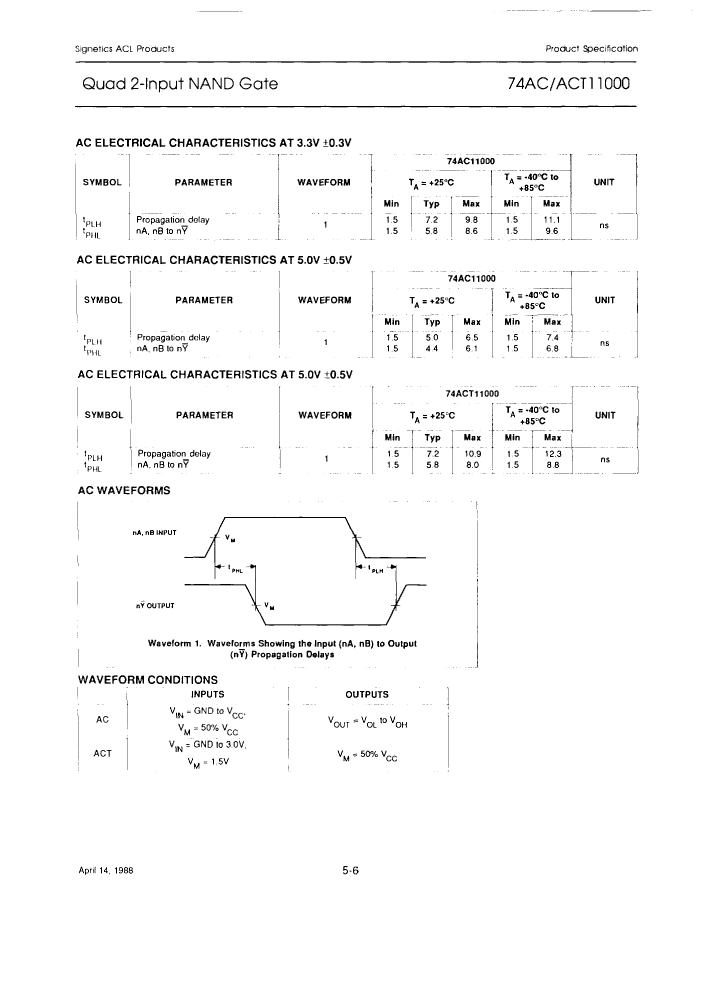

74ACT11000D-T: DescriptionNAND Gate, ACT Series, 4-Func, 2-Input, CMOS, PDSO16; Categorylogic logic; File Size126KB，5 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

74ACT11000D-T Overview

NAND Gate, ACT Series, 4-Func, 2-Input, CMOS, PDSO16

74ACT11000D-T Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
series	ACT
JESD-30 code	R-PDSO-G16
Logic integrated circuit type	NAND GATE
Number of functions	4
Number of entries	2
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	8.8 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

74ACT11000D-T Related Products

	74ACT11000D-T	74ACT11000D	74ACT11000N	74AC11000D	74AC11000D-T	74AC11000N
Description	NAND Gate, ACT Series, 4-Func, 2-Input, CMOS, PDSO16	NAND Gate, ACT Series, 4-Func, 2-Input, CMOS, PDSO16	NAND Gate, ACT Series, 4-Func, 2-Input, CMOS, PDIP16	NAND Gate, AC Series, 4-Func, 2-Input, CMOS, PDSO16	NAND Gate, AC Series, 4-Func, 2-Input, CMOS, PDSO16	NAND Gate, AC Series, 4-Func, 2-Input, CMOS, PDIP16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
series	ACT	ACT	ACT	AC	AC	AC
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16
Logic integrated circuit type	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE
Number of functions	4	4	4	4	4	4
Number of entries	2	2	2	2	2	2
Number of terminals	16	16	16	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
propagation delay (tpd)	8.8 ns	8.8 ns	8.8 ns	9.6 ns	9.6 ns	9.6 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1
Maker	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	-
