DV74ALS1000AN datasheet, PDF - EEWORLD Datasheet

DV74ALS1000AN: DescriptionNAND Gate, ALS Series, 4-Func, 2-Input, TTL, PDIP14, PLASTIC, DIP-14; Categorylogic logic; File Size80KB，2 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

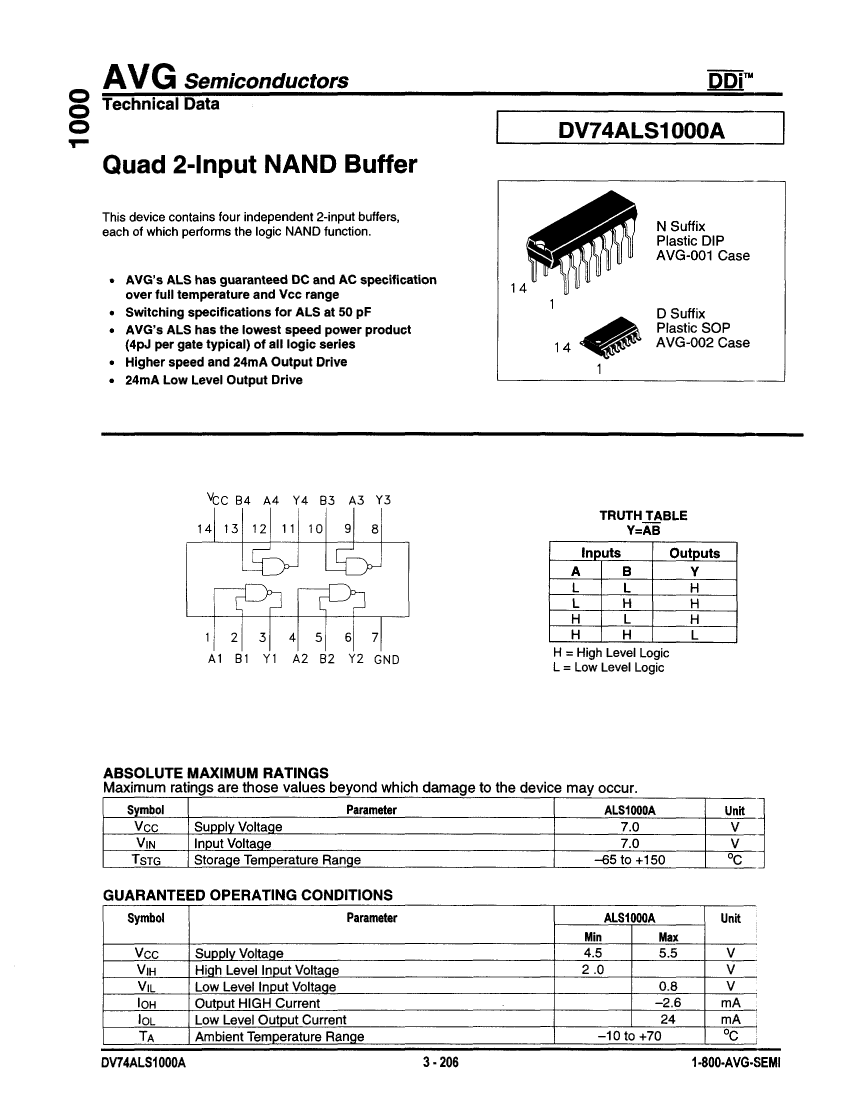

DV74ALS1000AN Overview

NAND Gate, ALS Series, 4-Func, 2-Input, TTL, PDIP14, PLASTIC, DIP-14

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	DIP
package instruction	DIP,
Contacts	14
Reach Compliance Code	unknown
series	ALS
JESD-30 code	R-PDIP-T14
length	18.86 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	NAND GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE

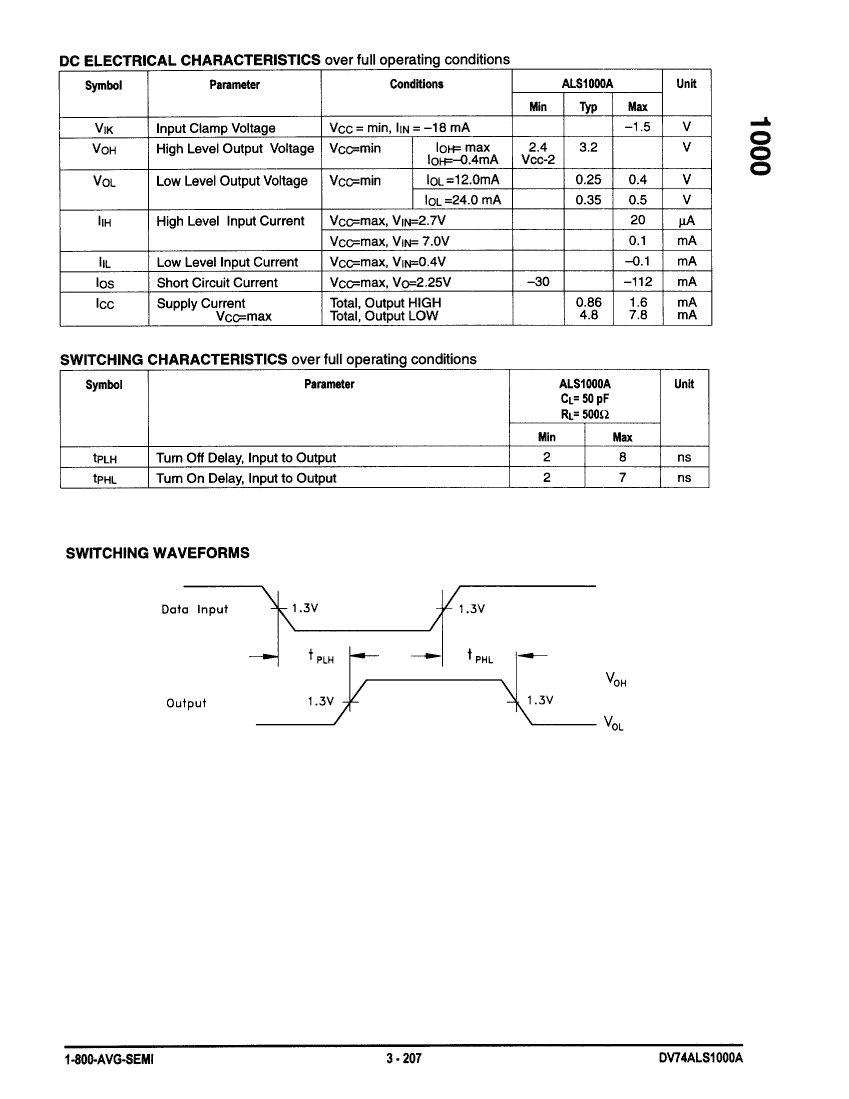

Maximum supply current (ICC)	7.8 mA
propagation delay (tpd)	8 ns
Certification status	Not Qualified
Maximum seat height	4.69 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

	DV74ALS1000AN	DV74ALS1000AD
Description	NAND Gate, ALS Series, 4-Func, 2-Input, TTL, PDIP14, PLASTIC, DIP-14	NAND Gate, ALS Series, 4-Func, 2-Input, TTL, PDSO14, PLASTIC, SOP-14
Maker	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	DIP	SOIC
package instruction	DIP,	SOP,
Contacts	14	14
Reach Compliance Code	unknown	unknown
series	ALS	ALS
JESD-30 code	R-PDIP-T14	R-PDSO-G14
length	18.86 mm	8.65 mm
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	NAND GATE	NAND GATE
Number of functions	4	4
Number of entries	2	2
Number of terminals	14	14
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE
Maximum supply current (ICC)	7.8 mA	7.8 mA
propagation delay (tpd)	8 ns	8 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.69 mm	1.75 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
technology	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
width	7.62 mm	3.9 mm
Base Number Matches	1	1
